Equipment Performance & Features
🎯
Automatic Positioning:
Servo motor controls the positioning mechanism. The system automatically runs the mechanism based on product specifications for precision.
🔍
Edge-finding:
Fiber-optic sensors automatically detect the cutting knife position and distance, removing the need for manual glass measurement.
✂️
Synchronized Cutting:
Upper and lower cutters operate simultaneously with automatic oil filling. Proportional valves adjust pressure automatically based on glass thickness input.
🔥
Automatic Separation:
Heating tubes move below the cutting line to facilitate separation. The system uses encoder feedback to signal the rubberized blade for the final cut once the set distance is reached.
Frequently Asked Questions
What is the maximum glass size this machine can handle?
The machine can process laminated glass with a maximum size of up to 3700mm.

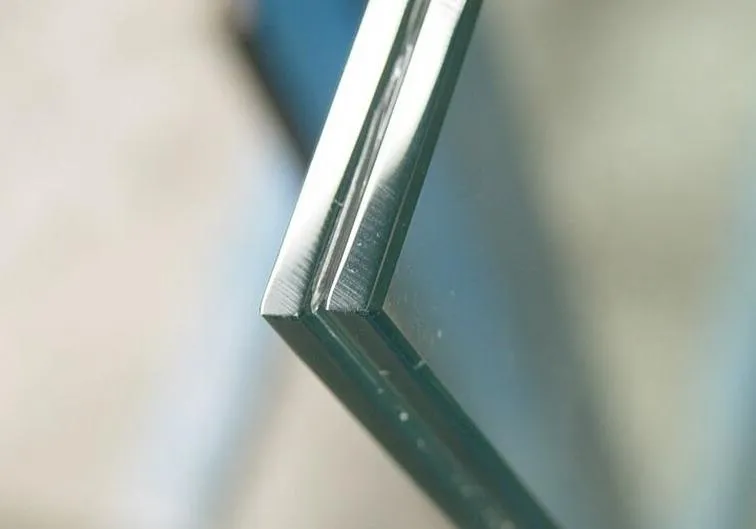

What thicknesses of laminated glass are compatible?
It supports laminated glass ranging from 3+3mm up to 10+10mm thickness.

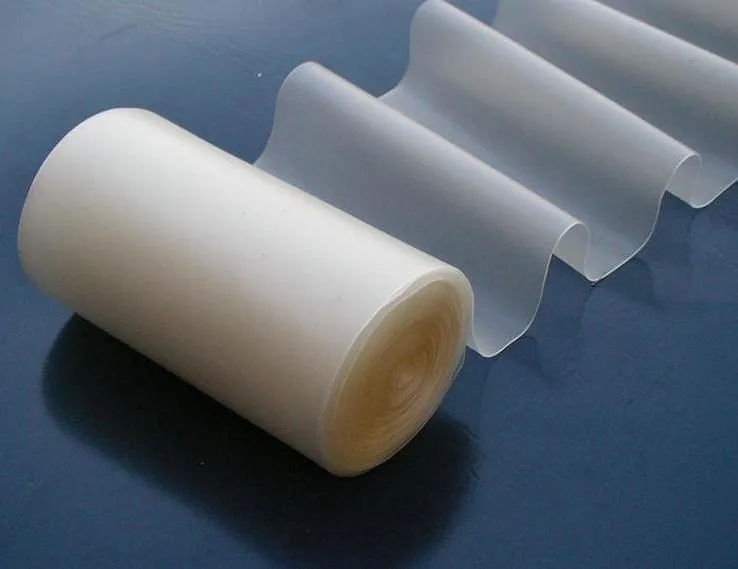

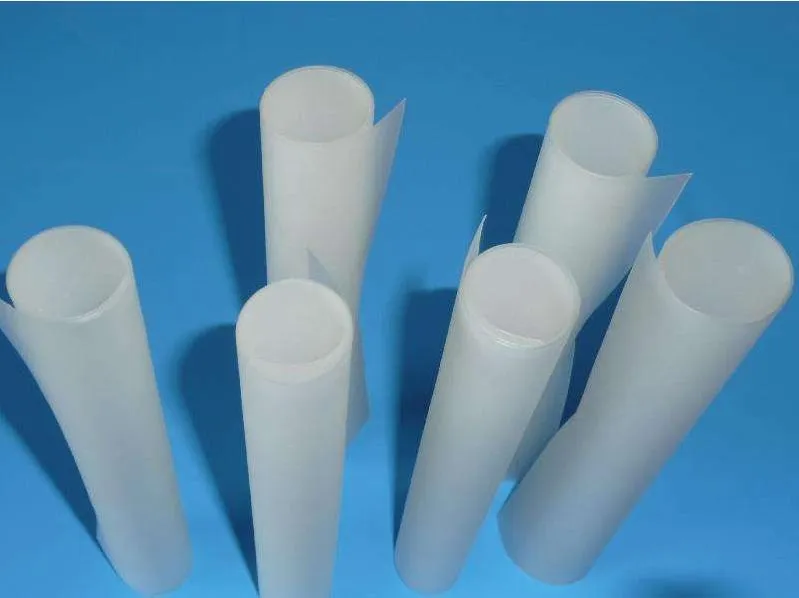

Does the machine support PVB and EVA films?
Yes, it is designed to cut glass with film thicknesses between 0.38mm and 1.52mm for both PVB and EVA materials.
How does the automatic positioning system work?
The system uses a servo motor combined with fiber-optic sensors for automatic edge-finding and positioning, eliminating manual measurements.
What safety features are integrated into the equipment?
The machine is equipped with an emergency stop button, overload protection, and safety sensors to ensure secure operation.
How is the cutting pressure controlled?
A proportional valve automatically adjusts the cutting pressure of the lower knife based on the glass thickness input entered into the control interface.
