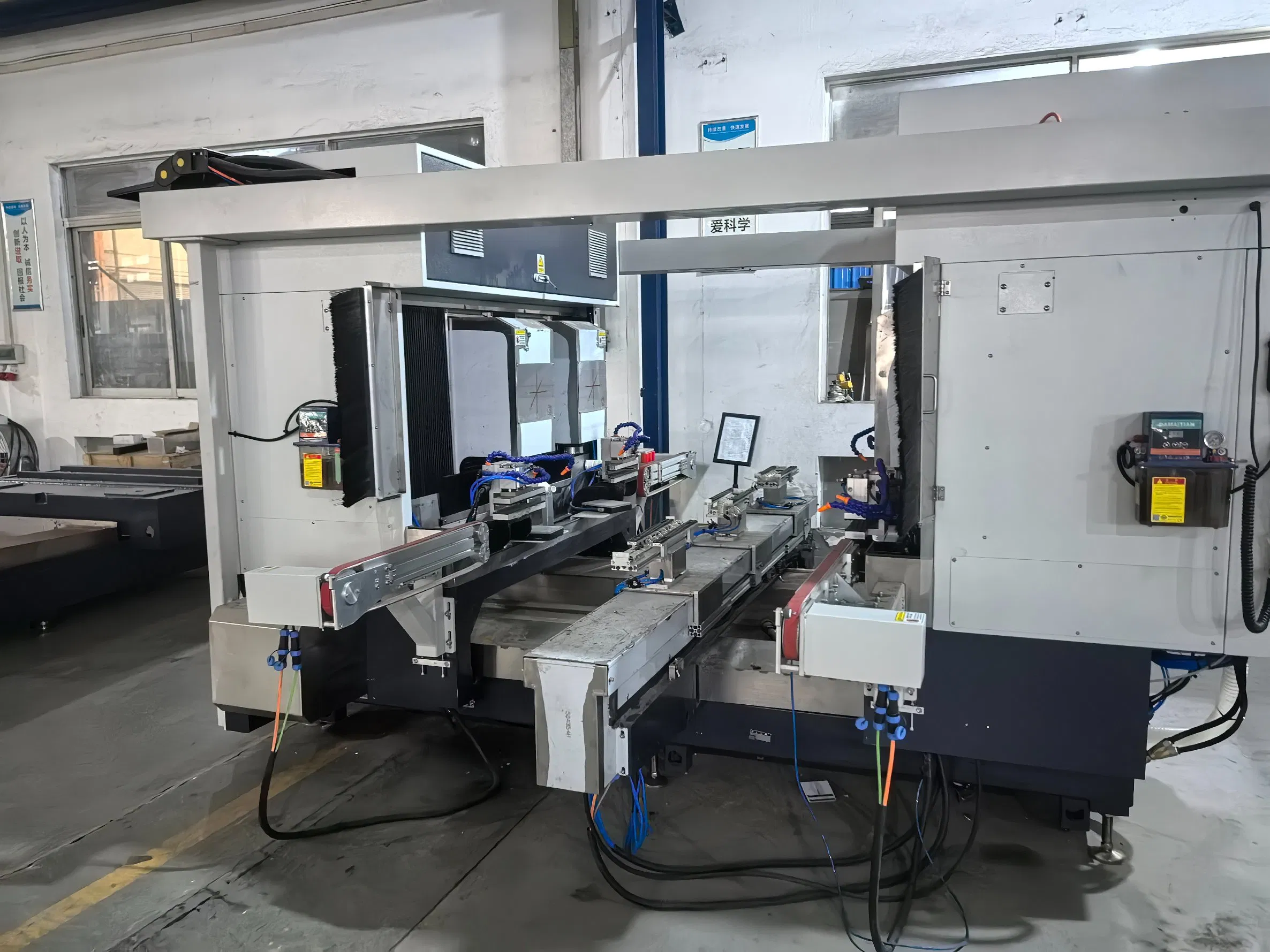

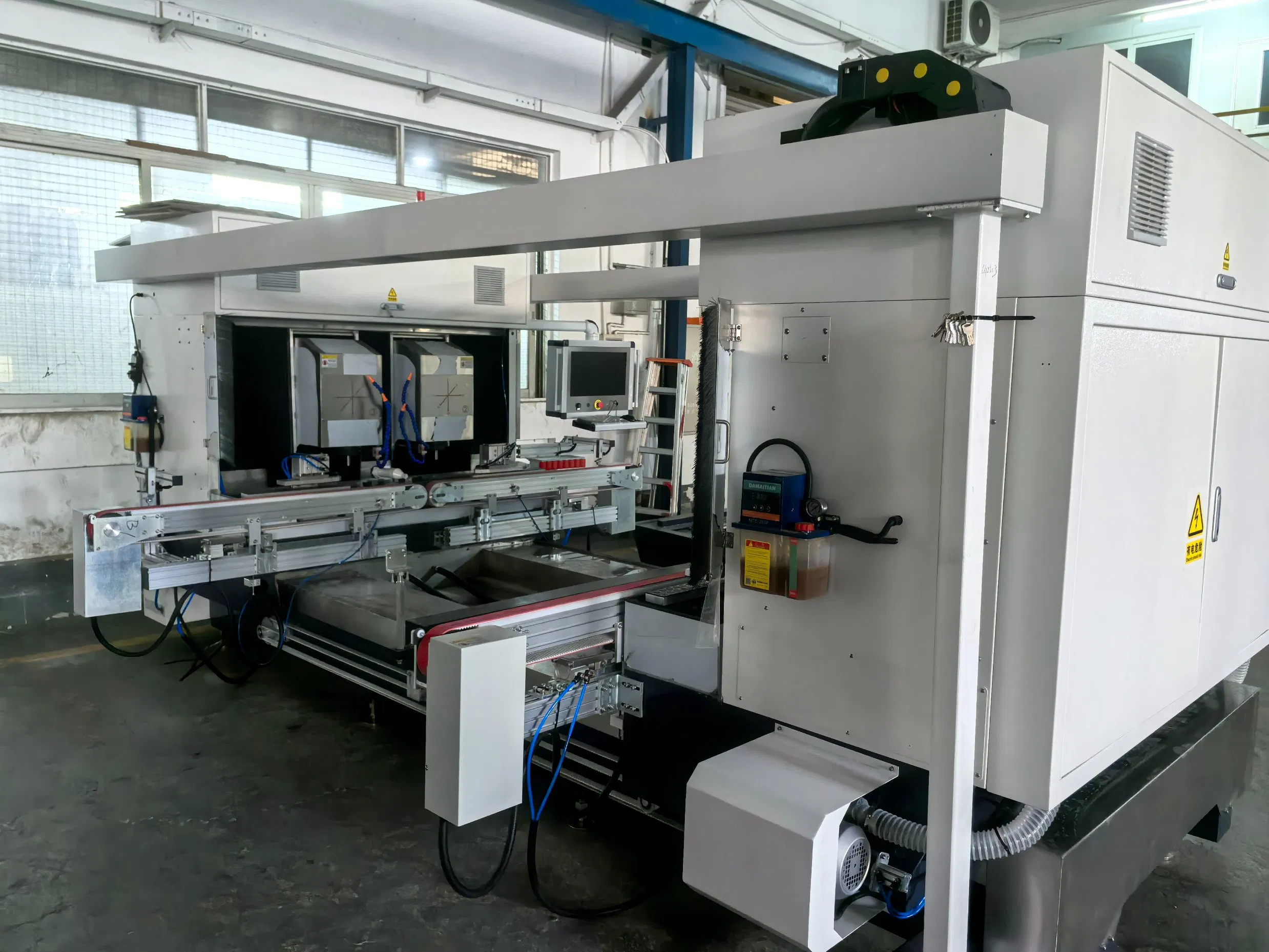

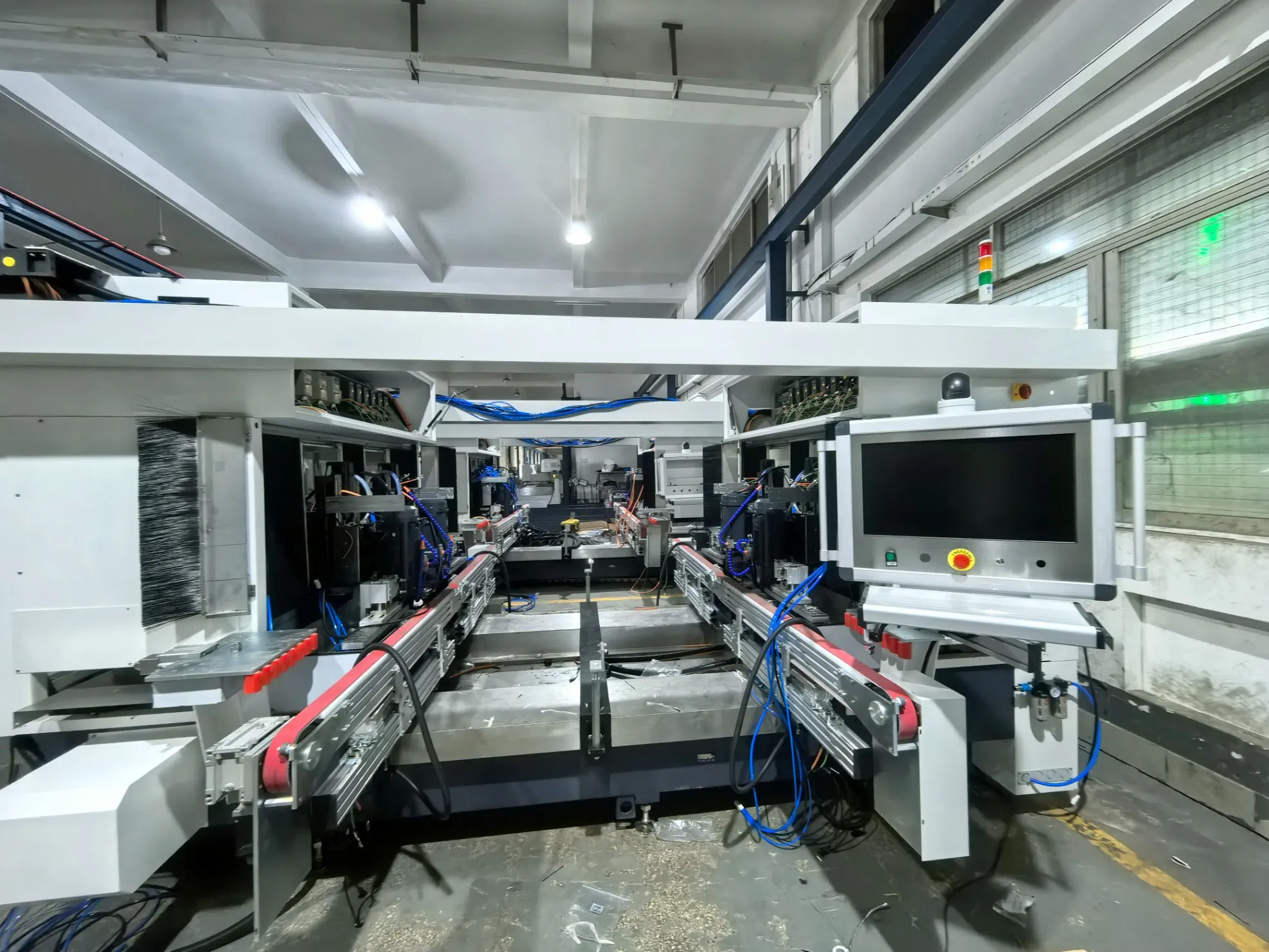

Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
1 / 5
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging
Automatic Conveyor Glass Corner Grinding Machine for Precision Edging

Automatic Conveyor Glass Corner Grinding Machine for Precision Edging

Customization: Available
Certification: CE, ISO, UR
Processing Speed: 25-30 m/min
Send Inquiry

Product Description

Basic Information

Model NO.
DRT-2515
Processing Thickness
3-19 mm
Voltage
380V
Warranty
12 Months
Machine Color
Optional
Origin
China
HS Code
8464201000
Capacity
200 sets / Year

Packaging & Delivery

Package Size
550.00cm * 220.00cm * 210.00cm
Gross Weight
4000.000kg

Product Description

Advanced CNC Glass Sanding Machine for Precision Finishing
CNC Fully Automatic Shaped Glass Edge Grinding Center / Sintered Stone Edge Grinding Machine / Sintered Stone Processing Equipment
Application Scope: Household appliance glass / architectural glass / shower glass / electronic scale glass / refrigerator glass / mirrors / sintered stone / microcrystalline glass, etc.
Equipment Description: The processing can be performed in steps of rough grinding, fine grinding, and polishing; The system automatically adjusts the processing speed for various shapes and curved sections; The human-machine interface is simple and easy to learn.

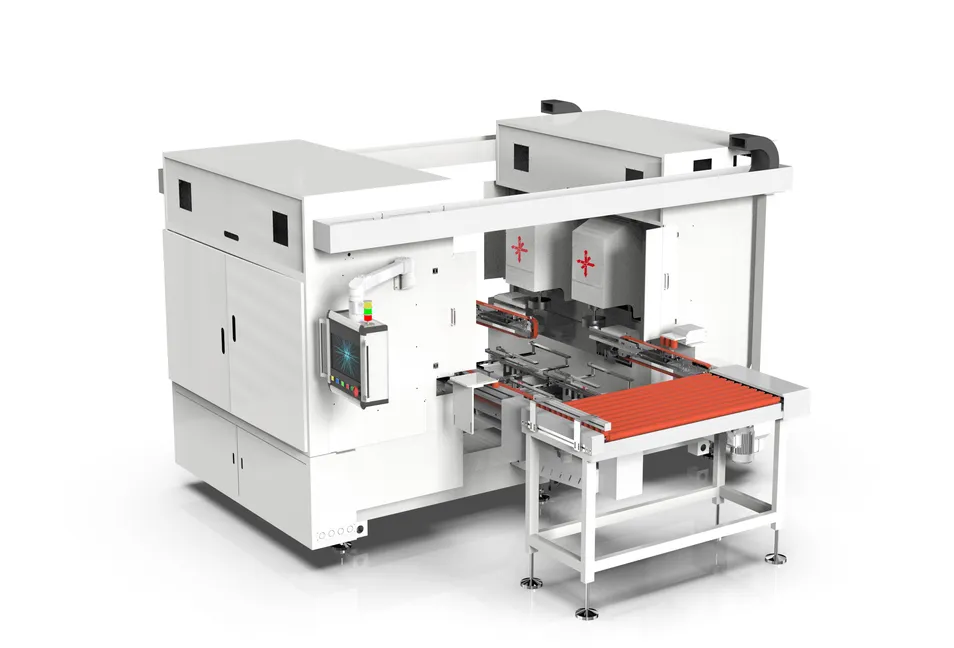

Advanced CNC Glass Sanding Machine

Key Configurations

Axis Movement The gantry design is composed of 4 axes: X-axis, Y1-axis, Y2-axis and Z-axis. The gantry bridge is driven by two servo motors Y and Y1 synchronization, and all axis equipped with ball screw and linear guides.
Auto Lubrication System Machine is equipped with an automatic lubrication system to effectively ensure all the movement parts been well lubricated all the time.
Spindle Cooler Independent external industrial cooling system, through the heat exchanger to achieve a constant temperature of the machining spindle, that works efficiently and prolongs the service life of the spindle.
Control & Interface Windows operation interface, containing Chinese and English languages. Perfect combination of experience value compensation and real-time pressure compensation for mirror polishing effect.

Machine & Parts Display

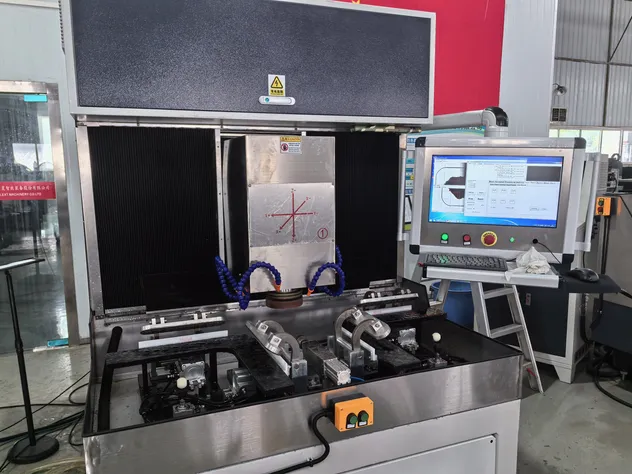

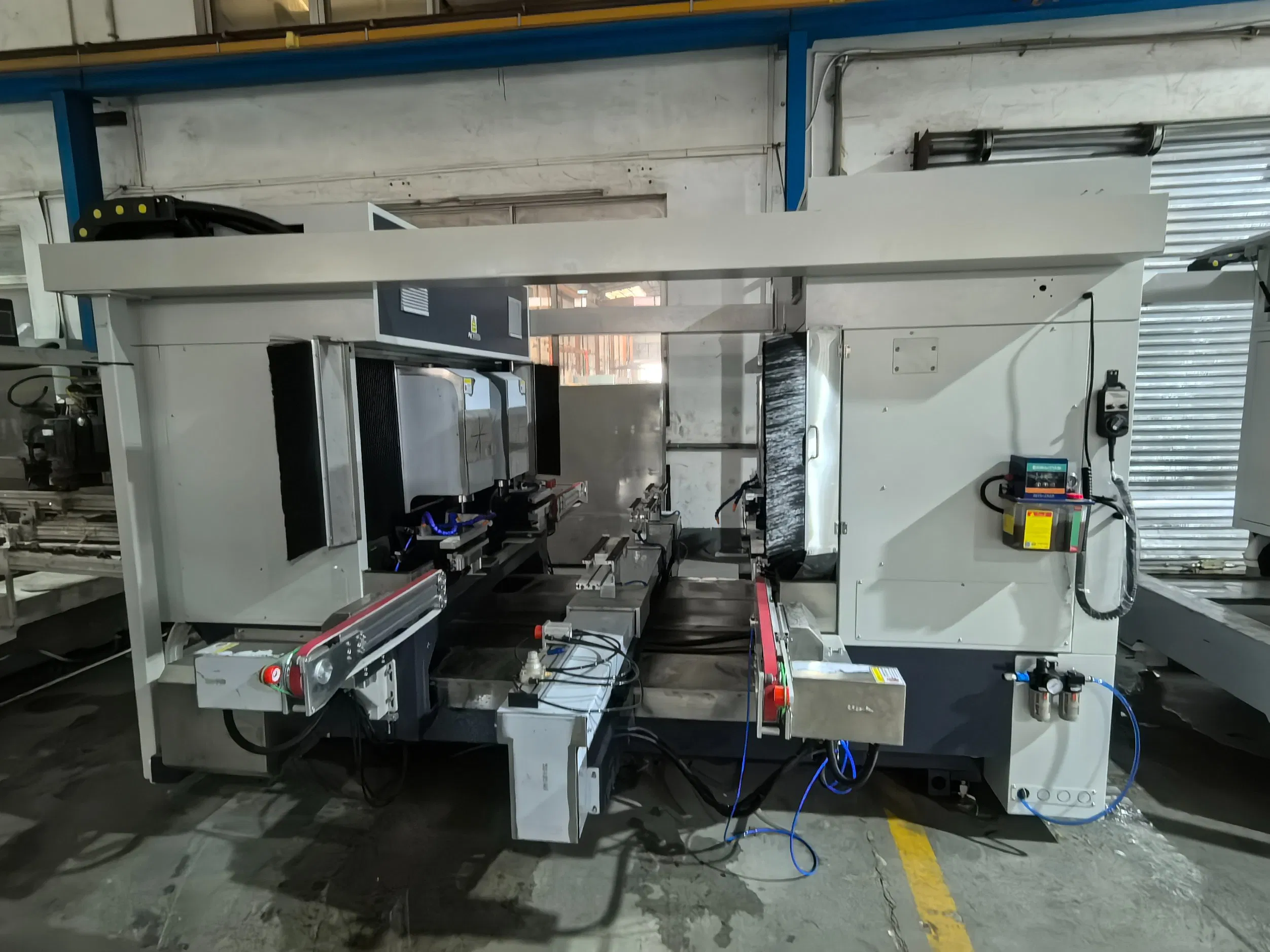

Machine Picture

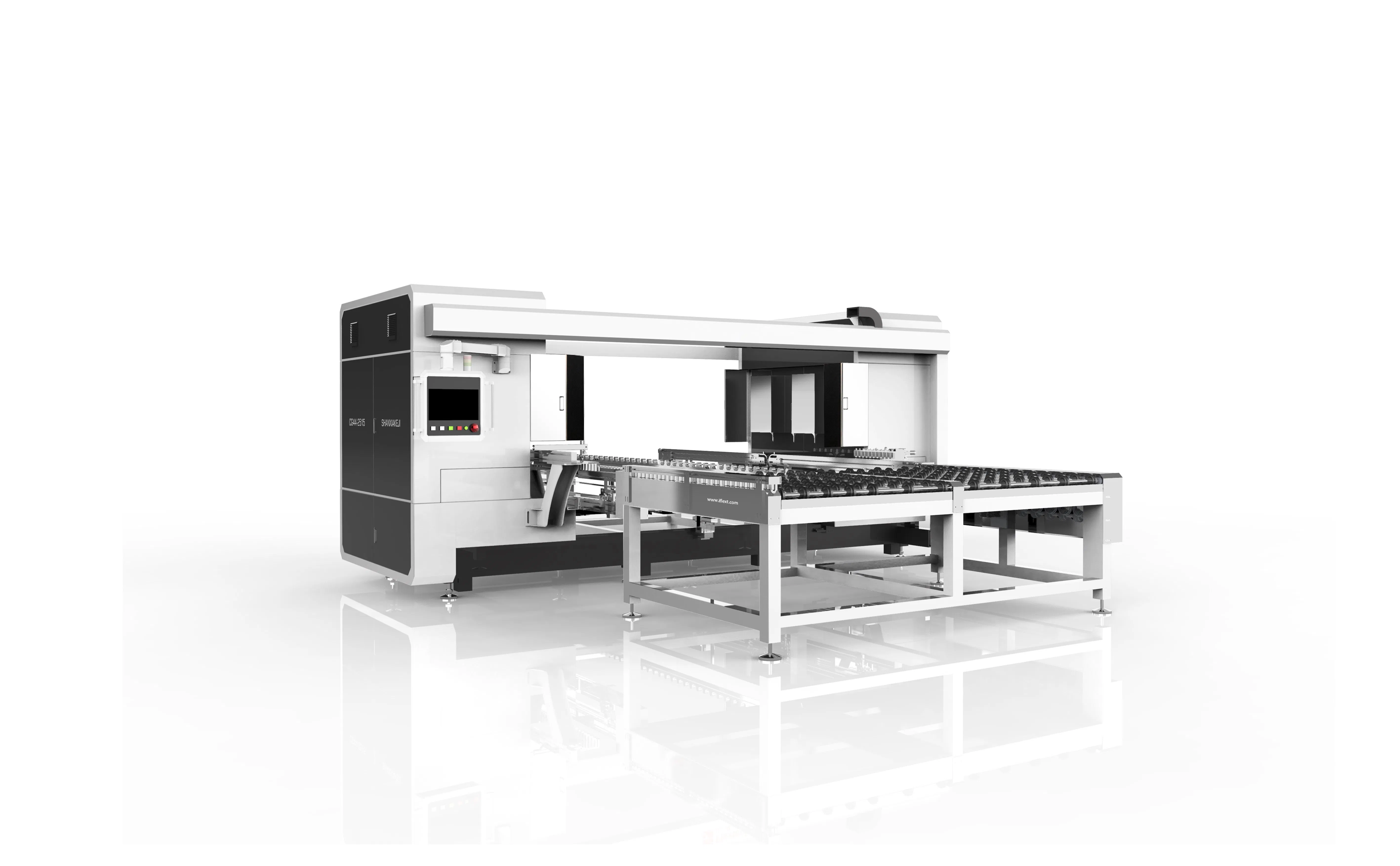

Machine Overview

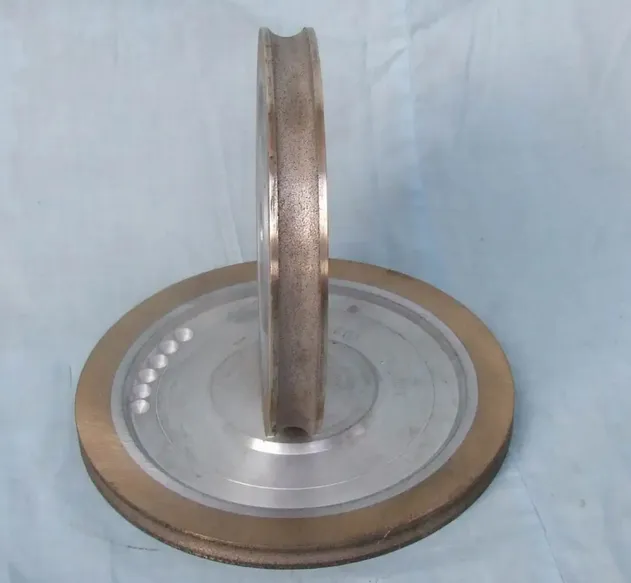

Sanding Tools

Sanding Tools

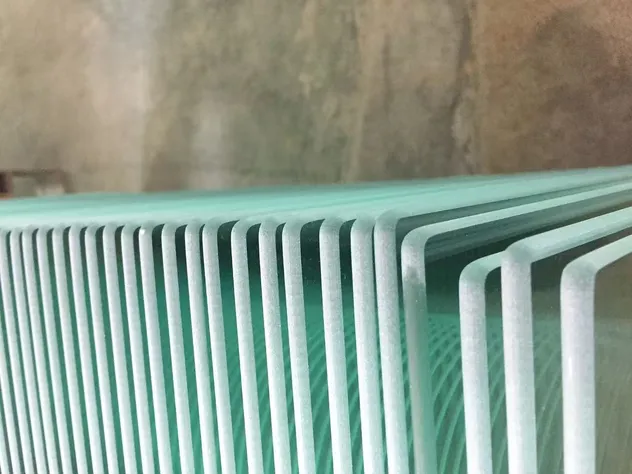

Final Products

Final Products

Technical Specifications

Model DT44-2515 Transfer Mode Conveyor
Spindle Qty 4 Spindles 4 Stations Install Power 37KW
Workable Size Max: 2500*1500; Min: 250*550 BT30 Spindle Including (Option)
Glass Thickness 3-19mm Machine Weight 5500Kg
Radius R1-R30mm / C1-C10 Dimensions 5300*4700*2150mm
Positioning CCD Camera Accuracy ±0.05mm

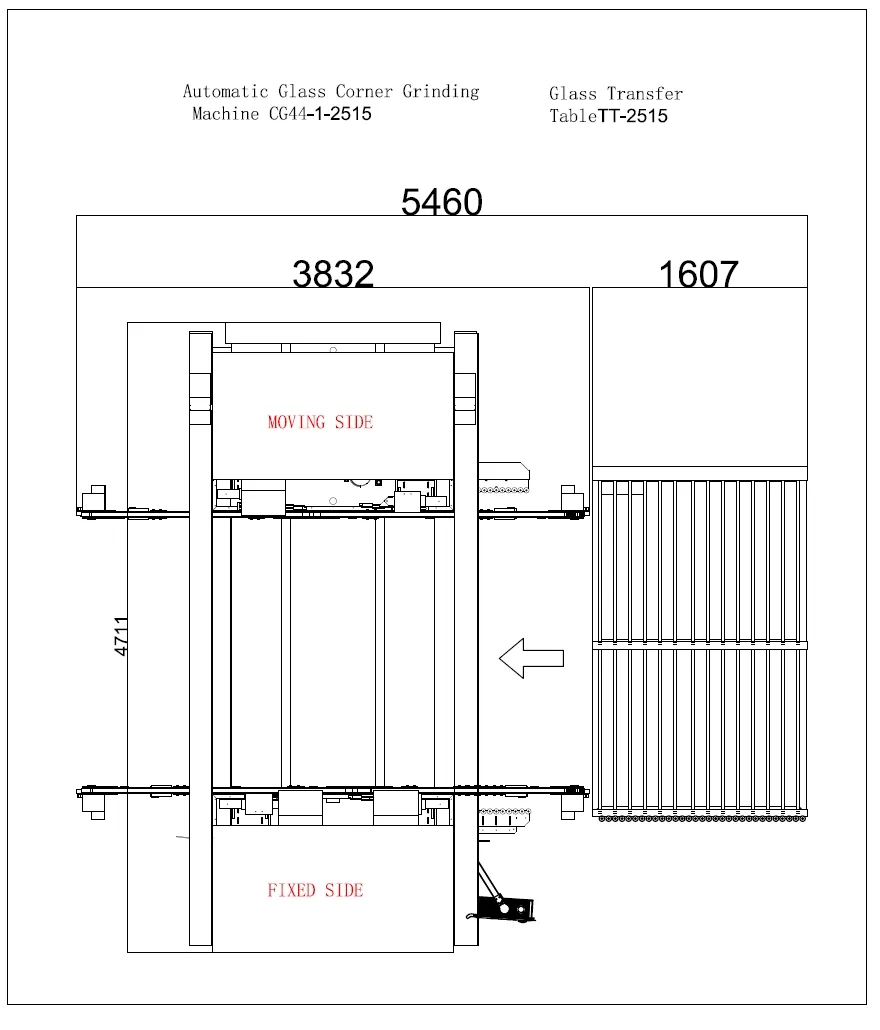

Drawings and Dimensions

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Professional Manufacturer

We are a leading manufacturer of glass equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

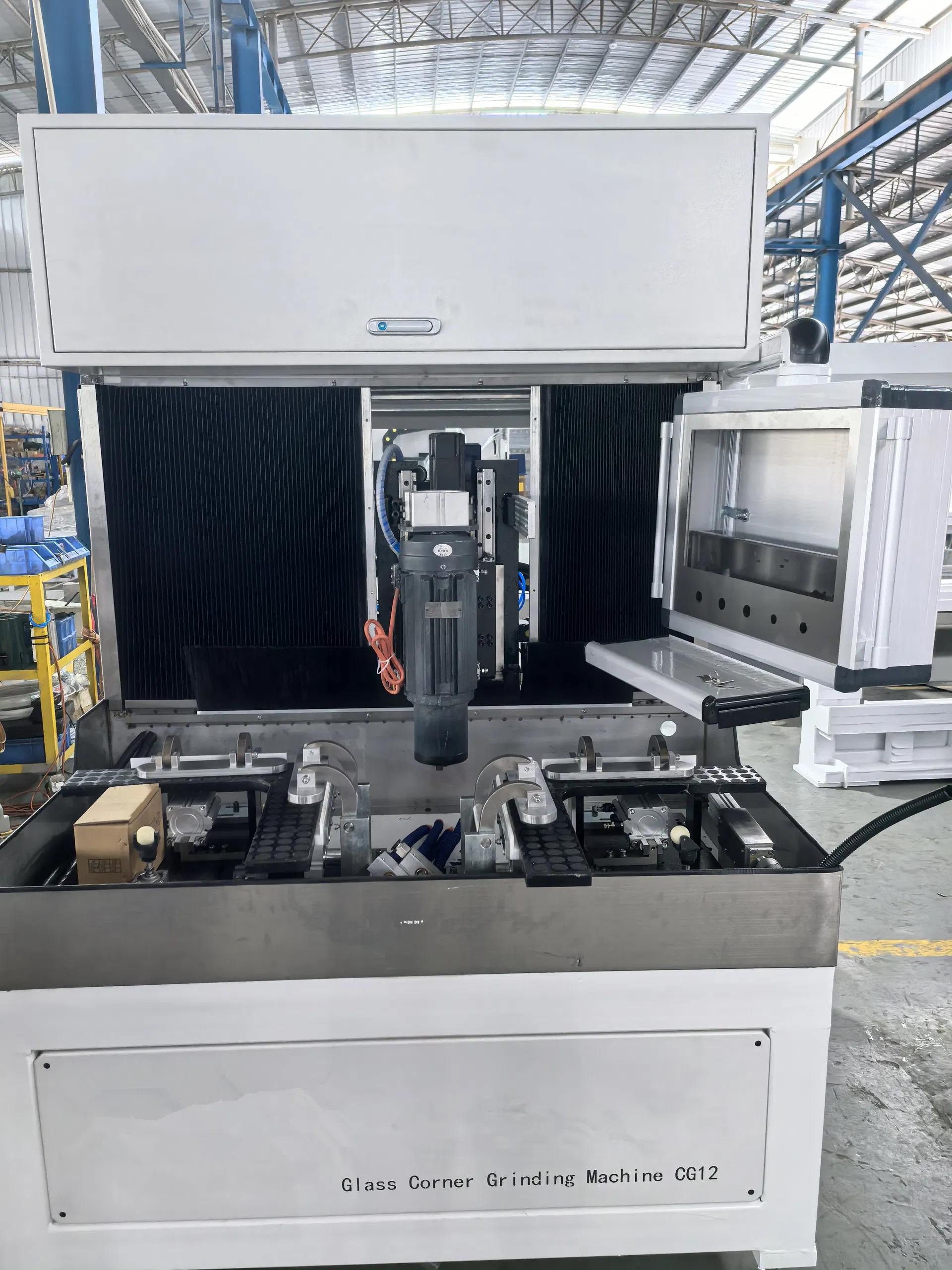

Factory Overview

Frequently Asked Questions

Q: What’s the lead time for orders? A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas? A: Yes, we provide 24/7 technical assistance and have partnered service centers in key regions.
Q: Can I request customized configurations? A: Absolutely! We offer tailored designs to meet specific project requirements and equipment sizes.
Q: What documents do you provide for export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, COC, and more.
Q: How do I place an order? A: Please contact our team via our inquiry form for a detailed quote, then confirm with a formal Purchase Order.
Q: What certifications do your machines have? A: Our machinery is fully certified with ISO 9001, CE, and GOST standards to ensure global quality compliance.
