Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
1 / 5
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table
Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table

Automatic CNC Glass Cutting Table Machine and Laminated Glass Cutting Table

Customization: Available
Certification: CE, ISO
Cutting Method: Diamond Wheel Cutting
Send Inquiry

Product Description

Basic Info.
Model NO.
BLCM-2721
Maximum Cutting Thickness
19mm
Power Supply
380V
Safety Features
Emergency Stop Button, Overload Protection
Max. Glass Size
2700*2100mm
Max. Speed
180m/Min
Air Pressure
0.6MPa
Table Height
880+30mm
Loading Speed
15-40 Seconds
Package Size
1500.00cm * 2000.00cm * 1000.00cm
Product Description

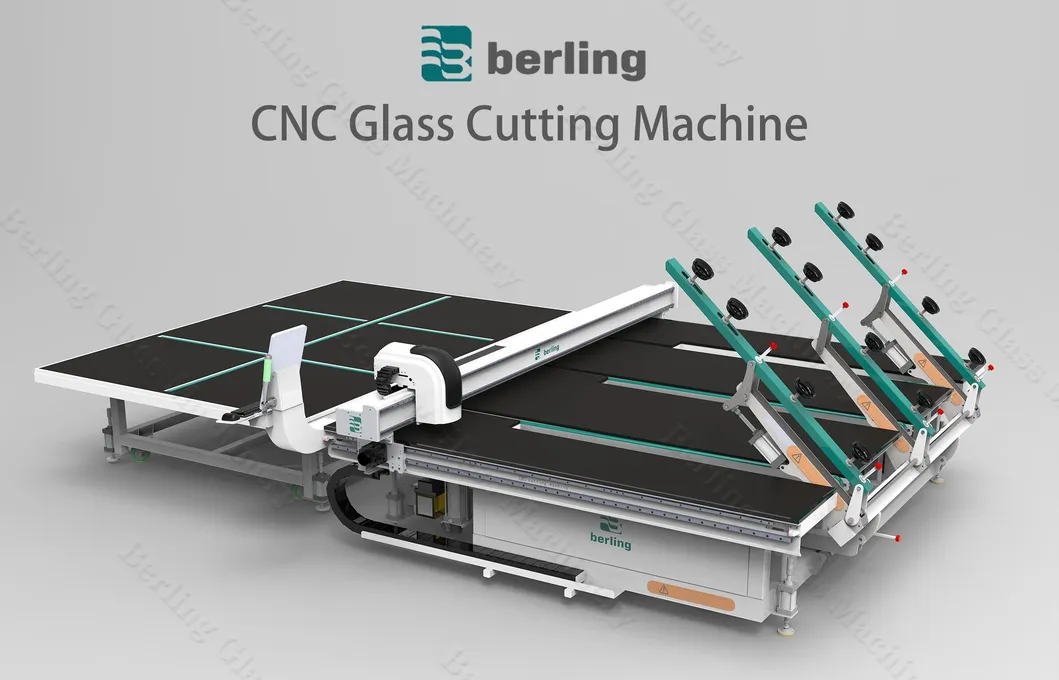

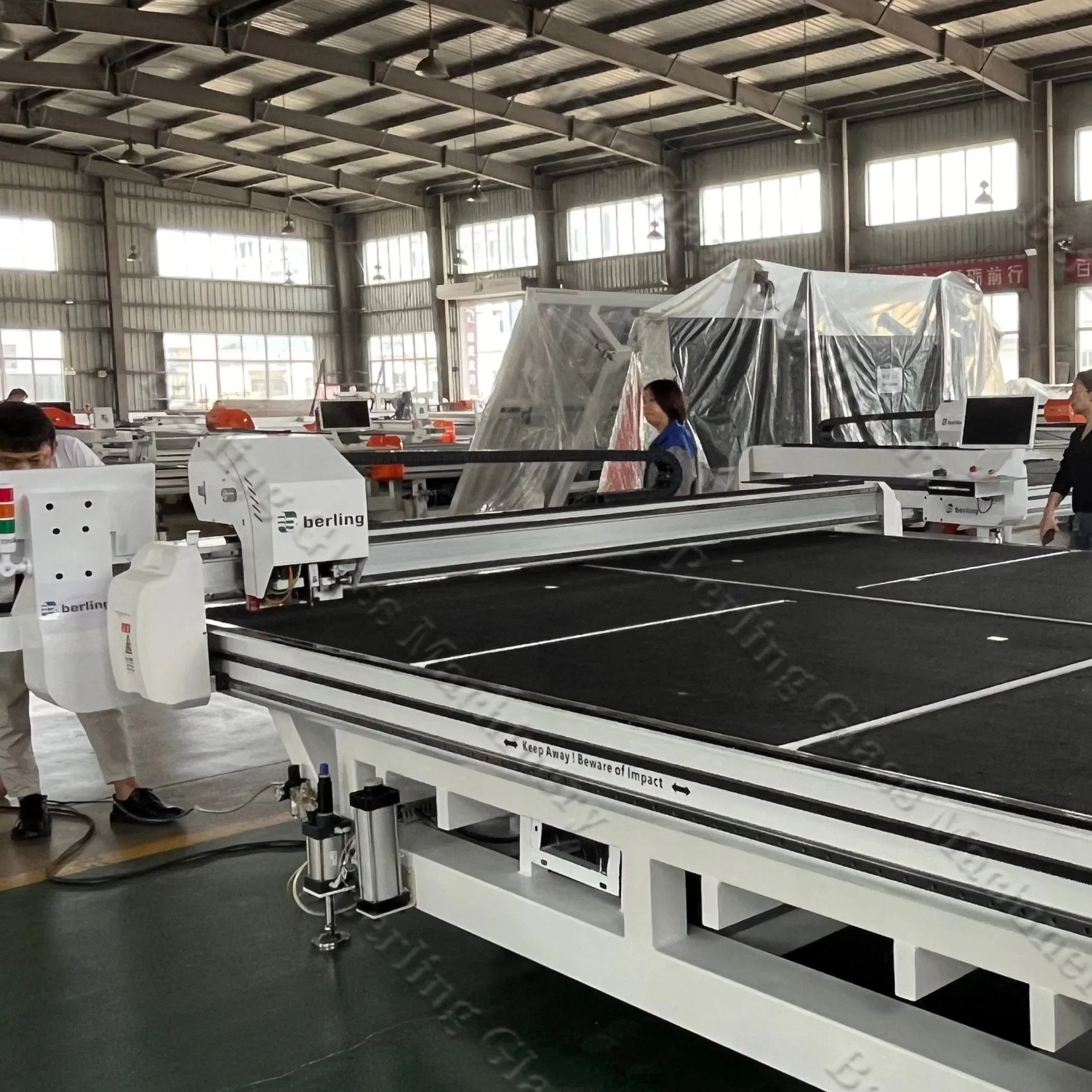

Automatic CNC Glass Cutting Table

The CNC glass cutting machine is a glass processing equipment integrating high precision, automation and intelligence. It uses computer numerical control technology to achieve precise cutting of straight lines, curves and complex patterns. It is suitable for various materials such as flat glass and tempered glass, and is widely used in architectural decoration and photovoltaics. It features a positioning accuracy of ±0.01mm, a fully automated production process, and intelligent layout optimization.

Product Parameters
Model Max. glass size Thickness Dimensions (L*W*H) Max. speed Air pressure Table height Loading Speed
BLCM-24202440*2000mm3~19mm3100*2400*1600mm180m/min0.6MPa880±30mm15-40s
BLCM-26212600*2100mm3~19mm3100*2400*1600mm180m/min0.6MPa880±30mm15-40s
BLCM-27212700*2100mm3~19mm5700*4860*1600mm180m/min0.6MPa880±30mm15-40s
BLCM-38263660*2440mm3~19mm5700*4860*1600mm180m/min0.6MPa880±30mm15-40s
BLCM-38293660*2800mm3~19mm6000*4400*1630mm180m/min0.6MPa880±30mm15-40s
Detailed Photos & Features

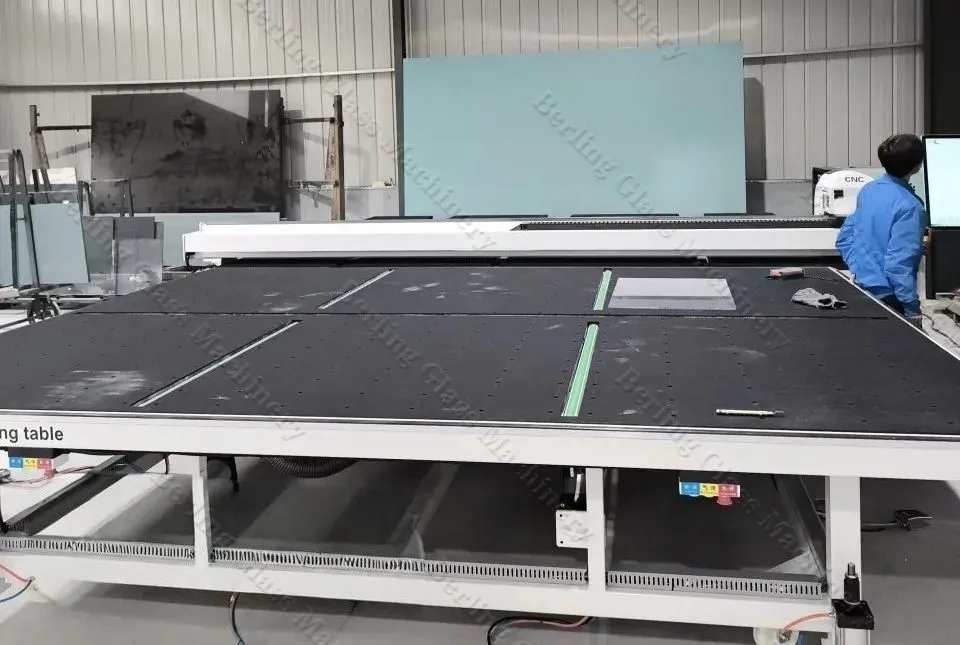

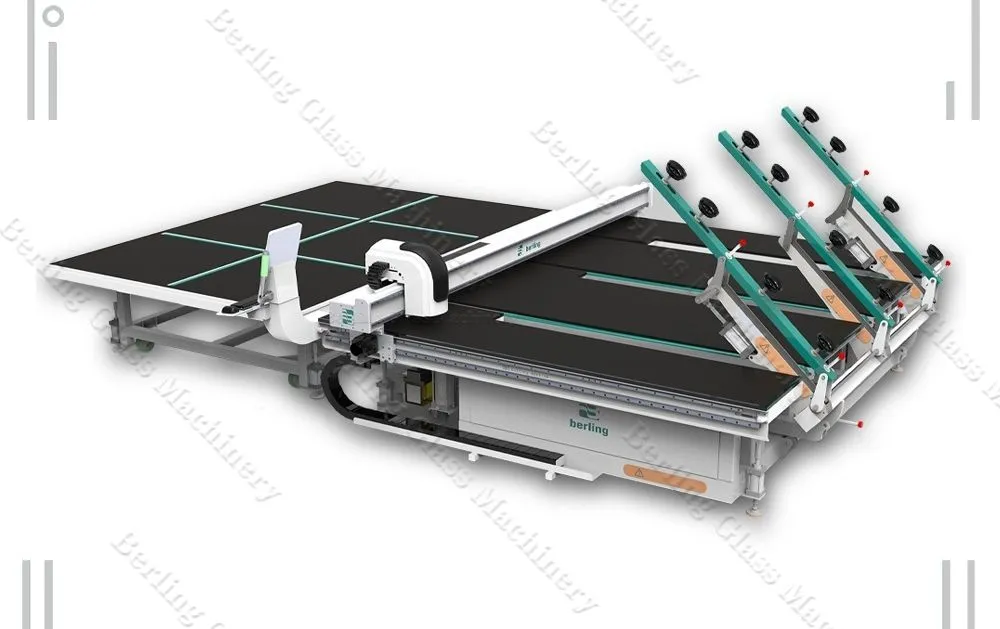

CNC Cutting Detail 1 CNC Cutting Detail 2
⚙️
Flexibility: The mobile device inside the machine can be moved to any position of the glass for loading, cutting and crushing.
🛡️
Safety: Operating the equipment through a remote control device prevents personal injury. Equipped with computers that automatically detect electrical protection devices.
💰
Economically: Only requires one person to operate for the entire process including loading, cutting, and breaking, reducing labor costs and safety risks.

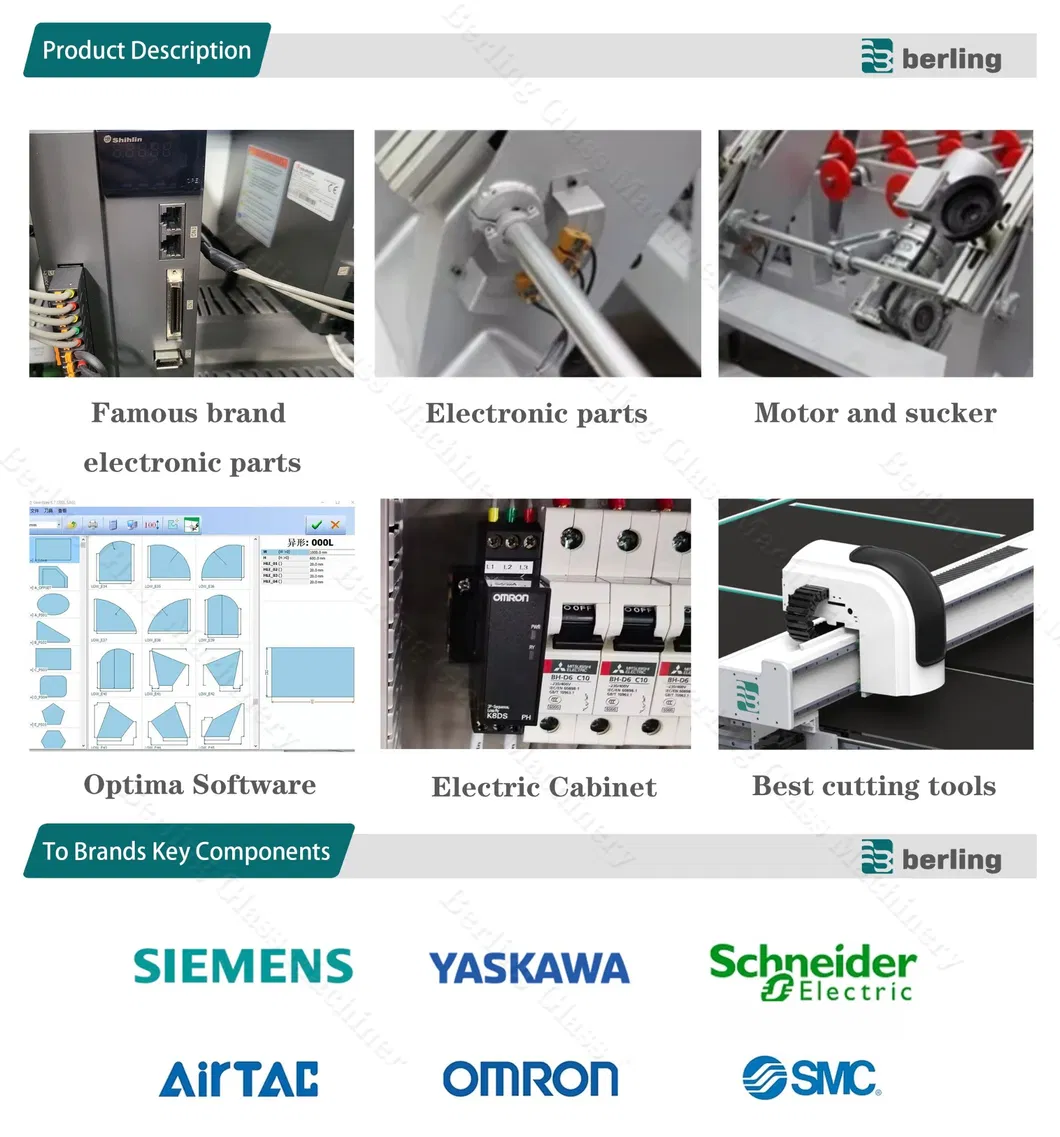

Machine Overview
Certifications & Shipping
Certifications Packaging After Sales
FAQ
How do you guarantee product quality?
We always provide a pre-production sample before bulk production and conduct a final inspection before every shipment to ensure the highest quality standards.
What types of machines can I purchase?
We offer a wide range of glass processing equipment, including Insulated Glass Production Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Lines.
What makes your glass cutting machines more economical?
Our equipment only requires one person to operate for loading, cutting, and breaking, whereas traditional lines require four. This significantly reduces labor costs and increases operational flexibility.
What are the key safety features of your equipment?
The machines are equipped with emergency stop buttons, overload protection, safety sensors, and remote control operation to prevent injury and property damage.
What payment and delivery terms do you accept?
We accept various delivery terms including FOB, CFR, CIF, and DDP. Accepted payment types include T/T, L/C, Credit Card, and PayPal in currencies such as USD, EUR, and CNY.
What is the positioning accuracy and speed of the CNC cutting machine?
The machine features high positioning accuracy of ±0.01mm to ±0.1mm/m and can reach a maximum cutting speed of up to 180m/min.
