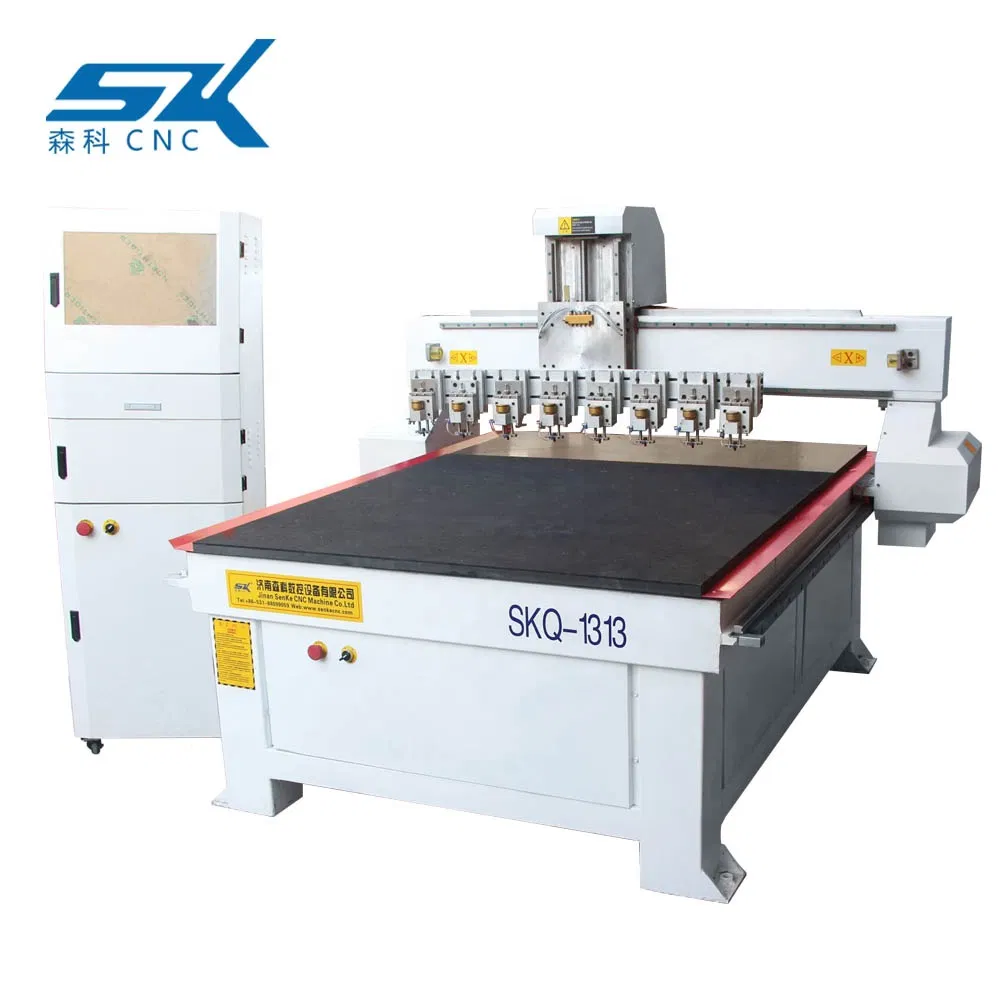

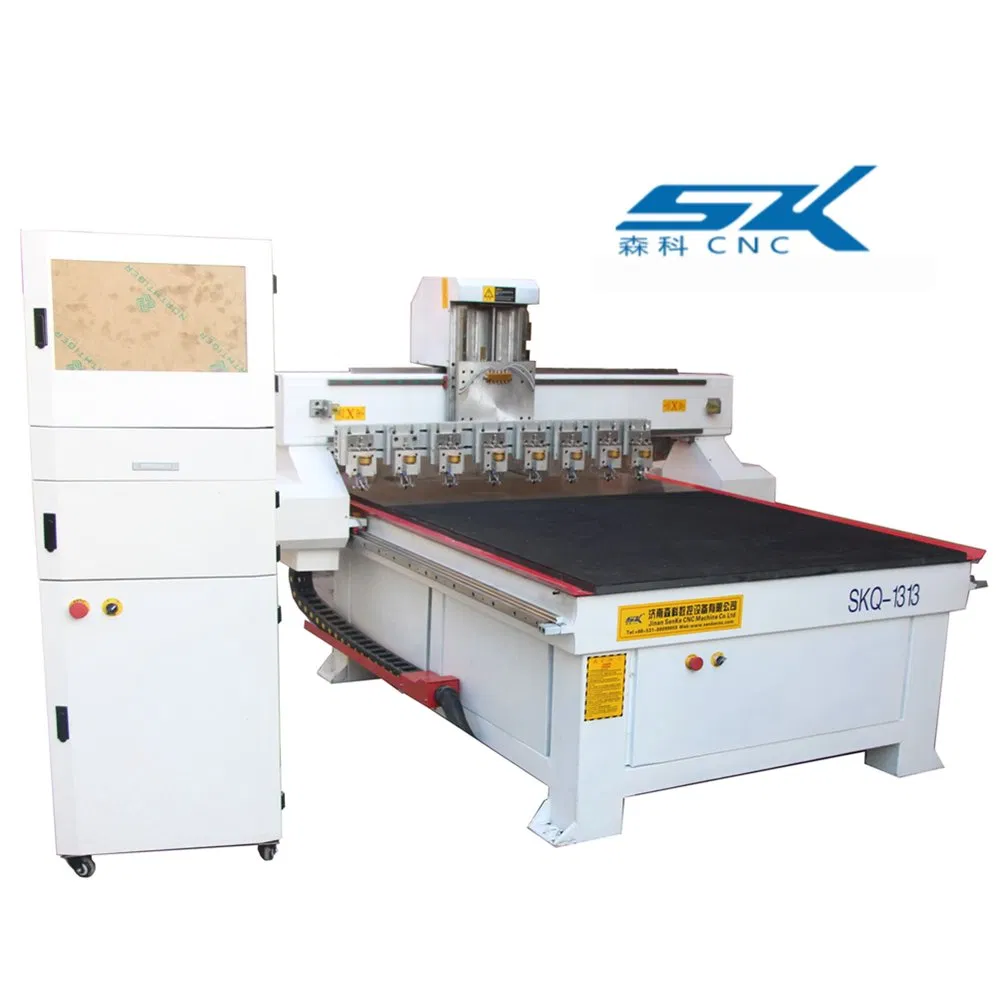

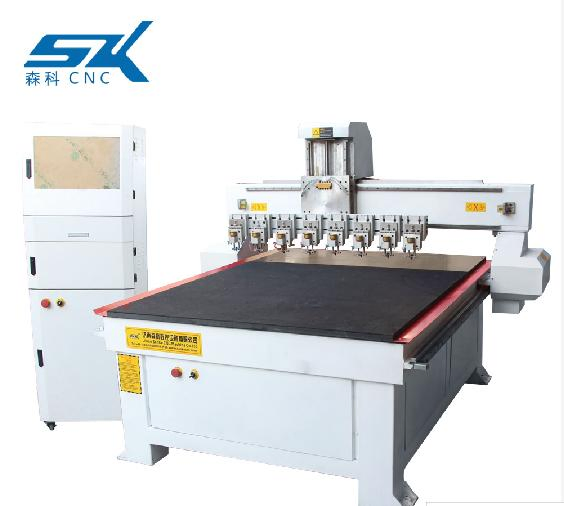

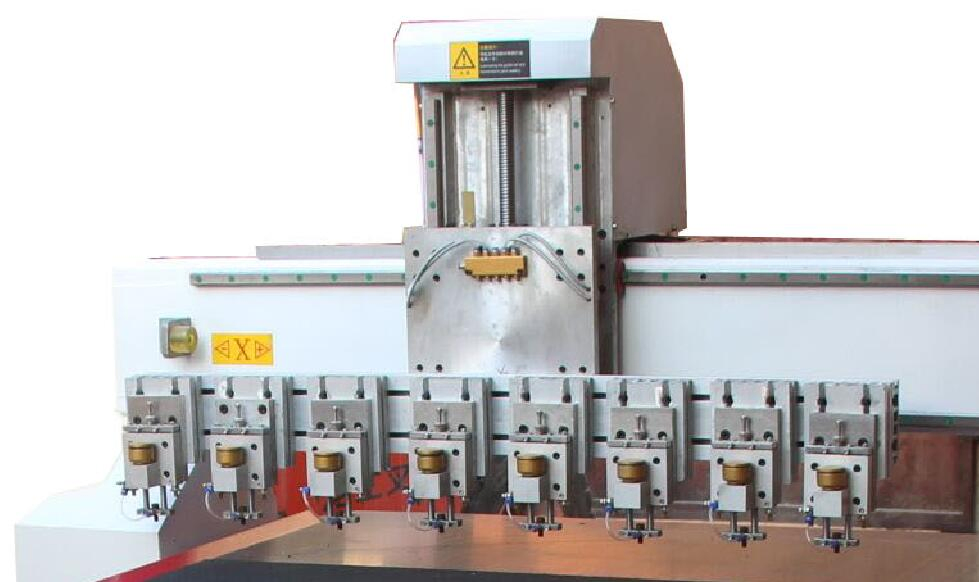

Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
1 / 5
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine
Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine

Automatic CNC Glass Cutting Machines to Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
SKQ-1313
Usage
Glass Cuting
Min Glass Size
100*100mm
Operation
Automatic Control
Key Words
CNC Glass Cutter
Processable Glass
Normal Glass
Motor
Stepper Motors

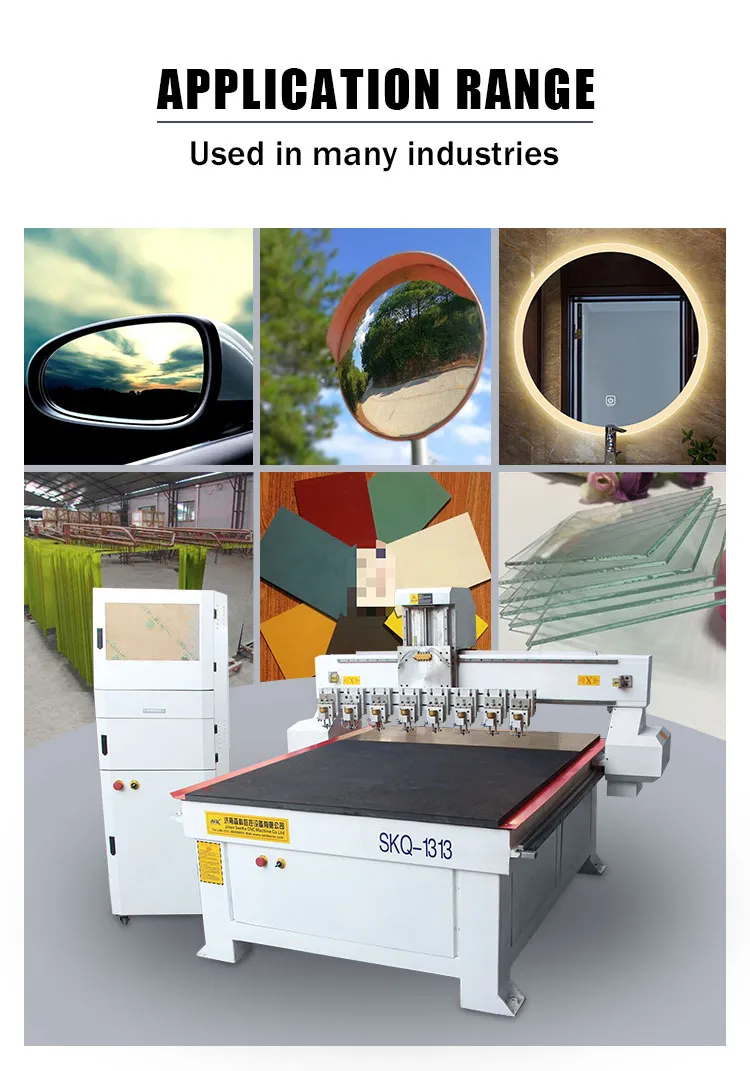

Application
Glass/Car/Make-up Mirror Cutting
Max Moving Speed
40000mm/Min
Max Cutting Speed
20000mm/Min
Body Structure
Thicken Steel Made Lathe
Rails
Taiwan Hiwin Square Rails
Transmission
Taiwan Tbi Ball Screw
Working Area
1300*1300mm / Customized
Warranty
2 Years
Control System
Nc-Studio
💎

Product Description

Automatic CNC Glass Cutting Machines To Cut Car Rearview Mirror Multi Heads CNC Round Glass Mirror Cutting Machine

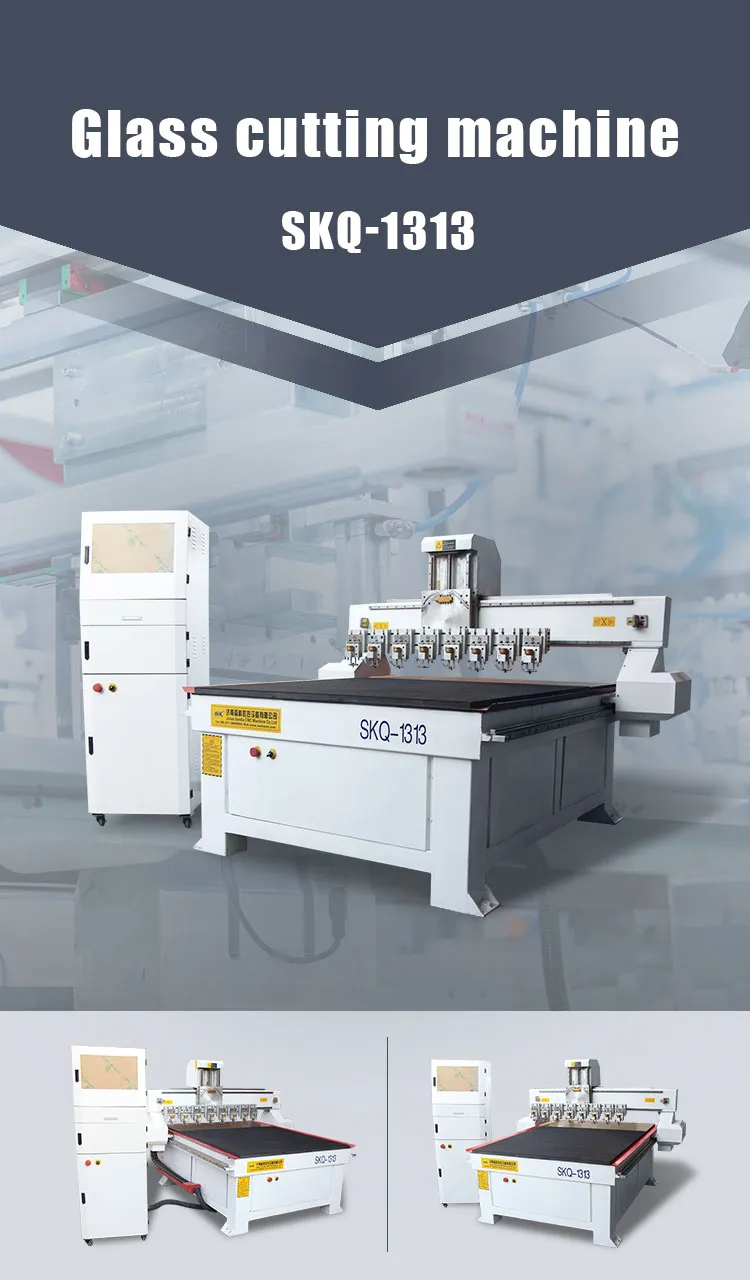

CNC Glass Cutting Machine Mirror Cutting Machine
📊

Technical Parameters

ModelSKQ-1313/1325
Working area1300*1300mm / 1300*2500mm
Body StructureThicken Steel Made Lathe
RailTaiwan HIWIN Square Rails
Transmission TypeTaiwan TBI Ball Screw
Max Moving Speed40000mm/min
Max Cutting Speed20000mm/min
Voltage220V/Single Phase (Customizable)
Operating SystemNC-studio Control System
SoftwareArtcam 8.1 (Free Supply)
✅

Main Features

  • 01Welded with seamless steel structure, high temperature annealing, lathe body is stable and will not deform.
  • 02Three axises adopt Taiwan brand linear guide rails with high precision.
  • 03Z axis adopts imported high-precision ball screw for long life time.
  • 04X and Y axis transmitted by helical rack and pinion for faster speed and larger cutting force.
  • 05Wide compatibility with CAD/CAM software like Type3, Artcam, and Wentai.
  • 06Break-point memory function allows re-carving after power failure.
  • 07Manual/automatic oil-injection system for easy maintenance.
📸

Product Gallery

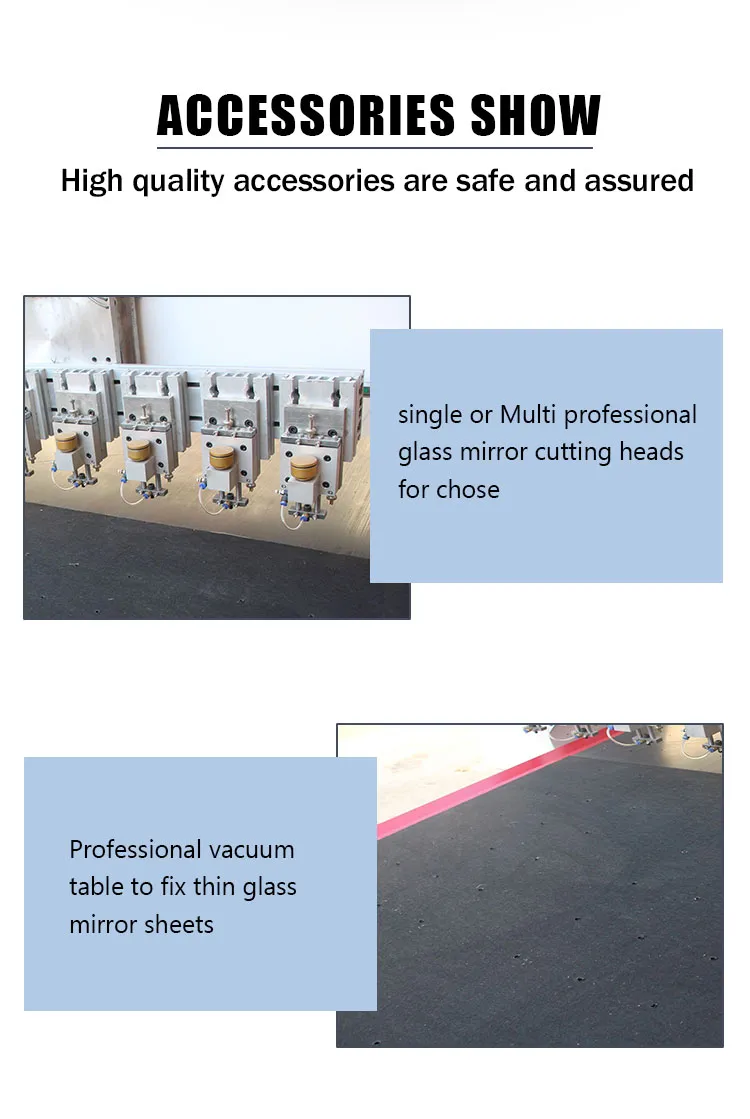

Feature 1
Feature 2

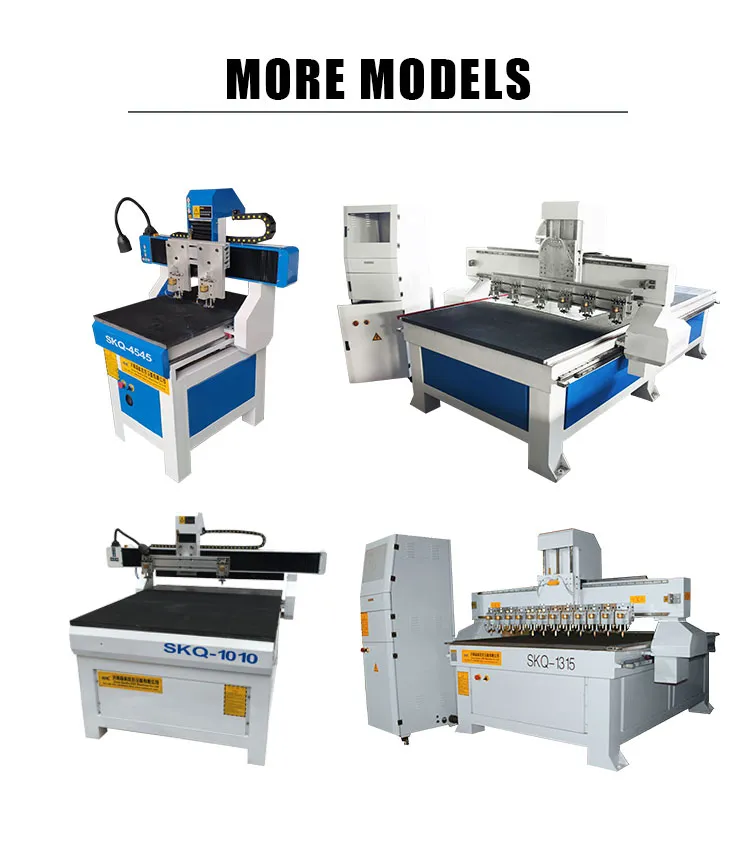

Feature 3
Feature 4
Feature 5

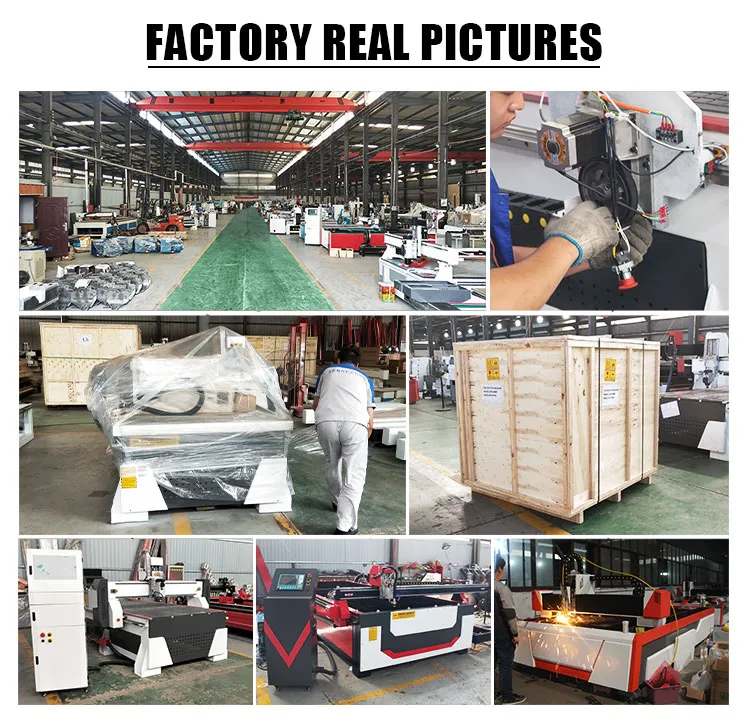

Feature 6
Feature 7
Feature 8

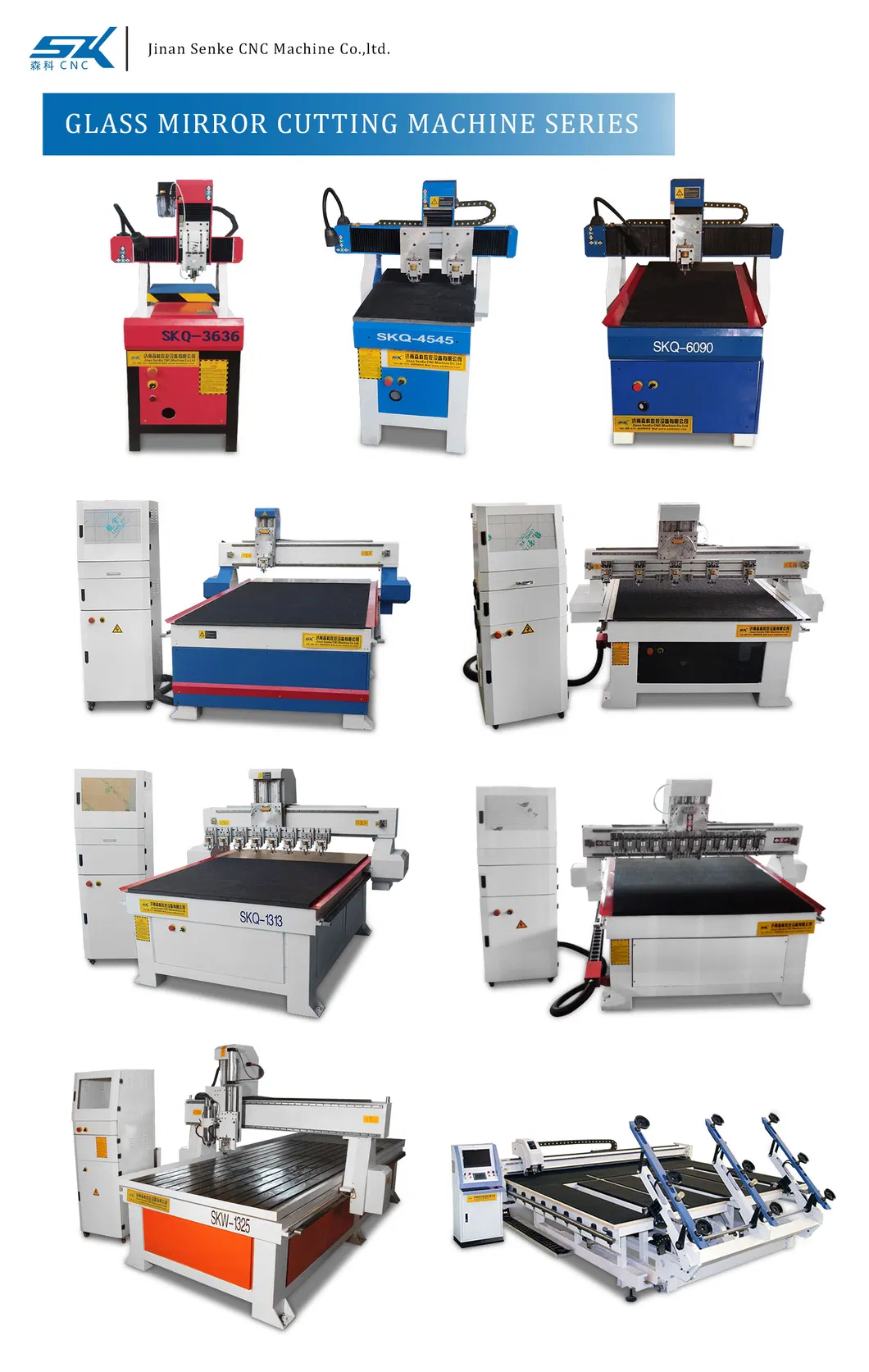

Feature 9

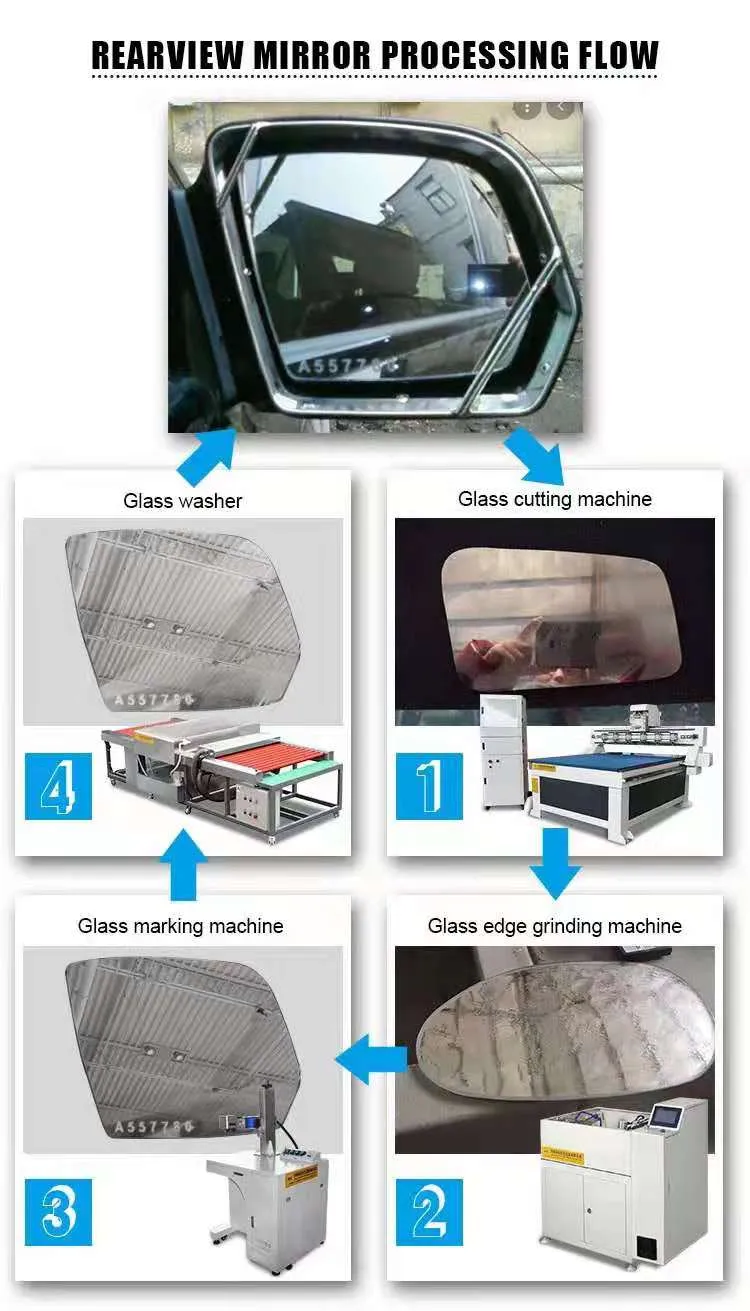

Final Overview
❓

Frequently Asked Questions

Q1: What types of glass can this machine cut?
A: The machine is designed to cut normal glass, mirrors, car rearview mirrors, and make-up mirrors with high precision.
Q2: What is the maximum cutting speed of the SKQ-1313?
A: The maximum cutting speed reaches up to 20,000 mm/min, with a moving speed of up to 40,000 mm/min.
Q3: How durable is the machine structure?
A: The machine features a thickened steel-made lathe body that undergoes high-temperature annealing and vibrating stress relief to ensure it remains stable and never deforms.
Q4: Does the machine come with design software?
A: Yes, we provide Artcam 8.1 software for free, and the machine is also compatible with Type3, Castmate, and Wentai.
Q5: What is the warranty period for this CNC glass cutter?
A: We provide a 2-year warranty for the machine to ensure reliable operation and peace of mind for our users.
Q6: Can it resume work after a power failure?
A: Yes, the Nc-Studio control system includes a break-point memory function, allowing the machine to continue processing from where it stopped.
