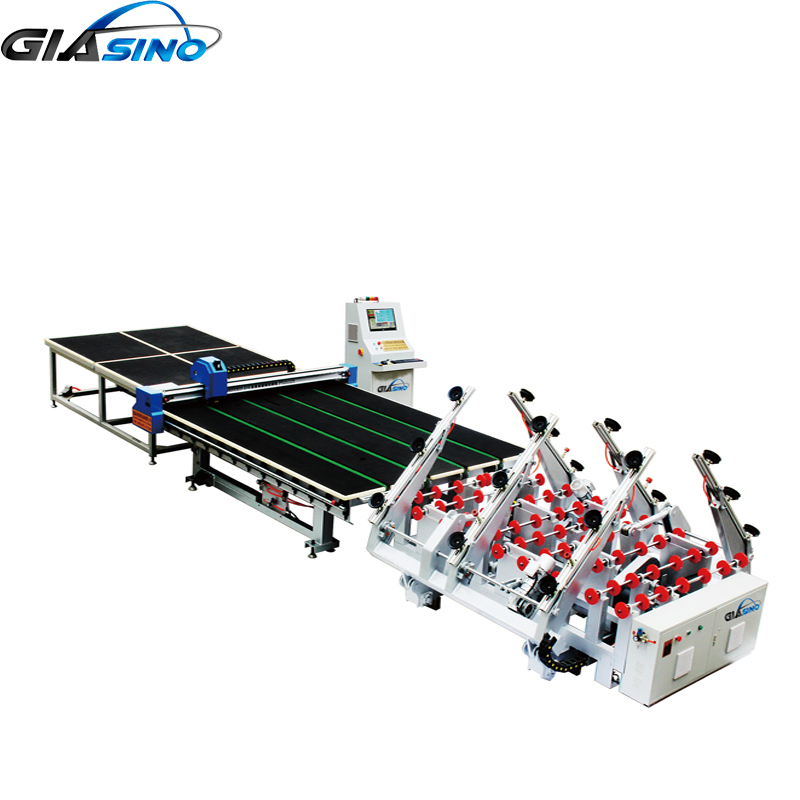

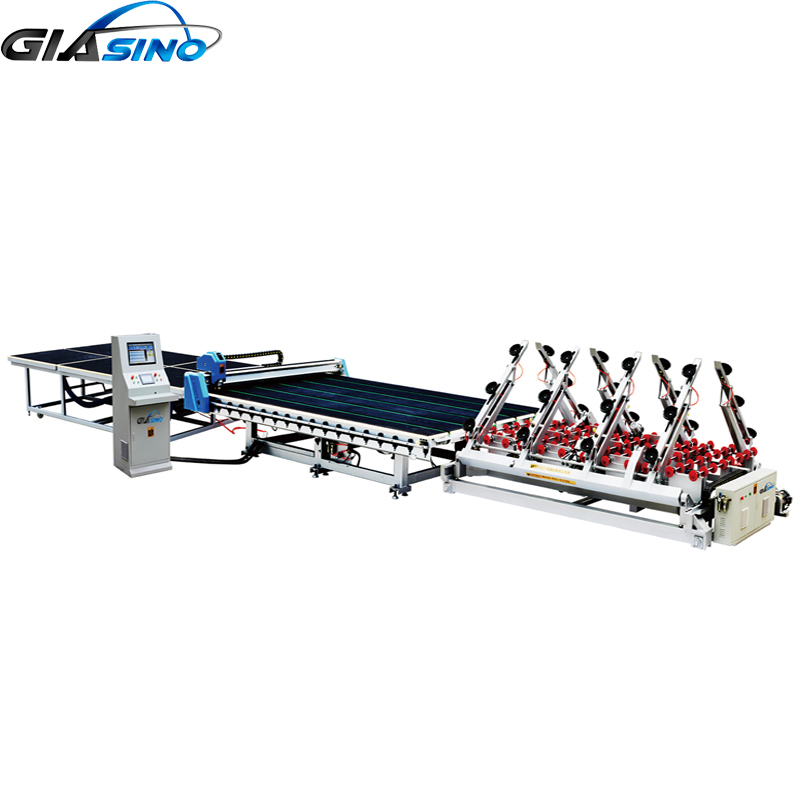

Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
1 / 5
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function
Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function

Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Processing with Edge Deletion Function

Customization: Available
Certification: CE, ISO
Name: Automatic CNC Glass Loading Cutting Breaking Line
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
GS-CNC-4228
Function
Cutting Glass
Glass Thickness
3-25mm
Power
8kw
Control System
PLC
Warranty
12 Months
Production Capacity
30 Sets/Month
Specification
5000*2850*900mm
⚙️ Product Description

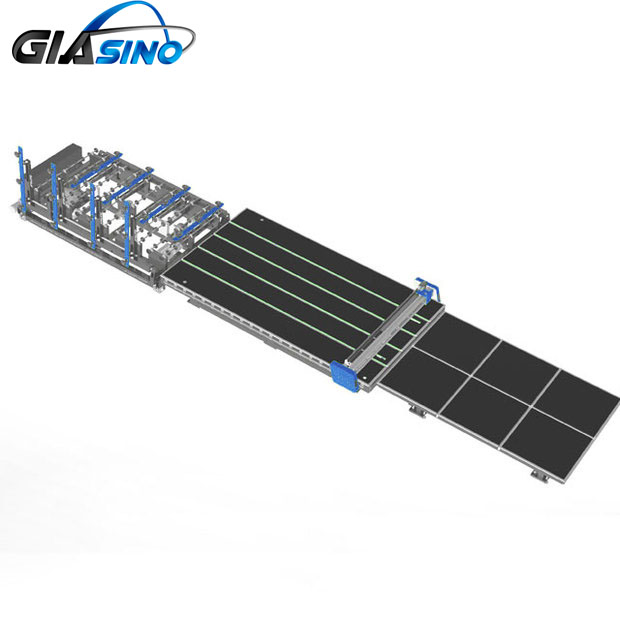

Automatic CNC Glass Loading Cutting Breaking Line

This advanced window glass cutting machine is designed for high-efficiency glass processing. It integrates loading, cutting, and breaking into a seamless automated line.

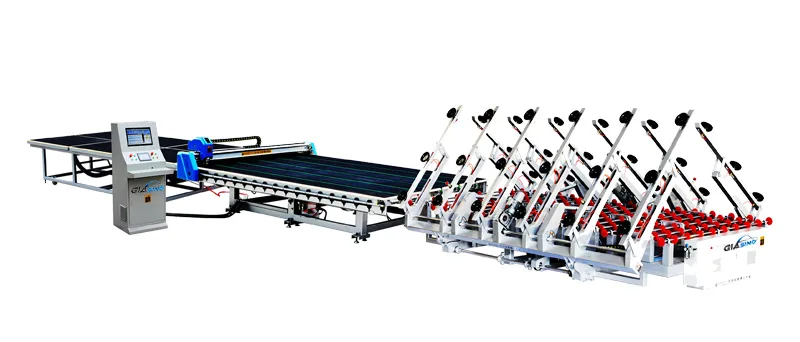

Automatic CNC Glass Loading Cutting Line

Technical Features

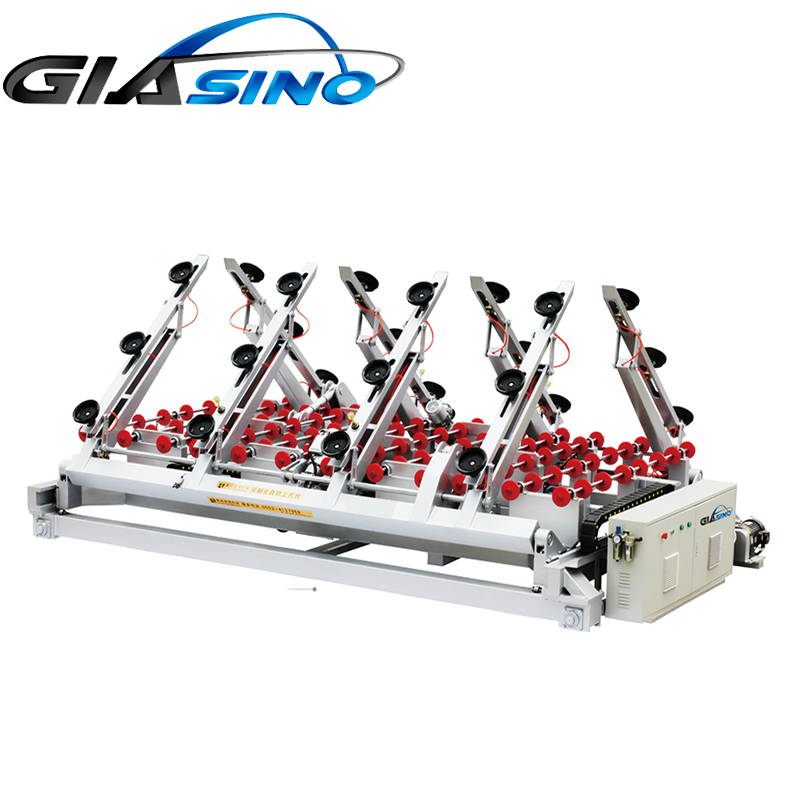

  • Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm.
  • Chain convey system after glass suction with both auto and manual modes.
  • Auto alarm system and emergency button to ensure safety operation.
  • English language touch screen operation for glass sheet quantity and station position auto-setting.
  • Loading sequence: move-arm tilt up -> glass sheet sense -> vacuum suck -> move back -> arm tilt flat -> glass transmit to cutting table.

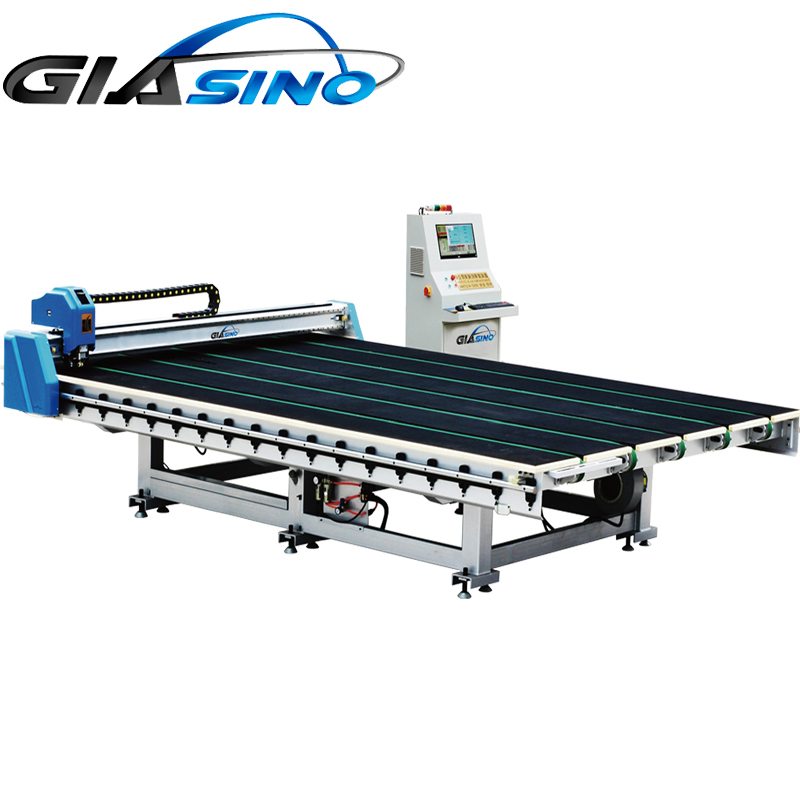

🛠️ Mechanical Characteristics
  • Mn bridge steel (Q345A) with perfect surface treatment.
  • Robust machine body structure ensures the table remains flat and maintains shape.
  • Japan SMC valve controls cutting pressure based on glass thickness.
  • Cutter head with 360-degree rotation and buffers for glass protection.
  • High-density water-proof table with imported antistatic felt.
  • 3D edge searing system and high precision automatic location function.
  • Automatic lubrication system synchronized with the cutter head.
  • Linear guide rail ensuring high cutting precision and low noise.

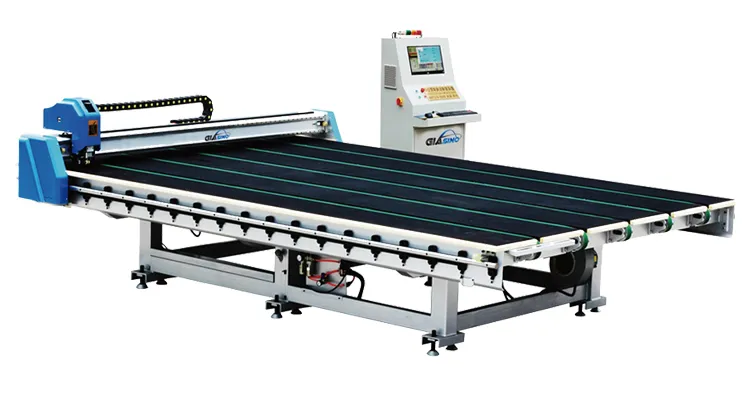

Machine Detail 1

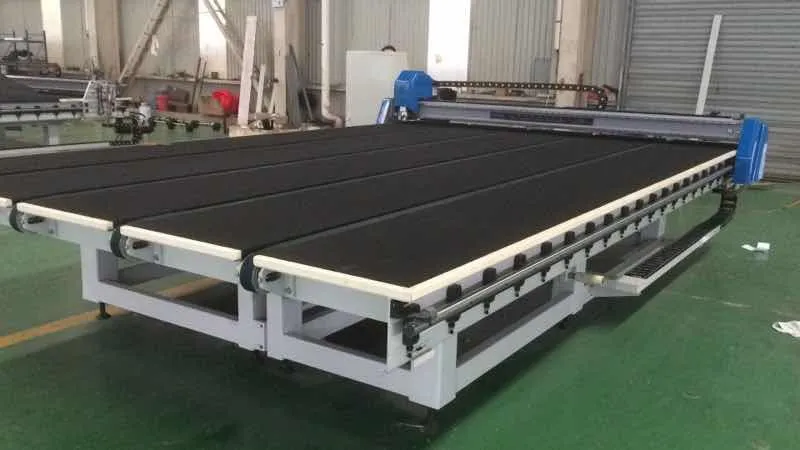

Machine Detail 2

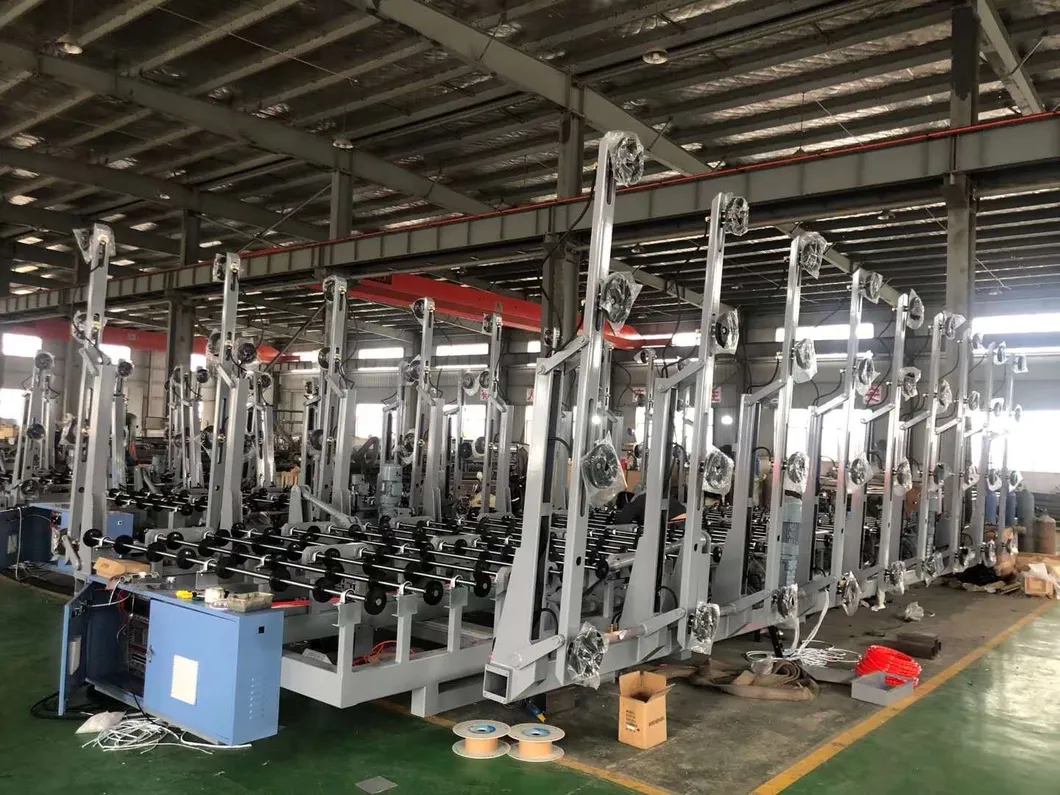

Loading and Unloading Part
📷 Detailed Photos

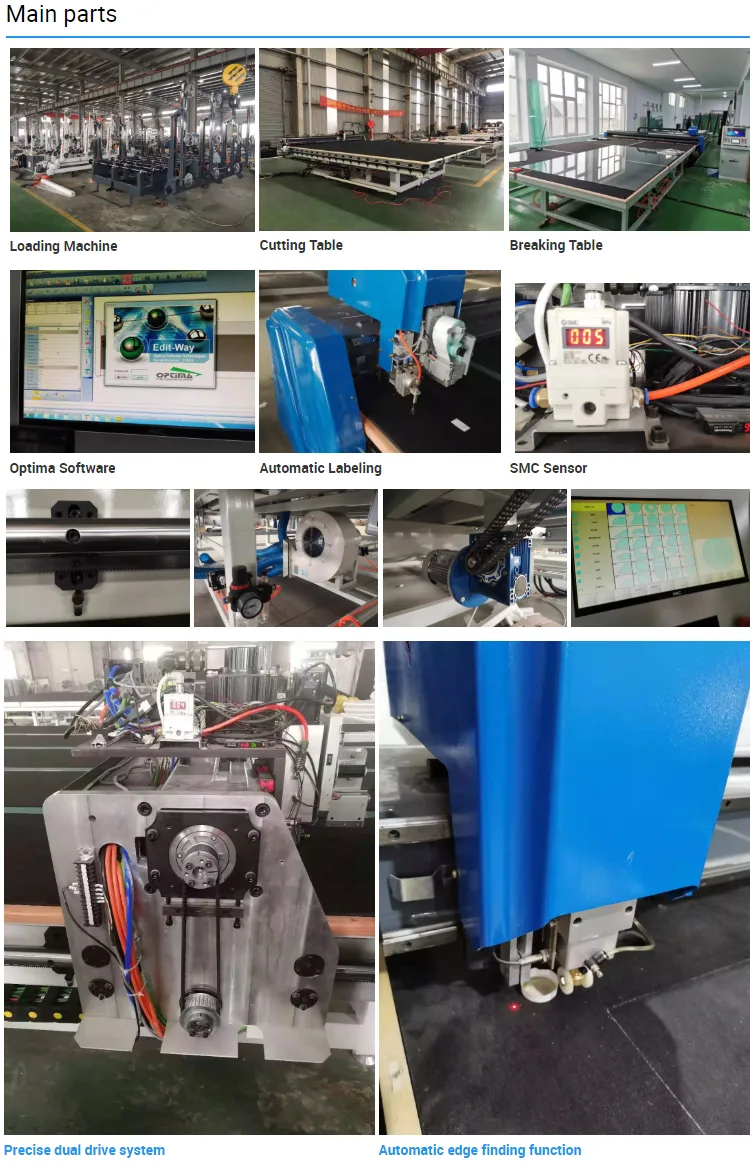

Detailed Component View

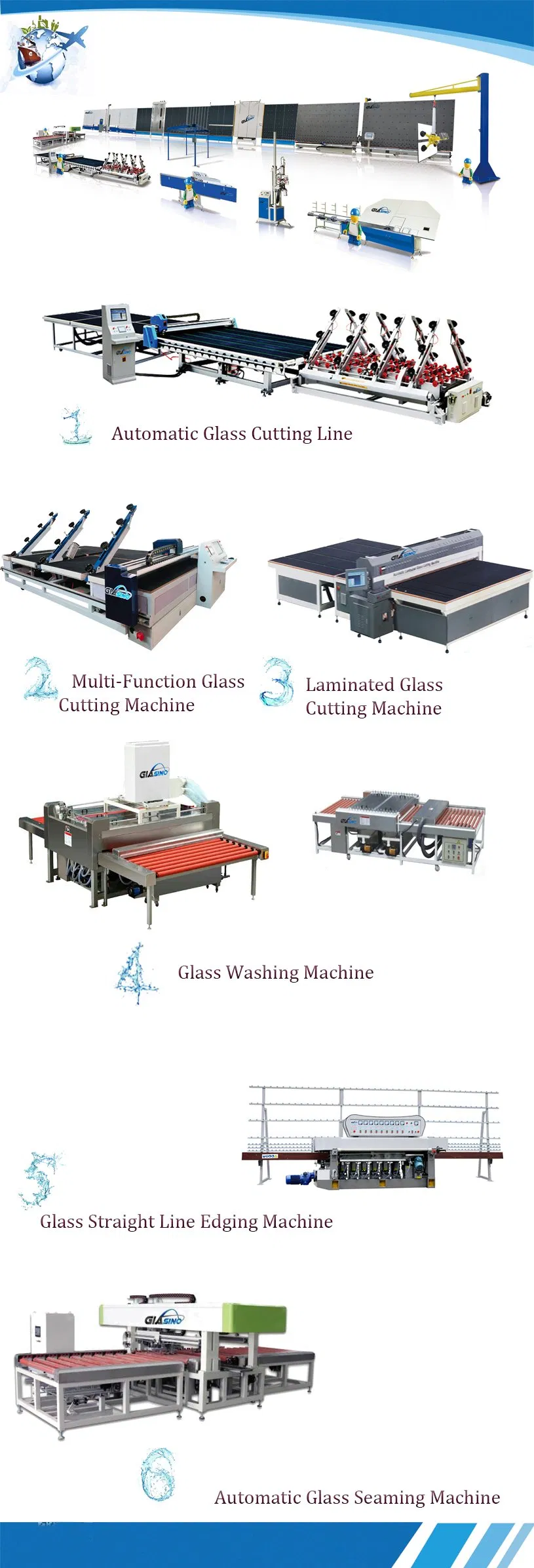

Other Machine Options
📊 Product Parameters
Model Max. Glass Size Thickness Dimensions (L*W*H) Power Air Pressure
QSP-2620 2600*2000mm 2~19mm 3560*2200*900mm 8KW 0.6~0.8MPa
QSP-4228 4200*2800mm 3~19mm 5000*2850*900mm 8KW 0.6~0.8MPa
QSP-5133 5100*3300mm 3~19mm 5400*3000*900mm 8KW 0.6~0.8MPa
QSP-6133 6100*3300mm 3~19mm 6430*3340*900mm 8KW 0.6~0.8MPa
🏢 Profile & Advantages

Founded in 2003, the enterprise specializes in the production of high-tech glass machinery including glass tempering furnaces, CNC glass cutting machines, and insulating glass lines. We hold a leading market position and have passed European CE, Switzerland SGS, and ISO 9001:2008 quality control certifications.

The product range includes laminated glass cutting machines, automatic glass cutting lines, multifunctional machines, and full processing sets for insulating glass. Continuous research and development ensure we meet advanced market needs with outstanding quality and reliable service.

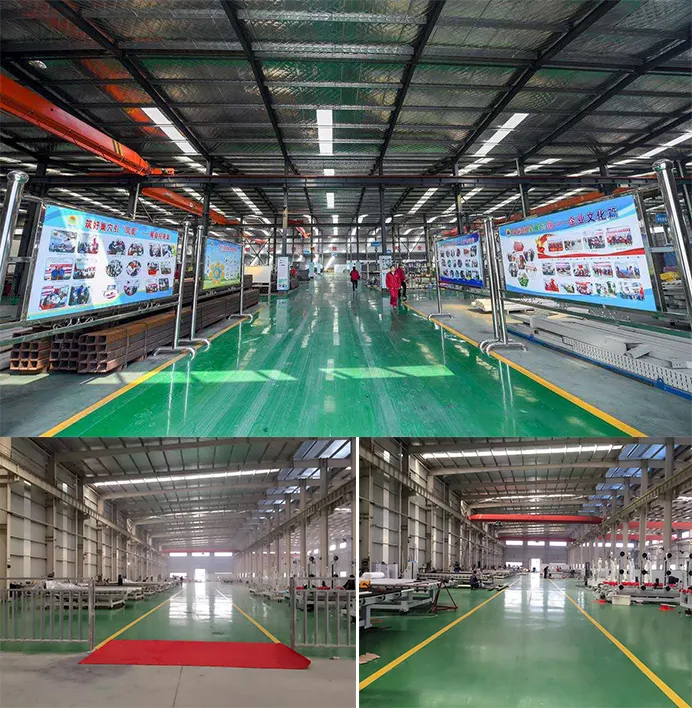

Certification and Workshop

Service & Guarantee

  • Prompt response within 12 hours.
  • Fast delivery within 15 days.
  • 24-hour after-sales technical support.
  • 18-month overall guarantee.
  • 2-year quality guarantee for the machine (excluding consumables).
  • Comprehensive English manuals and video tutorials provided.
❓ Frequently Asked Questions
What glass thickness can this machine process?
The machine is capable of cutting glass with a thickness ranging from 3mm up to 25mm, depending on the specific model selected.
How long is the warranty period for the CNC glass cutting machine?
We provide an 18-month standard warranty, and a 2-year quality guarantee specifically for the machine structure (excluding consumable parts).
Is technical support available in English?
Yes, we provide 24-hour technical support with fluent English communication, including English manuals and video tutorials.
What is the typical delivery time after ordering?
We prioritize efficiency and typically deliver the machines within a maximum of 15 days.
How does the machine ensure high cutting precision?
Precision is guaranteed through a high-quality PLC control system, linear guide rails, and a 3D edge searing system for automatic location.
Does the machine support automatic loading?
Yes, the line includes an automatic loading sequence with adjustable tilt angles and a vacuum suction system for safe glass handling.

Related Products

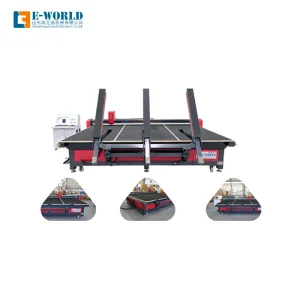

All in One Glass Cutting Table CNC Full Automatic Glass Cutting Machine

All in One Glass Cutting Table CNC Full Automatic Glass Cutting Machine

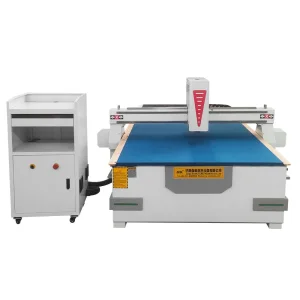

High Precision Watch Mirror Glass Cutting Machine CNC Glass Cutting Machine Price

High Precision Watch Mirror Glass Cutting Machine CNC Glass Cutting Machine Price

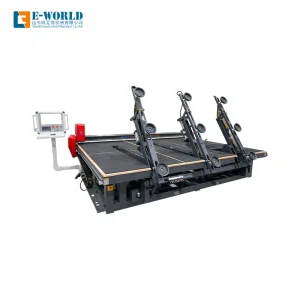

Heavy Duty Industrial Glass Cutting Machine with Durable Alloy Head for Thick Panel Cutting

Heavy Duty Industrial Glass Cutting Machine with Durable Alloy Head for Thick Panel Cutting

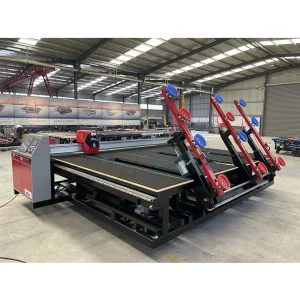

Glass Making Machine with Multifunction Glass Cutting Machine/Loading Arm/Breaking Table

Glass Making Machine with Multifunction Glass Cutting Machine/Loading Arm/Breaking Table

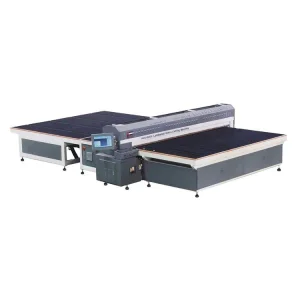

Automatic Laminated Flat Glass Cutting Machine Competitive Price Manufacturing Equipment Processing Machinery

Automatic Laminated Flat Glass Cutting Machine Competitive Price Manufacturing Equipment Processing Machinery

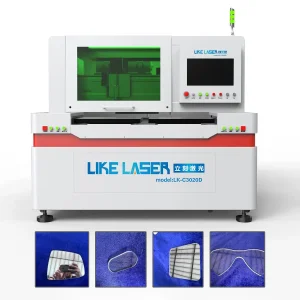

Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine

Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine

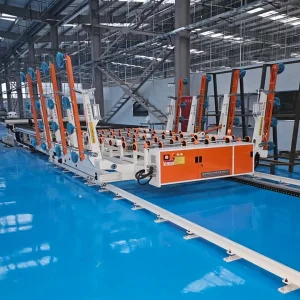

CNC Glass Processing Machinery Glass Cutting Line 4228 Three Tables Glass Machine Manufacturer

CNC Glass Processing Machinery Glass Cutting Line 4228 Three Tables Glass Machine Manufacturer

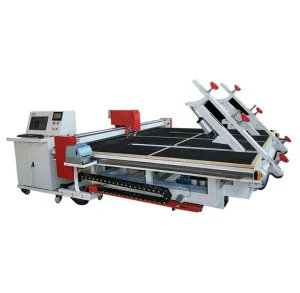

Float Glass Loading Cutting Breaking Integrated Machine with Low-E Deletion

Float Glass Loading Cutting Breaking Integrated Machine with Low-E Deletion

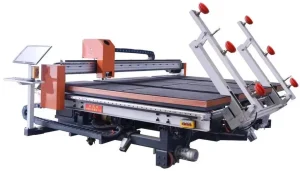

Professional CNC Glass Cutting and Engraving Machine

Professional CNC Glass Cutting and Engraving Machine

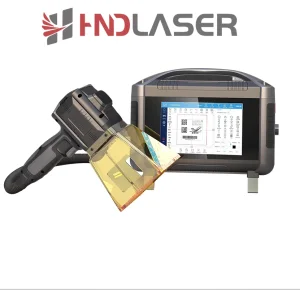

Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
