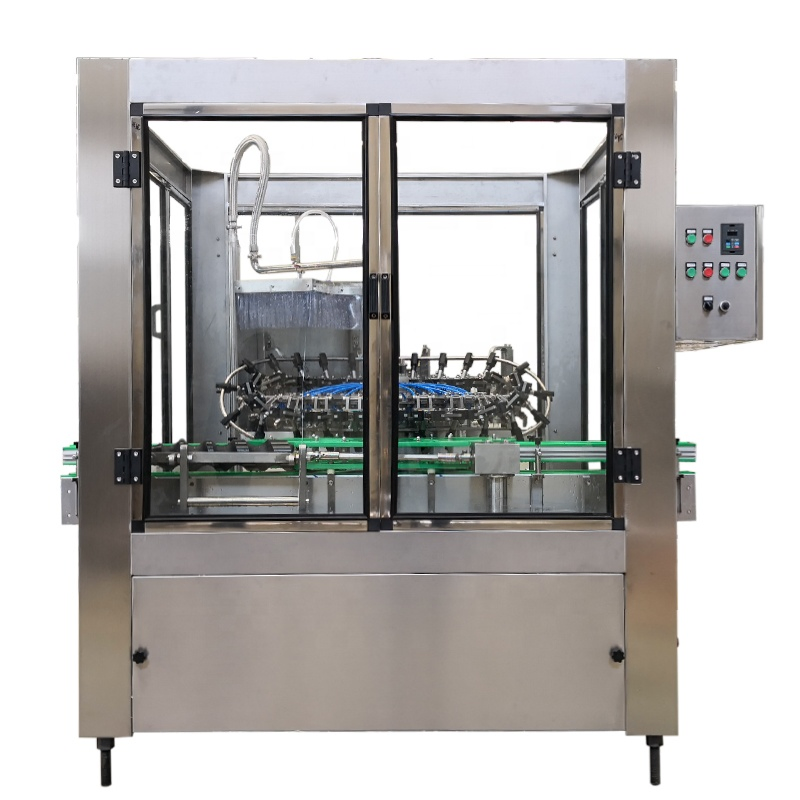

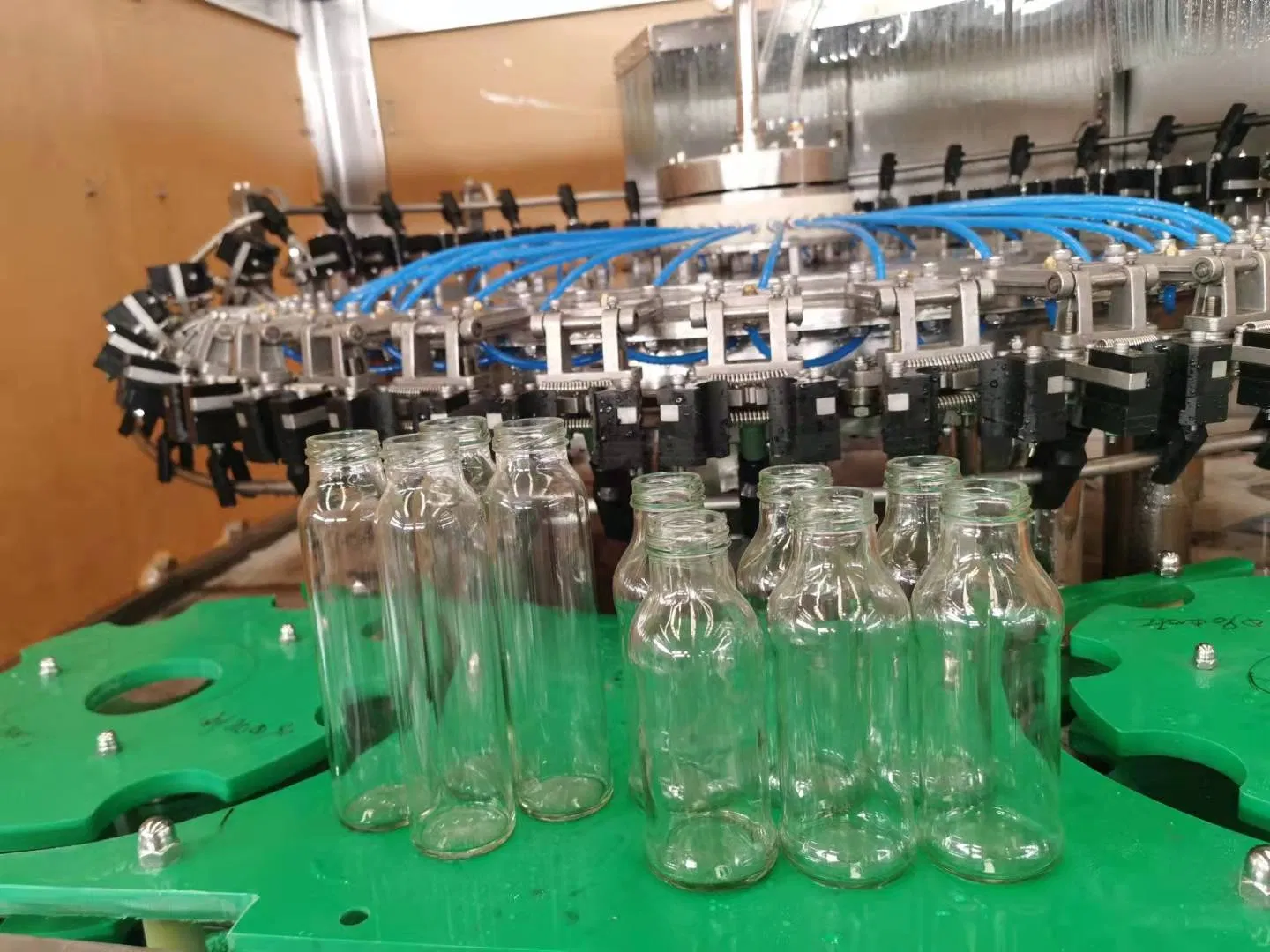

This automatic washing machine is mainly used for cleaning glass bottles, plastic bottles, jars and other kind bottles before filling. The machine will wash bottles inside and outside automatically.
It can be combined with filling machine, capping machine, conveyor and other packaging machines to make into a production line. It is widely used in wineries, beverage factories, brewing factories, pharmaceutical factories and other packaging lines.

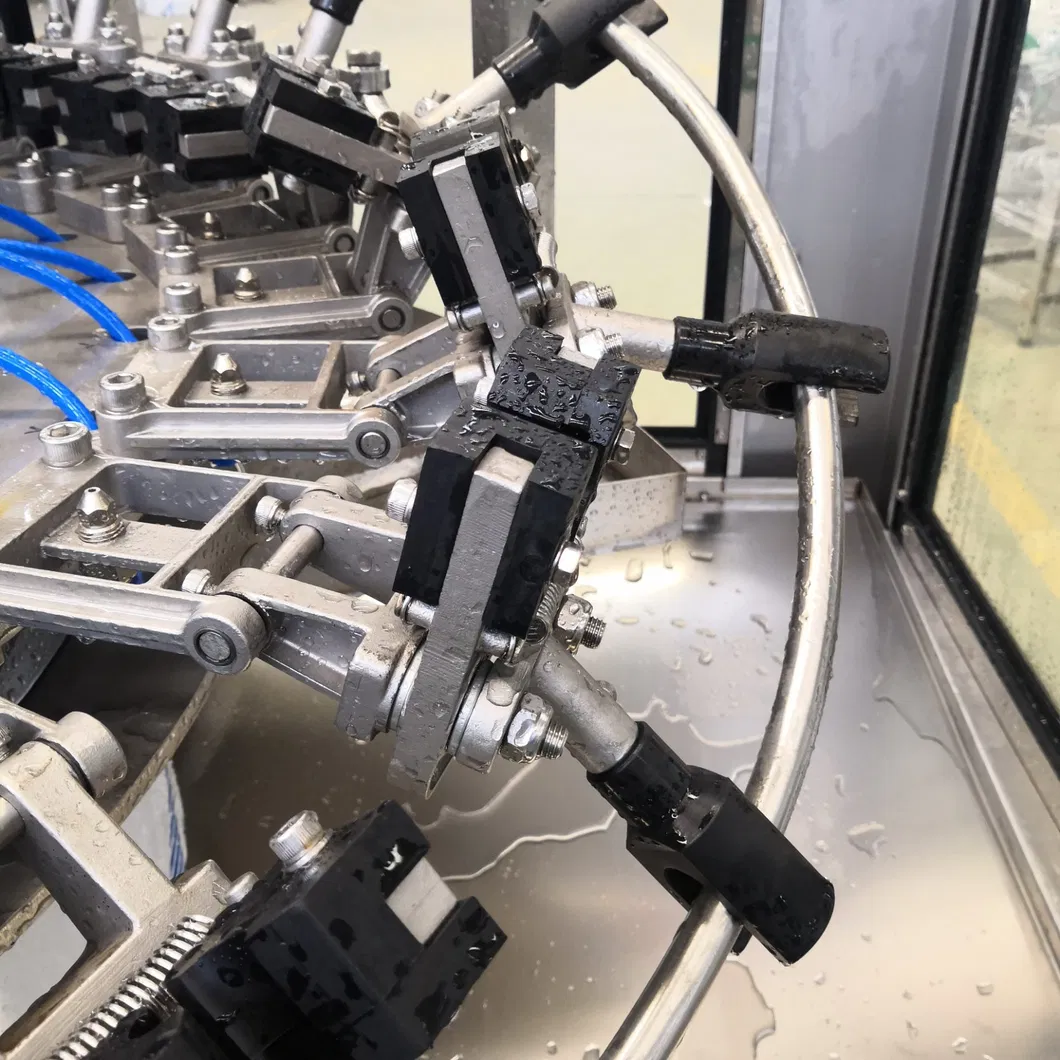

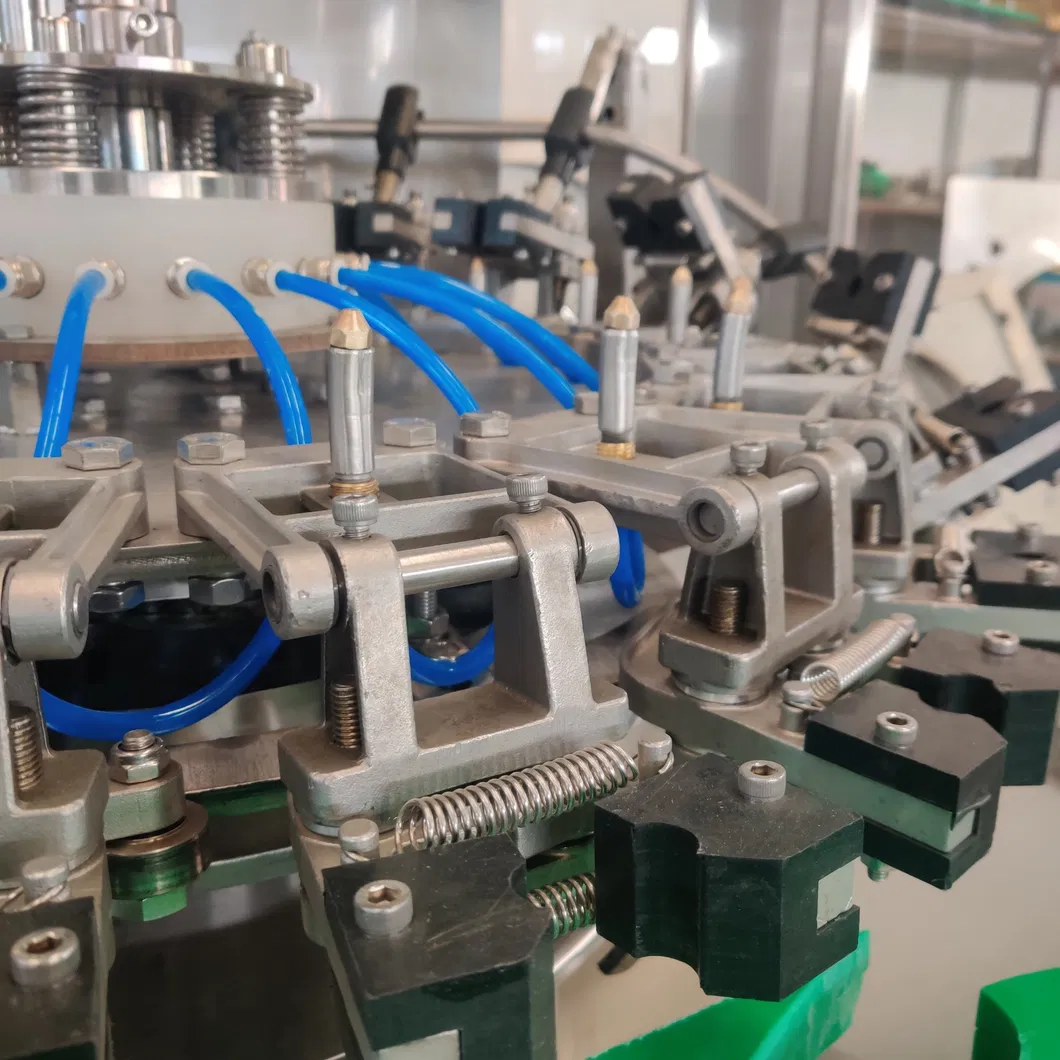

1) Material Quality: The mechanical hand stamping parts and casting materials are made of national standard 304 material, ensuring excellent corrosion resistance. The manipulator features accurate positioning and easy bottle turnover.

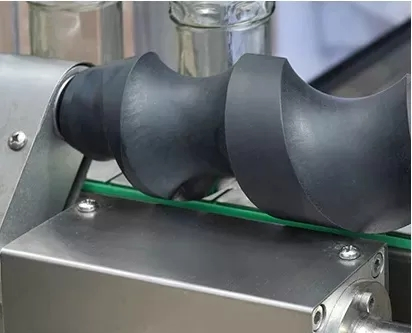

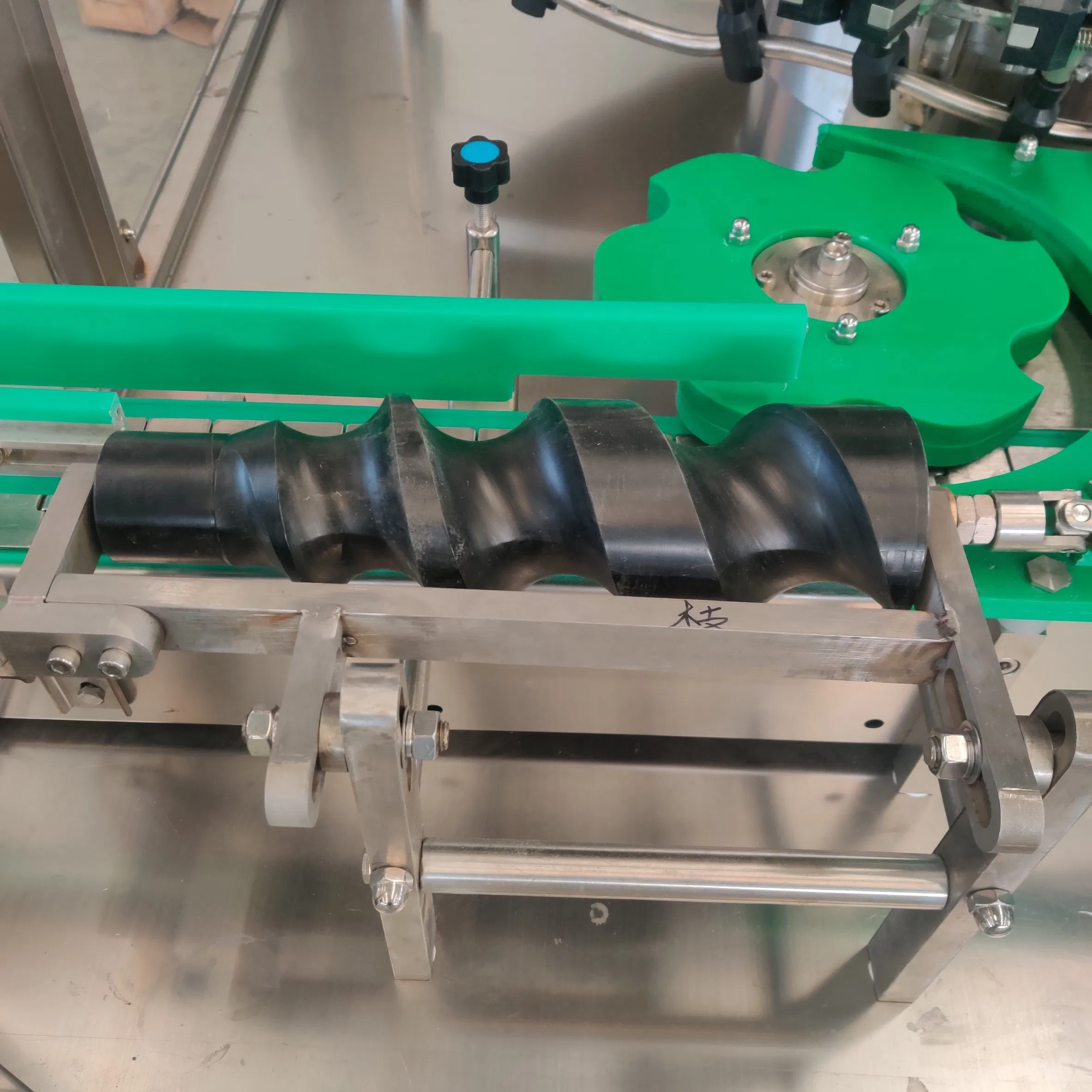

2) Bottle Pusher: Constructed from organic polymer materials. It adjusts to various bottle diameters and delivers bottles from the conveyor to the washing unit automatically.

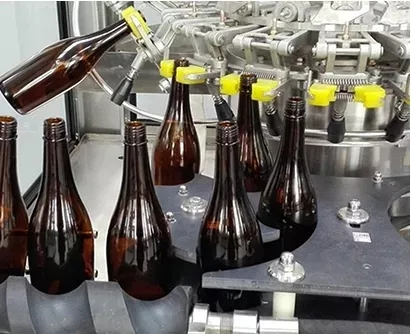

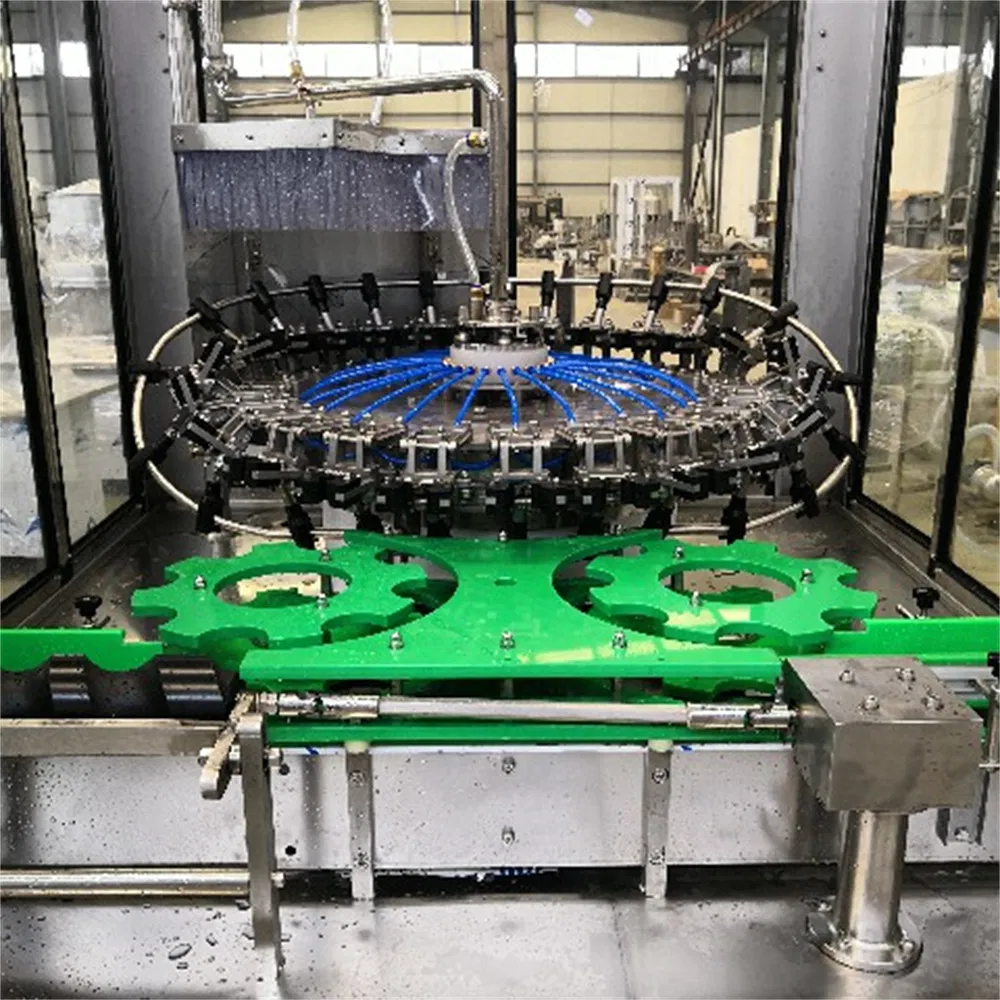

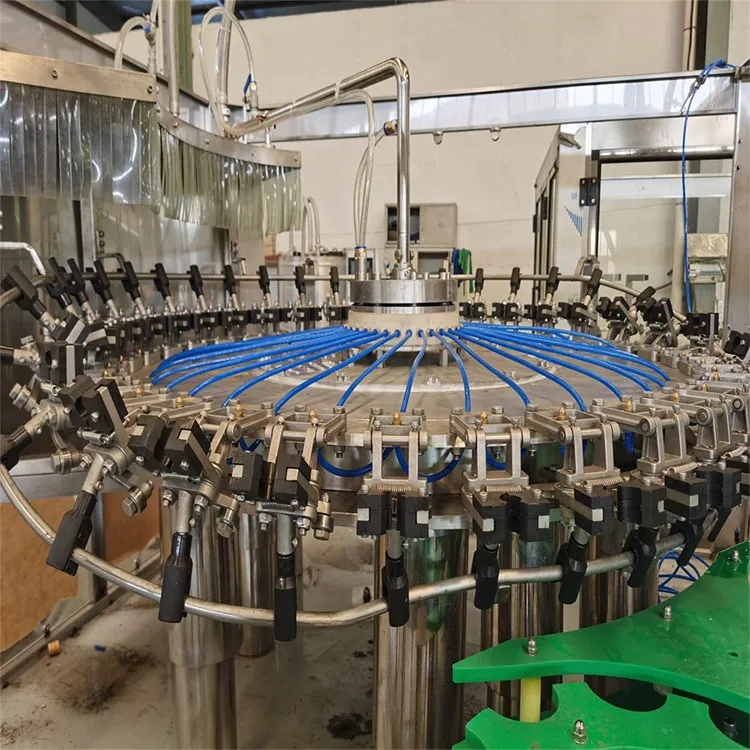

3) Rinser Part: Automatically cleans both inside and outside surfaces of the bottles.

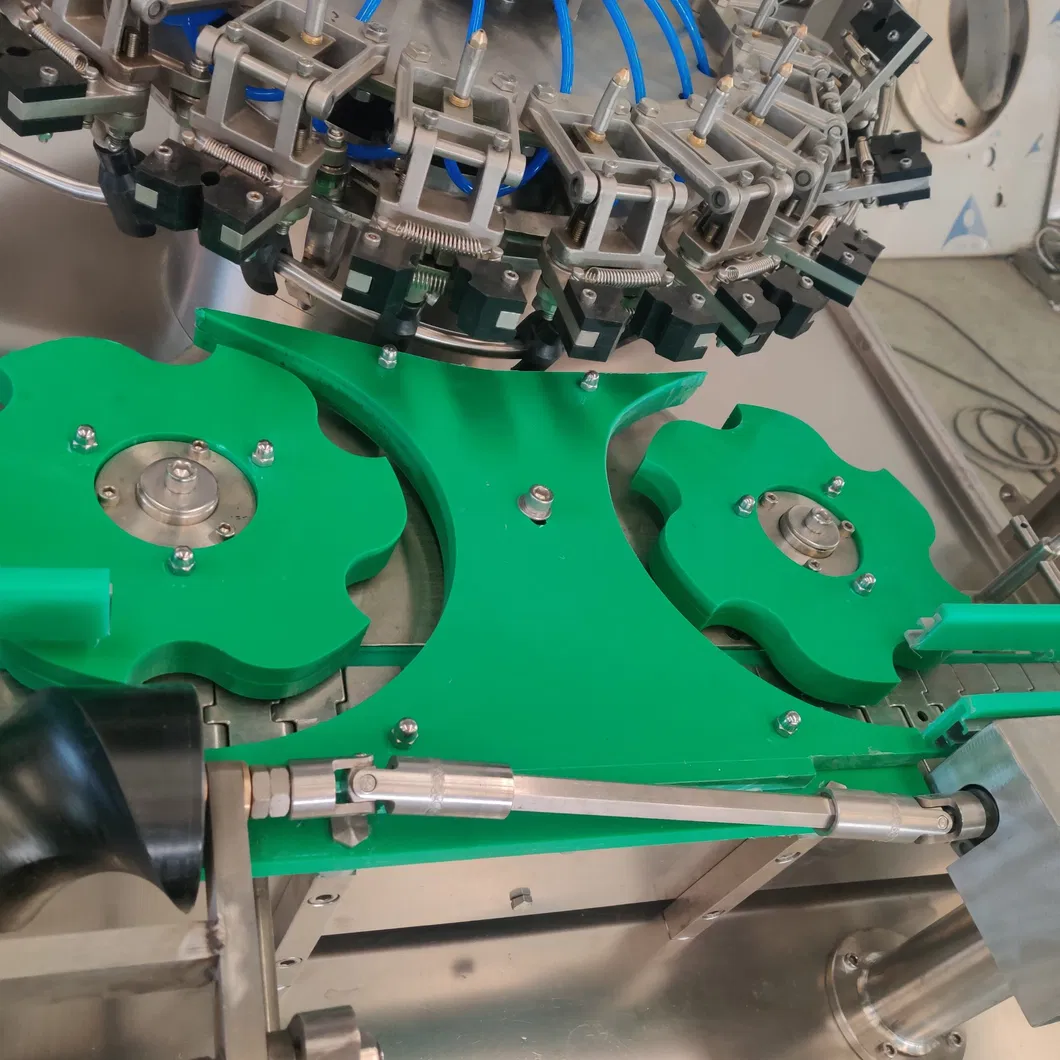

4) Bottle Gear: Custom-made organic polymer gear responsible for transferring bottles to the mechanical hand and back to the conveyor line once finished.
| No. | Item Description | QSP-18 Model Specifications |
|---|---|---|
| 1 | Washing heads | 18 heads |
| 2 | Washing capacity | 2000-4000 bottles/hour |
| 3 | Suitable bottle height | 100-380mm (Customizable) |
| 4 | Work Pressure | 0.2~0.3Mpa |
| 5 | Voltage | 220V/380V, 50Hz (Customizable) |
| 6 | Power | 0.75KW |

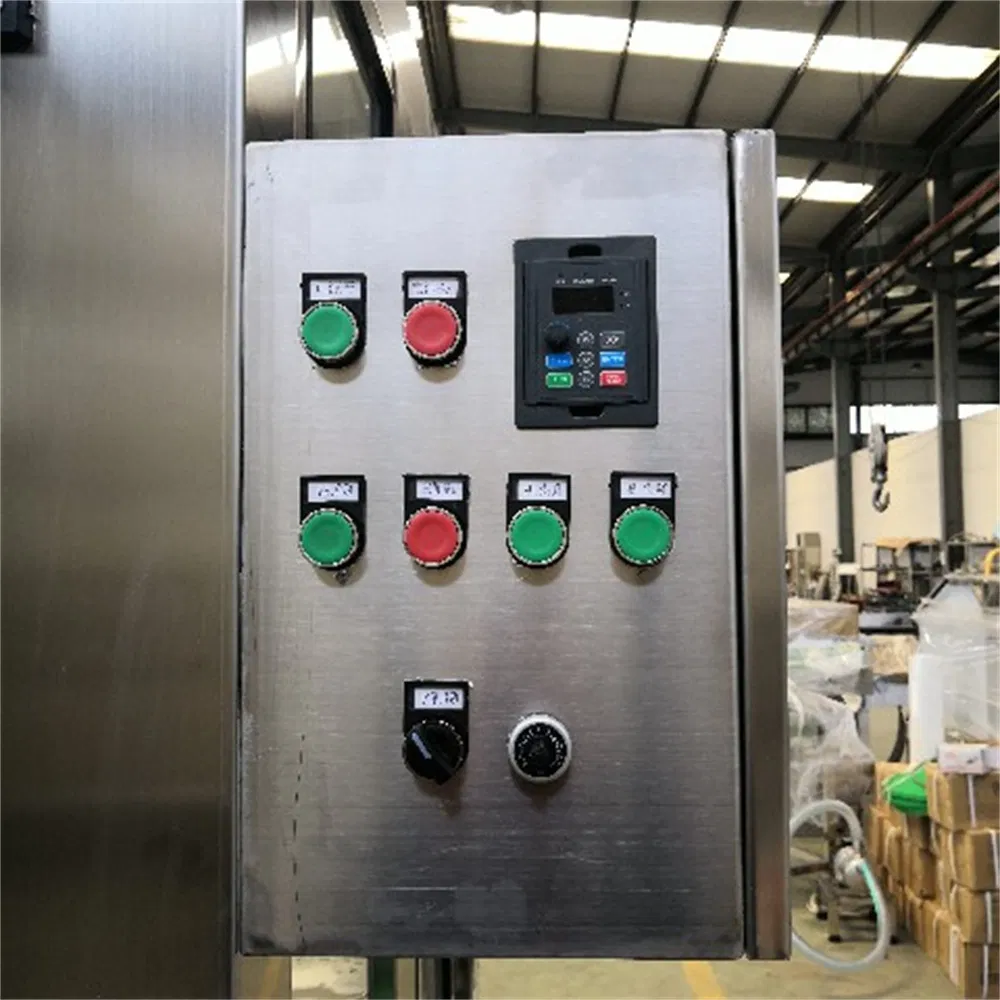

| 7 | Control mode | PLC program |
| 8 | Weight | 700kg |
| 9 | Packaging dimension | 1300*1300*2200mm |
This machine is suitable for cleaning bottles before filling various oils, pharmaceutical products, and chemical liquids.
1. Packing: Finished machines undergo anti-rust treatment, plastic wrapping for protection, and thick wooden or steel frame crating for sea transport safety.
2. Delivery Time: Standard parts are kept in stock to shorten lead times, even for customized bottle specifications.
3. Shipping: Primarily by sea. Urgent orders can be shipped via air or express. We prioritize economic shipping routes.
4. Port: Qingdao, Shanghai, or other major ports as per customer requirement.
During Production: We provide regular status updates and invite buyers for factory testing or provide detailed testing videos before shipping.
Sample Service: Machine operation videos are available, and factory visits are highly encouraged.
Customized Service: Machines are designed according to specific requirements (material, power, filling type, bottle shapes) with professional layout consultation.
Installation: We provide detailed connection markings, installation videos, maintenance guides, and support for online or on-site installation.
