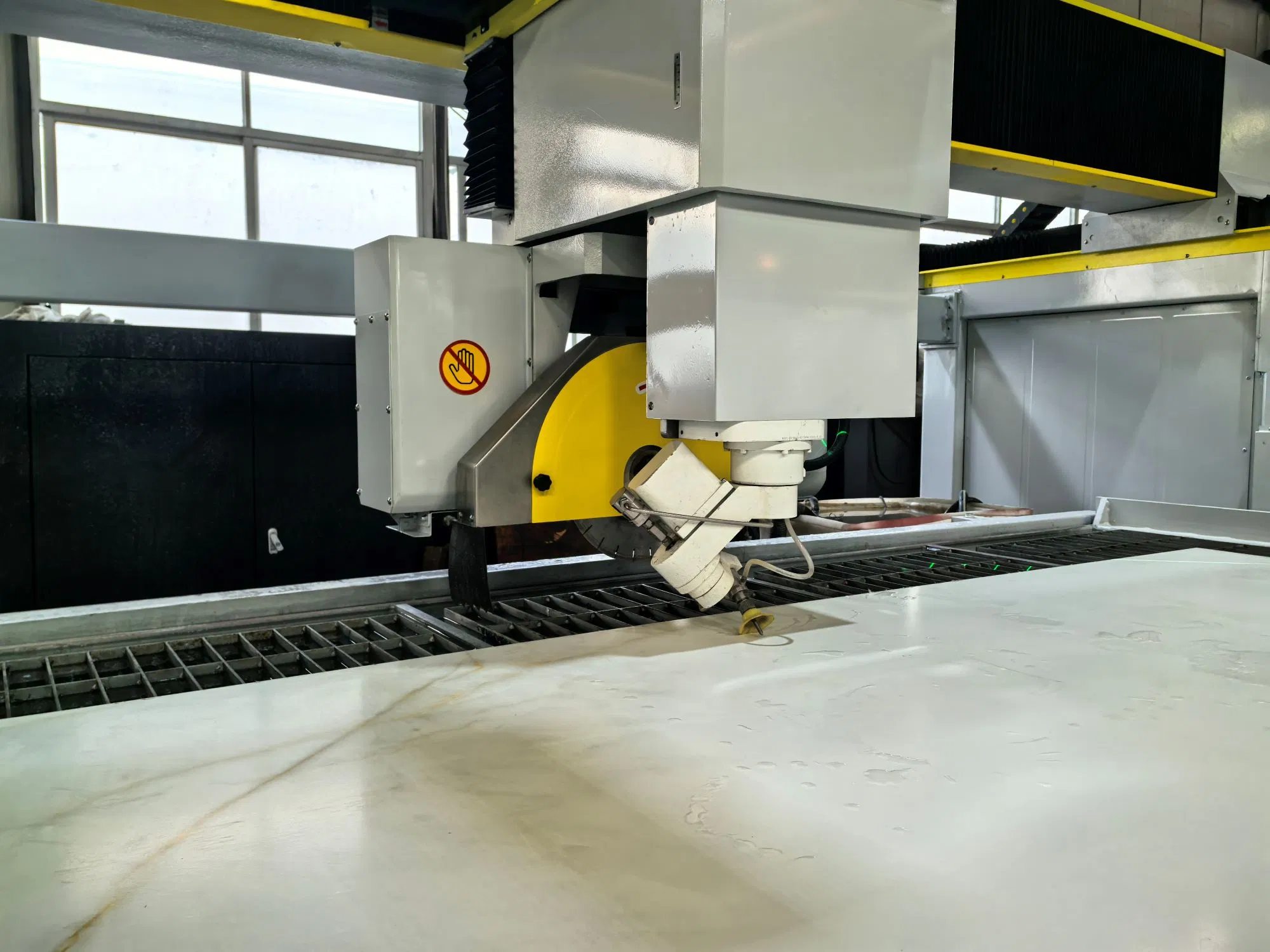

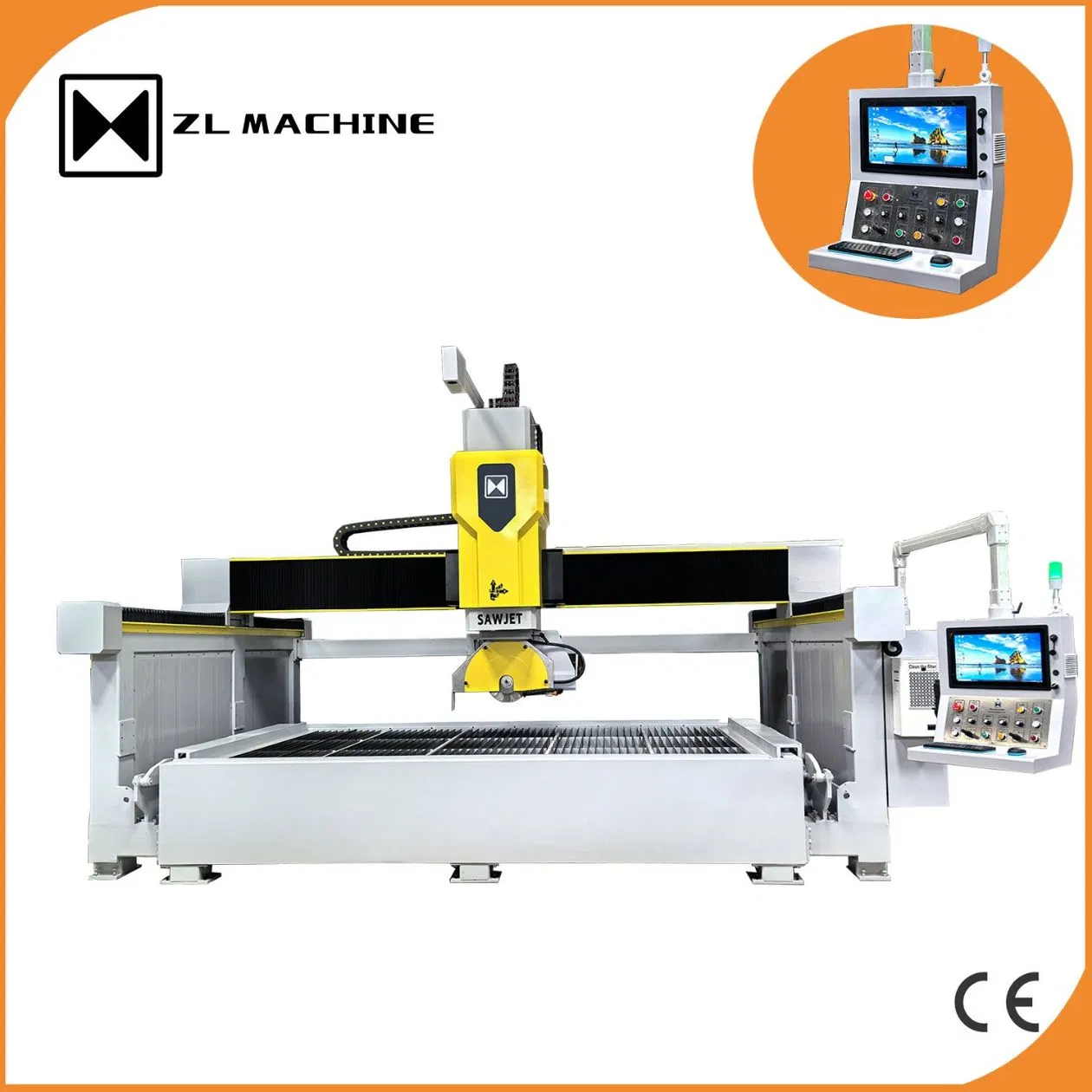

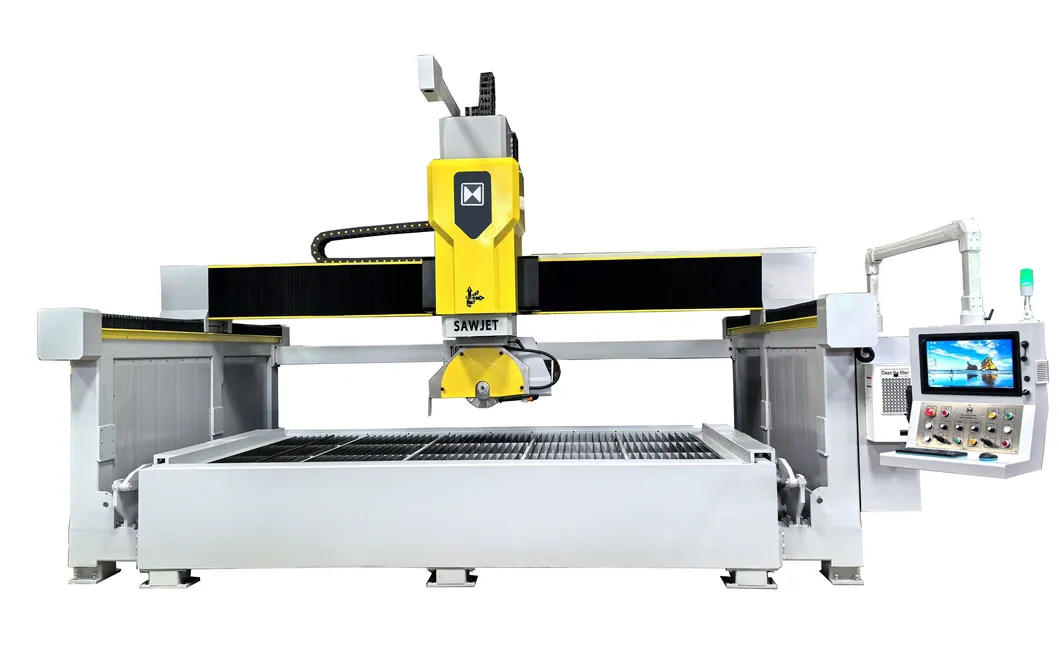

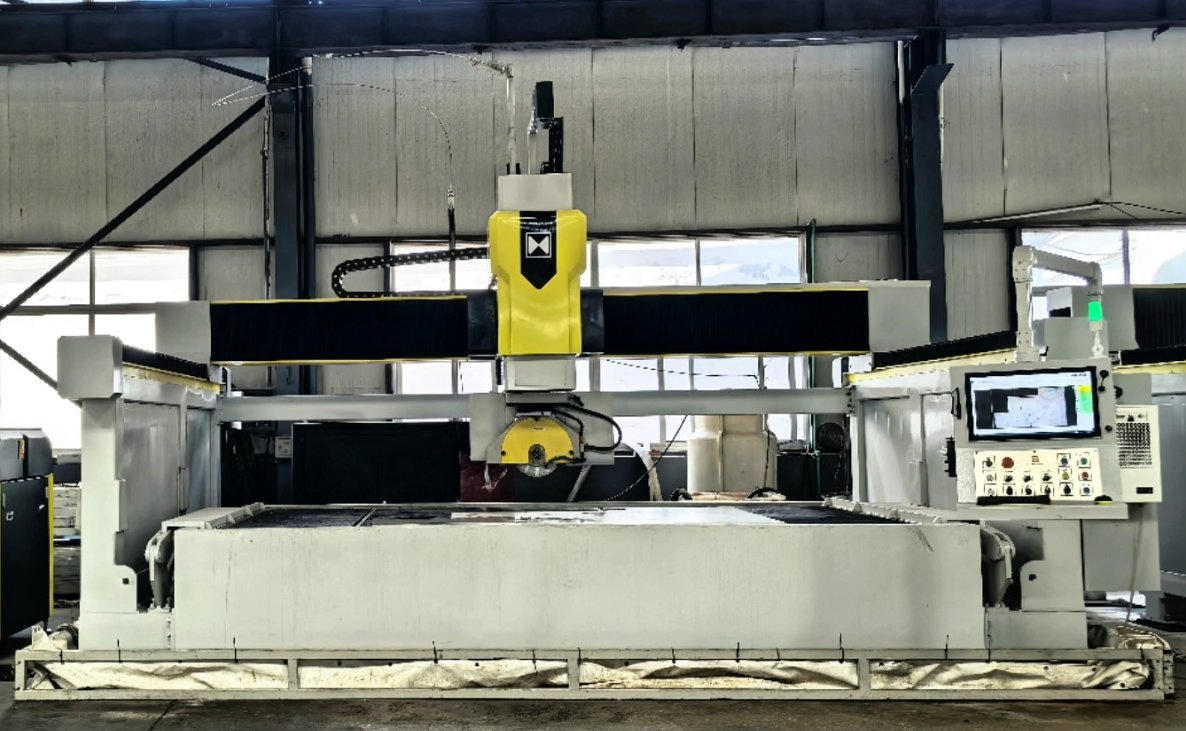

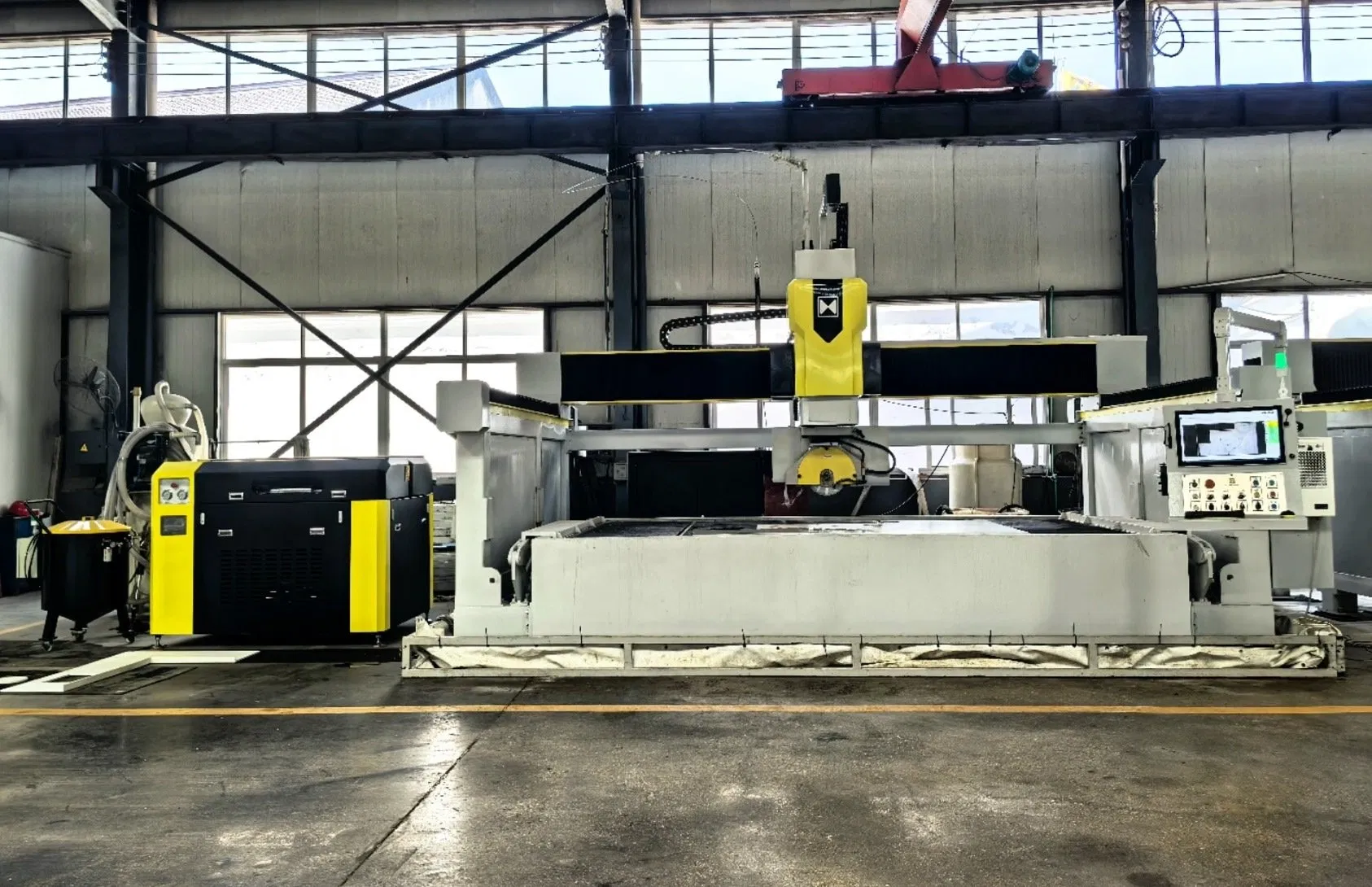

Automatic 5 Axis CNC Sawjet Machine for Ceramic, Marble, Granite, Quartz, Porcelain Multifunctional Waterjet+Bridge Saw Cutting

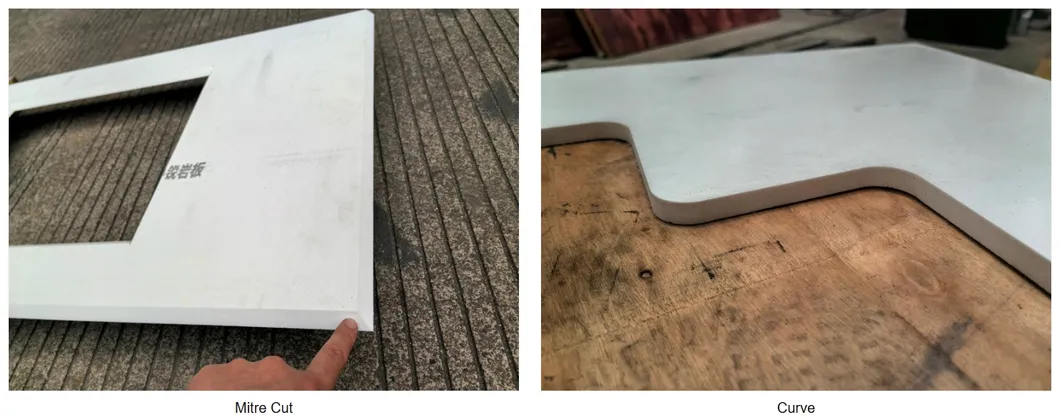

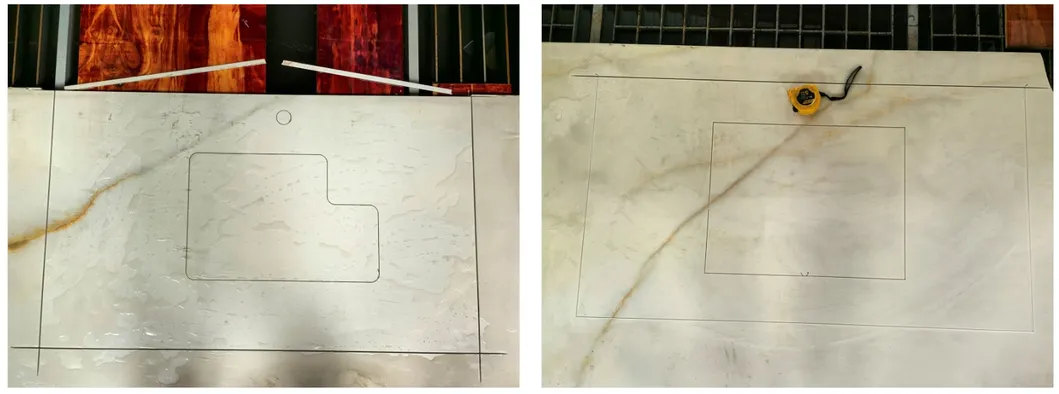

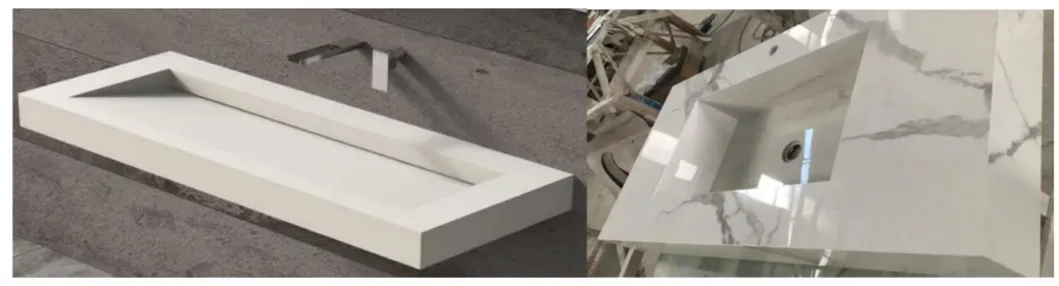

This machine can not only perform efficient Line cutting by Blade Saw, but also can process various curves and small angles by Water jet. It can process stones with high hardness, such as sintered stone, porcelain, ceramic, etc. Making it easy for stone chamfering, basin hole and internal angles processing. The processing method is flexible and convenient with a high degree of automation and simple operation.

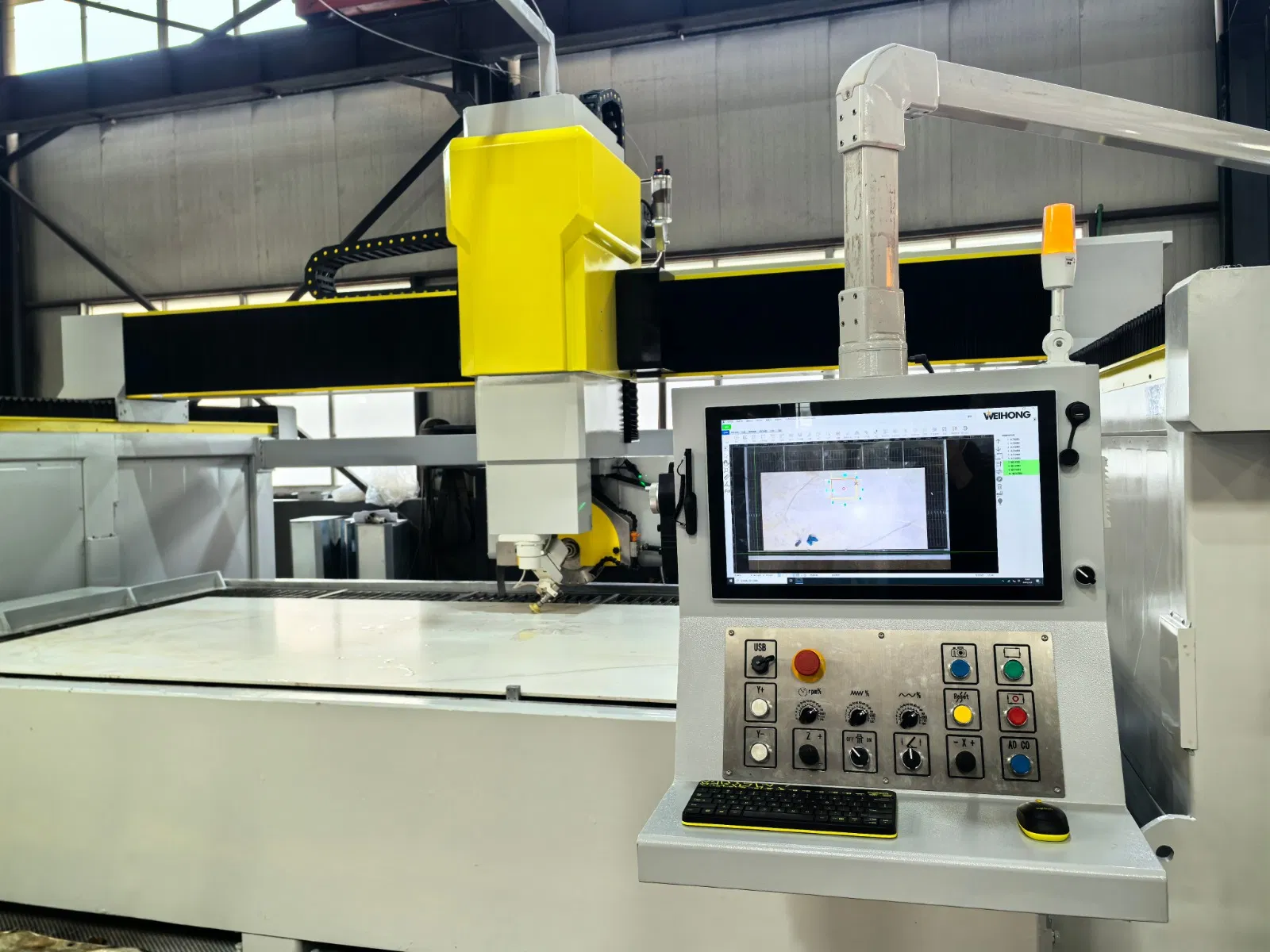

Captures images of plates on the workbench for easy drawing design and programming.
Resolution: 20-MP 1" CMOS industrial scan camera.
Working Temperature: -30ºC ~ 60ºC.
High uniformity of clarity and ultra-low distortion.

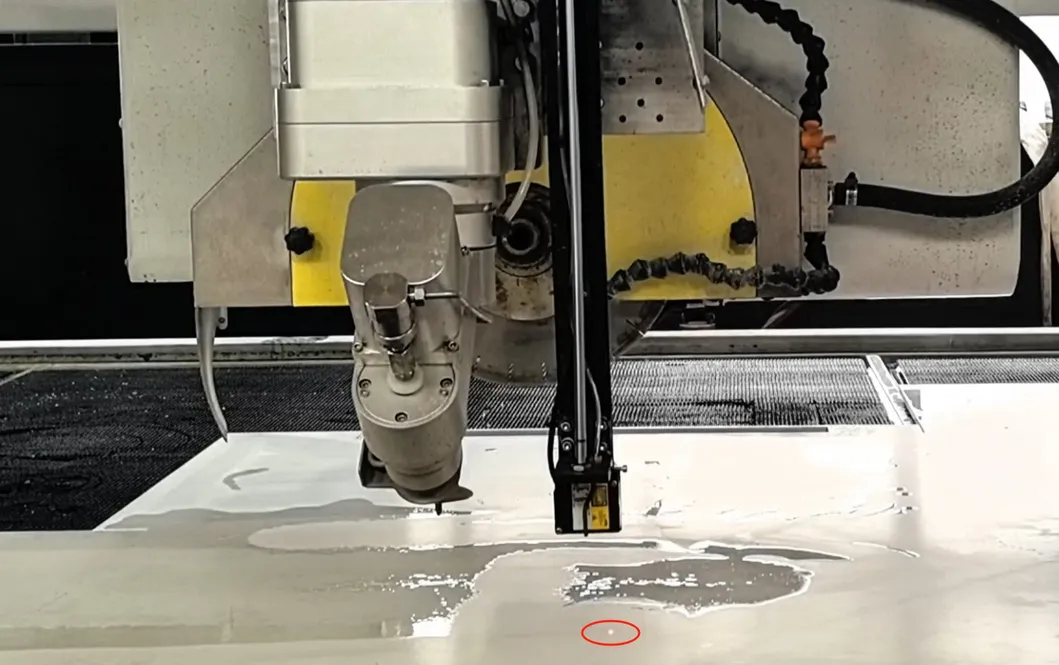

Measures slab thickness along cutting paths to build a database before cutting. It features an air-blow function to remove water layers, ensuring maximum data accuracy.
| Parameter | Specification |
|---|---|
| Maximum Pressure | 450Mpa (65000psi) |
| Working Pressure | 320~380Mpa |
| Maximum Flow Rate | 3.7L/min |
| Noise Level | < 85db |

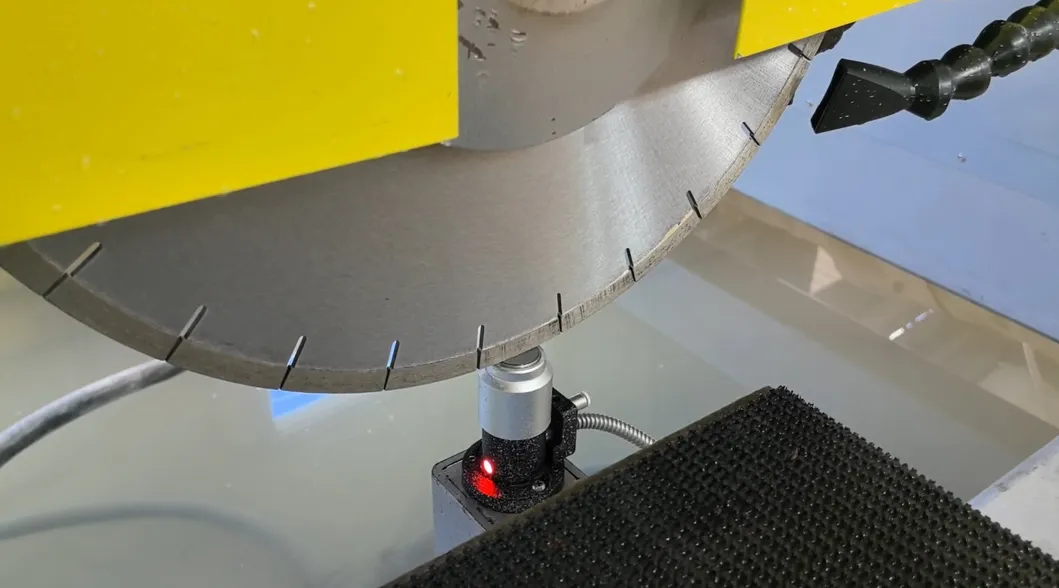

The 100-liter automatic sand feeder holds 150kg of sand with an automatic alarm. The tool presetting gauge measures blade diameter automatically for high efficiency.
