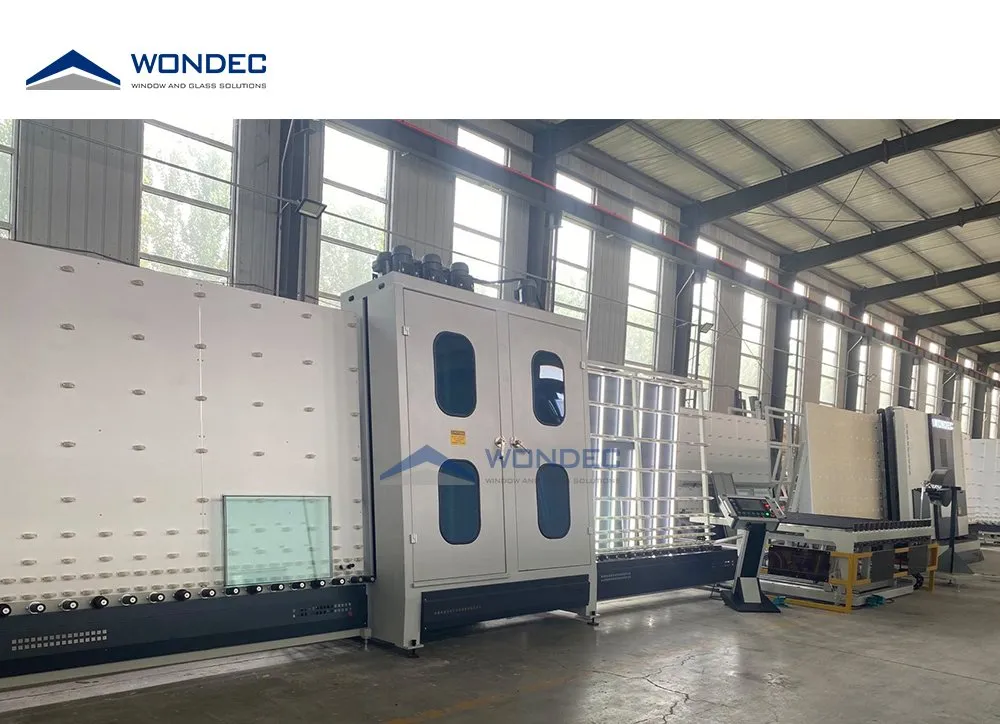

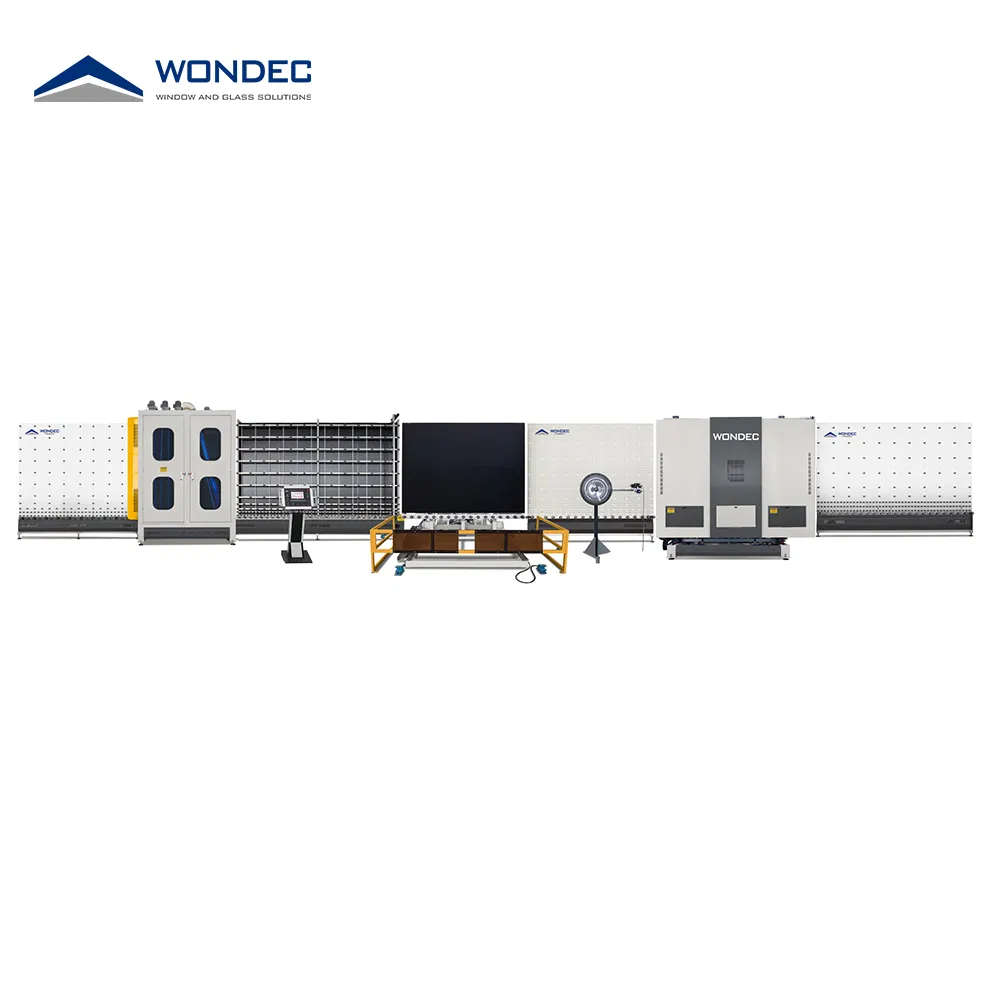

Fully Automated Vertical Warm Edge Flexible Super Spacer Automatic Hot Melt Igu Line for Dgu Double Glazing Insulating Glass Making

Fully Automated Vertical Warm Edge Flexible Super Spacer Automatic Hot Melt IGU line For DGU Double Glazing Insulating Glass Making

Section 01: Input Conveyor

Mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

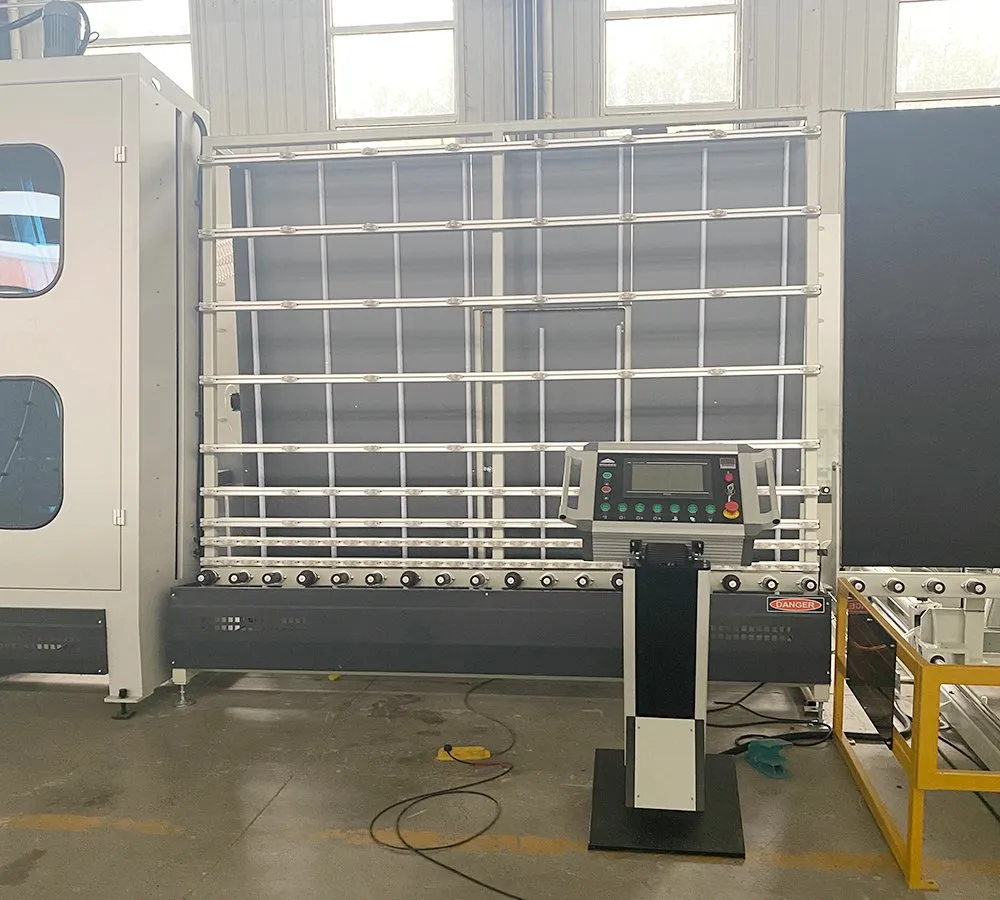

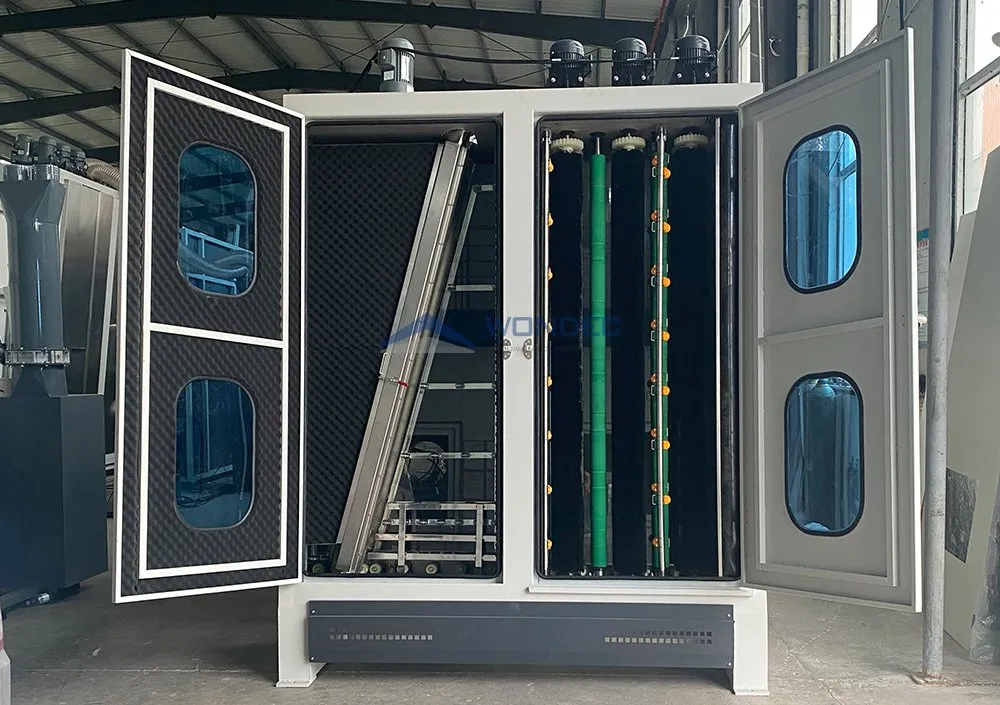

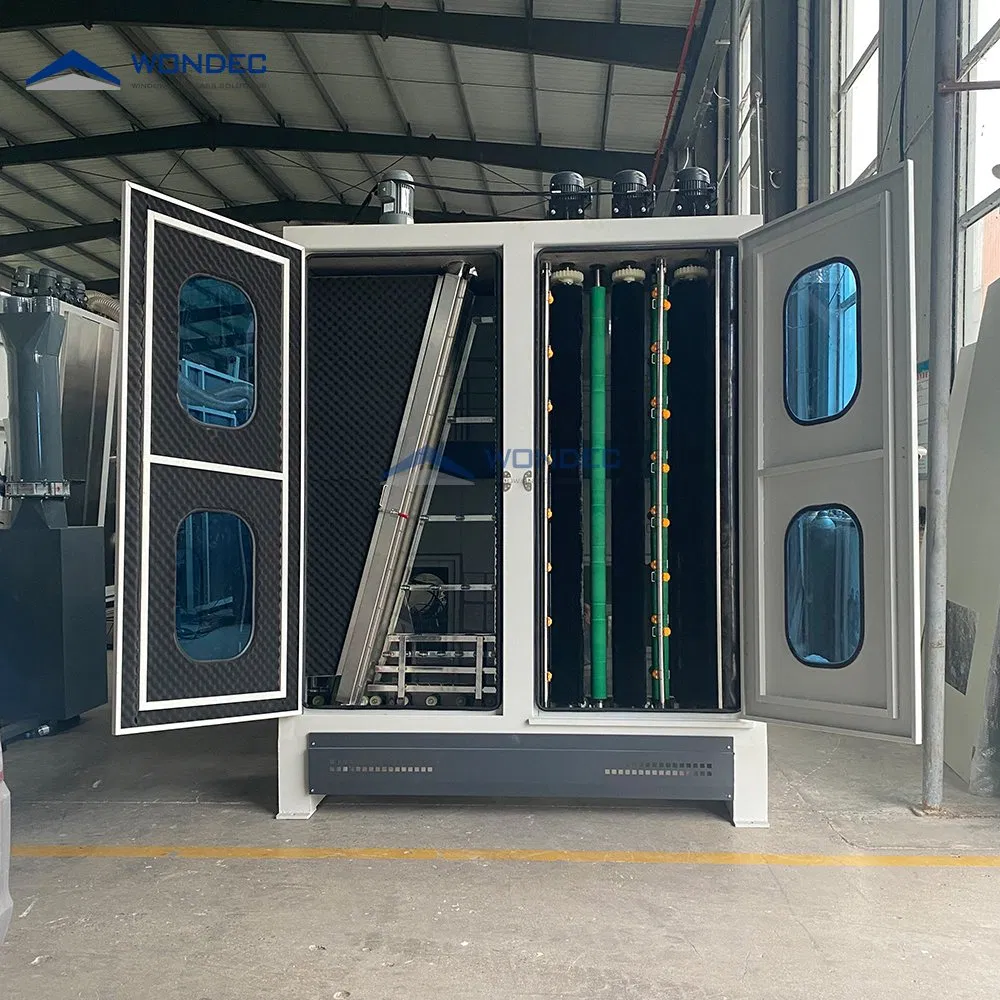

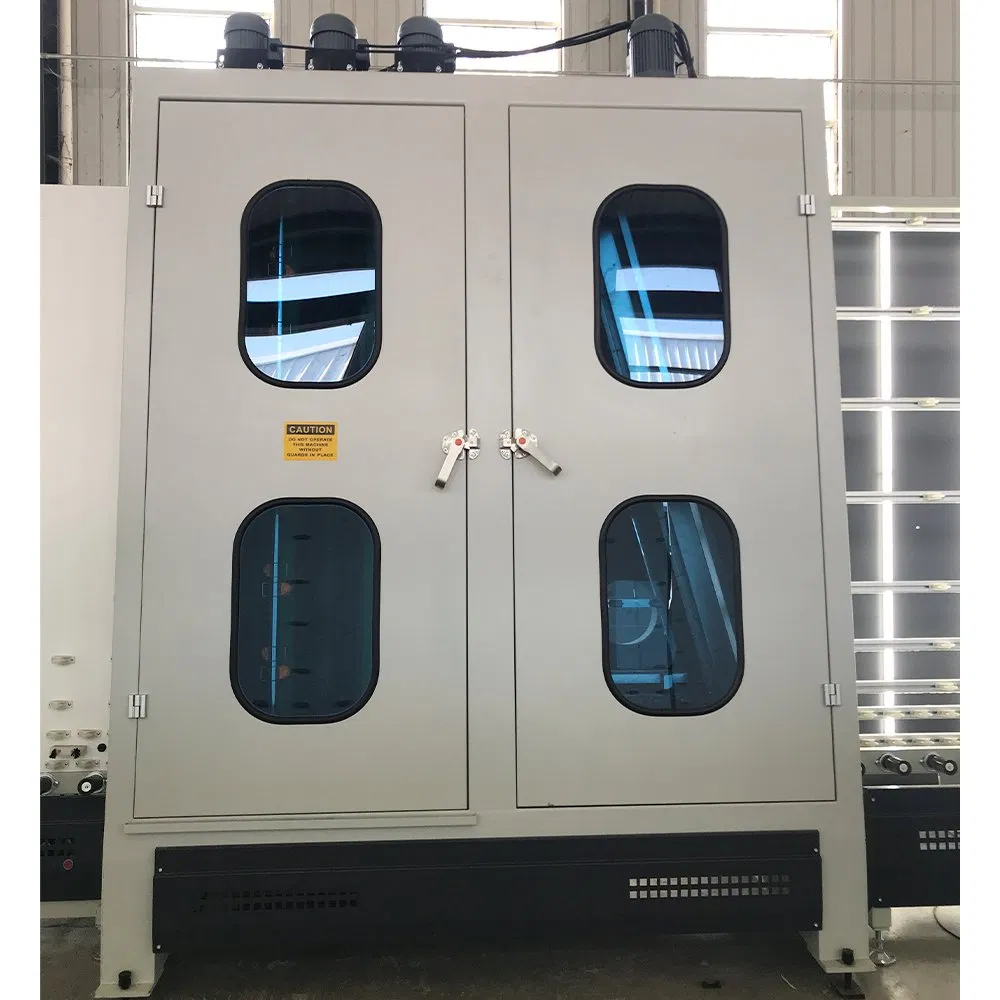

Section 02: Glass Washing and Drying Section

• Stainless steel material used for all washing area and waterway systems.
• 6 brushes driven by 6 independent motors for continuous operation.
• Direct coupling connection prevents slipping or motor idling.
• Front 3 soft brushes (0.1mm) for Low-E glass; Back 3 hard brushes (0.2mm) for ordinary glass.

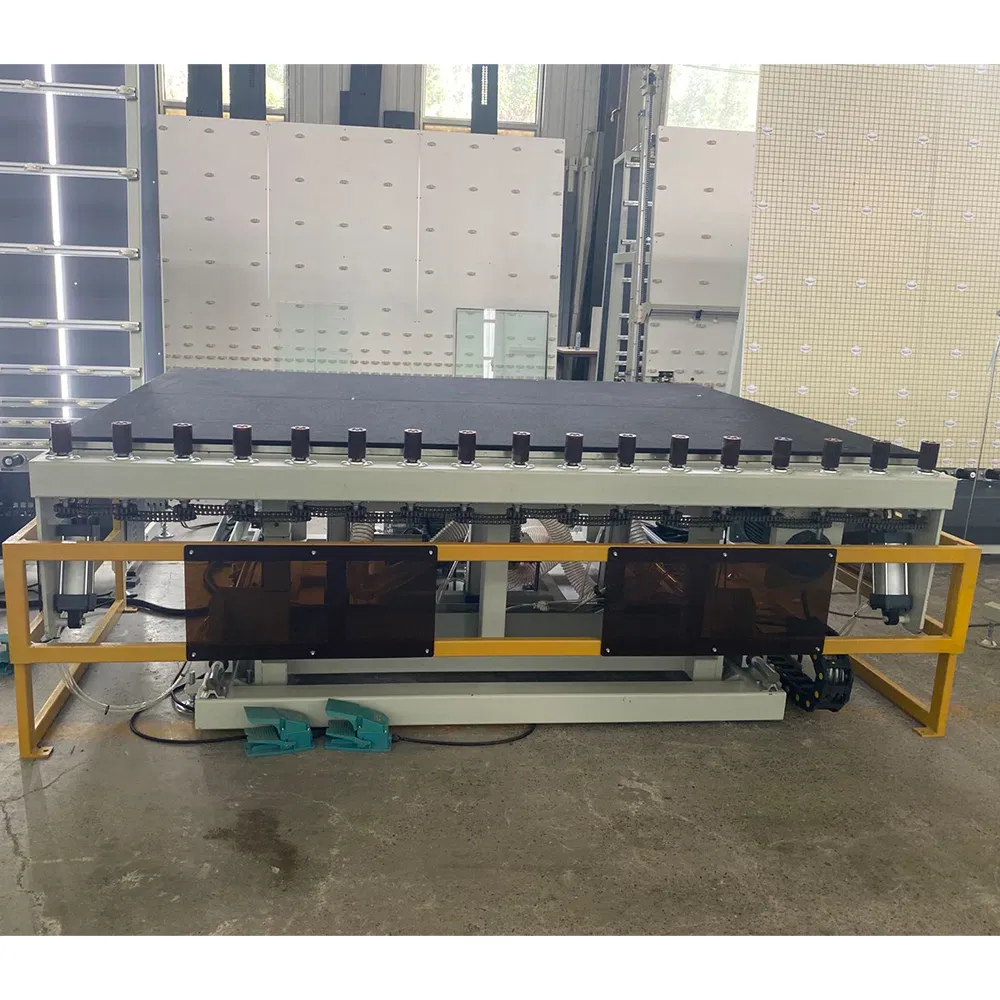

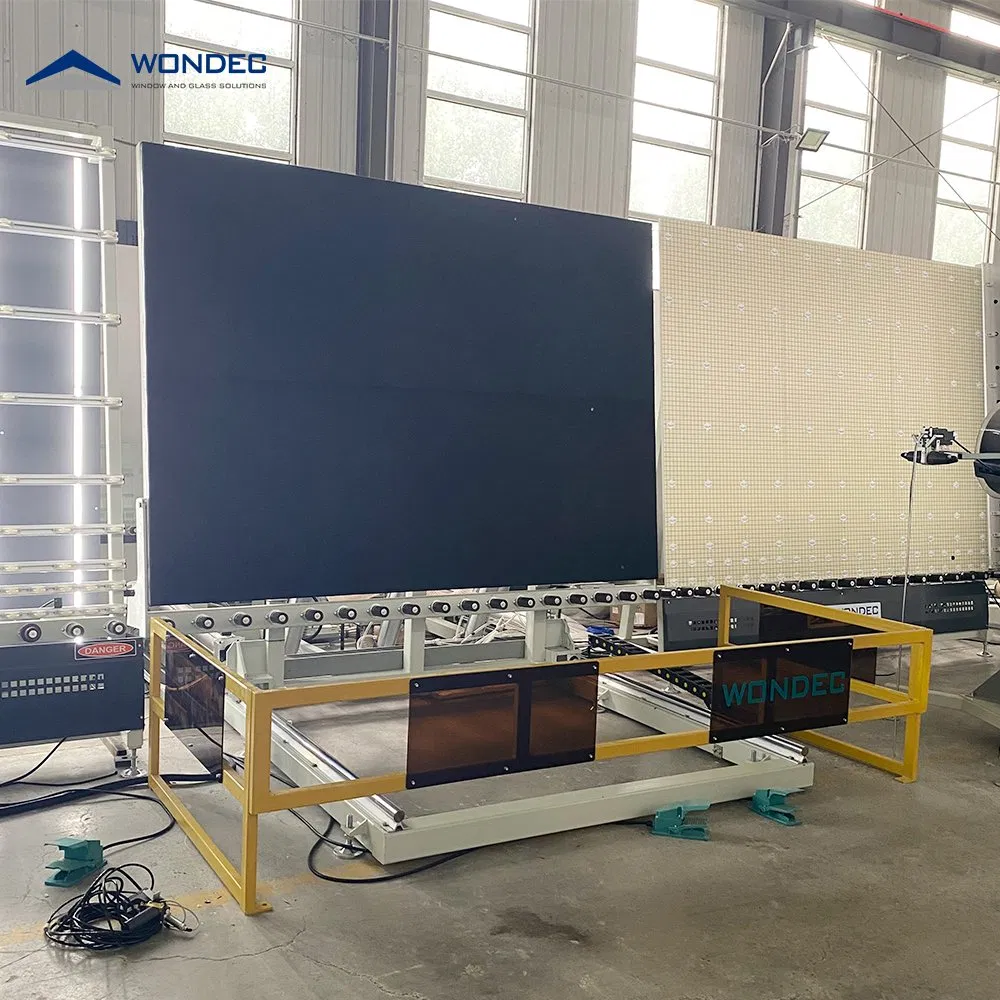

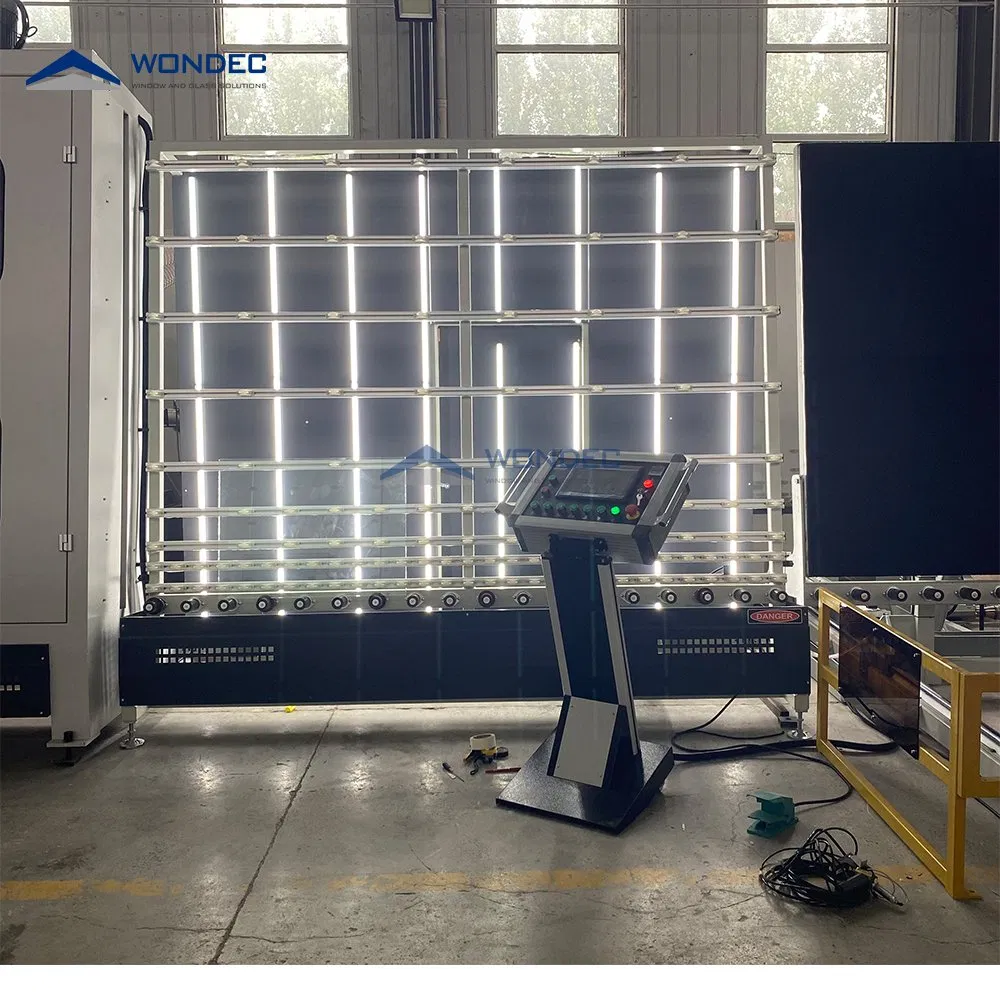

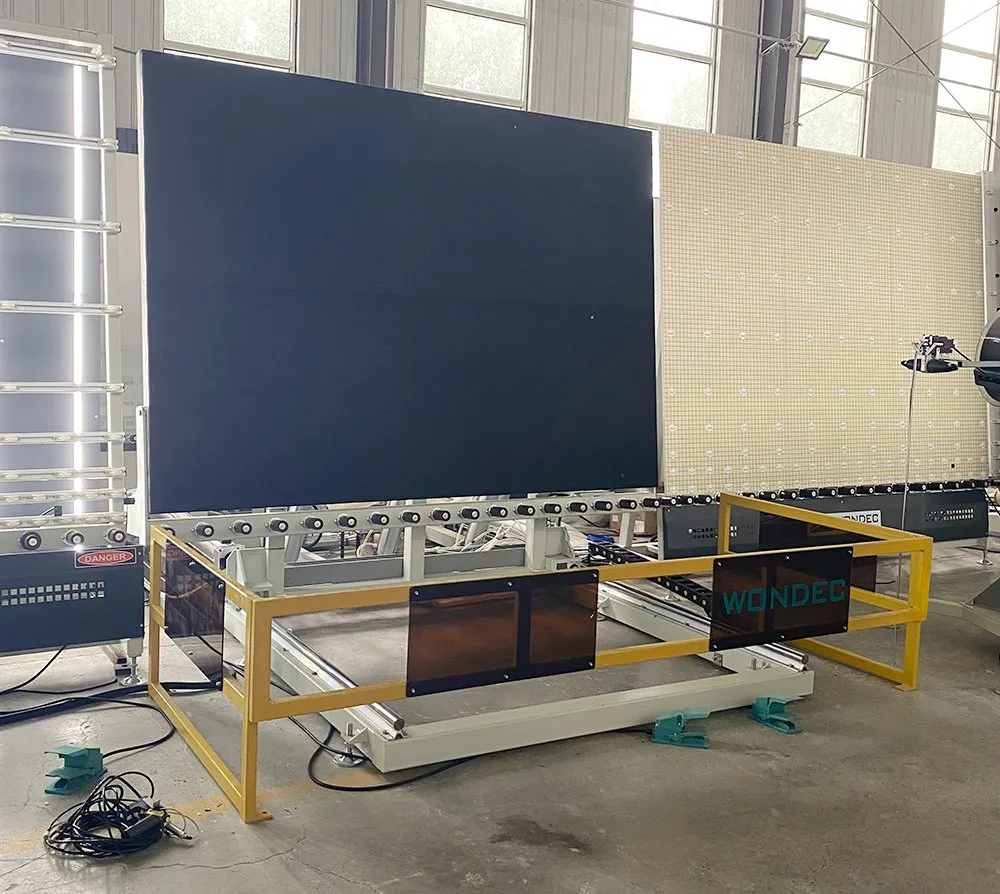

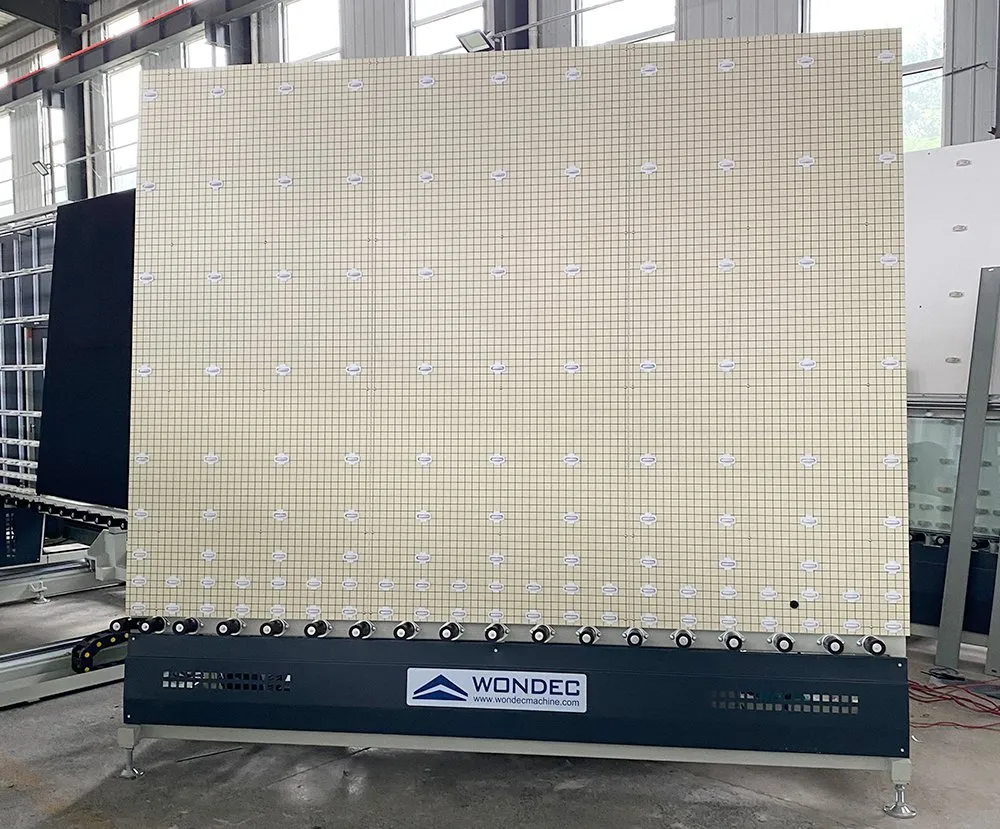

Section 03: Inspection & Section 04: Tilting Table

Includes a glass inspection conveyor with an openable rear door and a tilting table for manual Super Spacer application.

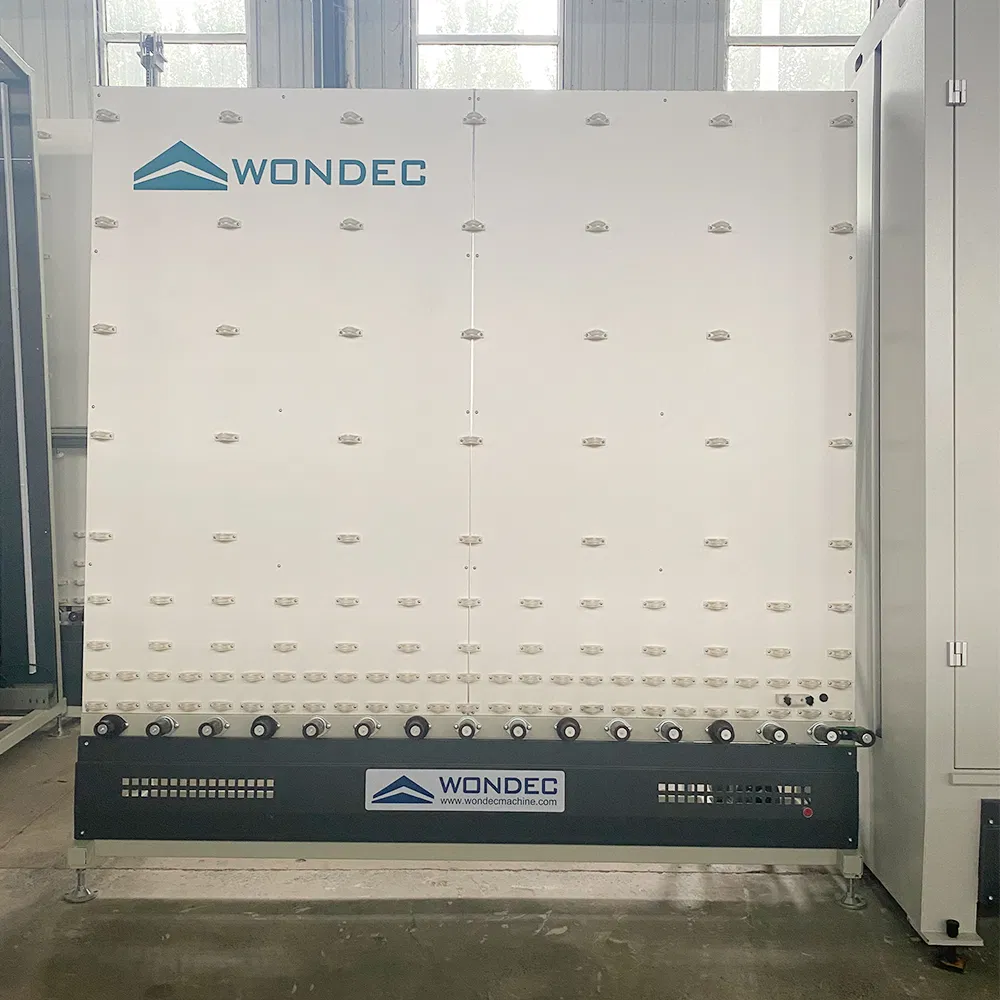

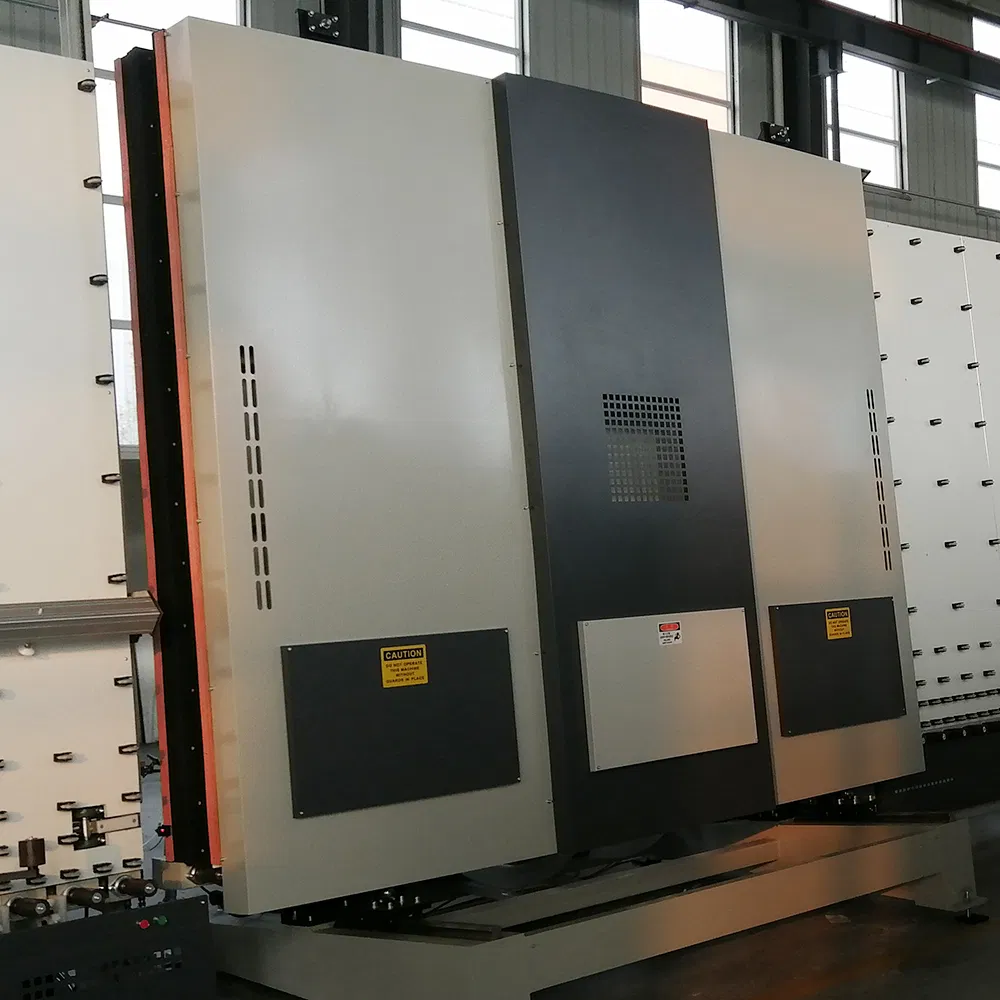

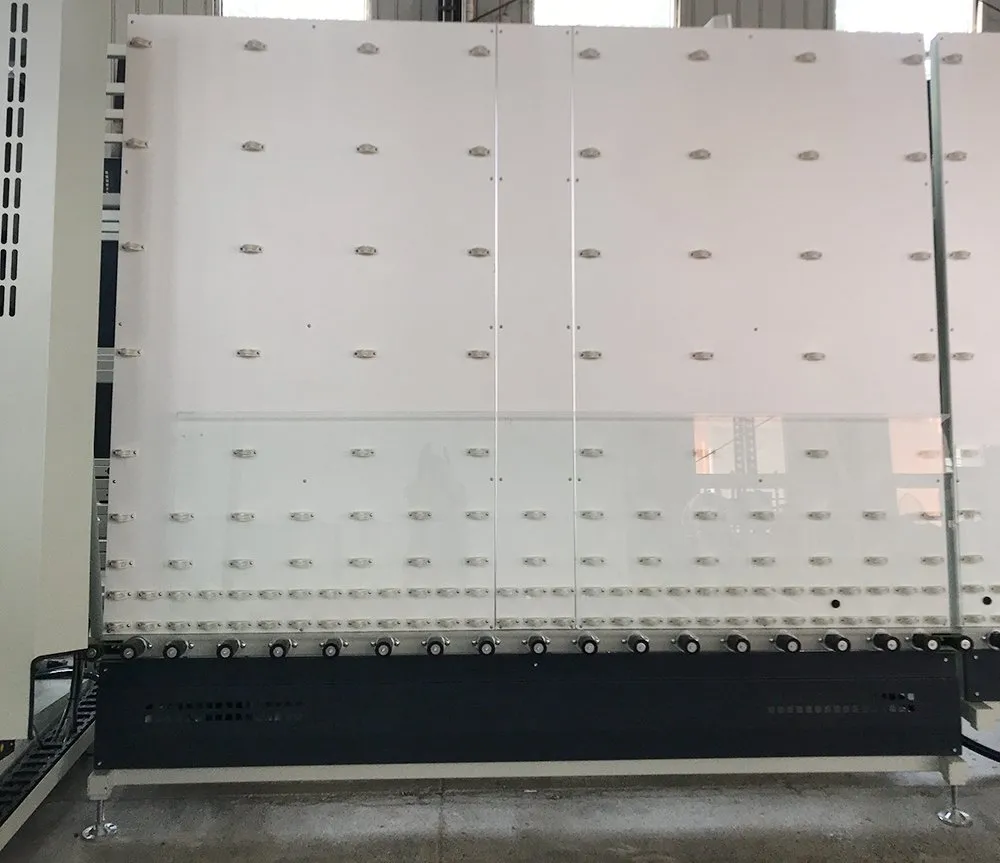

Section 05 & 06: Georgian Bars & Panel Press

• Denser steel frame for a stronger machine body.
• Panel press controlled by Servo Motor.
• Two-layer front pressing plate ensures long-term flatness.
• Suction cups equipped with separate logic valves, working partitioned by glass size.
• Automatic online Gas Filling: Suitable for double and triple IGU.
