Affordable Zxx-C1812 CNC Glass Processing Center for Efficient Production

1 / 5

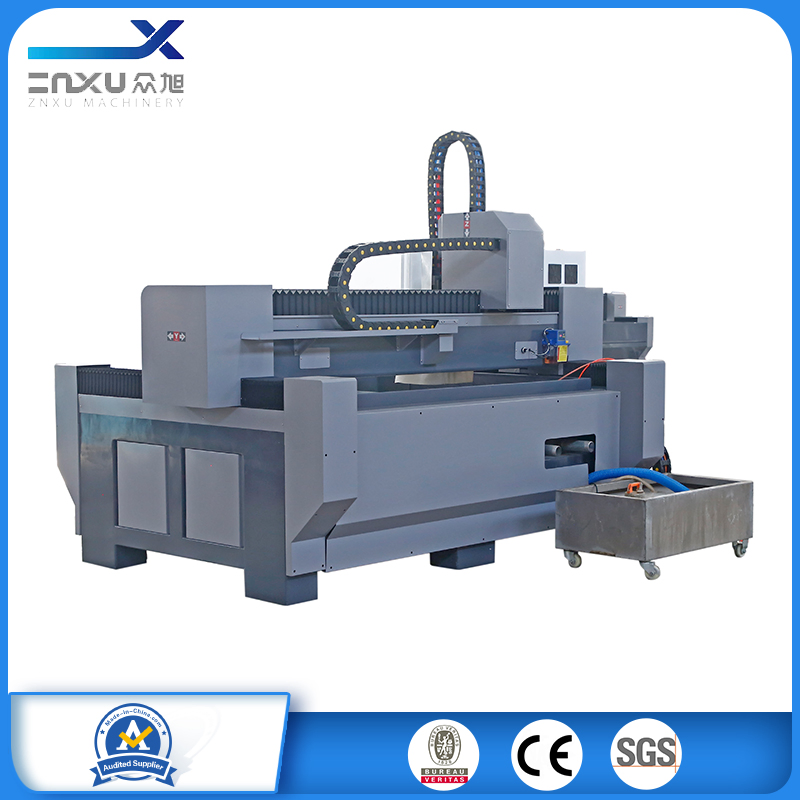

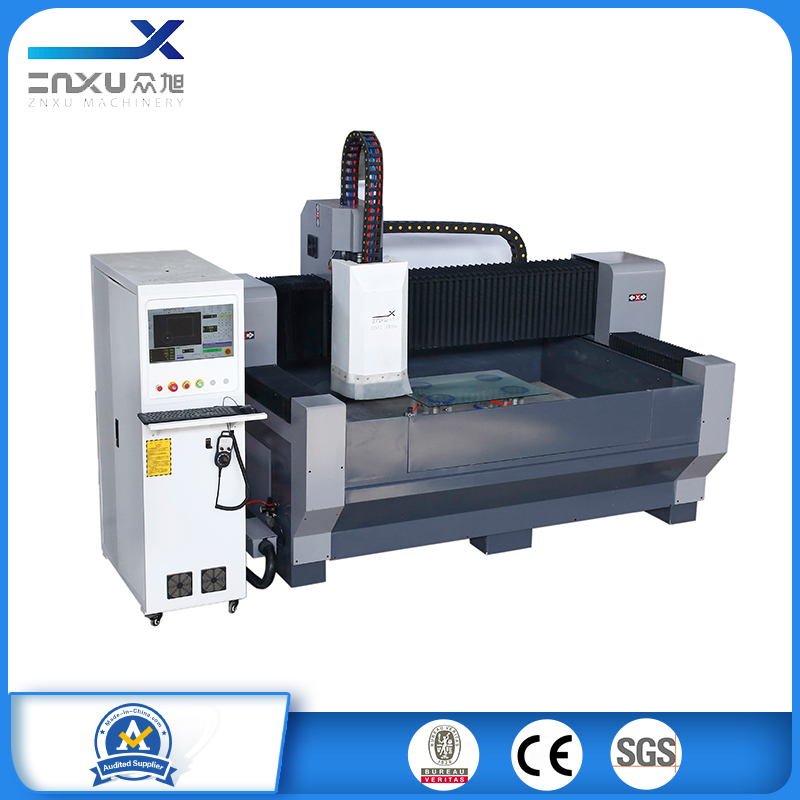

Affordable Zxx-C1812 CNC Glass Processing Center for Efficient Production

Customization:	Available
Certification:	CE, ISO
Glass Thickness:	3-19mm

Send Inquiry

Product Description

Basic Information

Model NO.

ZXX-C1812

Drawing

CAD Drawing

Heads Number

Max.Motion Range

1800*1200

Power

9.6kw

Speed

0-12m/Min

Volt.

380V/50Hz

Min Process Size

75X15mm

Processing Precision

0.01mm

Function

Drilling Milling Grinding Polishing Engraving

Application

Glass Cabinet Table, Glass Sinks, Shower Door ....

Delivery

25 days

After-Service

24 Hours Online Services

Advantage

Four Functions in One Together

Structure

Horizontal

Control System

PLC / Leetro

Condition

New

Type

Glass Process Center

HS Code

8464901900

Production Capacity

50 Sets Per Month

Product Description

Technical Parameters

Description	Unit	Parameter
Model No.	-	ZXX-C1812
Column	Set	Heavy iron
Control System	Set	Leetro
Axis / Cutter Change	PC	By hand
Spindle Diameter	-	¢125
Cooling	-	Cool water
RPM	-	42000 / 2800 RPM
Power	KW	1.5KW - 4.5KW
Drive System	Set	YMPC
Invertor	KW	BEST: 11KW
Work Table Size	mm	1800*1200mm
Max Process Glass	mm	1400*1000mm
Z-axis Space Height	mm	380
Machine Structure	Set	Half cover / waterproof design
Work Table Load	KG	120
Positioning Accuracy	mm	0.01
Repeated Accuracy	mm	0.01
Cutting Speed	M/MIN	0-2M/MIN
Grinder Speed	M/MIN	0-12M/MIN
Stroke Protection	PC	Omron, Japan
GEAR	PC	GERMAN DMJ-1.5M High precision
Guide Screw Bearing	PC	HIWIN (Z axis with diagonal contact)
Lubrication System	Set	Automatic
Volt./Frequency	KW	AC/380v/10KW/50HZ
Machine Size	mm	1900x2700x2300mm
Weight	KG	1600

Frequently Asked Questions

What are the main functions of the ZXX-C1812 CNC Glass Processing Center?

The machine integrates four main functions: drilling, milling, edging, and polishing. It is also capable of grinding and engraving tasks.

What is the processing precision of this machine?

The ZXX-C1812 offers high-precision performance with a positioning accuracy and repeated positioning accuracy of 0.01mm.

What are the typical applications for this equipment?

It is widely used for processing glass cabinets, tables, glass sinks, shower doors, and other furniture or architectural glass components.

How long is the standard delivery time?

The standard delivery time for the ZXX-C1812 is approximately 25 days after order confirmation.

Does the machine come with any specific protection or lubrication systems?

Yes, it features an automatic lubrication system, a waterproof half-cover design, and stroke protection using high-quality Omron components from Japan.

What type of control system does it use?

The machine is equipped with a reliable PLC and Leetro control system for stable and efficient operation.
