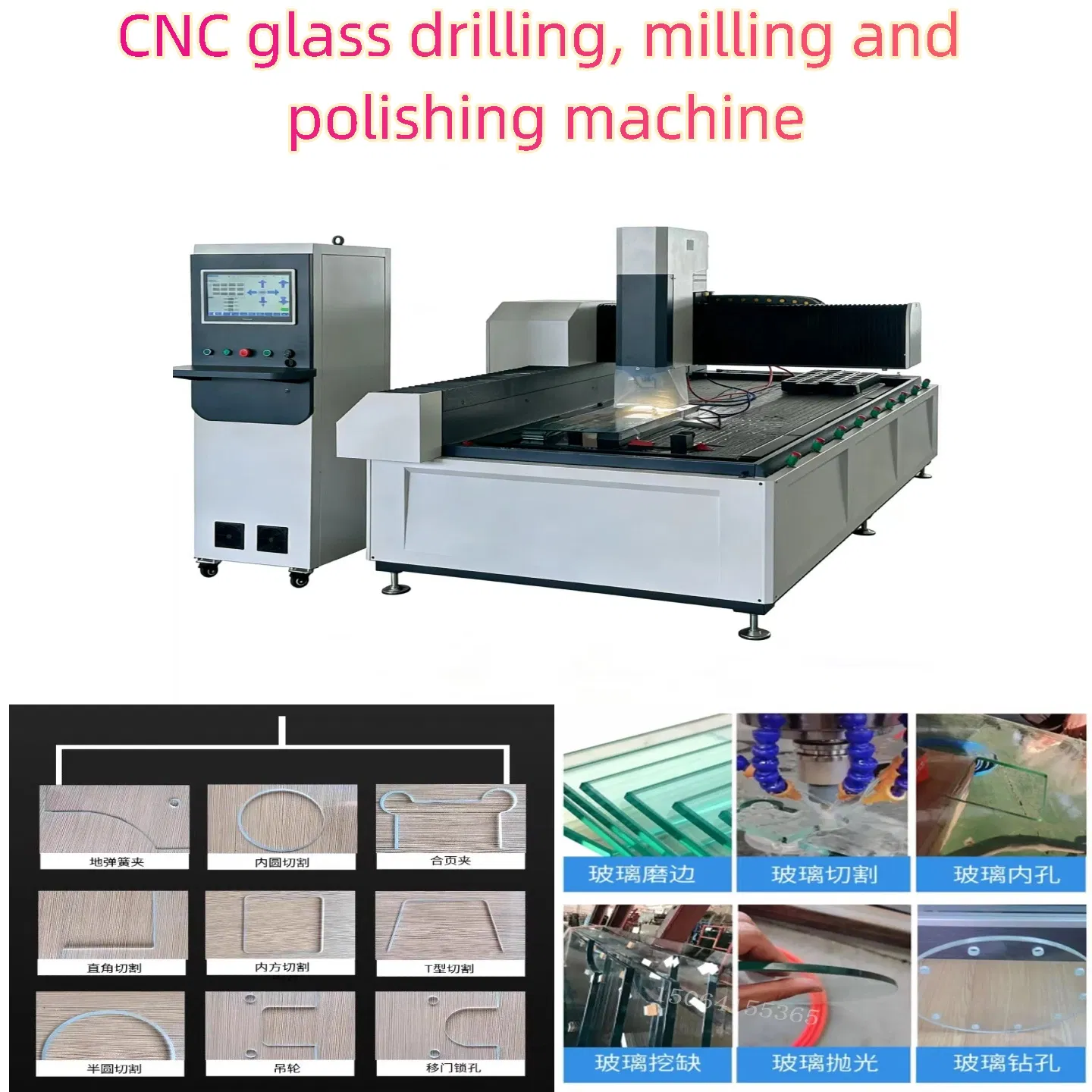

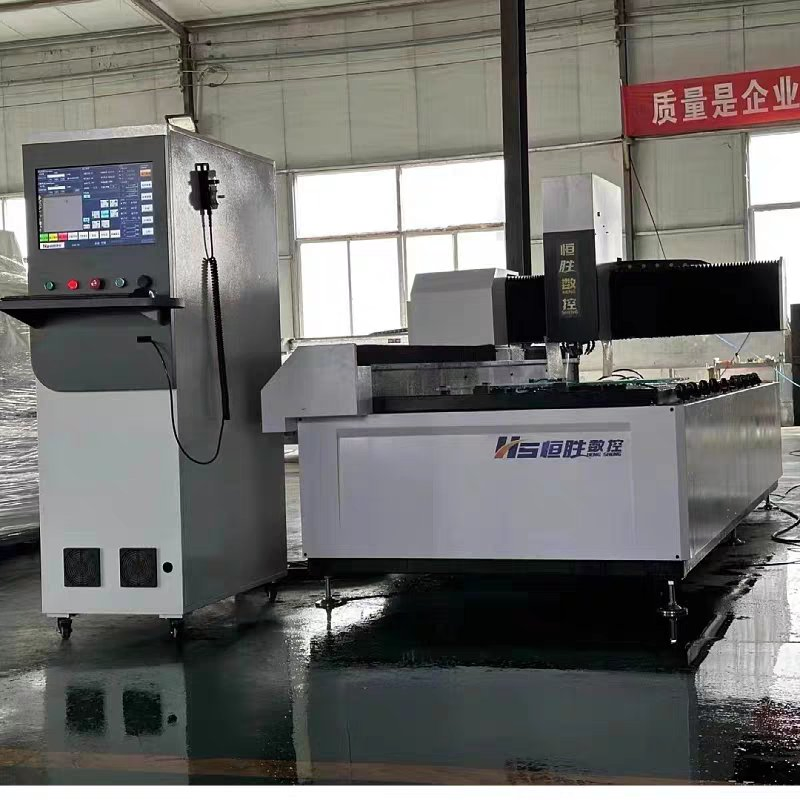

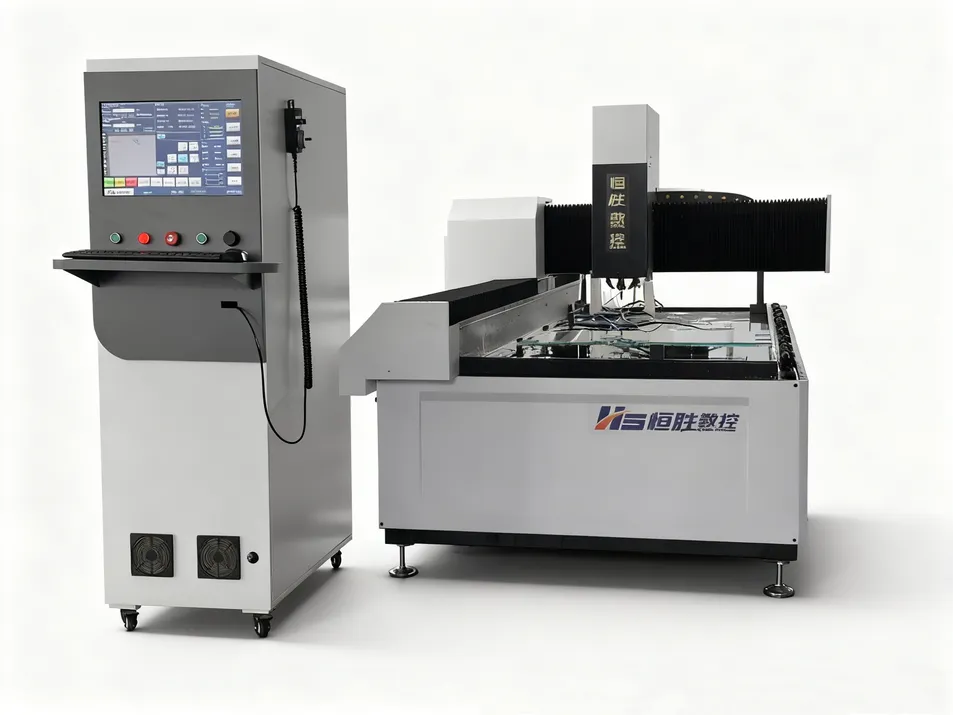

Affordable Factory Price CNC Glass Door Processing Center

1 / 5

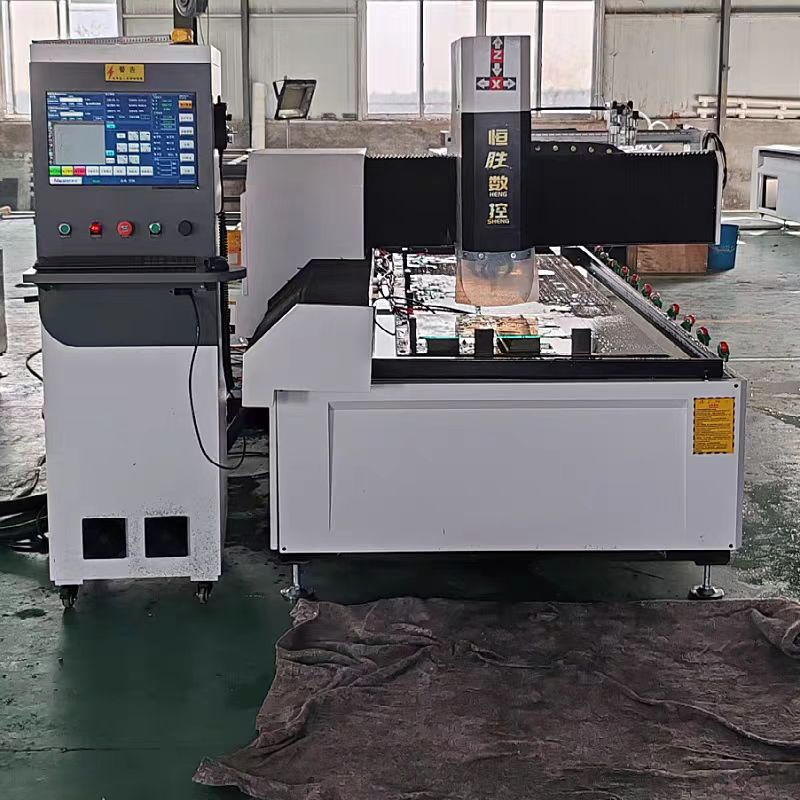

Affordable Factory Price CNC Glass Door Processing Center

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

Send Inquiry

Product Description

Basic Specifications

Warranty 1 Year

Working Area 1000*2500mm

Equipment Size 3600*2250*1800mm

Cooling System Water Cooling

Origin China

HS Code 8464901900

Product Description

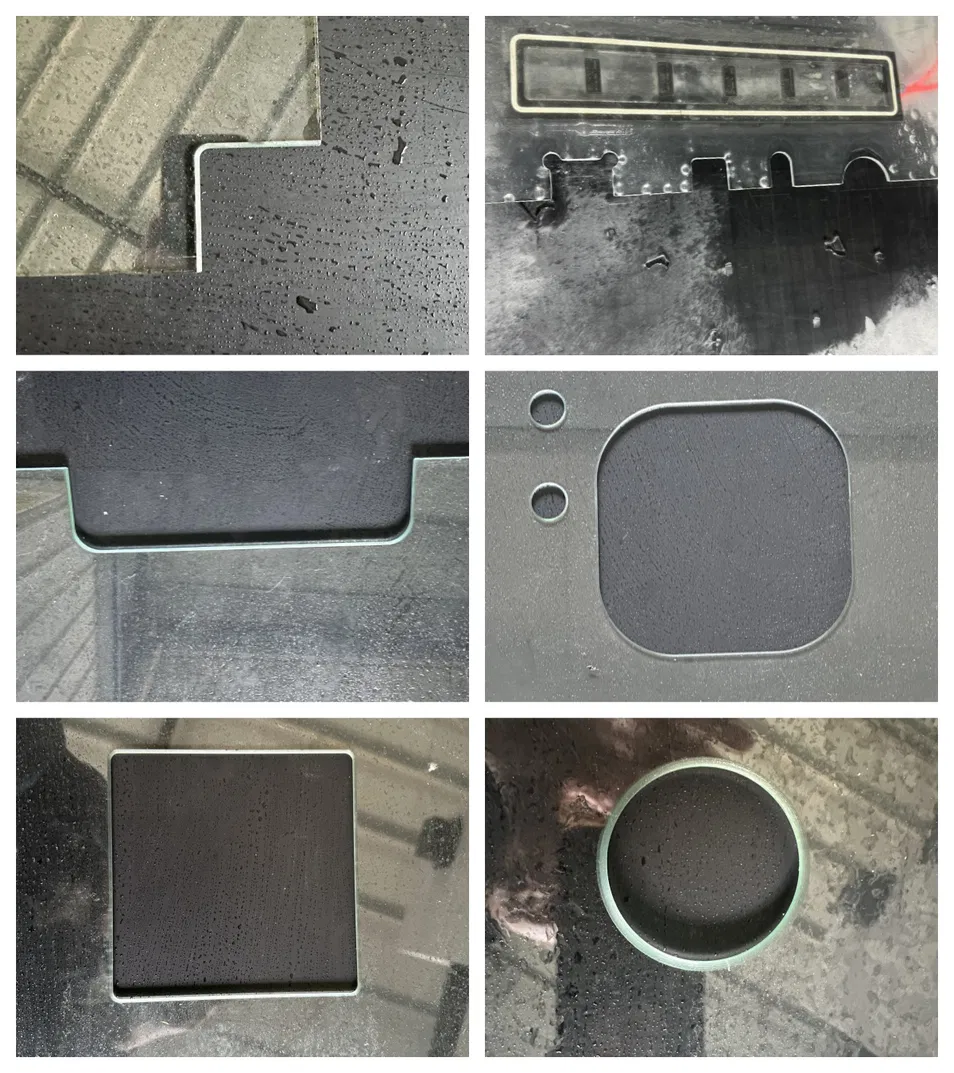

Main Functions

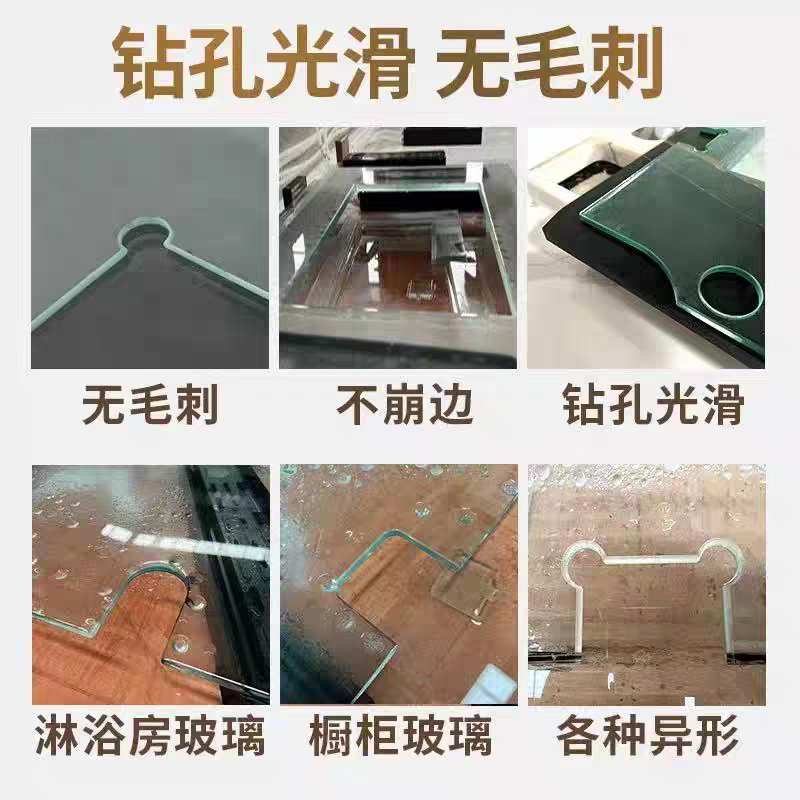

Drilling: Circular or oval holes for hinges, handles, and accessories.
Grooving: Creating slots for glass splicing or hardware fixing.
Internal Edge Grinding: Eliminates chipping and improves tempered glass yield.

Product Advantages

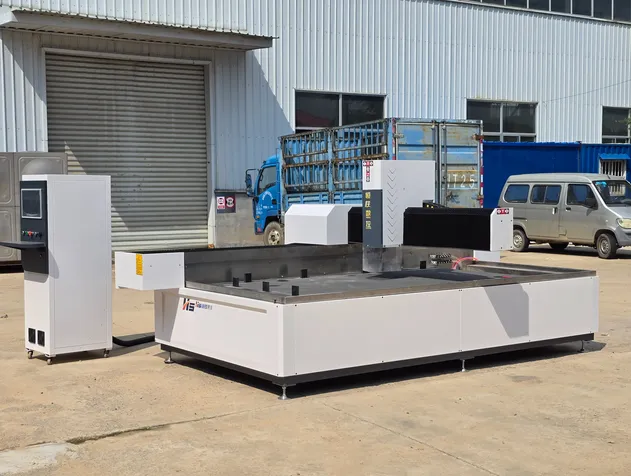

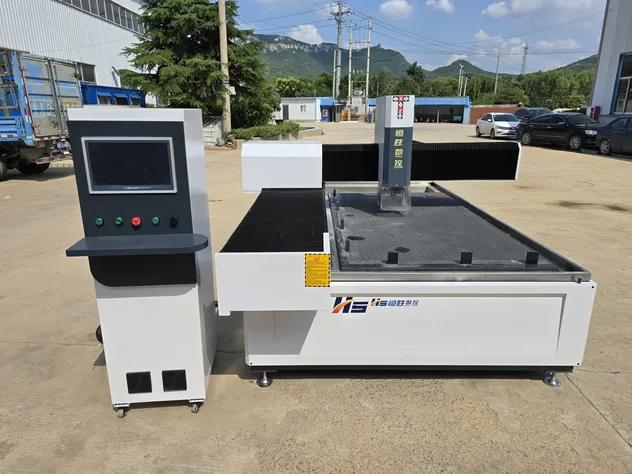

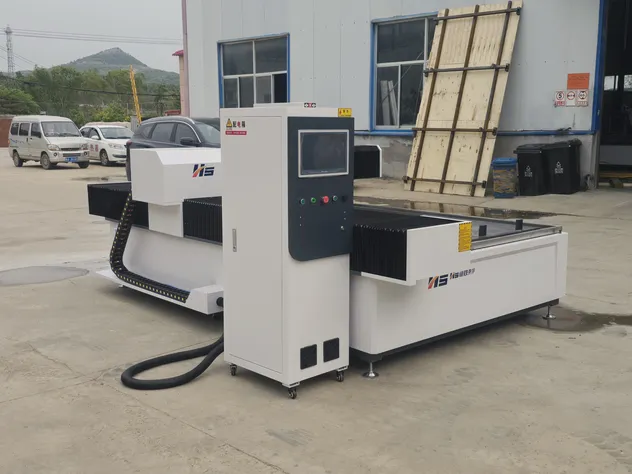

Mechanical Structure: Single cantilever design for easy loading/unloading. Thick-walled square tubing treated for high-temperature stability ensures long-term rigidity.

Spindle: 7.5KW spindle reaching up to 24,000 rpm with high repeatability accuracy.

Operating System: Professional glass drilling and milling control with a built-in image library and touchscreen interface.

Technical Specifications

Model	HS-1025	HS-1325	HS-3015
Travel (Work Scope)	10002500200mm	13002500200mm	30001500200mm
External Diameter	210036001800mm	225036001800mm	520022501800mm
Spindle Motor	7.5kw Special spindle for drilling and milling
Main Shaft Speed	0-24000 RPM
Operating System	Special system for glass drilling and milling
Drive & Motor	Professional servo motors (1.5KW X/Y, 750W Z with brake)
Glass Fixing	Vacuum pump + 4 adsorption plates + 2 suction cups

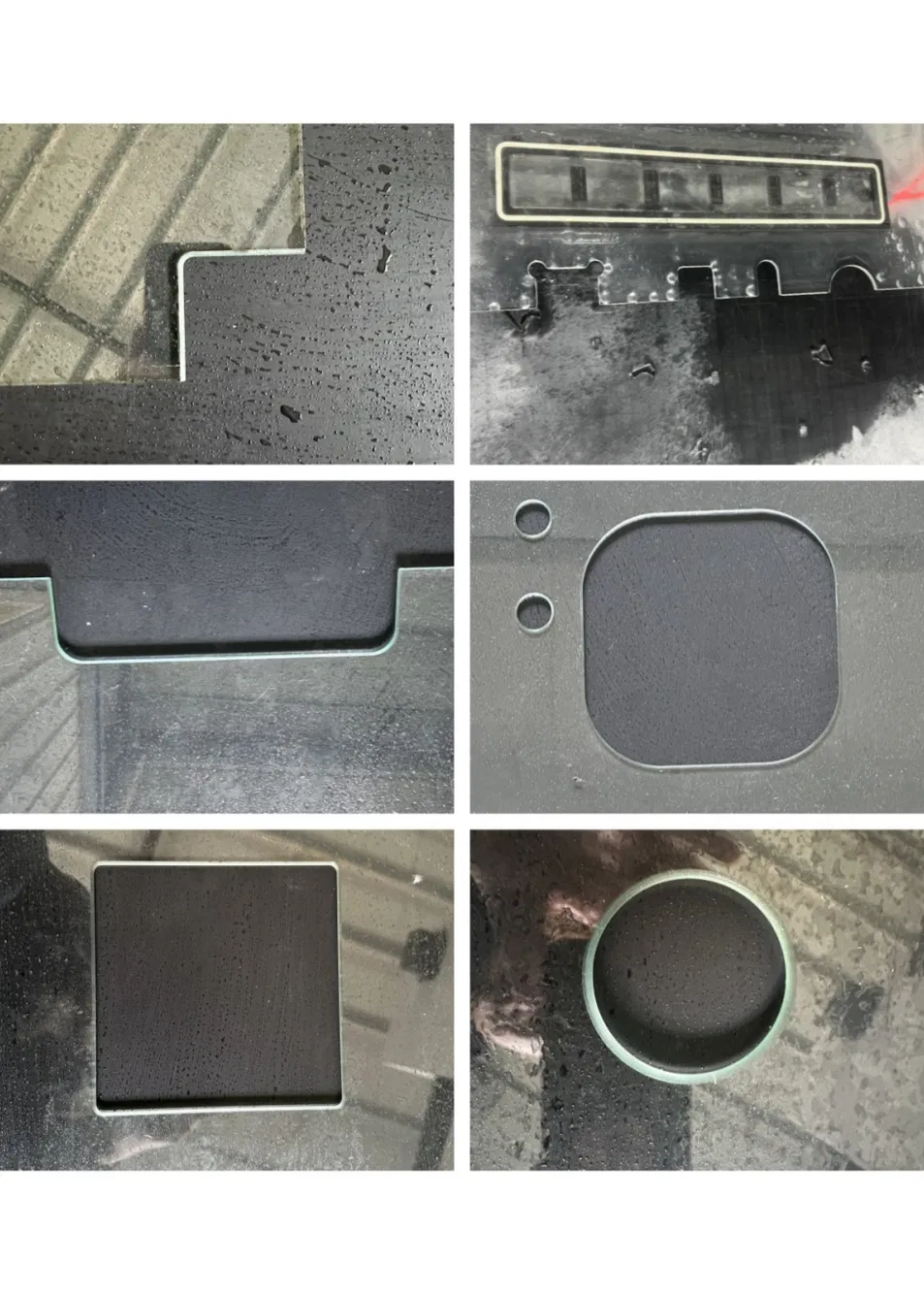

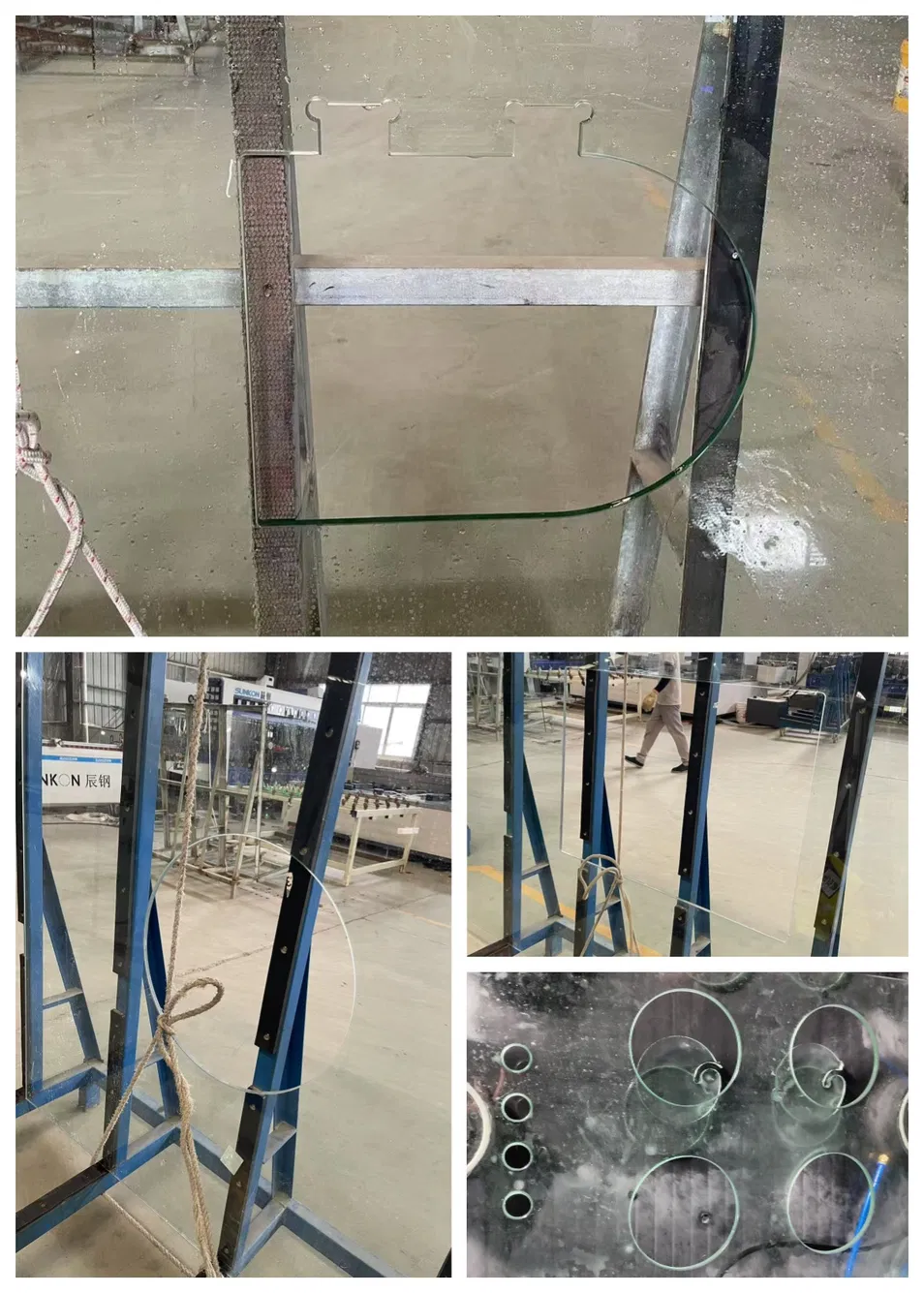

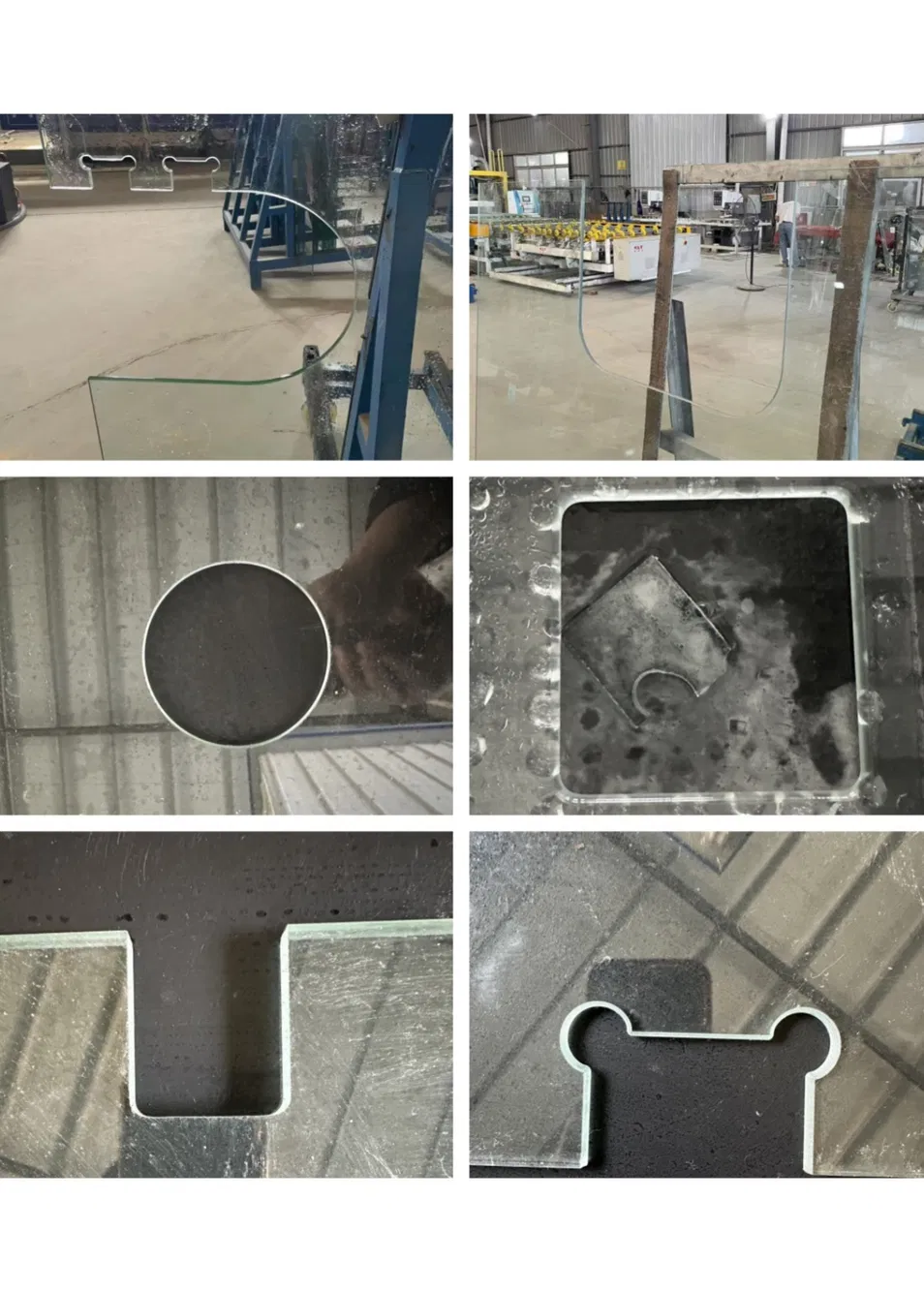

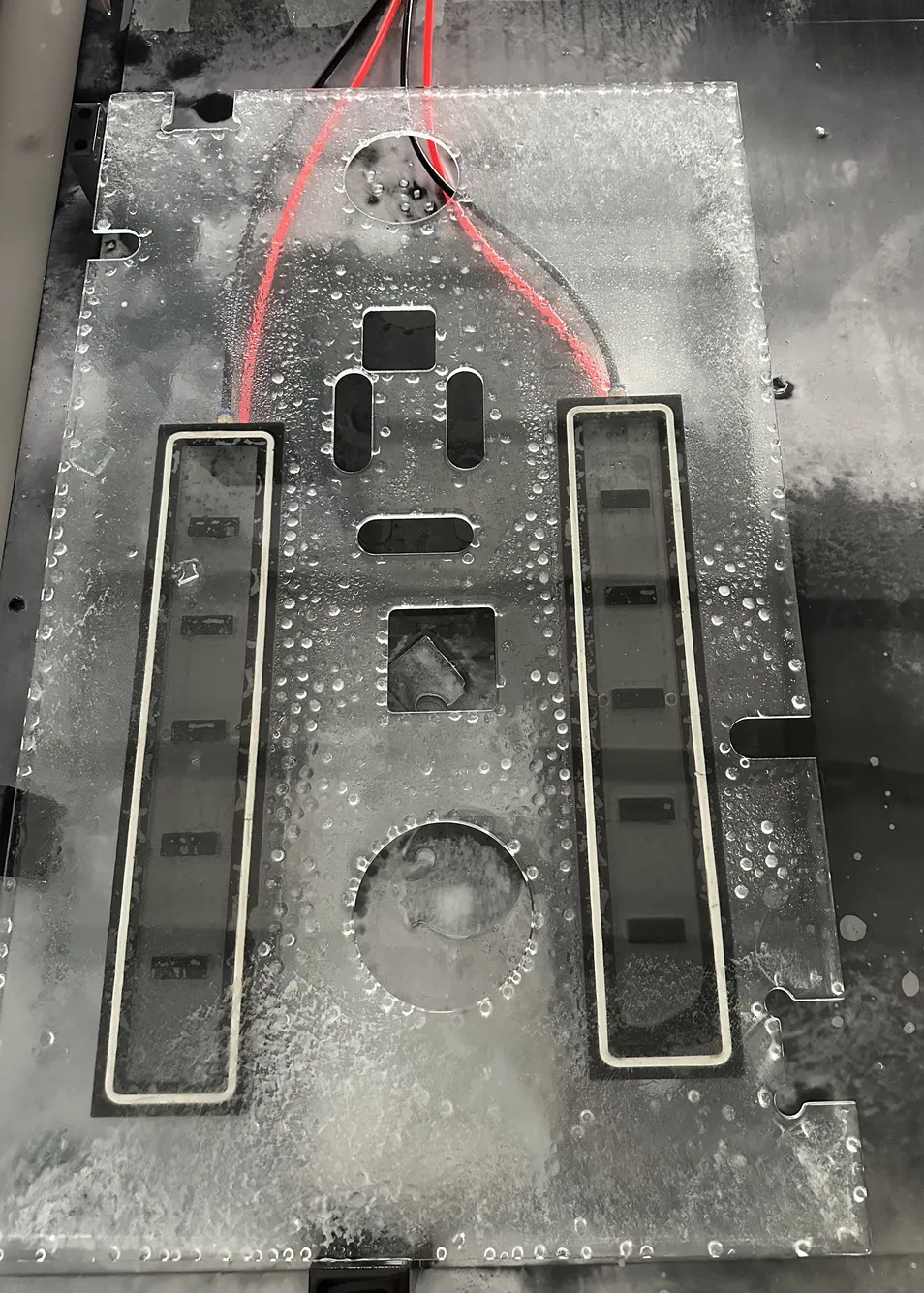

Work Samples

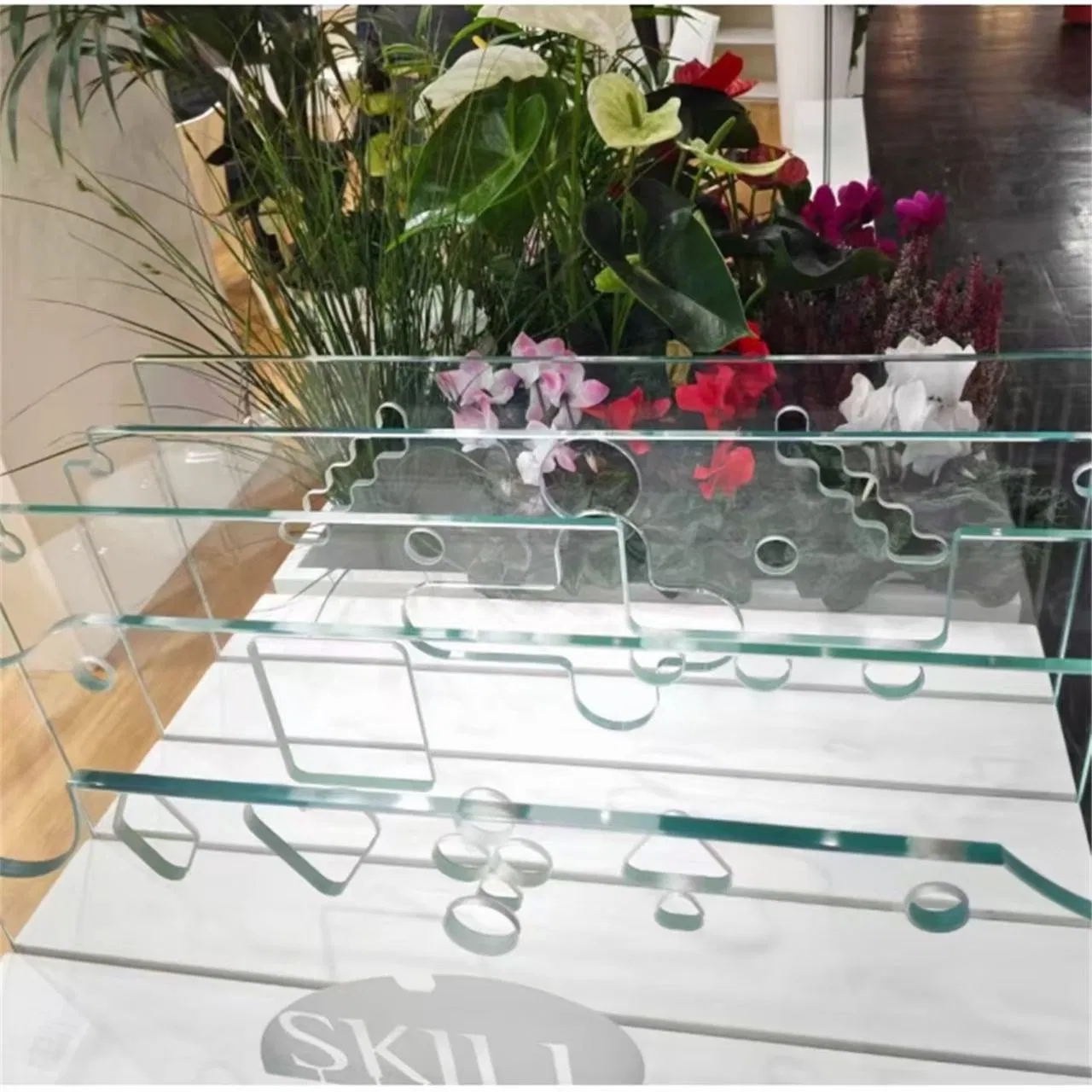

Suitable for processing glass doors, sliding doors, minimalist doors, shower room glass, and curtain wall glass.

After Sales Service & Shipping

Warranty Standard 12 months; Extended up to 36 months optional.

Support 24/7 technical assistance and global spare parts supply.

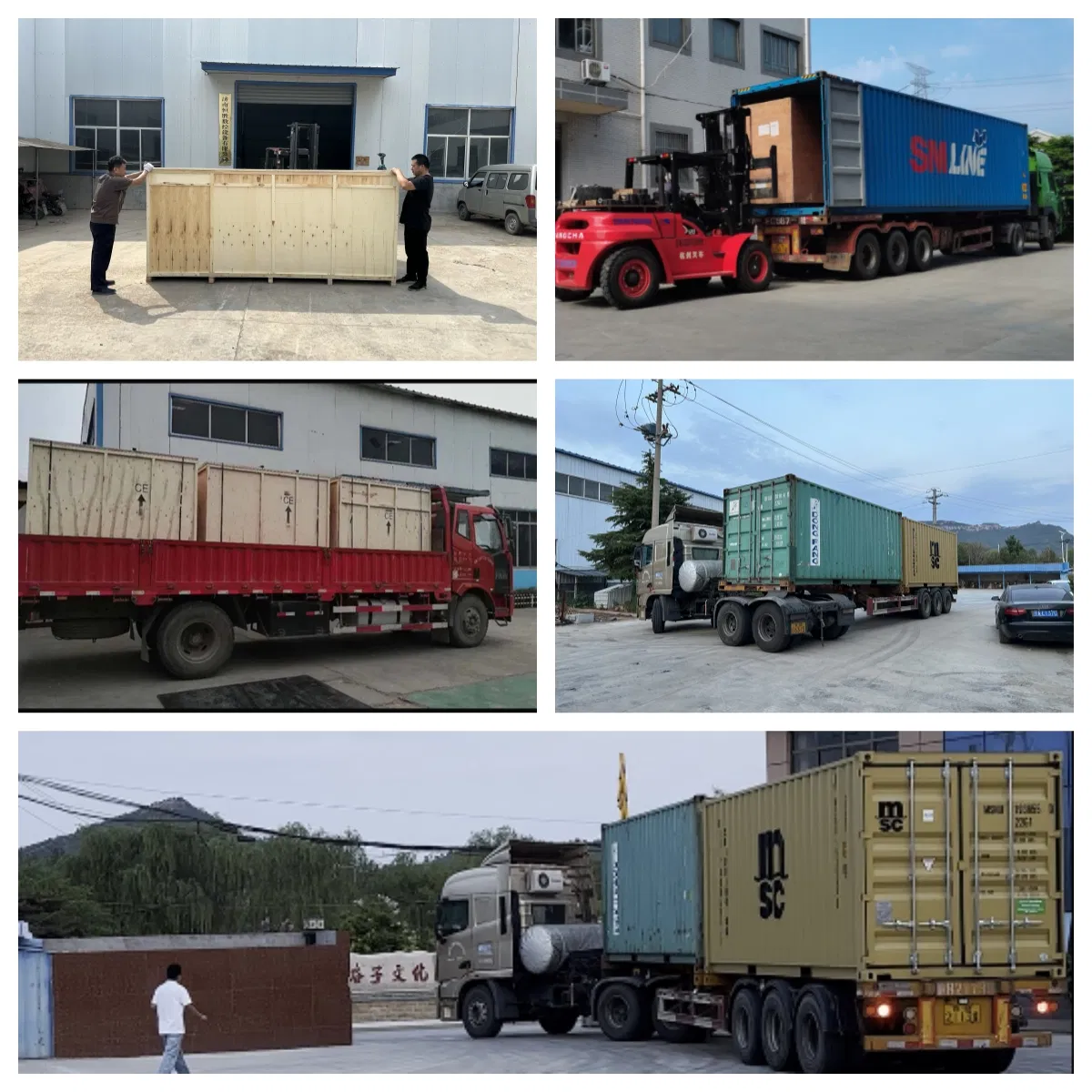

Packaging Export-ready wooden crates or wrapping film. Modular designs for large units.

Frequently Asked Questions

What is the lead time for orders?

Standard models typically ship within 15–30 days, while customized units require 30–45 days depending on the configuration.

Do you provide overseas after-sales service?

Yes, we provide 24/7 technical support and have partnered service centers in key global regions to assist with maintenance and parts.

Can the machine dimensions be customized?

Absolutely. We offer customization for various machine sizes and configurations to meet your specific production requirements.

What kind of training is provided for operators?

We offer both on-site and remote training sessions covering machine operation, software usage, and daily maintenance.

How is the glass fixed during processing?

The machine uses a high-power vacuum pump system with multiple adsorption plates and suction cups to ensure the glass remains stable during high-speed drilling and milling.

Is your company a direct manufacturer?

Yes, we are a professional manufacturer specializing in CNC equipment with strong R&D and production capabilities.
