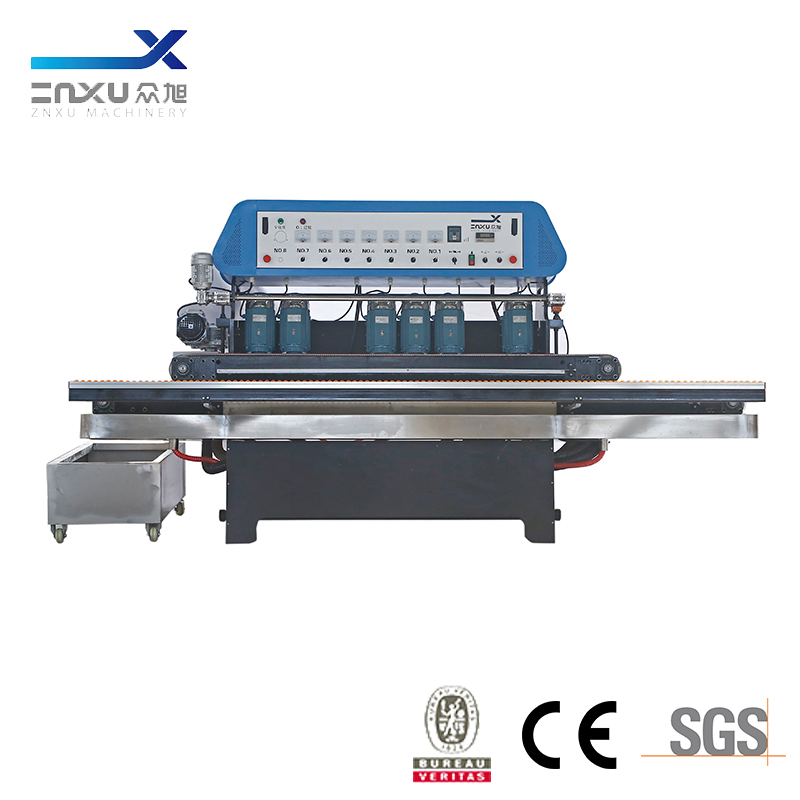

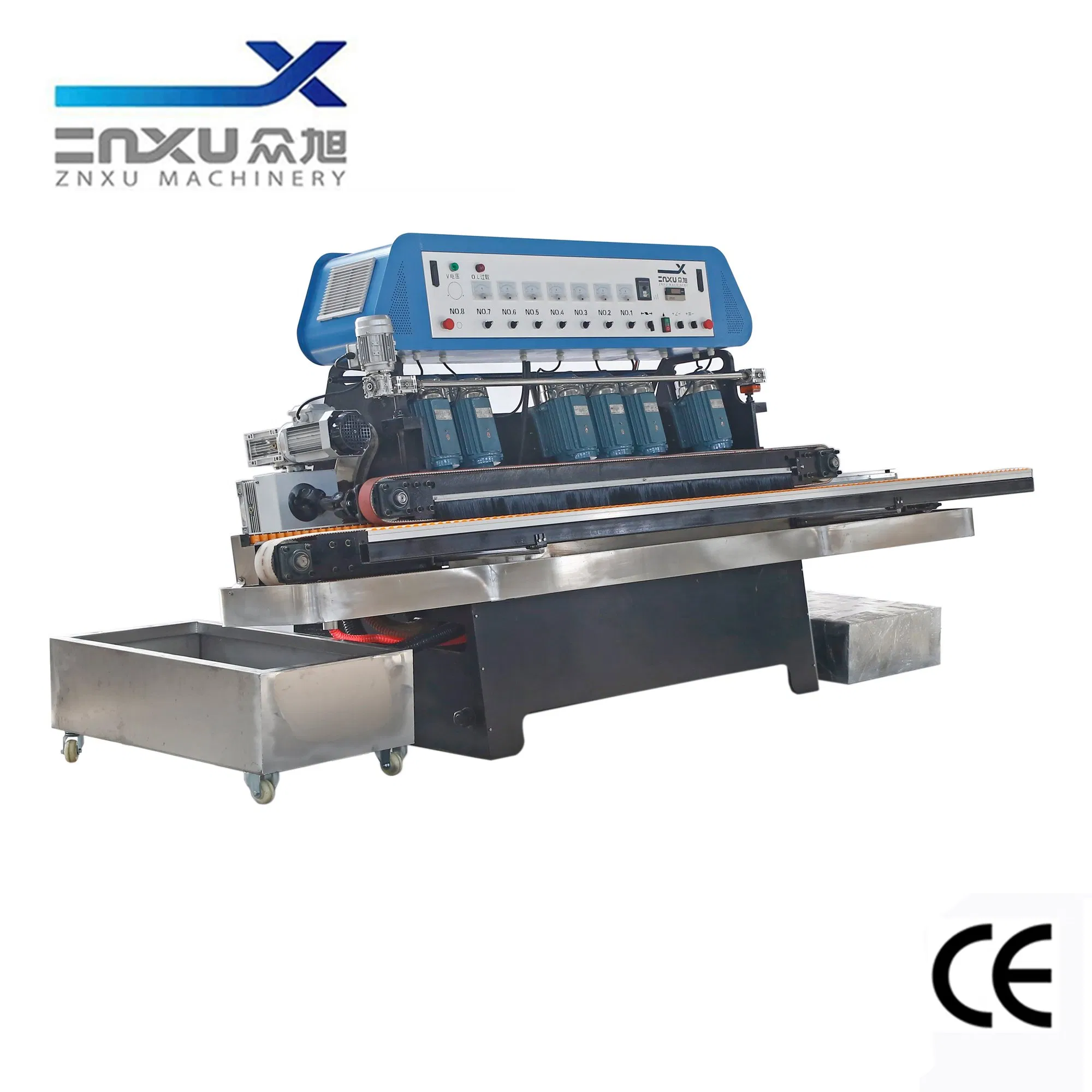

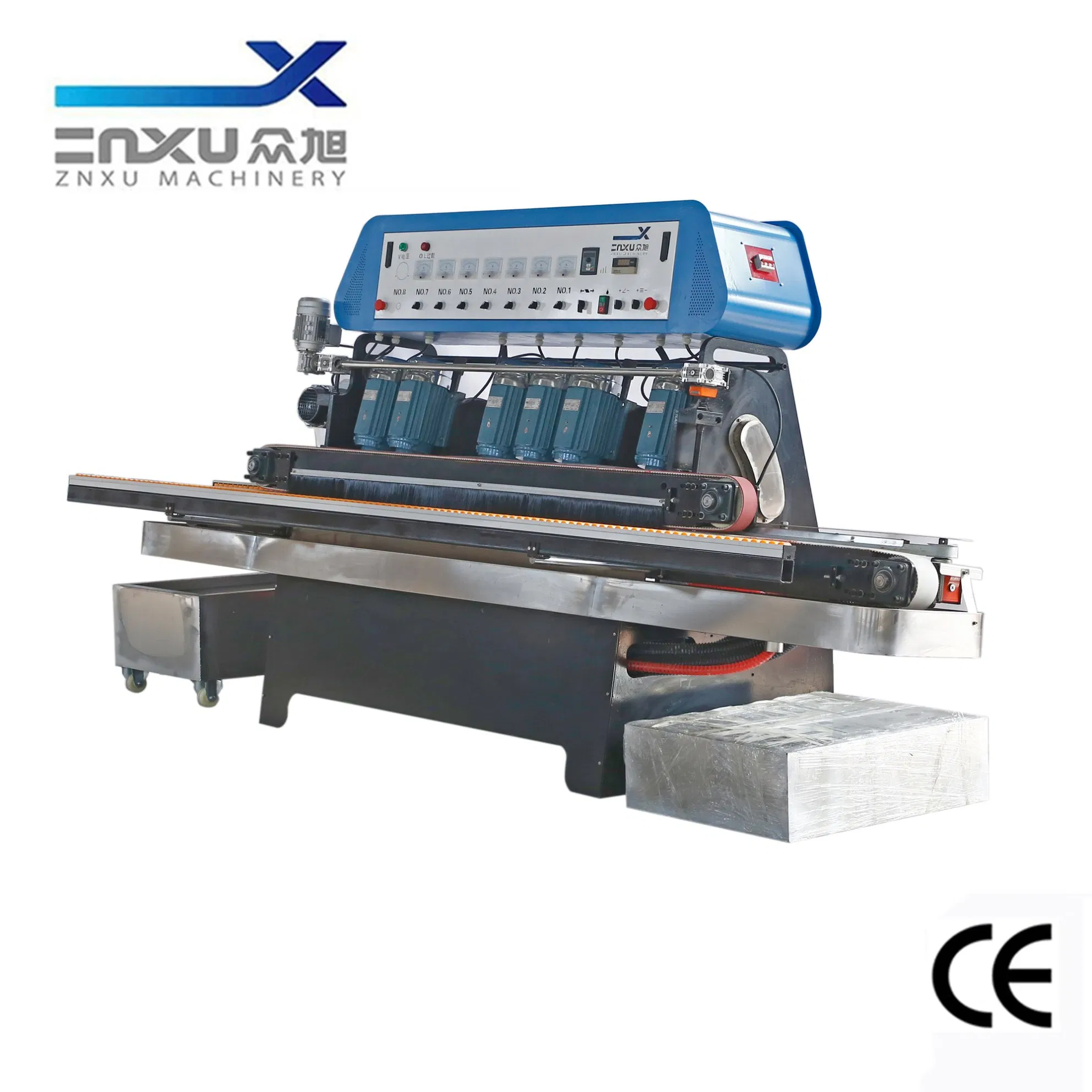

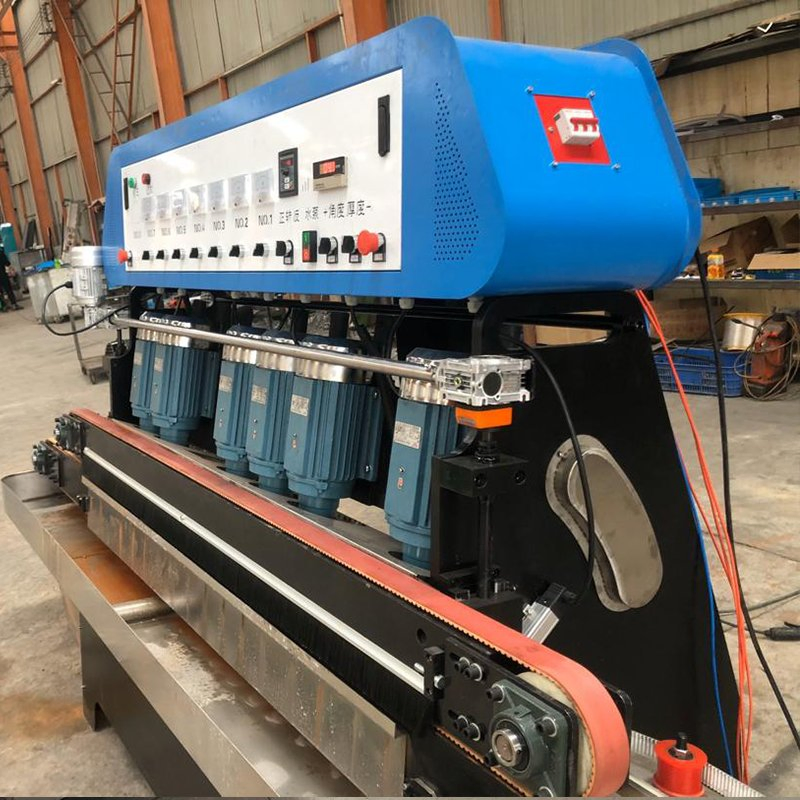

Advanced 7 Motor Glass Straight Line Edging Machine with Conveyor Belt

Customization:	Available
Warranty:	One Year
Product:	Horizontal Glass Beveling Machine

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZXM-C241

Weight

1500kg

Workable Thickness

2-19mm (0.12-1 Inch)

Mini Workable Size

30*30mm

Speed Range

0-5m /Min

Power

14.24kw

Angle Adjustment

0-35 Degree Adjustable

Control System

Semi-Automatic

Wheels No

7-14PCS (as Request)

Certification

CE, ISO

Product Features

✦

High Efficiency: A kind of high efficient glass processing machine designed for modern production.

✦

Robust Structure: Base, supports, guide, and electrical block are made of sturdy cast iron.

✦

Precision Transmission: Uses imported timing belts with red plastic and PU material for optimal friction on thin glass.

✦

Small Size Processing: Smallest processing size is 30*30mm, filling gaps in the international market.

✦

Superior Finish: Surface after grinding is bright and smooth, approaching original glass effect.

Ideal Applications:

Grinding bevel edge of decoration glass mosaic and small craft glass.
Processing bevel edges for furniture glass.
Straight-bevel edge processing for polygon glass.

Technical Parameters

Machine Size	Glass Thickness	Mini Size	Speed	Angle	Power
348010501680mm	3-20mm	30*30mm	0-4m/min	5-40 degree	13.9kw

Wheels Configuration

No.1	No.2	No.3 & 4	No.5	No.6 & 7
Copper Diamond Wheel	Arc-Grinder Diamond	Resin Diamond Wheel	10S60 Polish Wheel	Wool Polish Wheel

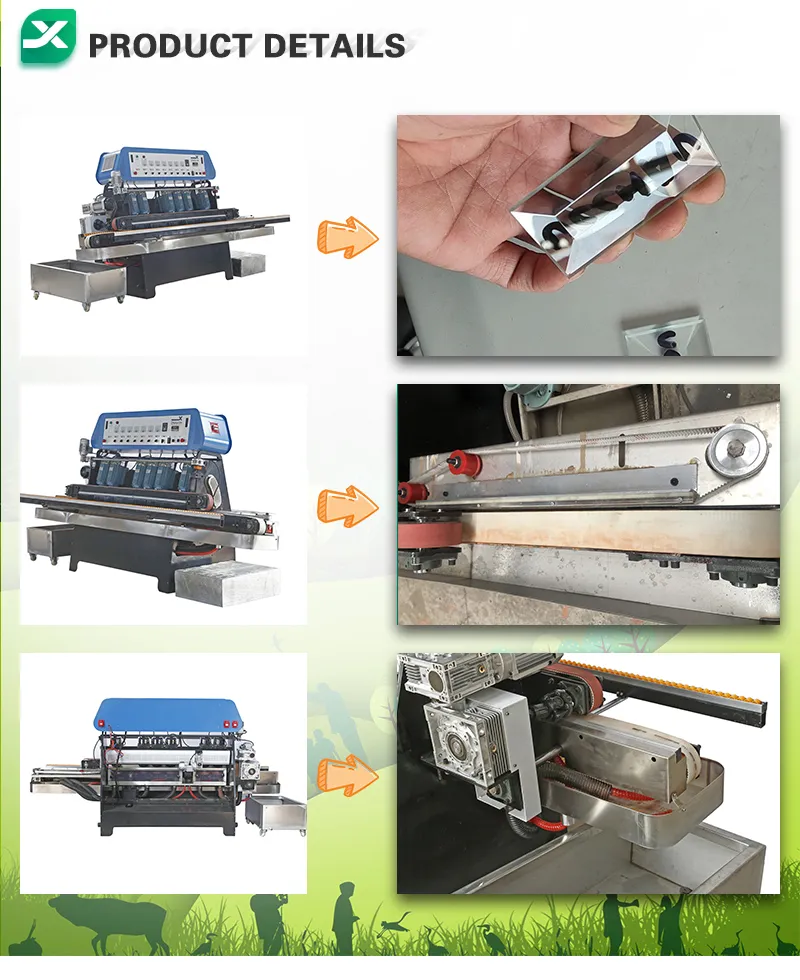

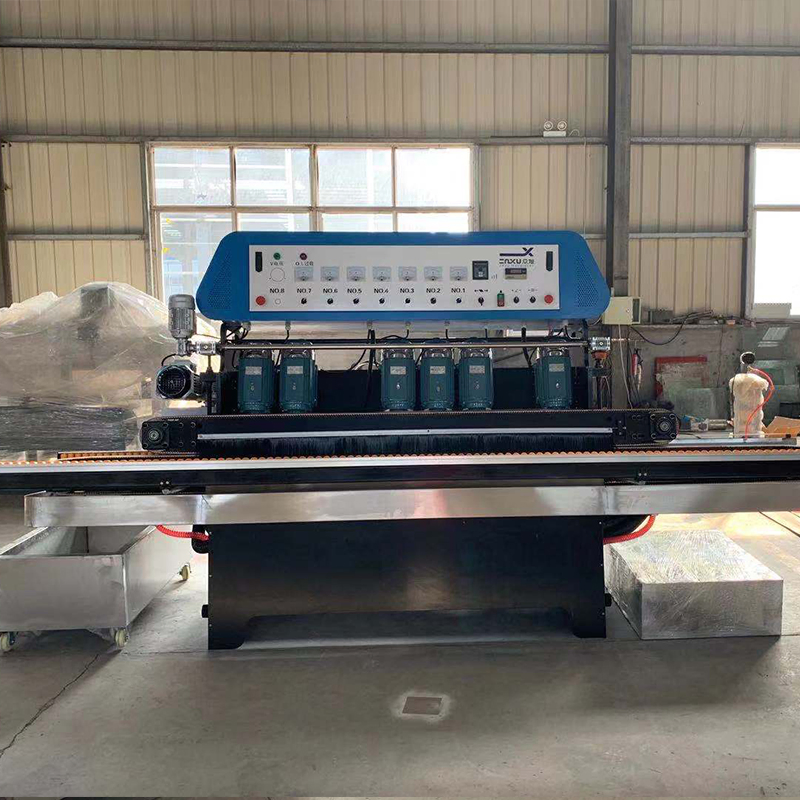

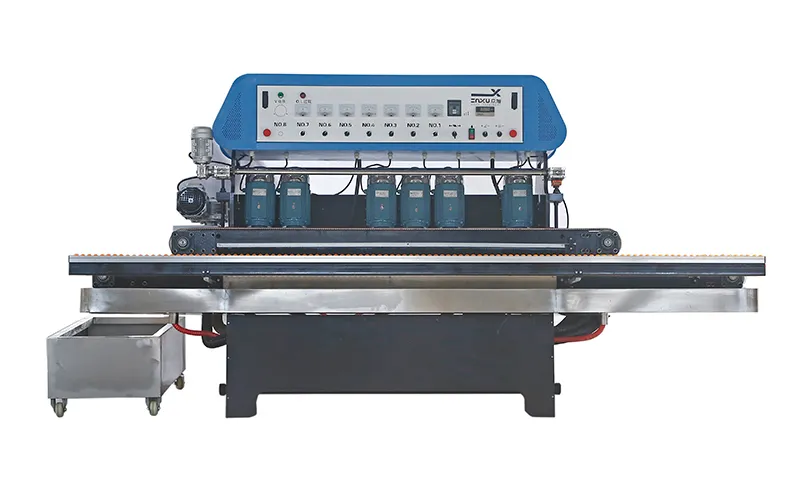

Machine Display

Our Services

⭐ 24 months guarantee period for whole machines.

⭐ 24 hours technical support via email and online services.

⭐ Overseas door-to-door service available.

⭐ Detailed user manual and operating video provided.

Product Range

CNC Glass Slotting & Grinding
CNC Glass Loading & Lifting
Four Edges Chamfering Machine
Straight Line Grinding & Polishing
Shaped Glass Polishing Machine
Glass Cutting & Washing
Glass Drilling Machine

Frequently Asked Questions

What is the minimum glass size this machine can process?

The ZXM-C241 can process glass as small as 30*30mm, which is a unique advantage in the market.

What range of bevel angles can be adjusted?

The bevel angle is adjustable from 0 to 35 degrees (or up to 40 degrees depending on specific configuration).

What is the warranty period for this glass machinery?

We provide a 24-month guarantee period from the shipping date for the entire machine, excluding wearing parts.

Can the machine handle thin or fragile glass?

Yes, the machine uses imported timing belts with PU material to ensure moderate friction, specifically designed to transmit thin and fragile glass safely.

Are OEM services or custom designs available?

Yes, we offer OEM services and can custom-design the machine according to the customer's exact technical requirements.

What kind of finish can I expect on the glass edges?

The grinding system provides a very bright and smooth surface that approaches the original mirror effect of the glass.
