Customization: Available
Certification: CE, ISO
Cutting Method: Diamond Wheel Cutting, Laser Cutting, Oil Cutter Cutting
Send Inquiry

Product Description

Basic Specifications
Product
Small CNC Water Jet Cutting Machine
Function
Drilling, Cutting, Milling
Max Cutting Thickness
25 mm
Power Supply
380V, 50Hz, 3phase
Control System
CNC, Servo (8-axis)
Power
7.3kw
Spindel Number
2
Drill Bits
8PCS
HS Code
8464901900
Weight
1800 kg
Safety Features
Emergency Stop, Overload Protection, Safety Sensor
Origin
China
Product Description

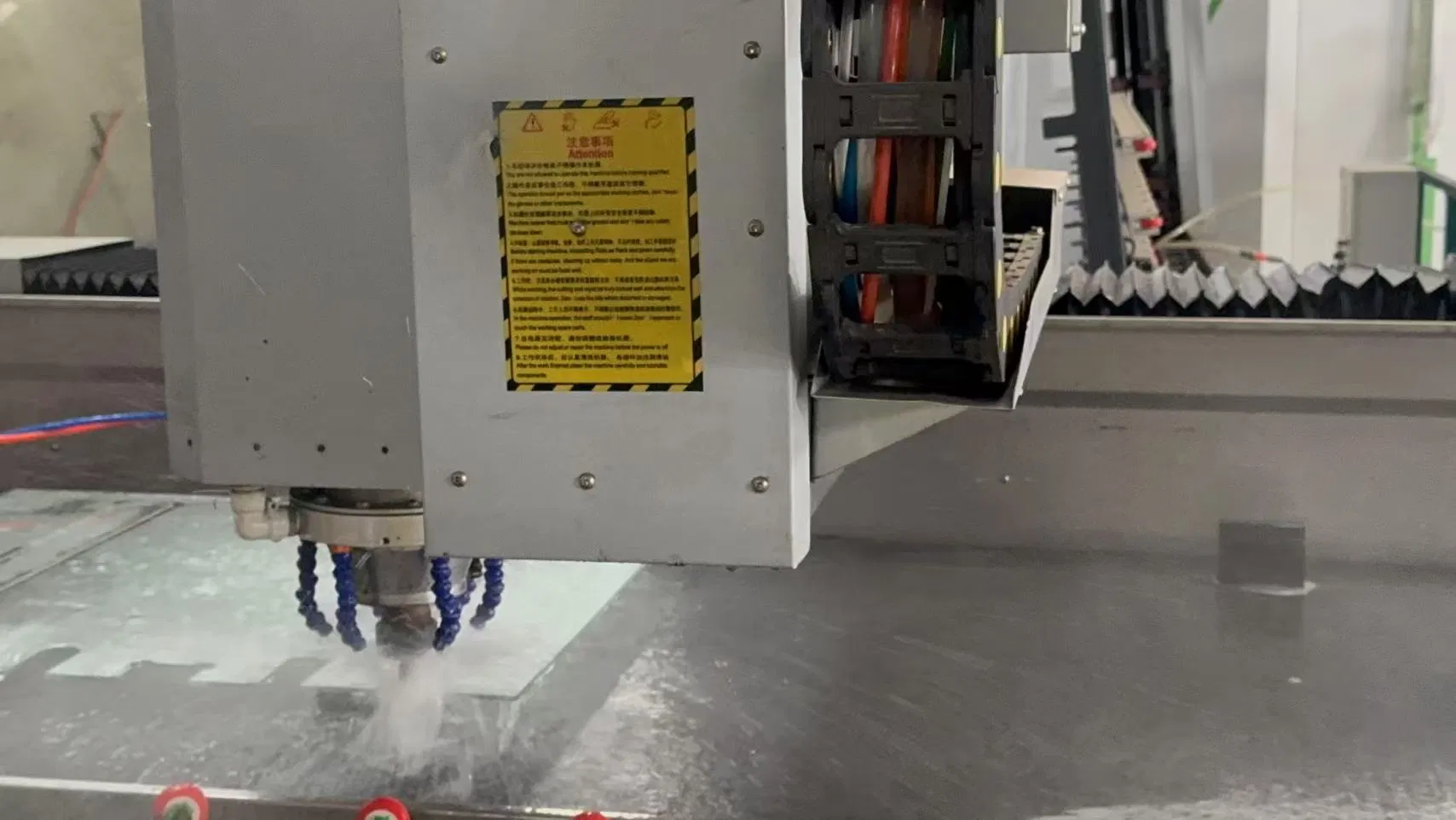

LUBAN LATHE: CNC GLASS MILLING AND DRILLING MACHINE

This equipment integrates two mechanical structures of glass drilling and glass milling into one versatile system.

✔
Advanced Control: Self-developed 8-axis control system for perfect and smooth execution of drilling and milling functions.
✔
Gantry Structure: Adopts gantry type up and down drilling, CNC enlarging, and milling. Supports DXF and DGW files with built-in drawing software.
✔
High Efficiency: Pneumatic support and proximity priority principle minimize empty strokes and save processing time.
✔
Robust Frame: Milling part adopts a T-shaped mechanical frame, ensuring a compact structure and flexible, accurate operation.
✔
Integrative Function: Once-time finishing for drilling, cutting, milling, and grinding without changing cutters, avoiding scratches and errors.
Technical Parameters
Model Machine Measurement Max Size of Glass
ZXLB-ZX1200 4000*2200*2200mm 1200*2200mm
ZXLB-ZX1500 6600*2600*2200mm 1500*2500mm
ZXLB-ZX2000 6600*3100*2200mm 2000*2500mm
Applications
Sink holes in glass countertops (stoves, pipes).
Shower door clamps, hinge holes, and handle holes.
Cabinet door invisible handle holes.
Electric panel hole making.
Aquarium stealthy covers and fish tank fabrication.
Glass Drilling and Milling Machine View 1
Glass Drilling and Milling Machine View 2
Service & Support
◈ One-year warranty period with life-long maintenance.
◈ Machine is shipped as one whole part for easy setup.
◈ Comprehensive operation manual and CD provided.
◈ 24-hour technical support via email or digital communication.
◈ Free training available at the factory for installation and use.
Frequently Asked Questions
What is the maximum glass thickness this machine can cut?
The machine is capable of processing glass with a maximum cutting thickness of 25mm.
Does the machine require assembly upon arrival?
No, the machine is sent as one complete unit. You only need to follow the operation manual for setup.
What file formats are compatible with the CNC system?
The system supports standard DXF and DGW files, and it comes with built-in drawing software for easy editing.
Can this machine be integrated into a production line?
Yes, the machine is reserved for mechanical and PLC expansion, allowing it to connect with loading tables, robots, and washing machines.
What functions are integrated into this machine?
It features an integrative function for drilling, cutting, milling, and grinding, allowing tasks to be finished in a single cycle.
What is the warranty coverage?
We offer a one-year warranty. During this period, main parts (excluding consumables) are replaced free of charge if problems occur.
