| Model NO. | SSZM3025L | Customized | Available |
|---|---|---|---|
| Glass Thickness | 3-25mm | Chamfering Size | 1~3mm |
| Max Removal | 5mm | Diagonal Error | ≤±0.5mm/M |
| Parallel Error | ≤±0.2mm/M | Chamfer Width Error | ≤±0.2mm/M |
| Power | 380V/50Hz | Installed Power | ≈132kw |
| Pneumatic Pressure | 0.5~0.8MPa | Working Height | 900±30 mm |
| Grinding Heads | 18 | Structure | Vertical |
| HS Code | 846420 | Package | Wooden Pallet+Film |

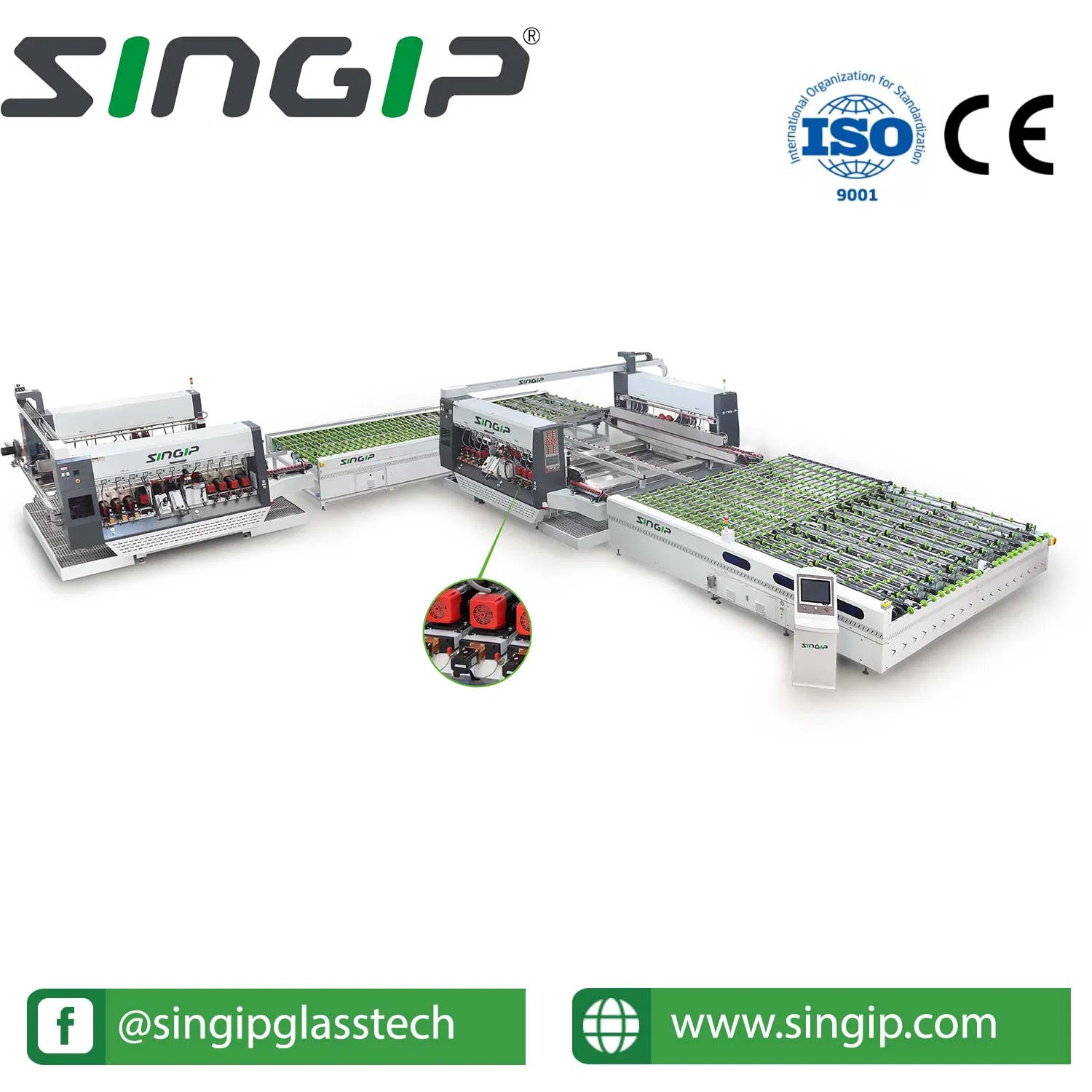

Intelligent High Speed Full Automatic Glass Double Edging Production Line

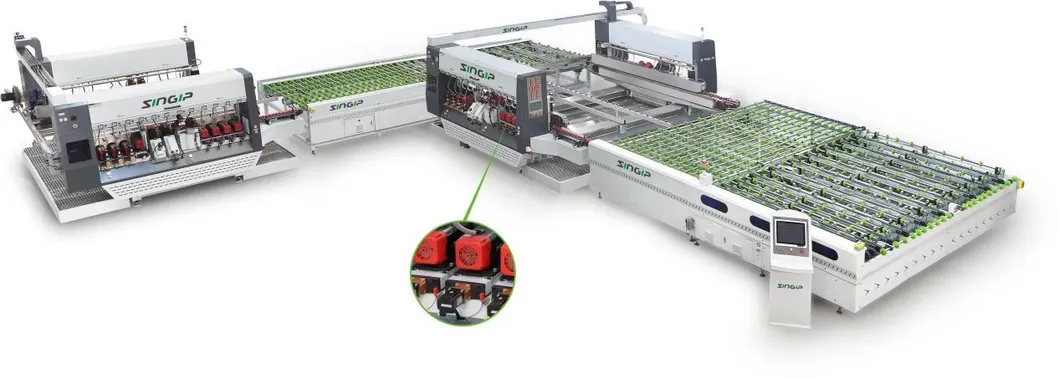

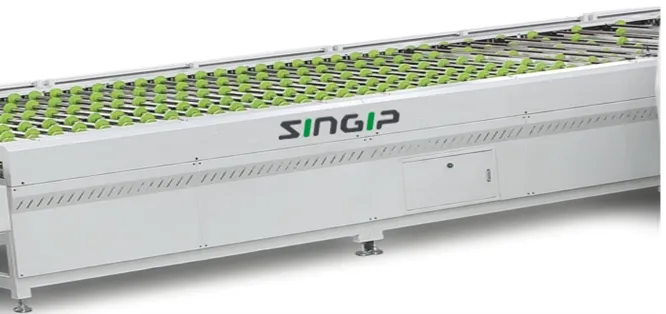

This 18-grinding-head glass high-speed intelligent production line consists of a testing platform, two edging machines, and an L-shaped turning platform. It is engineered for processing double straight edges of flat glass in construction and furniture industries.

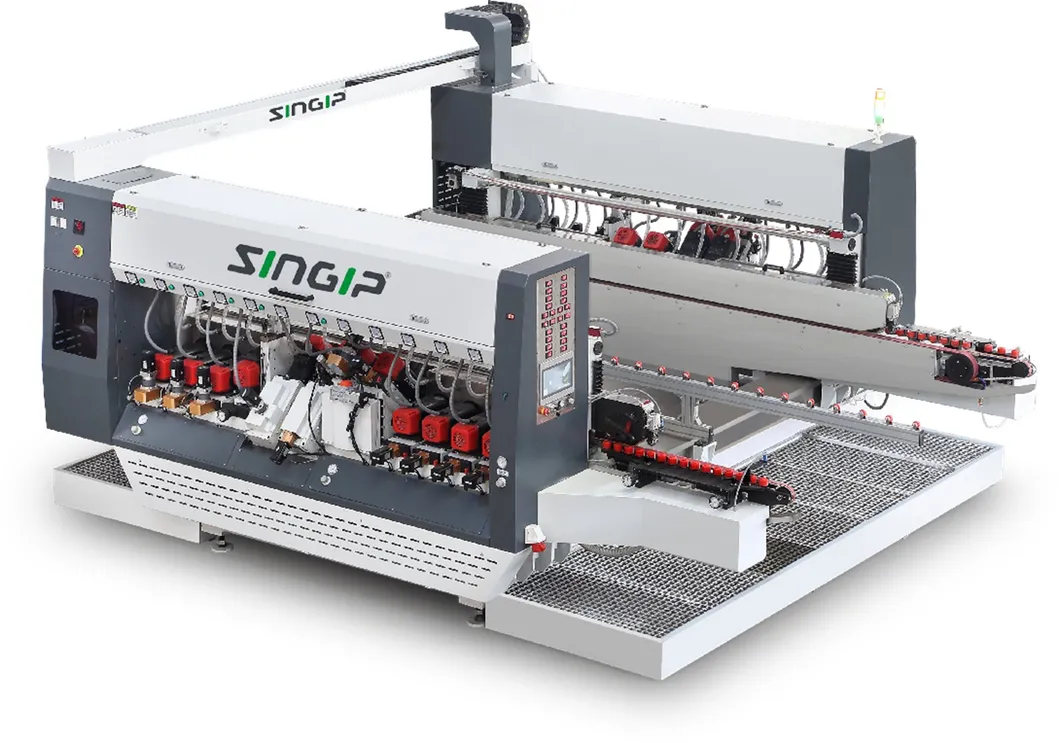

Glass Double Edging Machine

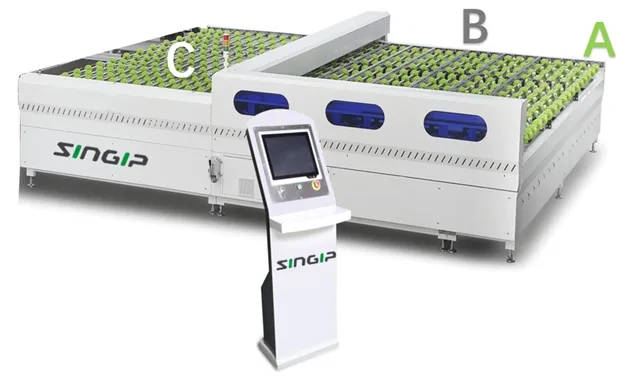

Dimension Detecting Table

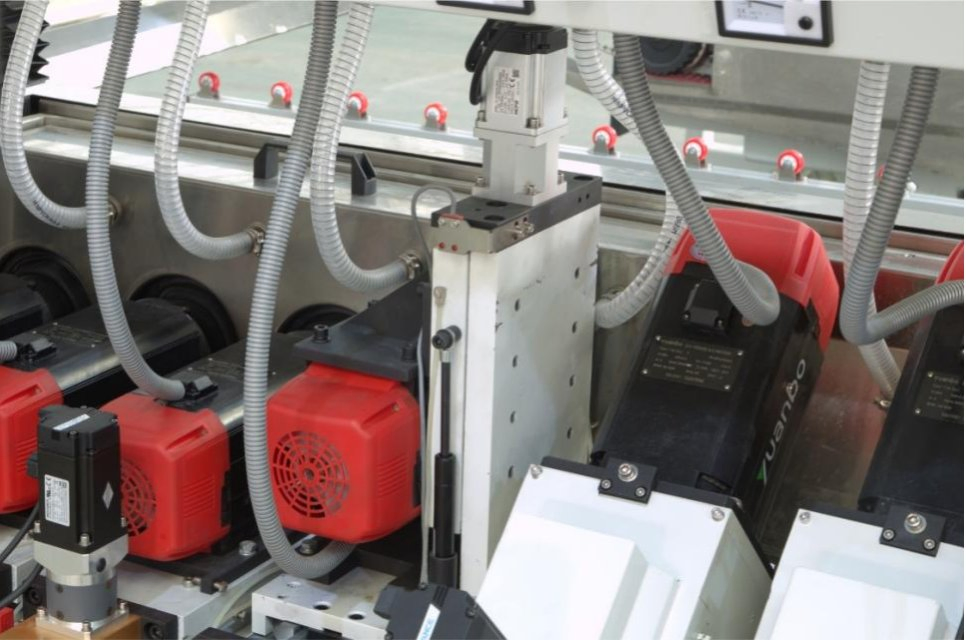

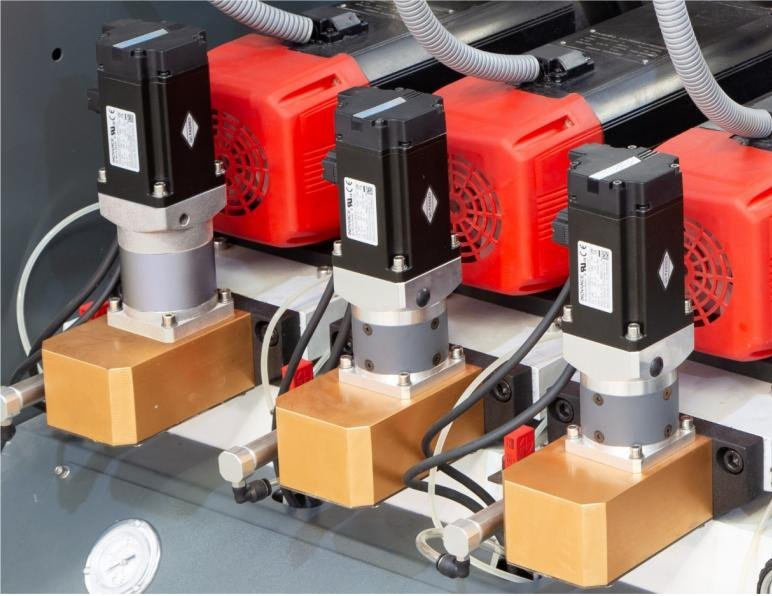

| No. | Use | Motor Power | Wheel Type | Feed Method |
|---|---|---|---|---|
| 1#-2# | Bottom Rough Grinding | 4KW 5500RPM | Diamond Wheel | Servo Feed |
| 3#-4# | Upper Chamfer Polishing | 2.2KW | Resin/Polishing | Servo Feed |
| 5#-6# | Lower Chamfer Polishing | 2.2KW | Resin/Polishing | Servo Feed |
| 7#-8# | Bottom Fine/Polishing | 3KW / 2.2KW | Resin/Polishing | Servo Feed |
| 9# | Film Removal | 2.2KW | Optional Wheel | Servo Feed |
Equipped with A-section synchronous belt and B-section roller conveyor with 304 stainless steel shafts.

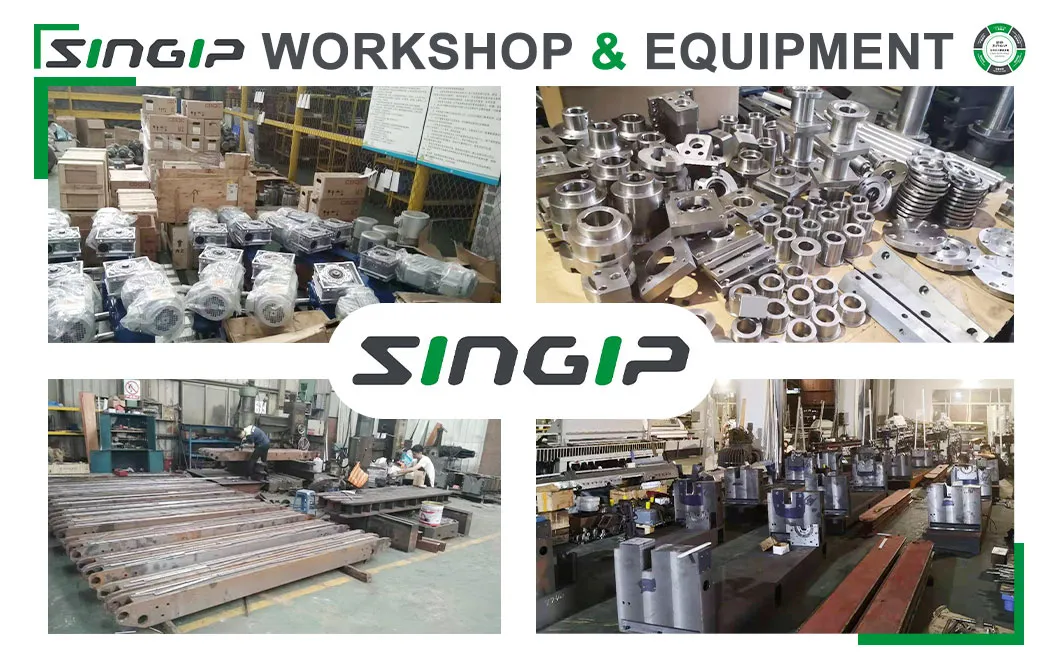

We are a professional glass technology enterprise providing high-quality cold-processing machinery. Since 2012, we have specialized in edging, beveling, drilling, and washing solutions. Our workshop is equipped with advanced equipment to ensure precision and quality for global clients.
