Advanced Automation System for Stone/Glass Cutting/Drilling/Edging/Washing/Tempering Machine

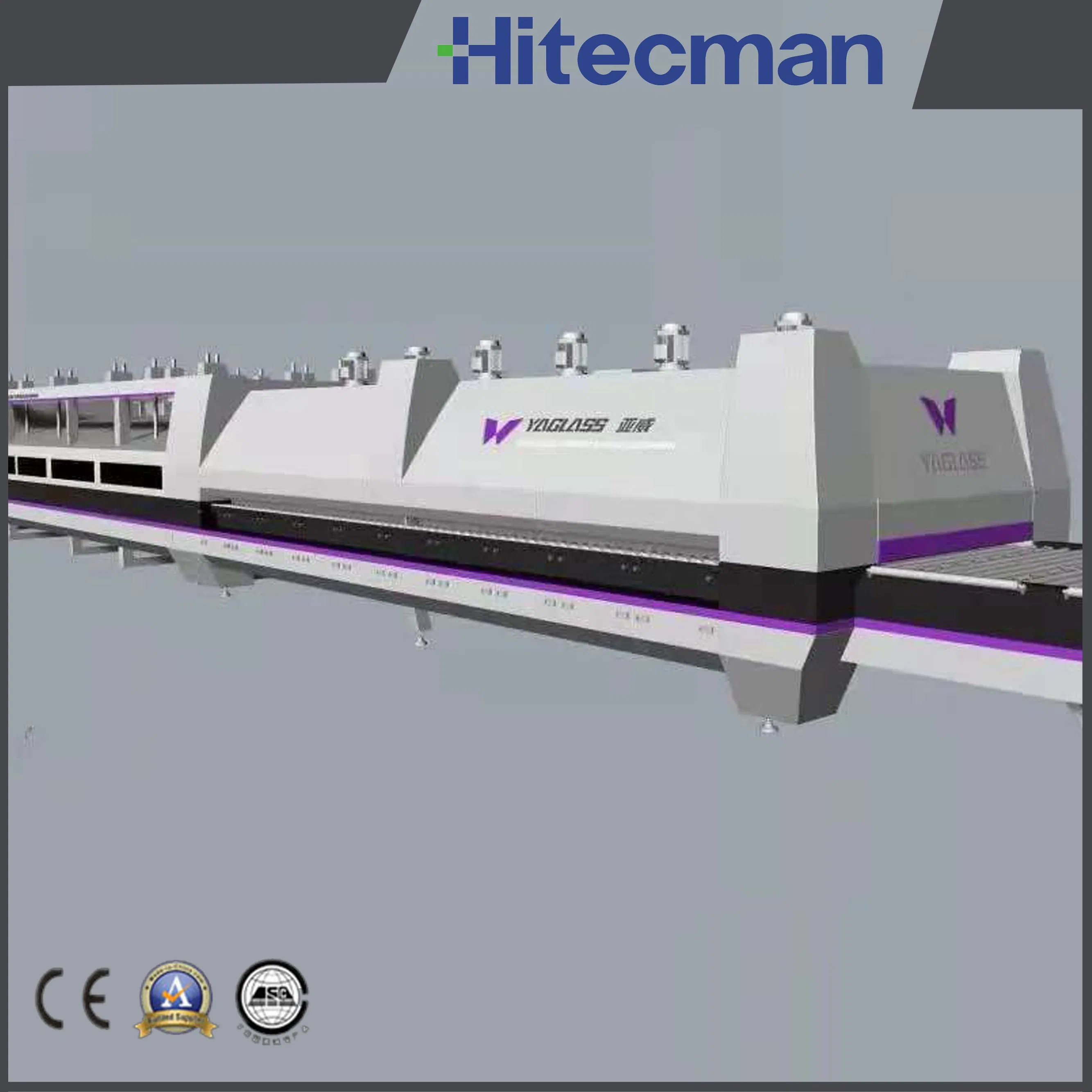

The furnace includes a loading table, heating section, quenching & cooling section, unloading table, and control system. It is designed to temper flat glass for architecture, furniture, and home appliances. The workflow follows: loading → heating → quenching → cooling → unloading.

• Power Saving: Matrix type heating wire distribution and scanning control allow for high efficiency. For example, a 1000Kw furnace can operate with only a 630KVA transformer.
• Heat Preservation: Advanced insulation keeps the outer wall temperature within workshop room temperature + 22 degrees.
• Quality Control: Adopts patent technologies to reduce air spots and improve tempering quality.
• Quick Installation: Direct insertion connectors speed up assembly and reduce wiring errors.
• Automation: Independent driven systems for each section, controlled by PLC and inverters.
• Safety Design: Protective emergency manual glass release function for power failures and automatic alarms for heating wire abnormalities.

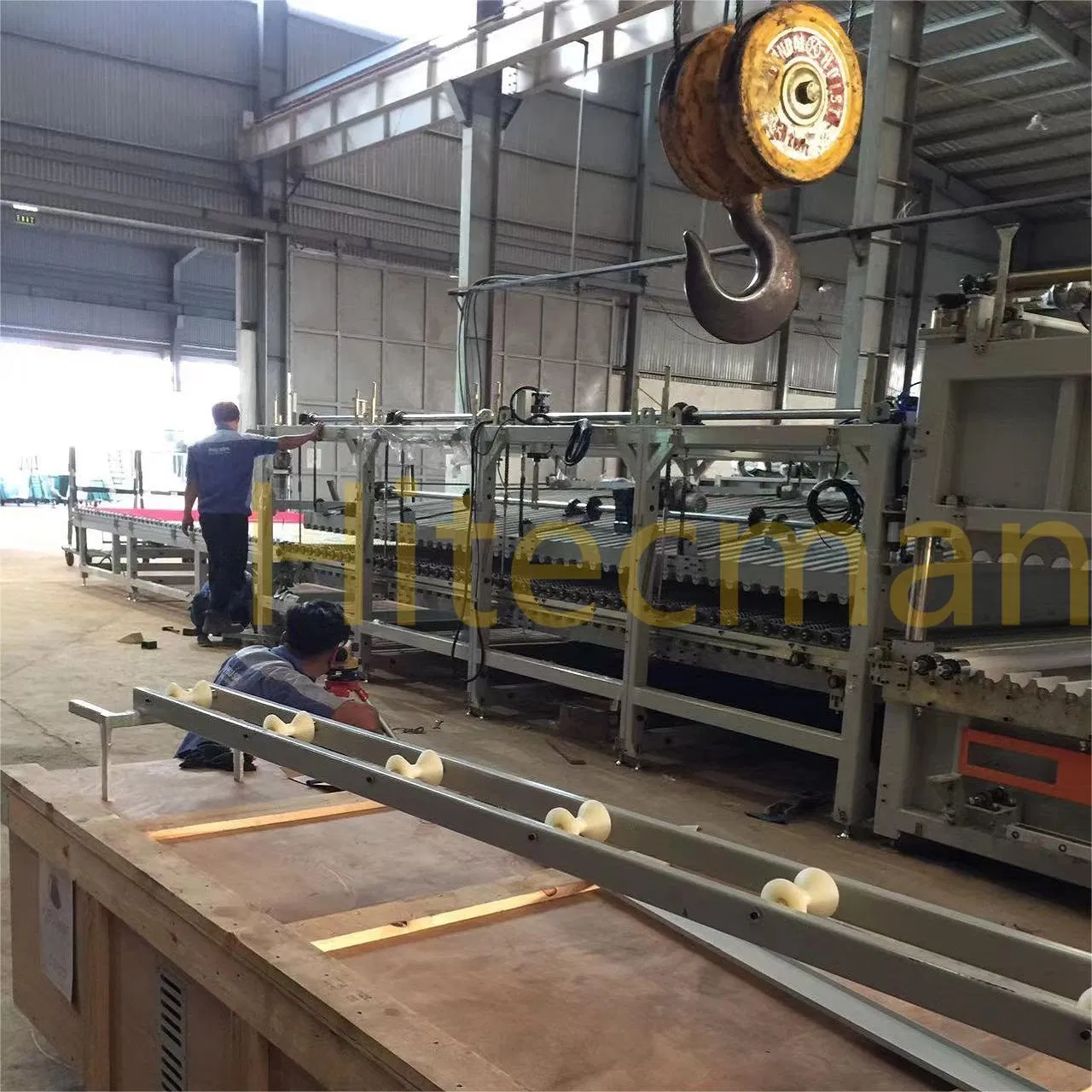

Composed of transmission rubber rollers, driving system, and steel frame. Rubber rollers prevent scratches and run synchronously with the heating furnace.

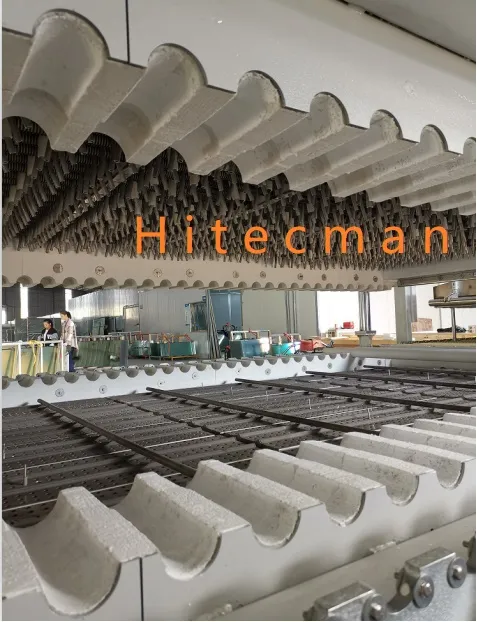

The heating furnace body utilizes high-quality fused quartz ceramic rollers and high-quality aluminium silicate insulation. It features intelligent PID control with accuracy within ±3 degrees.

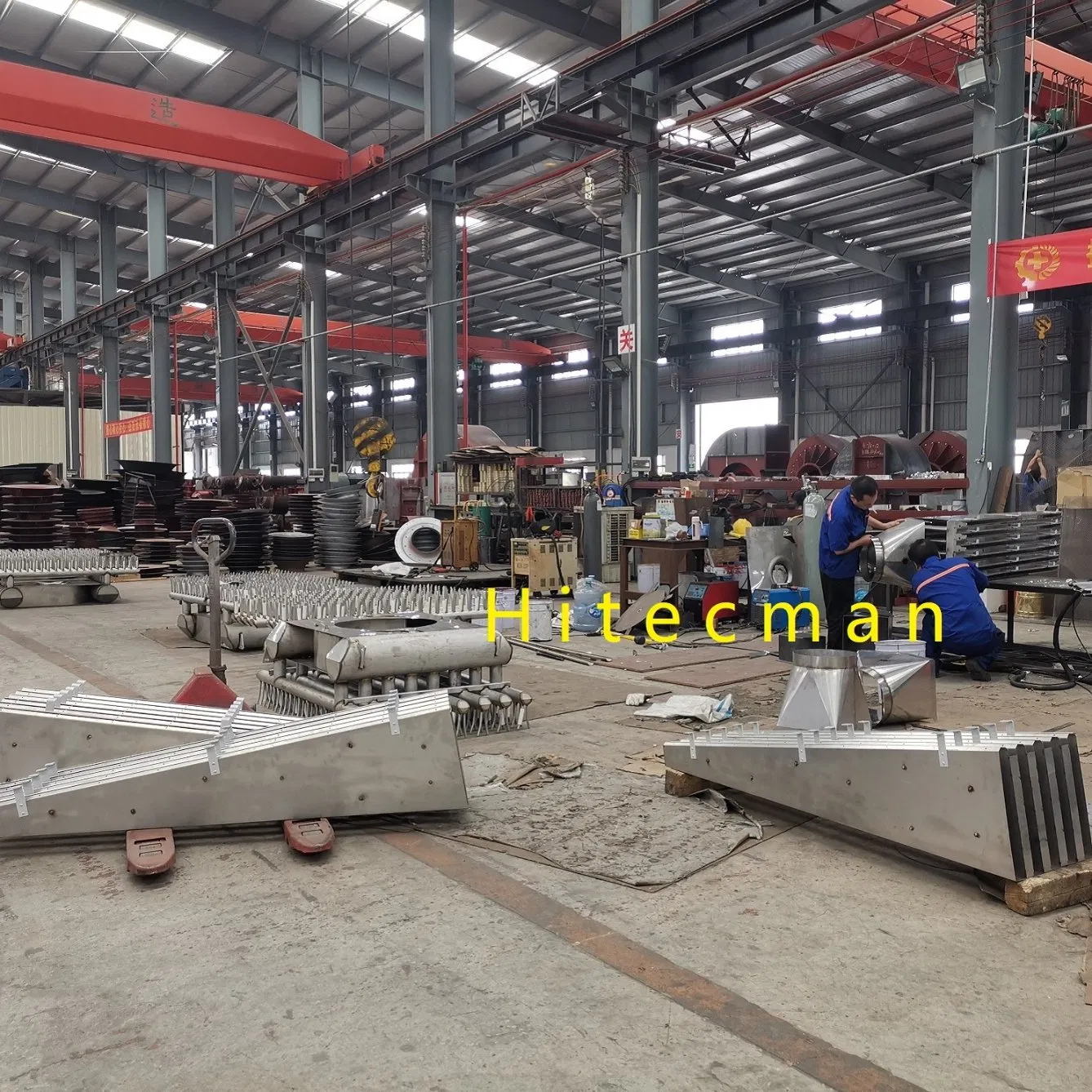

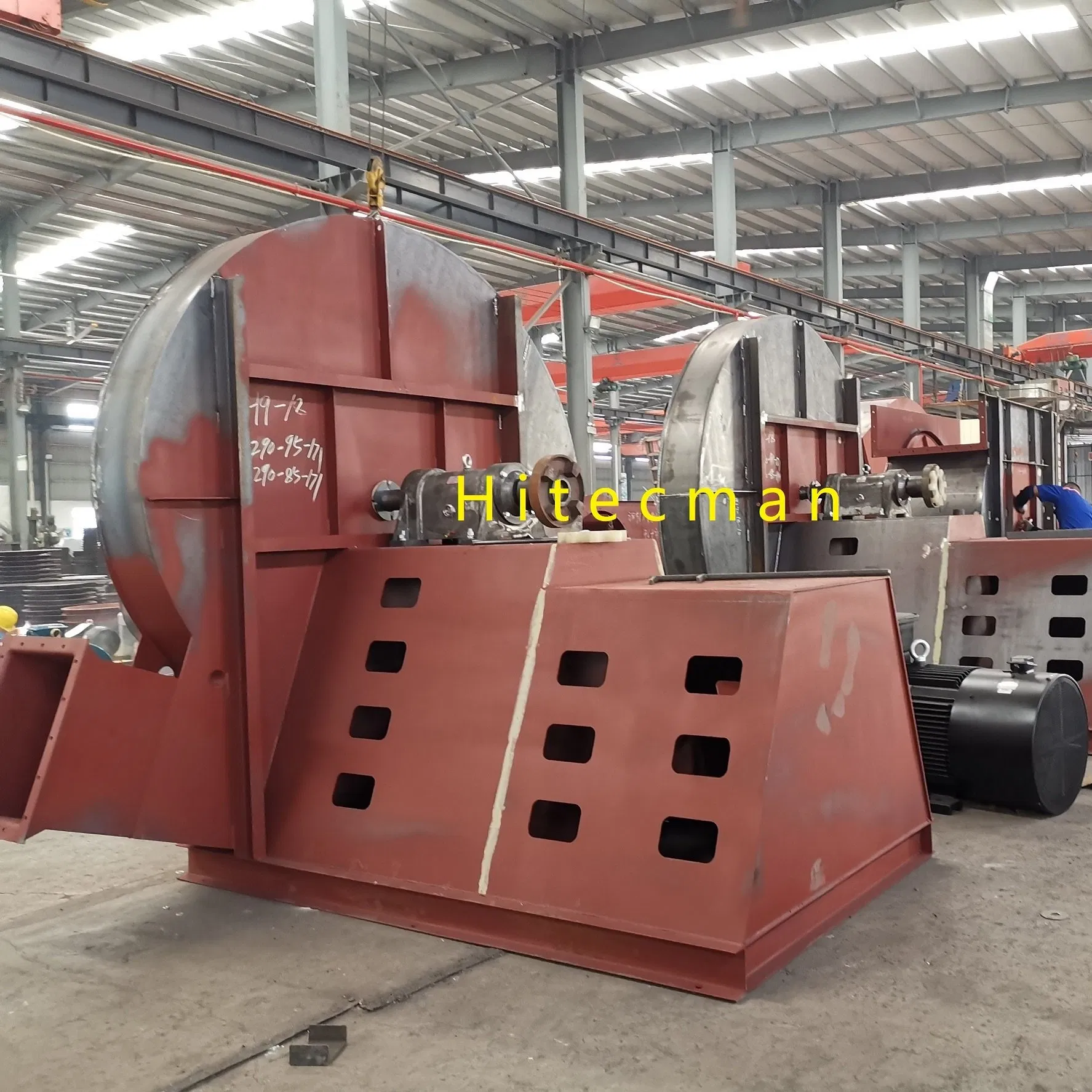

The air quenching system uses four different angles and adjustable air grids to manage glass flatness easily while reducing blower power consumption.

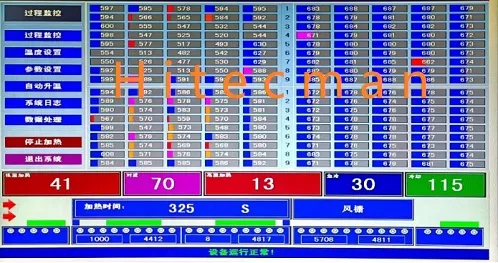

Systematically monitors equipment status, including motor damage, industrial computer crashes, and heating wire abnormalities. It automatically alarms and can cut off power to specific sections to prevent damage.
