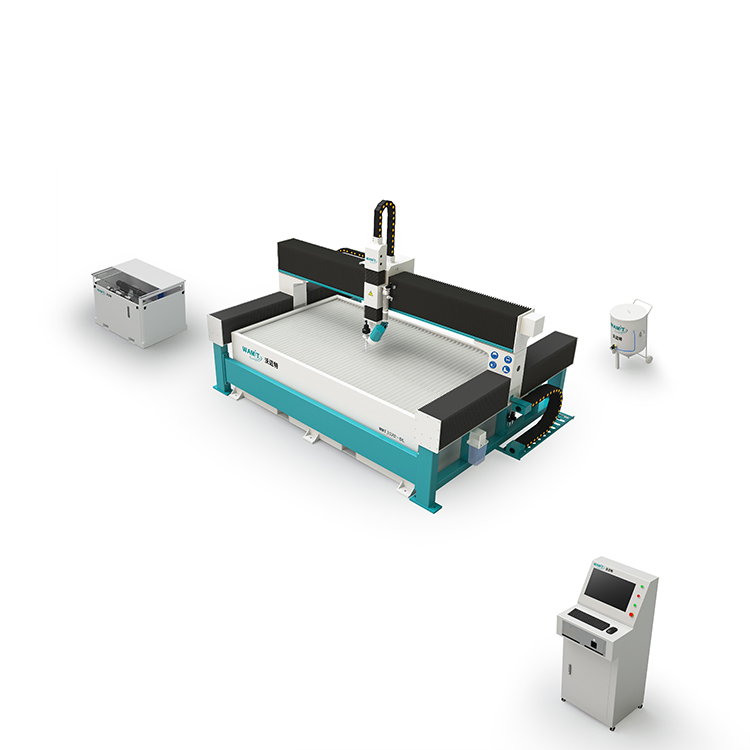

3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
1 / 5
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine
3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine

3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
WMT3020-ZL
Certification
CE
Application
Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric
Type
Five-Axis
Maximum Pressure
420 MPa
Table Travel (X/Y/Z)
3000 / 2000 / 170 mm
Cutting Accuracy
0.1 mm
Motor & PLC
Siemens
Rated Power
37kw
Production Capacity
300 Sets/Year
💎 High Performance CNC Water Jet Equipment

Energy Saving: Our direct drive pump can save your 60%-70% electricity cost!

Main Advantages:

  • 2 Years (2000 hours) warranty and CE certification.
  • Flow type ECL cutting head with 10% higher efficiency.
  • Advanced technology allowing moving speeds up to 30m/min.
  • Auto-lubrication system for linear guides to reduce maintenance.
  • Equipped with high-precision Japan YASKAWA servo motors and Taiwan HIWIN components.

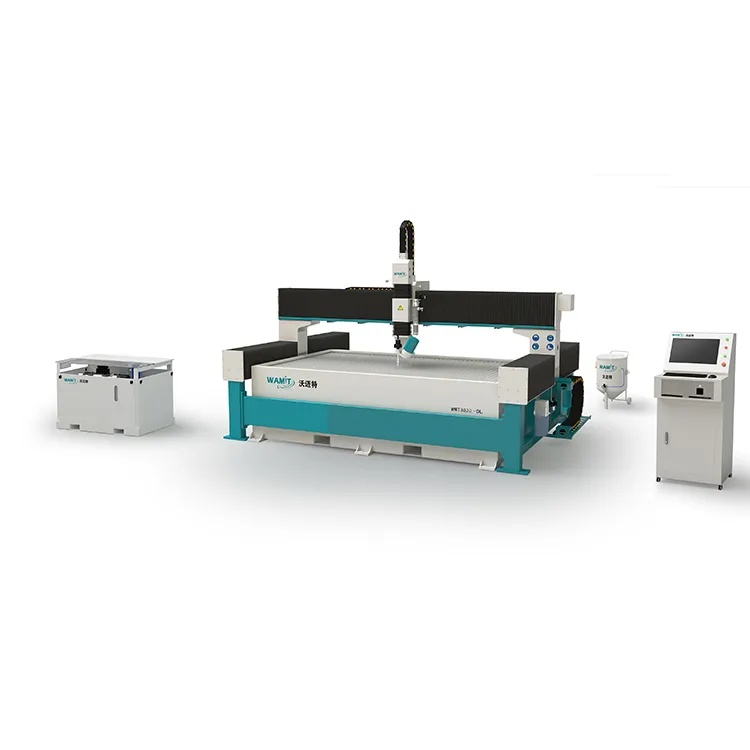

Water Jet Machine View 1

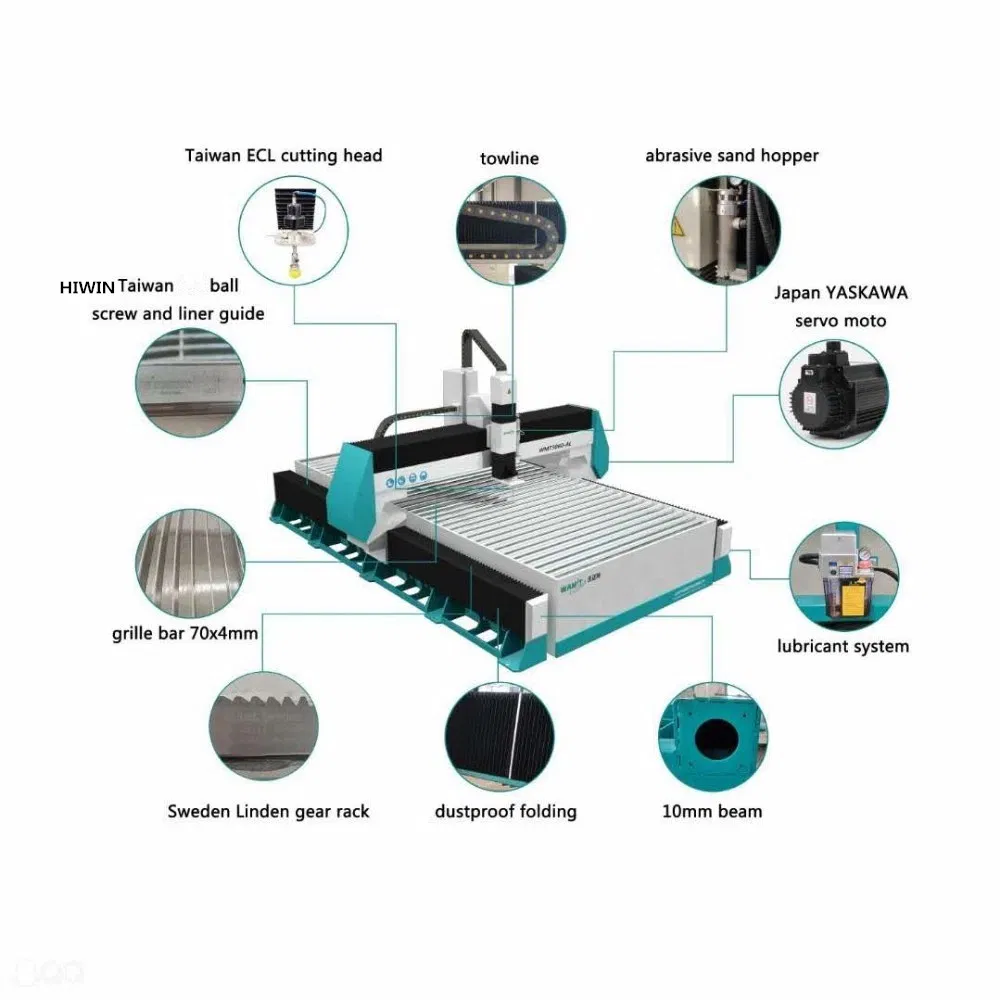

Water Jet Machine View 2
🛠️ Technical Features & Components
🏗️

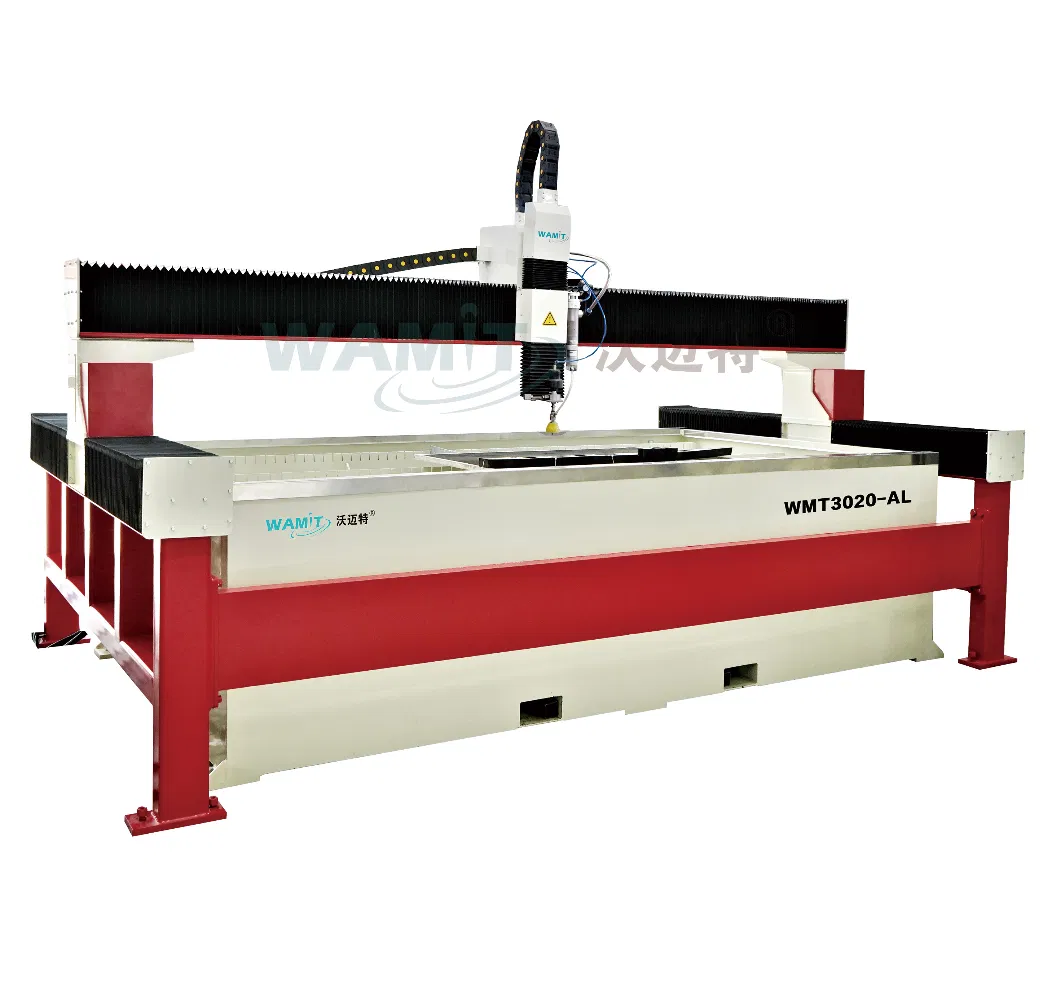

Gantry Cutting Table

Balanced design, solid and stable. Split structure eliminates water gushing influence on precision. Includes high-quality rack, pinion, and enclosed Z-axis protection.

🔌
60000psi Intensifier Pump

Hydraulic pressurization with Siemens motor and PLC. Continuous operating pressure of 350-380MPa with variable pump to reduce operation costs.

⏳

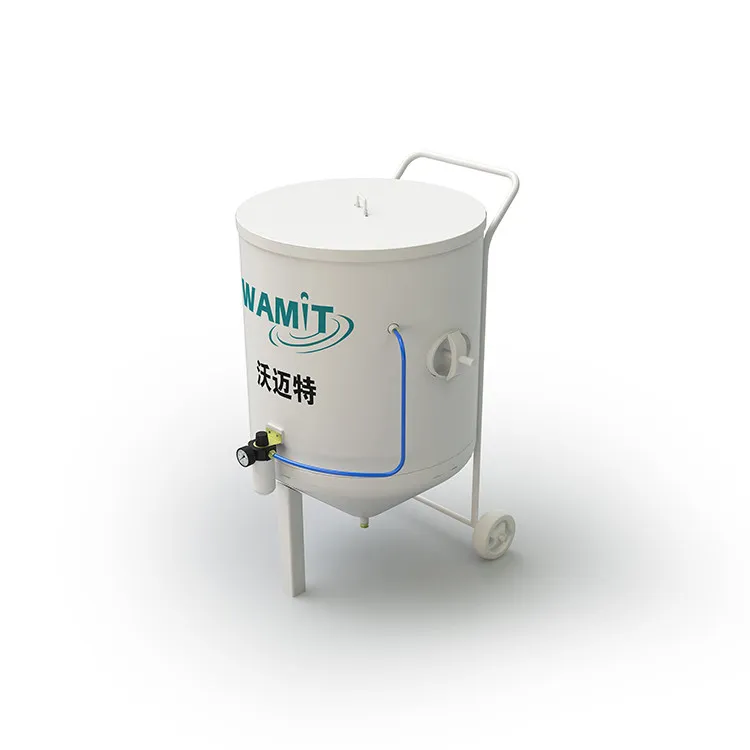

Abrasive Feeding System

Simple operation, maintenance-free. 220KG sand capacity supports 8-10 hours of continuous cutting without electronic control needs.

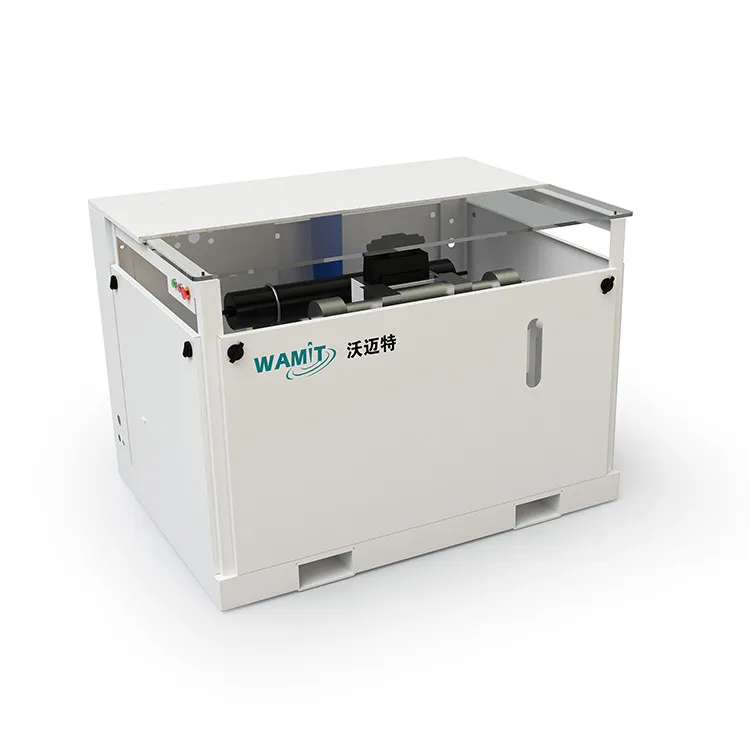

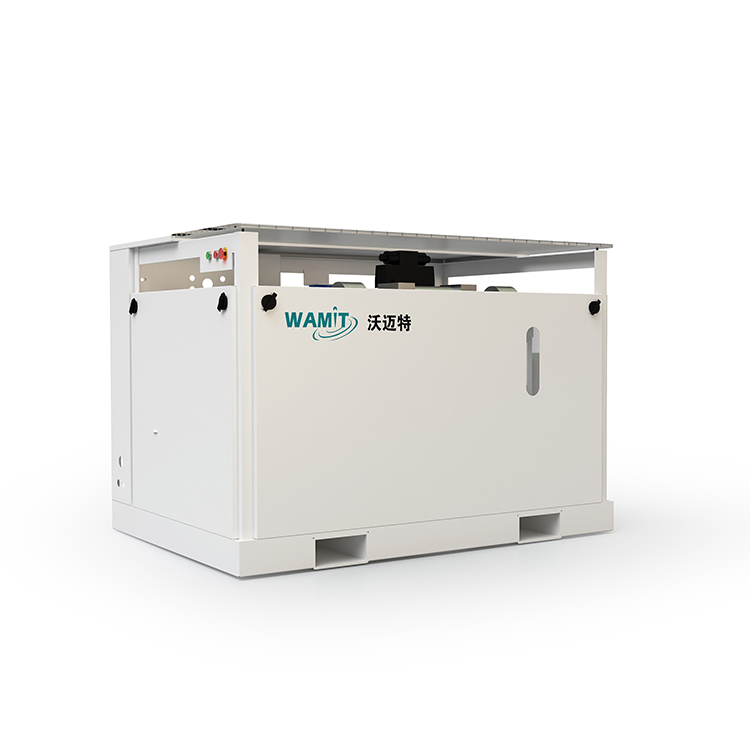

Intensifier Pump

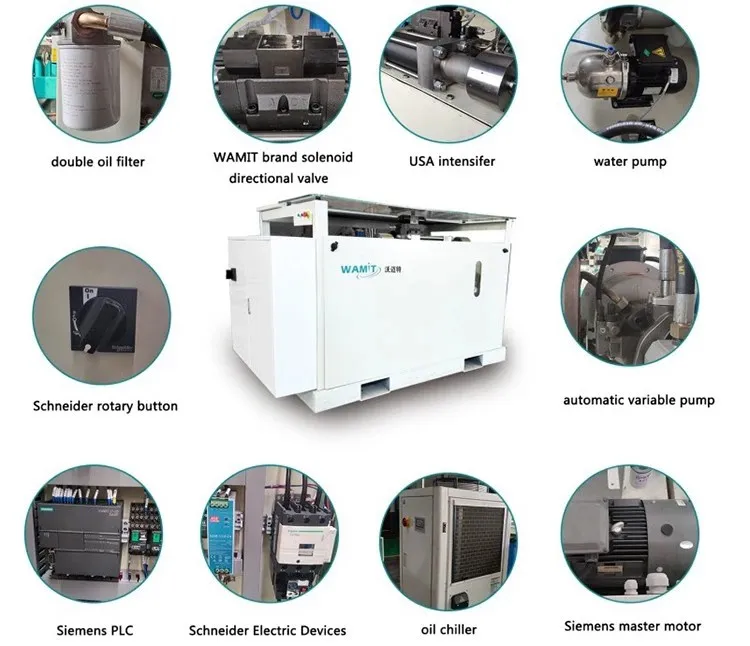

Component Detail
Abrasive System
⚡ Cutting Speed Performance
Material Thickness Servo Direct Drive (mm/min) Hydraulic Pump (mm/min)
Carbon Steel10mm330270
Carbon Steel20mm170110
Aluminum Plate12mm800600
Glass10mm15001100
Ceramic Tile12mm20001500
Marble25mm1000800
🧩 Material Versatility

This equipment can process nearly all industrial materials:

Alloy SteelAluminumArmor Plate BrassBronzeCast Iron TitaniumAcrylicsCeramics GlassMarbleGranite RubberPVCKevlar CompositeBullet Proof Glass

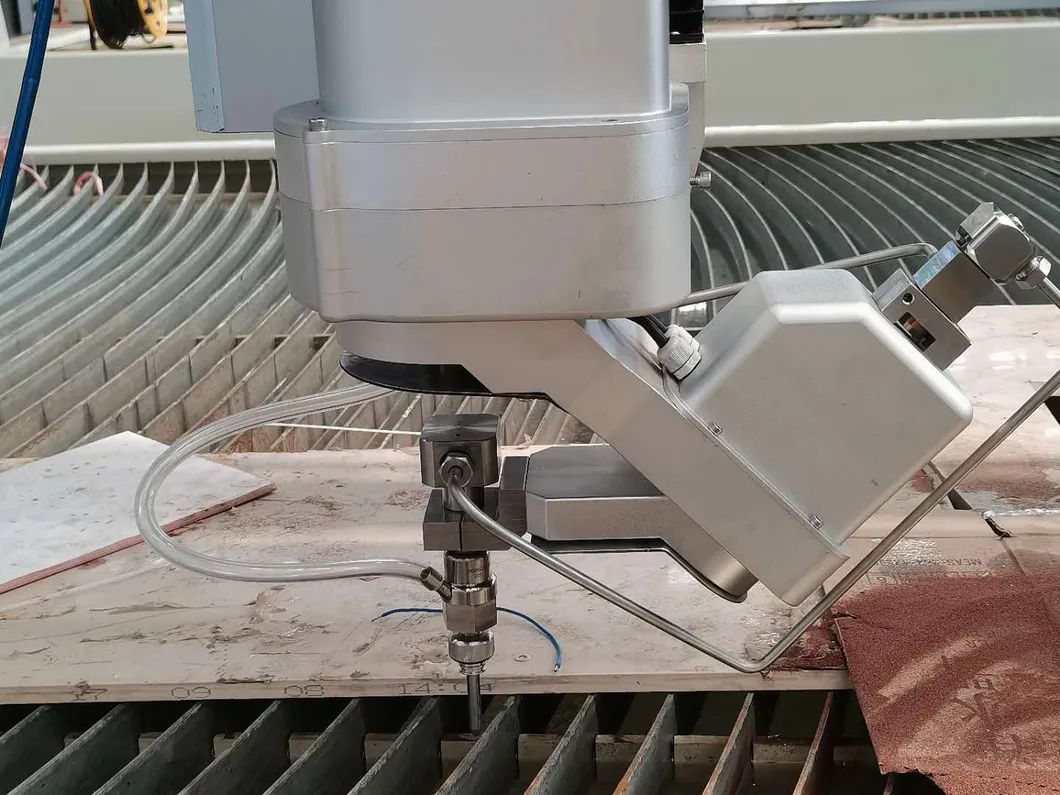

AC 5 Axis Head

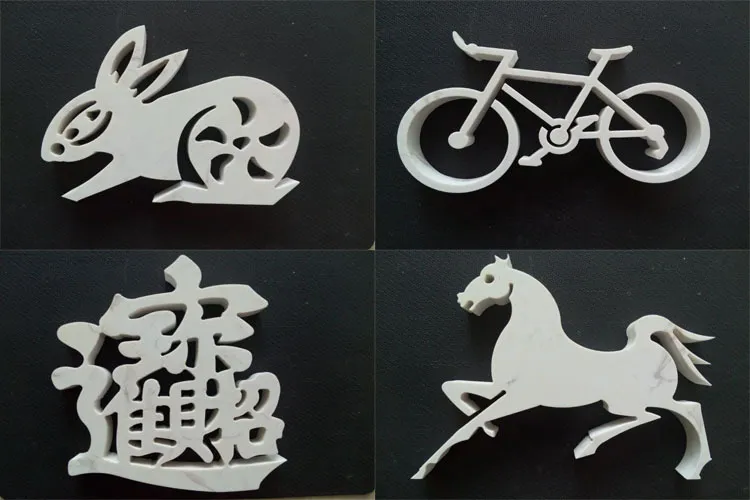

Cutting Sample 1

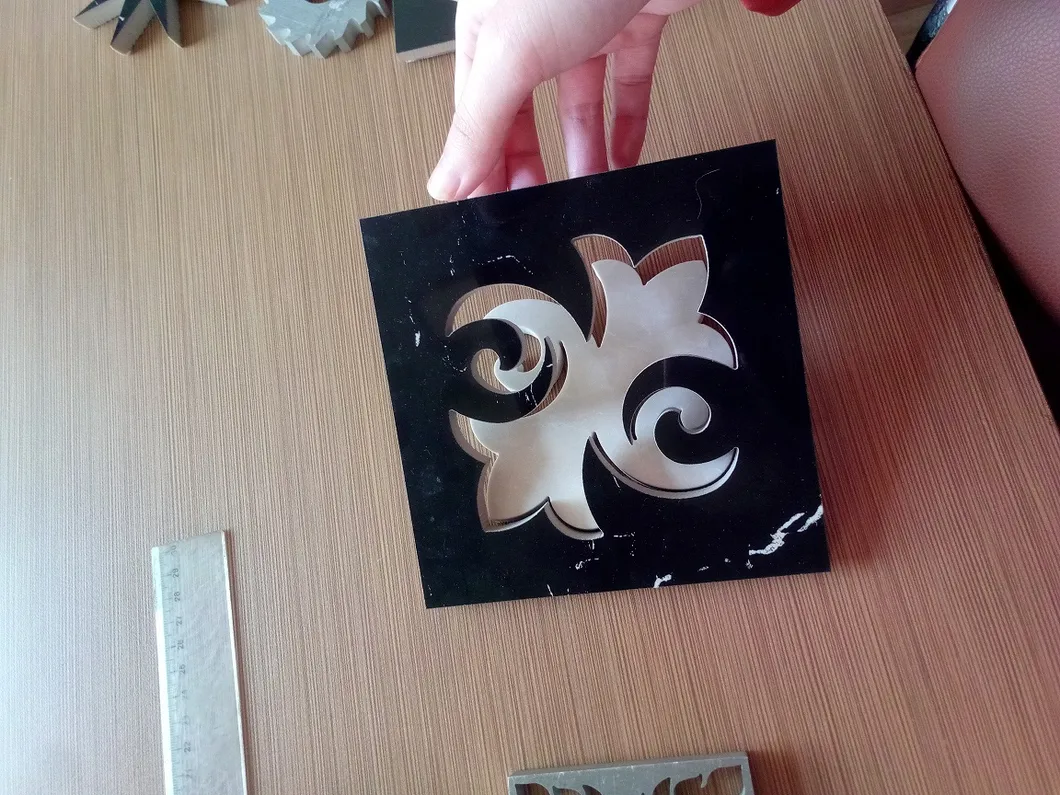

Cutting Sample 2
📦 Packing & Global Support
Shipping
Soft packing in one 20'FCL container
Response Time
Technical support feedback within 12 hours
Shipping Container
Global Service Map
Customer Photo
❓ Frequently Asked Questions
What kind of materials can this machine cut?
The water jet can cut a wide variety of materials including stone, ceramic, quartz, glass, foam, plastic, rubber, copper, aluminum, mild steel, titanium, and various alloys.
What is the maximum cutting thickness?
For steel, the maximum thickness is up to 240mm (150mm suggested for smooth finish). Typical limits: Marble 0-120mm, Glass 0-80mm, Aluminum 0-80mm, and Foam up to 200mm.
How do you provide after-sales service?
We provide local service in many countries. Where local service is unavailable, we arrange overseas installation and training (typically 7-10 days) and provide detailed instructional videos.
What is the typical delivery time?
Standard delivery time is approximately 30 days. If units are in stock, delivery can be shortened to 7-15 days.
Does the machine include a warranty?
Yes, we provide a 2-year (2000 hours) warranty on main parts and whole-life technical support for the entire machine.
Can the machine be customized for special needs?
Yes, we can customize cutting table sizes, Z-axis travel distance, and offer specialized systems like height tracking or automatic abrasive removal.
