Key Features:

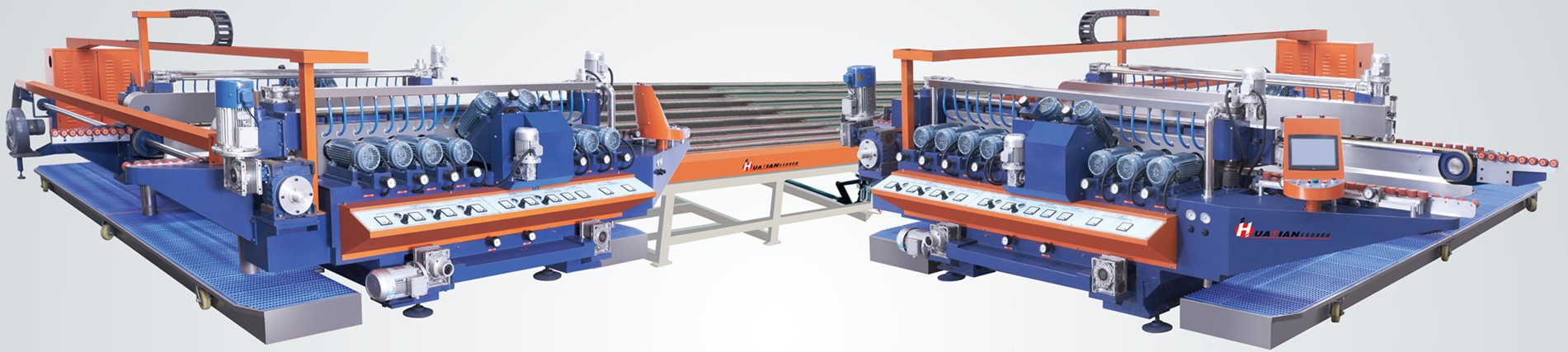

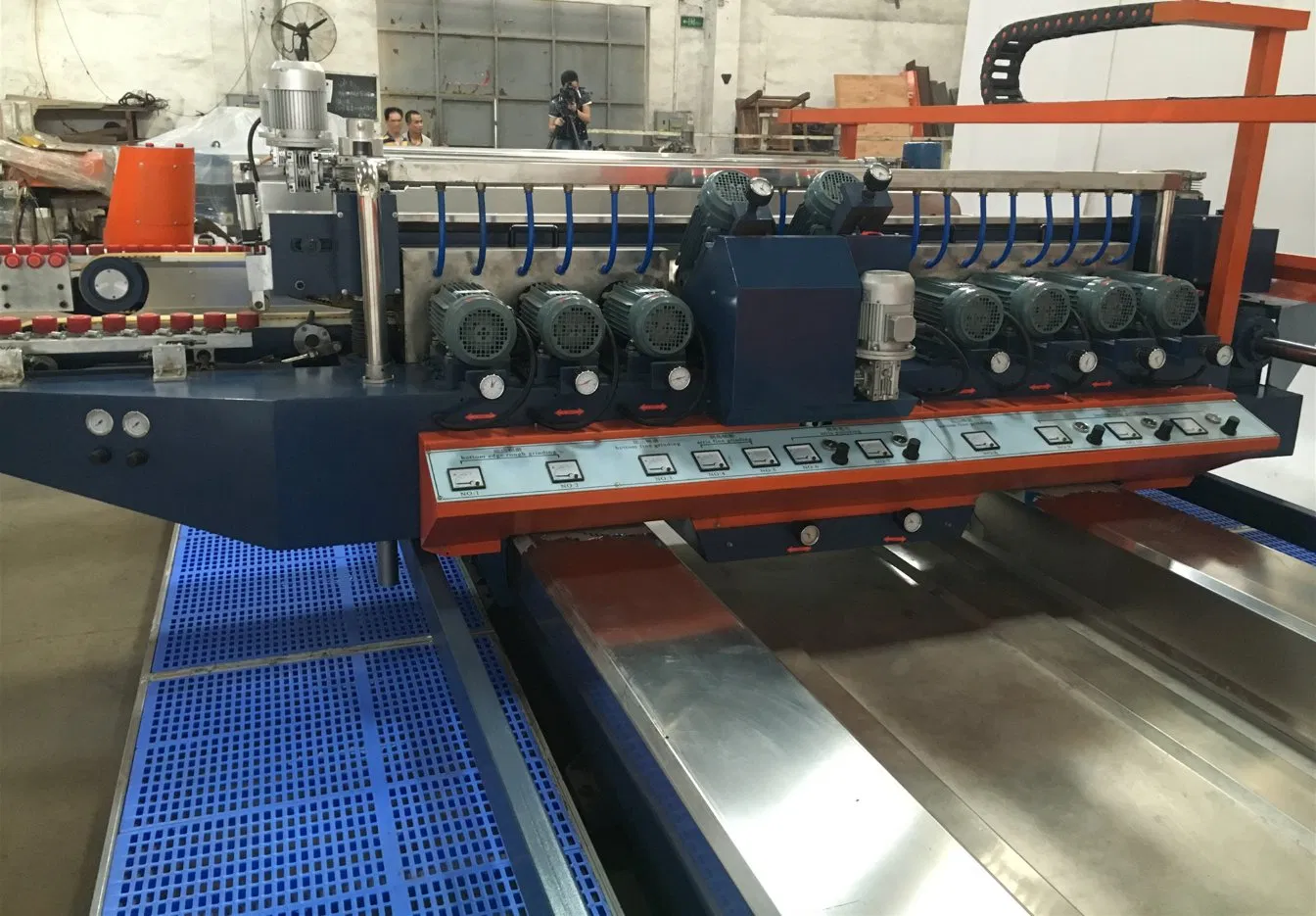

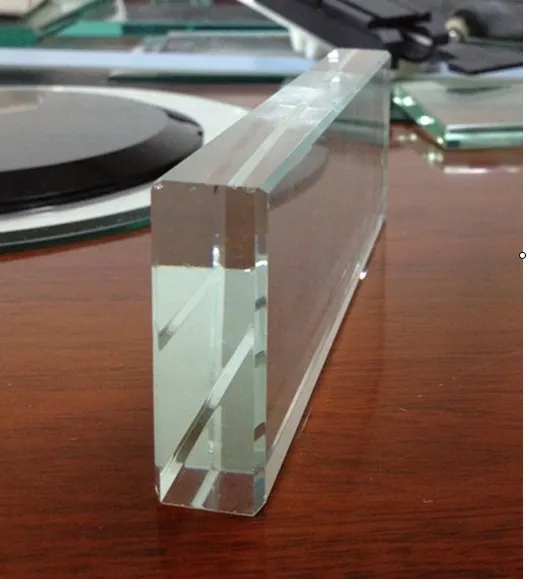

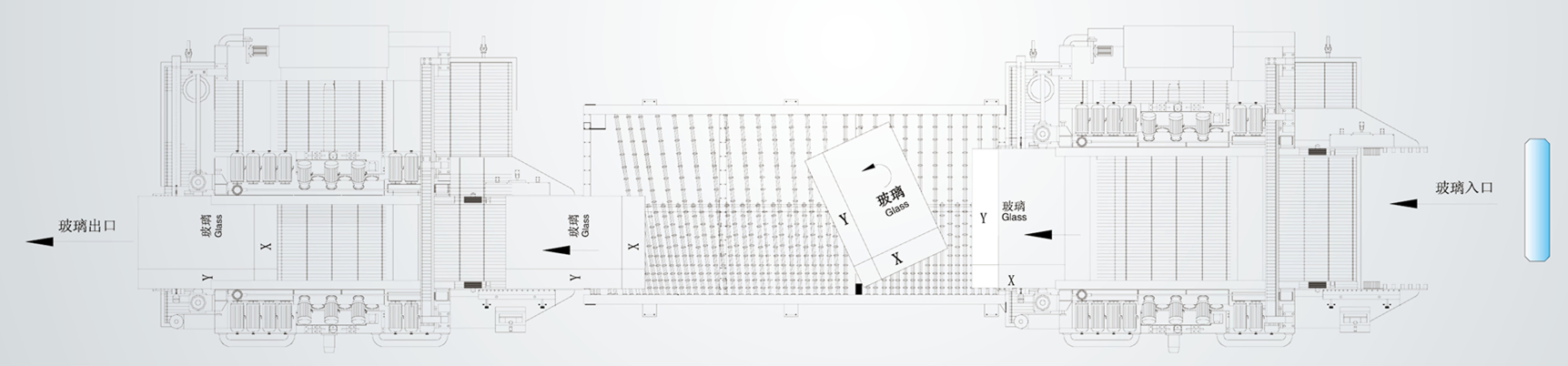

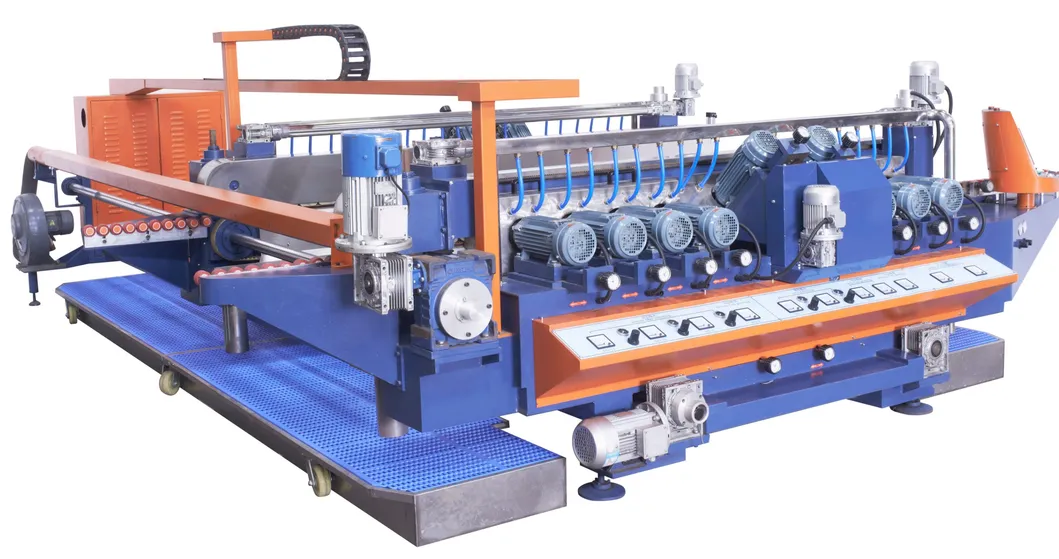

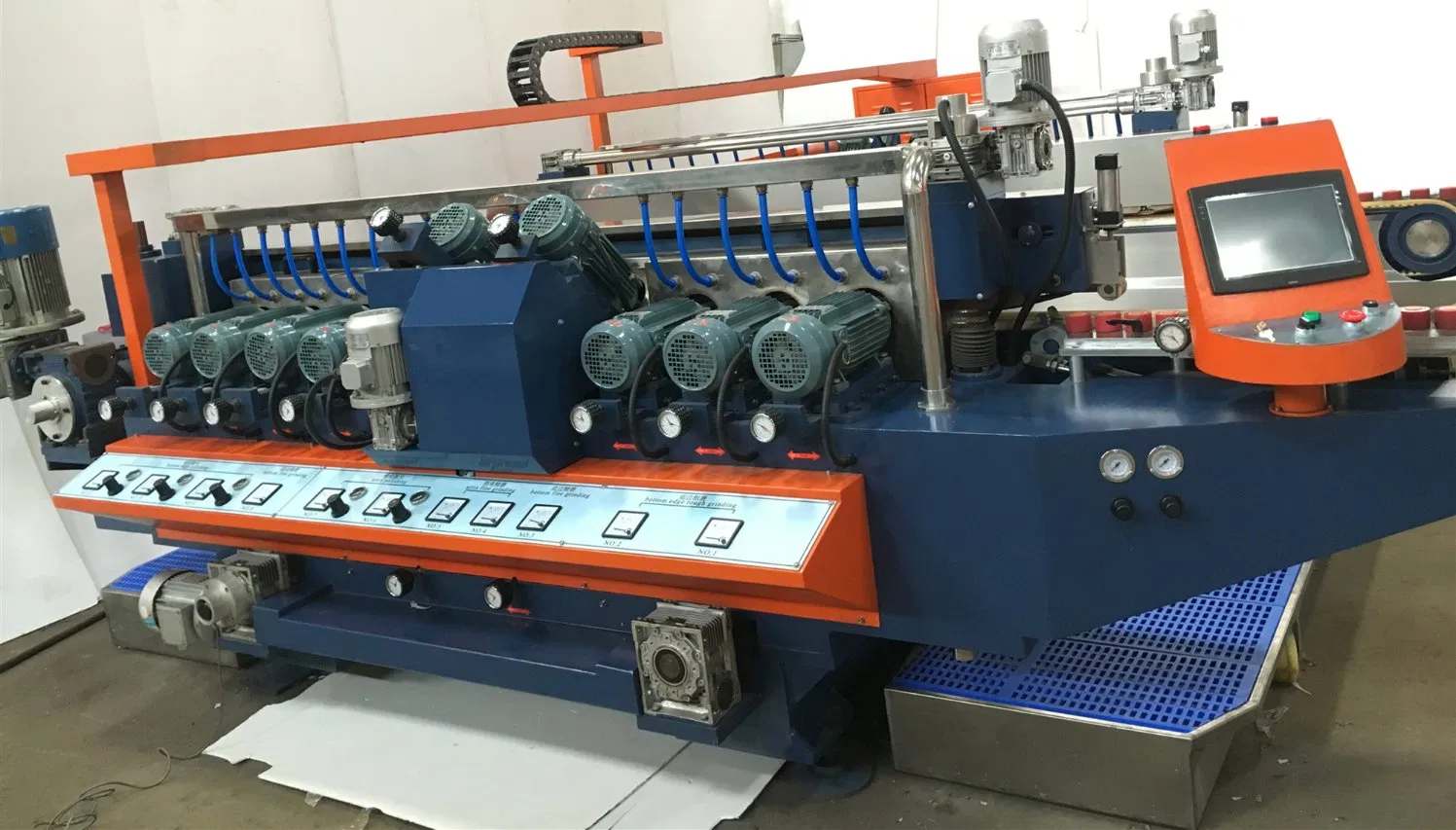

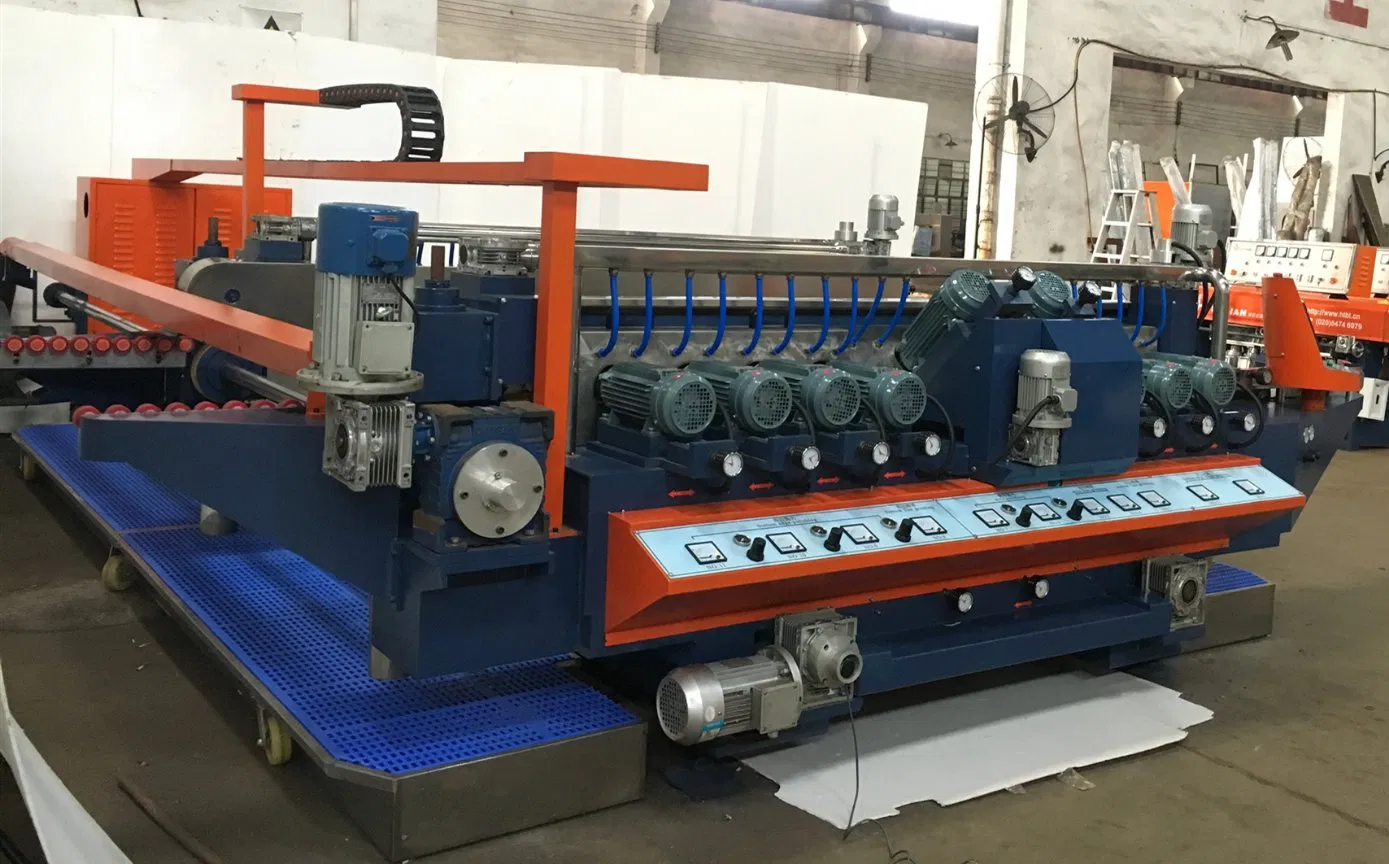

This machine is designed to process the hemline and two chamfering of flat glass, capable of processing double edges in a single pass. The integrated system handles rough feed, fine feed, and polishing simultaneously. It features pneumatic polishing and a PLC automatic control system, allowing users to set parameters easily via the interface. The machine utilizes lead screw driving and dovetail sliders, while the belt drive is managed by an inverter stepless reducer for precision and stability.
| Grinding speed | 500~3000mm/min |
| Max arris angle | 45° |
| Glass Thickness | 3 ~ 25mm |
| Max Glass Size | 4200 x 2500mm |
| Min Glass Size | 350 x 350mm |
| Total power | 54KW |
| Total Weight | 9000 KG |
| Dimensions | 6700(L) x 4200(W) x 1600(H)mm |
