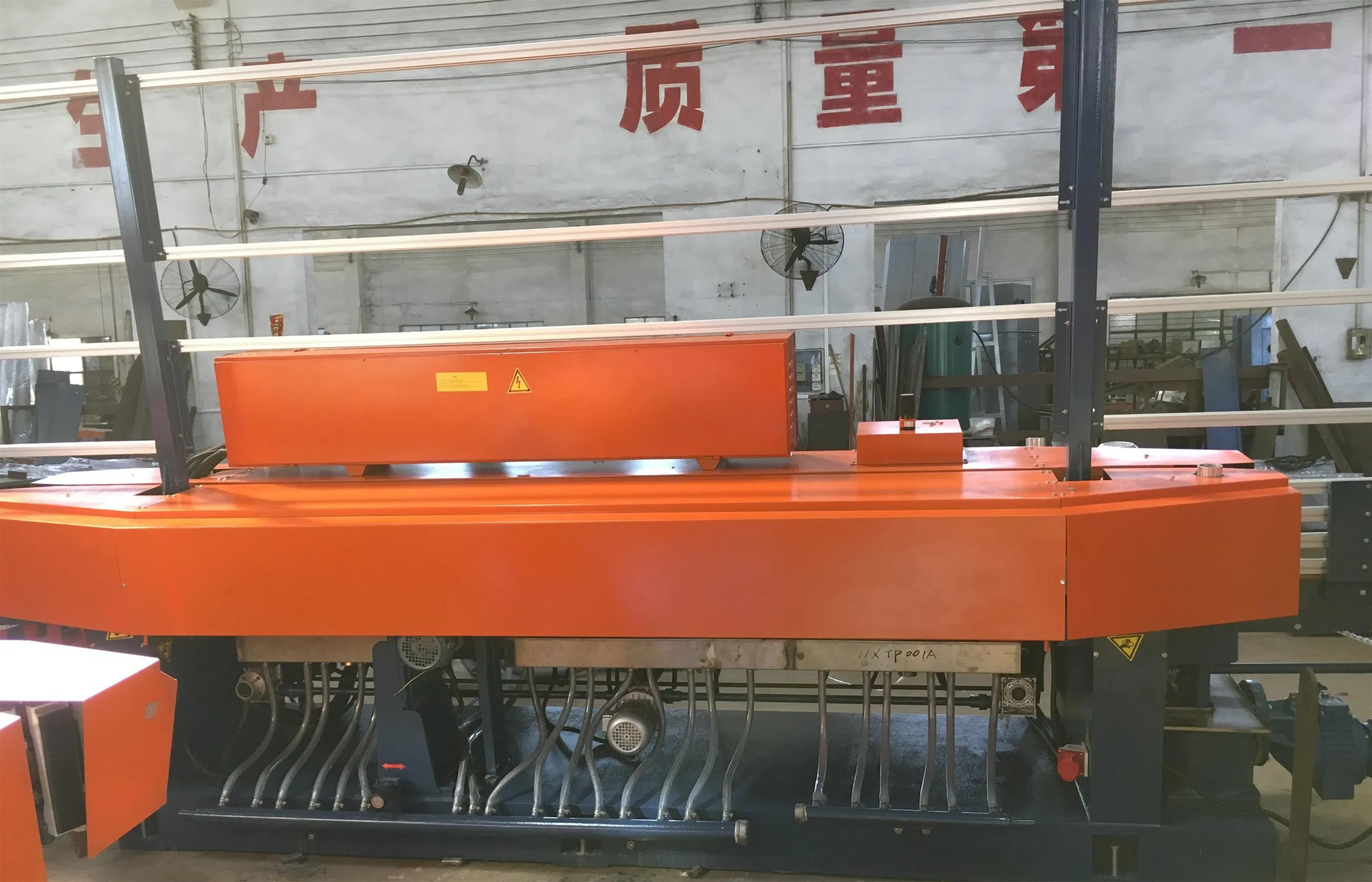

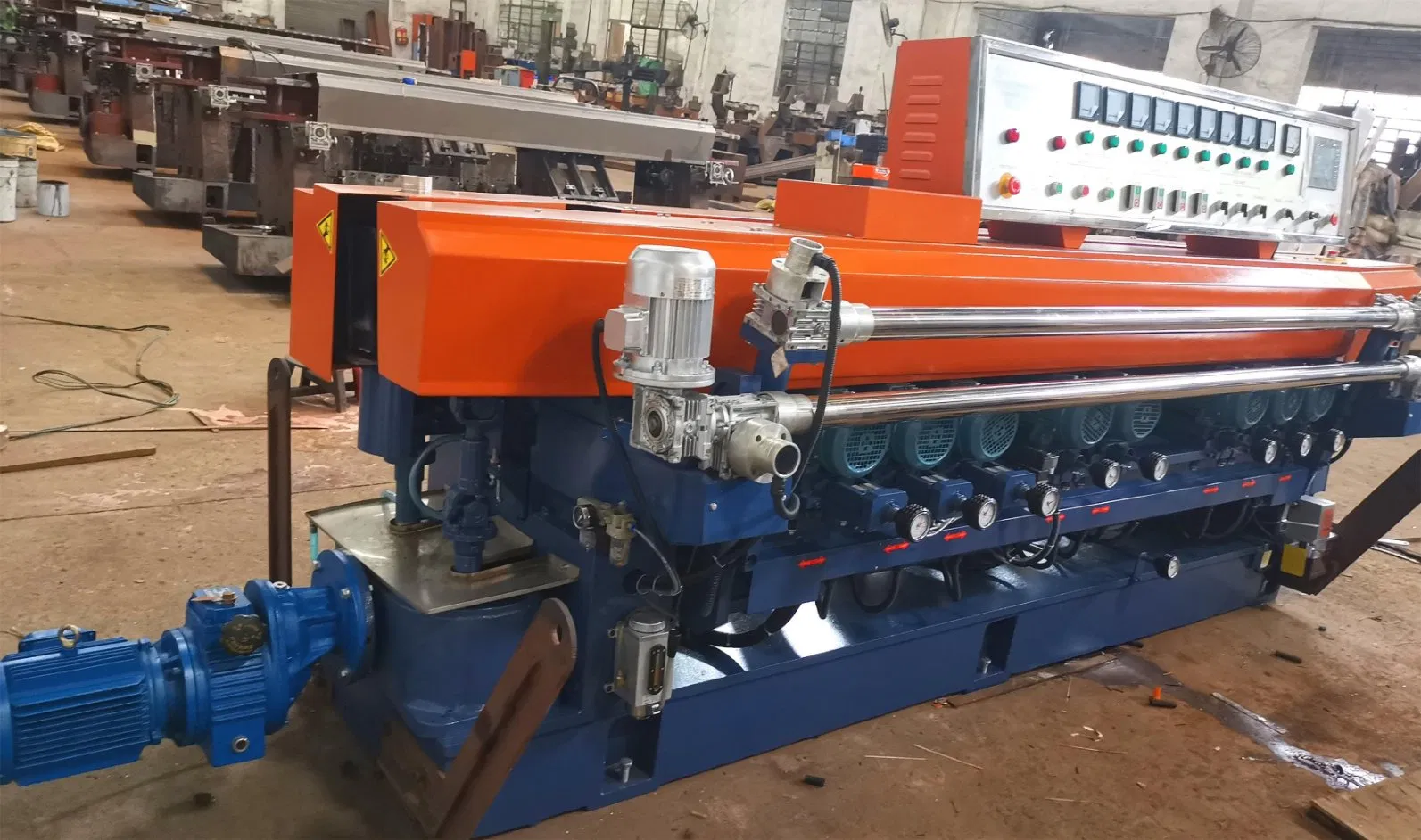

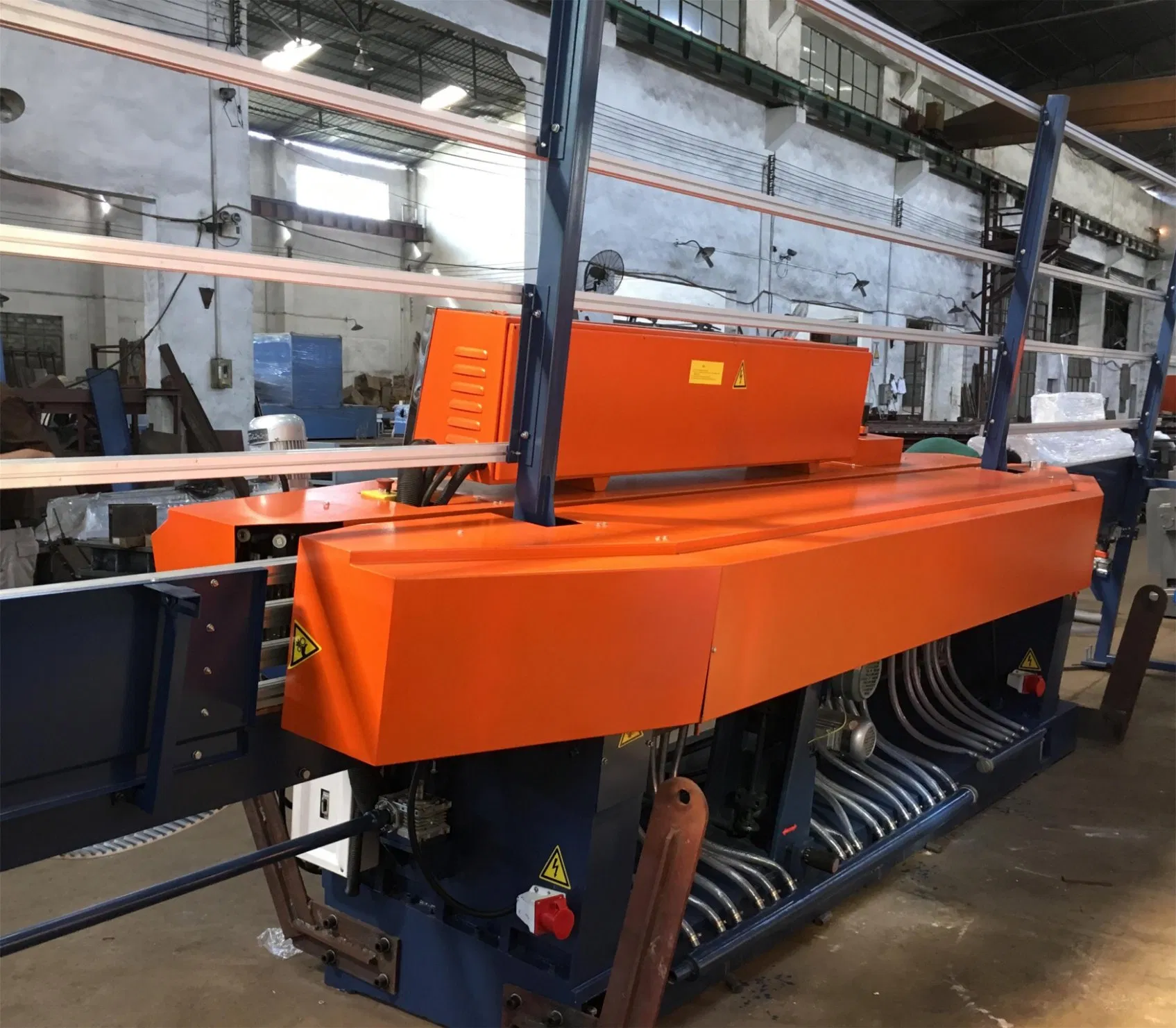

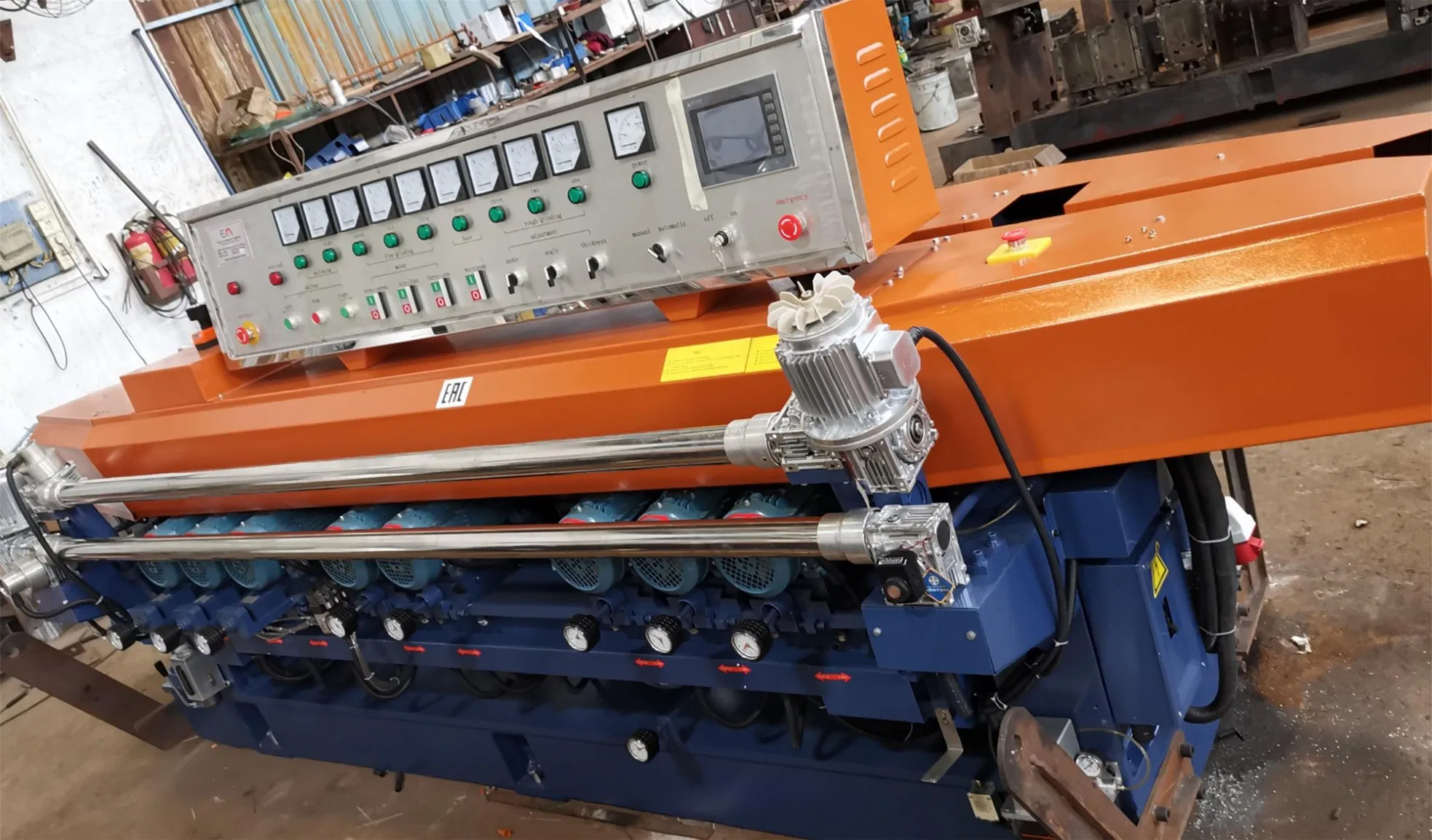

9 Motors Auto Flat Glass Straight Line Bevelling Machine

1 / 5

9 Motors Auto Flat Glass Straight Line Bevelling Machine

Customization:	Available
Color:	Blue and White
Type:	Glass Beveling Machine

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HXM261P

Certification

Structure

Vertical

Control System

PLC

Machine Type

Glass Beveling Machine

Grinding Head Number

Condition

New

Origin

China

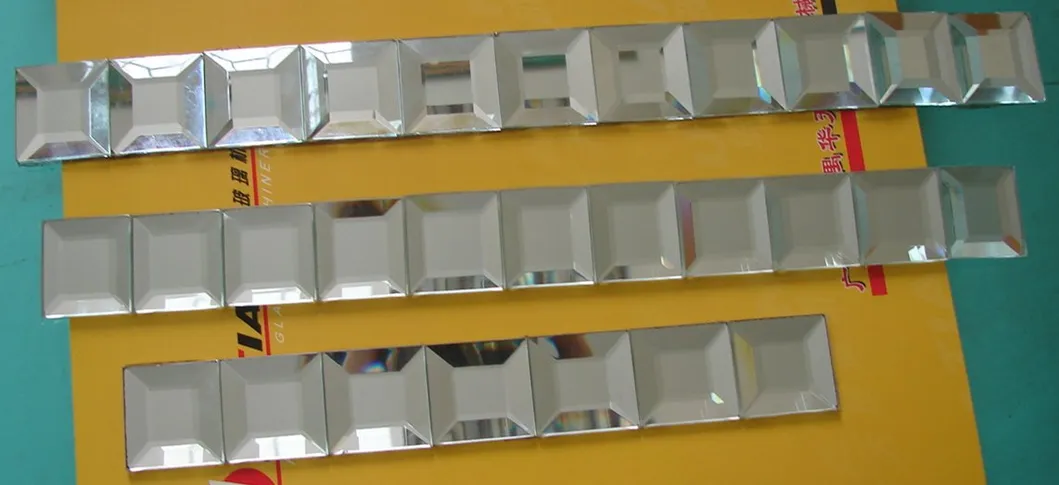

Glass Straight Line Bevelling Machine View 1

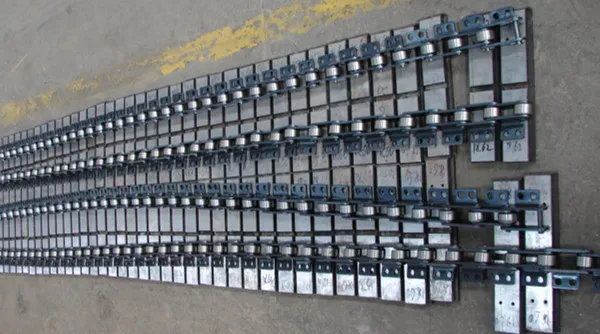

Glass Straight Line Bevelling Machine View 2

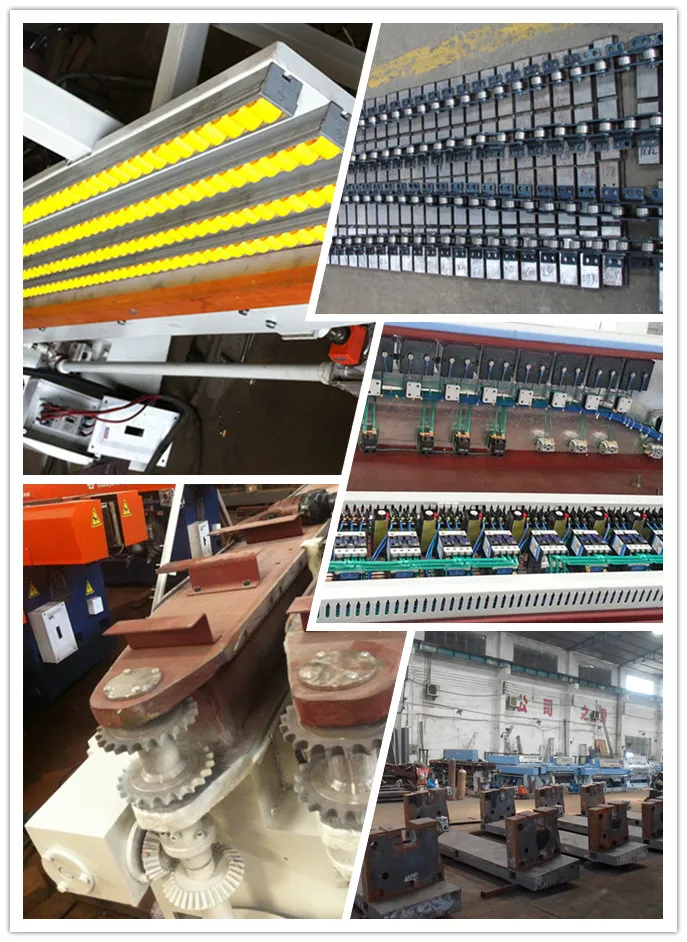

Glass Straight Line Bevelling Machine View 3

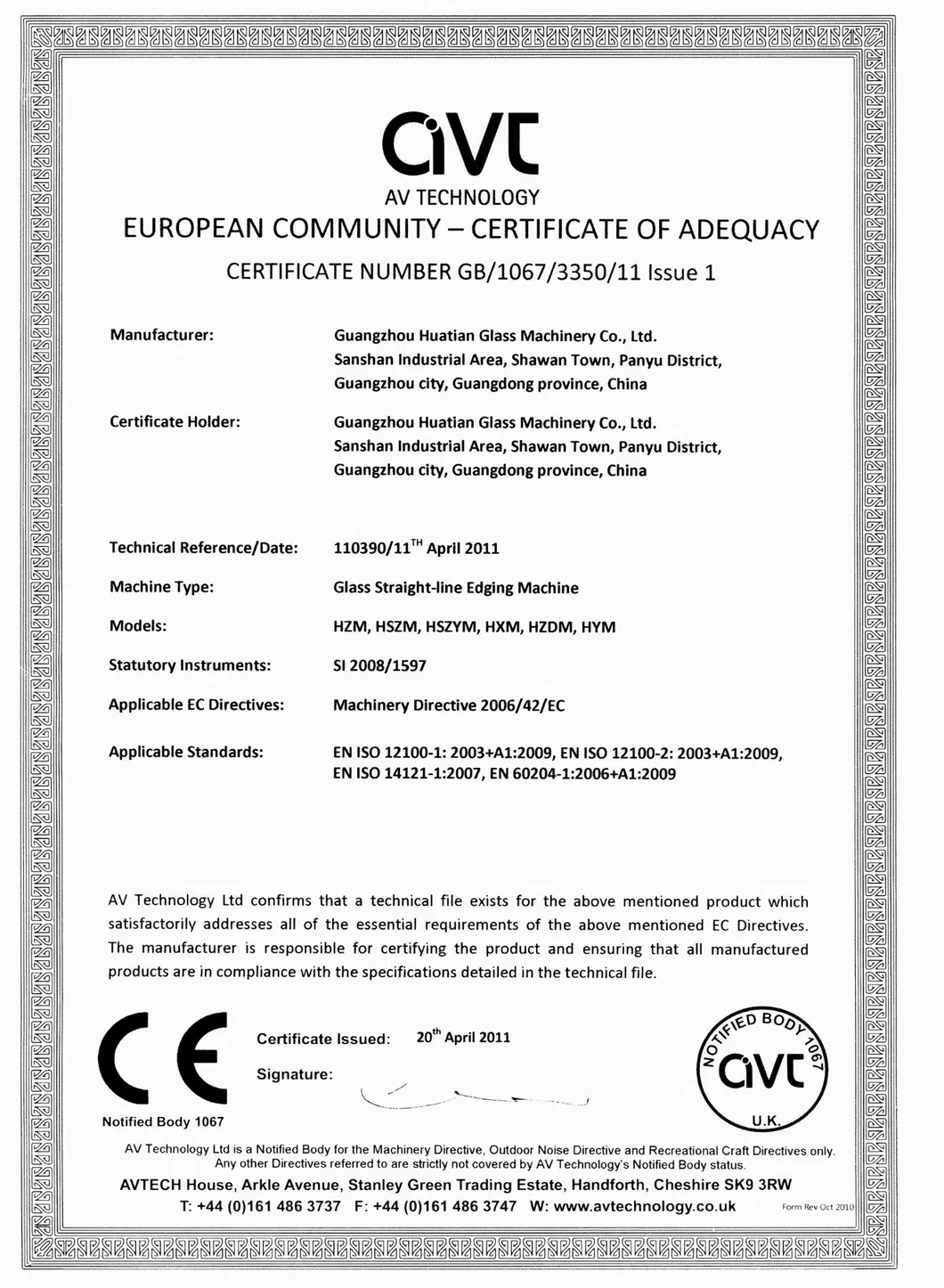

Glass Straight Line Bevelling Machine View 4

⚙️ Product Description

This 9 motors auto flat glass straight line bevelling machine is designed specifically for flat glass straight line bevel grinding and polishing. With its integrated procession, it can handle rough grinding, fine grinding, and pneumatic polishing seamlessly.

Integrated Processing: Adjust speed with a stepless regulator. The machine completes three rough grinding, three fine grinding, two pneumatic polishing, and one bottom grinding stages in a single continuous procession.

Advanced Control: Equipped with a PLC controlling system, the machine supports both automatic and manual operations for maximum flexibility in production.

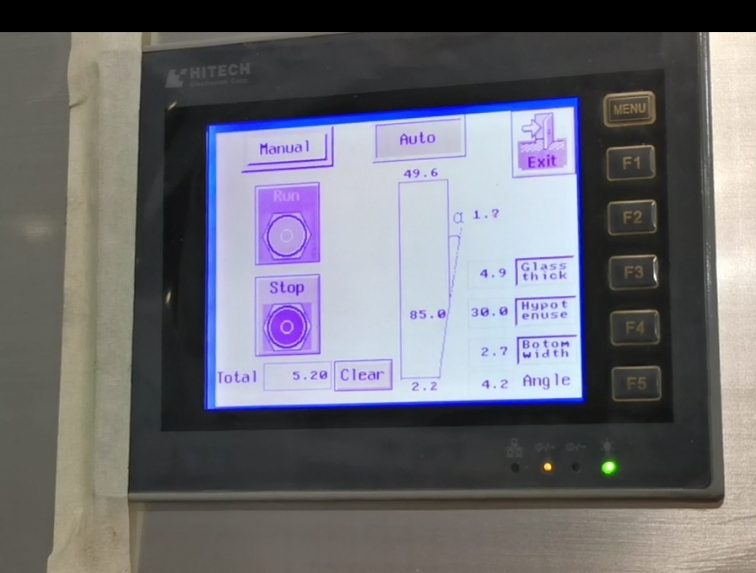

Precision Display: Processed glass thickness, left bottom thickness (after grinding), and bevel width are clearly displayed in both graph and digit formats on a high-quality LCD touch screen.

📊 Technical Specifications

Grinding Speed: 500 ~ 2500mm/min

Max Beveling Width: 35mm

Bevel Angle Range: 3° ~ 20°

Glass Thickness: 4 ~ 20mm

Max Glass Size: 3000 x 3000mm

Min Glass Size: 150 x 150mm

Total Power: 18.5KW

Machine Weight: 4800 KG

Dimensions: 7760(L) X 1400(W) X 2450(H)mm

❓ Frequently Asked Questions

Q1: What is the maximum width of the bevel this machine can produce? The HXM261P can produce a maximum beveling width of 35mm.

Q2: Can the machine handle different glass thicknesses? Yes, it is designed to process glass thicknesses ranging from 4mm up to 20mm.

Q3: What type of control system is used for operation? The machine utilizes a PLC control system with an LCD touch screen for easy monitoring and operation.

Q4: How many grinding heads does the HXM261P feature? This model is equipped with a total of 9 grinding heads to ensure high-quality finishing and polishing.

Q5: What is the range of adjustable bevel angles? The bevel angle can be adjusted between 3° and 20° depending on your processing requirements.

Q6: Is the machine suitable for large-scale glass processing? Absolutely. It can handle glass sizes up to 3000 x 3000mm and has a production capacity of 100 units.
