Basic Information
Dimension
6400*1200*2500mm
Type

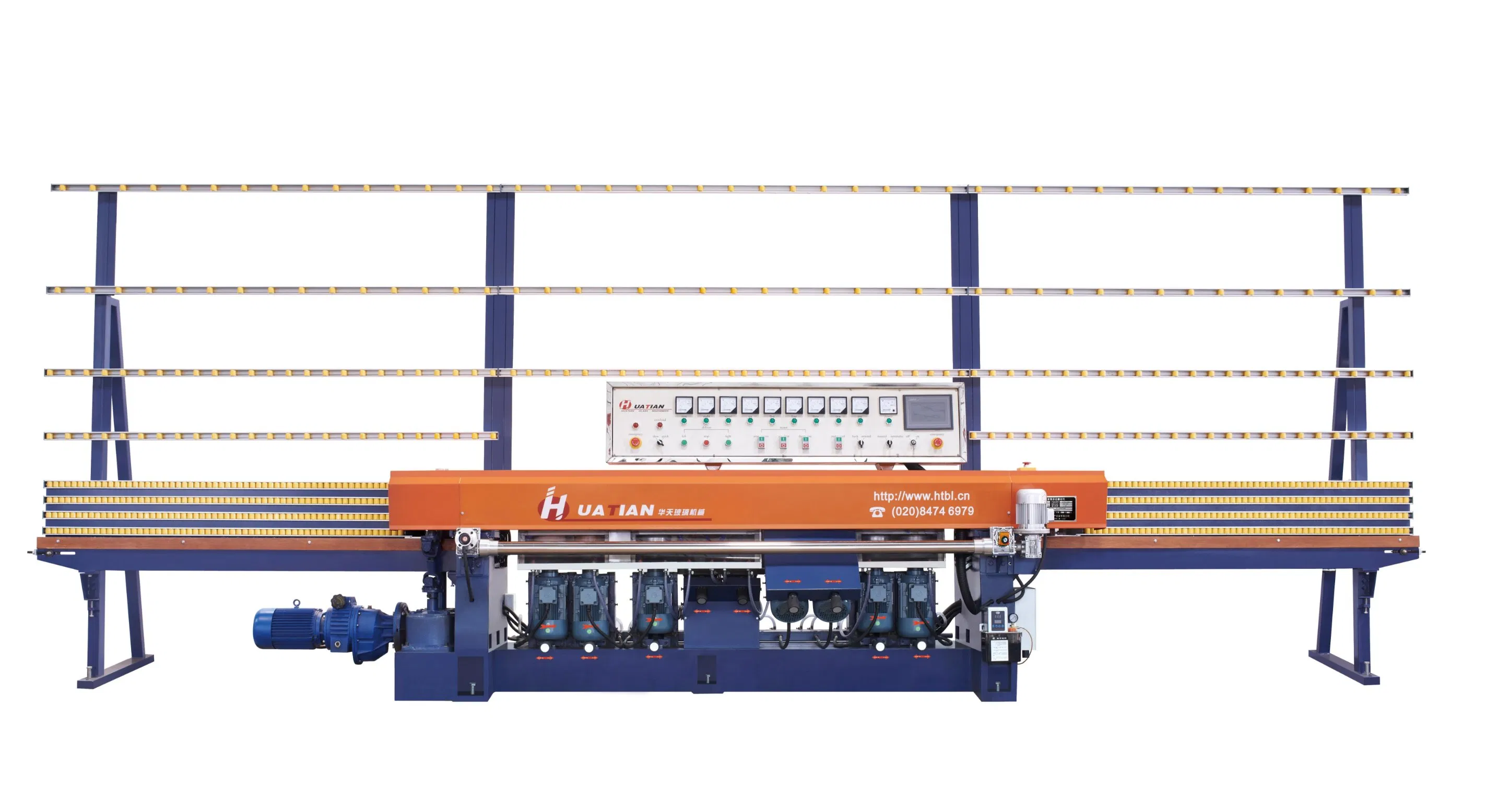

Glass Edging Machine
Product Description
- The base, beams, uprights and motor carriages are made of enhanced high-quality cast iron for rigid and reliable processing.

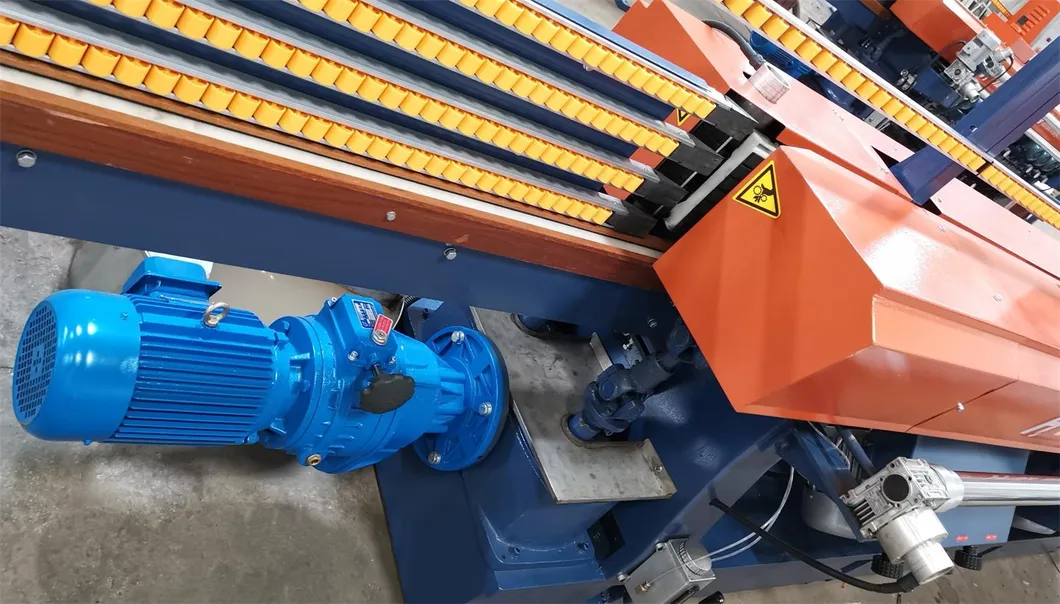

- The transmission system utilizes a mechanical stepless reducer, double spiral speed reducer, and sleeve-type chain of automatic gear.
- Lead screw driving for the movement of front beam and grinding spindles, supported by sliders for precision positioning.
- High-intensity plastic material used for front and rear pressure pads.
- Rack construction features aluminum spacers.
- Inlet conveyor equipped with an adjustable height device.
- Timing belt on input and output conveyors for improved transmission precision.
- Stainless steel water tank and polishing tank with electrical agitator.
- Automatic lubricating oil pump ensures all parts in beams and sliders remain well-maintained.
Technical Specifications
| Maximum Grinding | 3mm |
| Grinding Speed | 500~2500m/min |
| Chamfer Angle | 0° ~ 45° |
| Glass Thickness | 3 ~ 25mm |
| Glass Size | Max: 3000 x 3000mm; Min: 100 x 100mm |
| Total Power | 26KW |
| Weight | 4000 KG |
| Machine Dimension | 7700(L) x 1200(W) x 2500(H)mm |

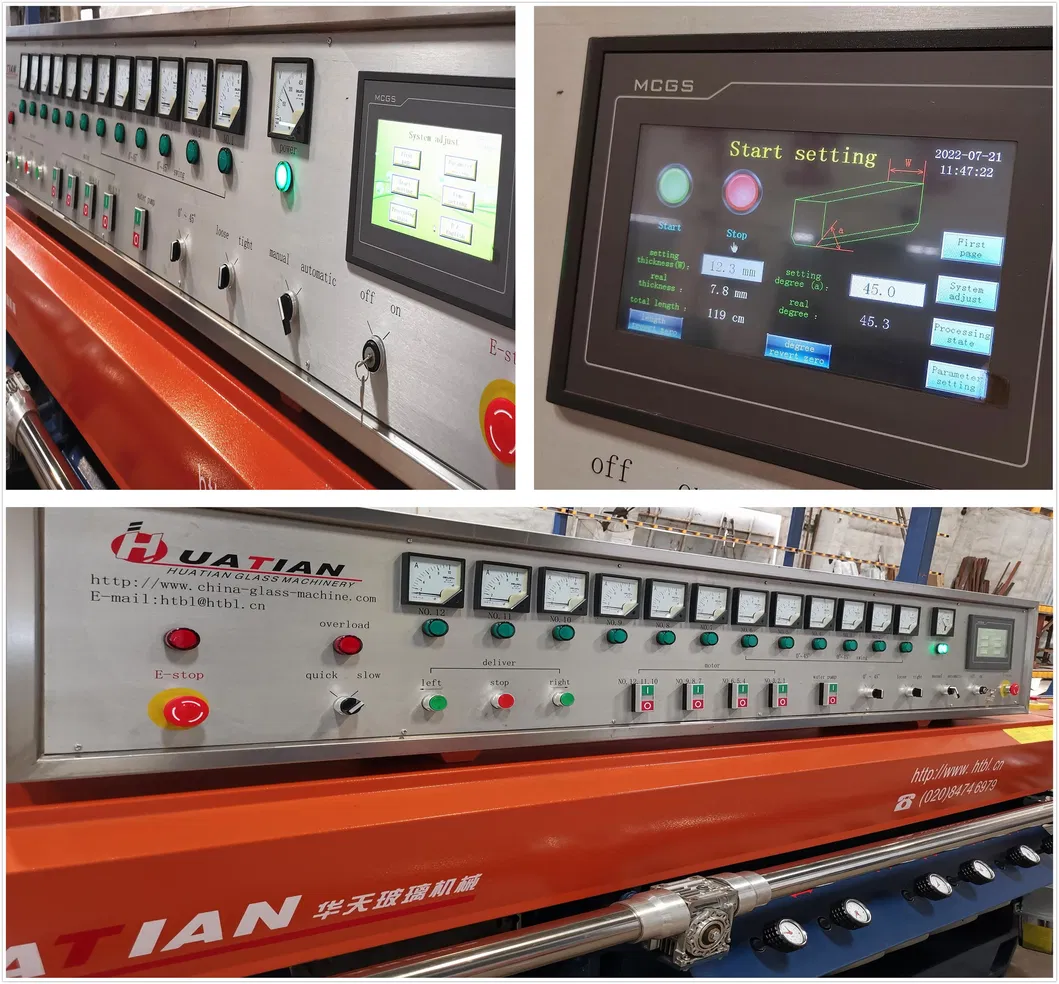

Delta PLC Control System
Equipped with a touch screen showing glass thickness, length, angle, and other parameters. Supports both manual and automatic modes.

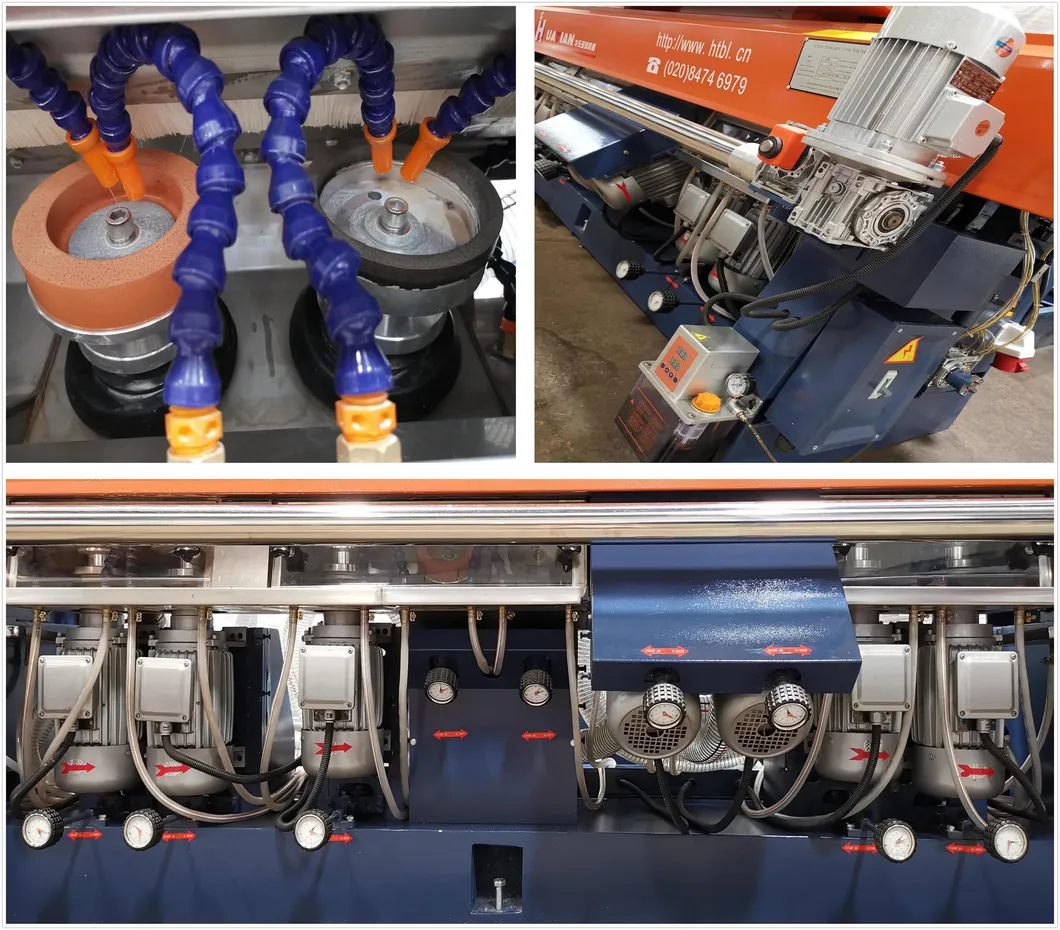

Precision Components
Includes high-precision low vibration motors and select grinding wheels made in Italy. Features an automatic lubrication pump for the conveyor system.

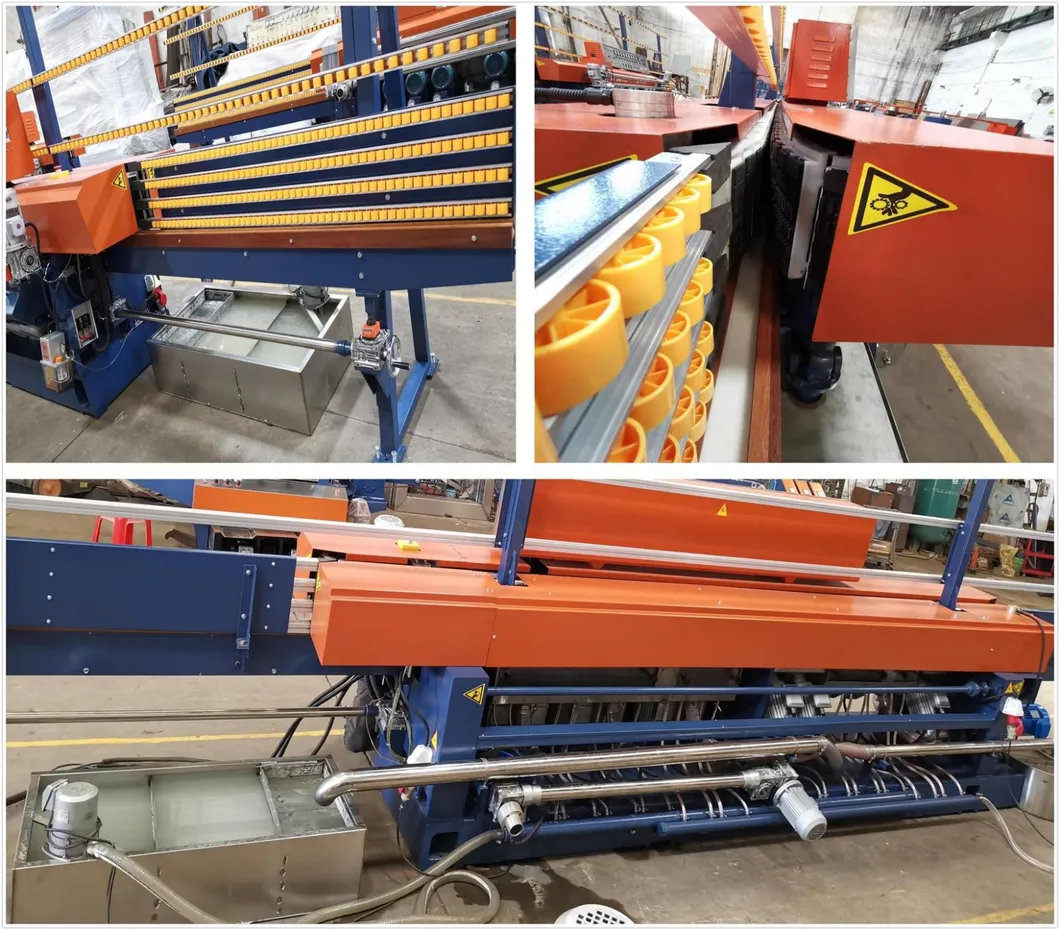

Conveyor and Transmission
Timing belt system for high precision. Adjustable inlet conveyor height allows for exact glass feeding control.
Certification & Exhibition

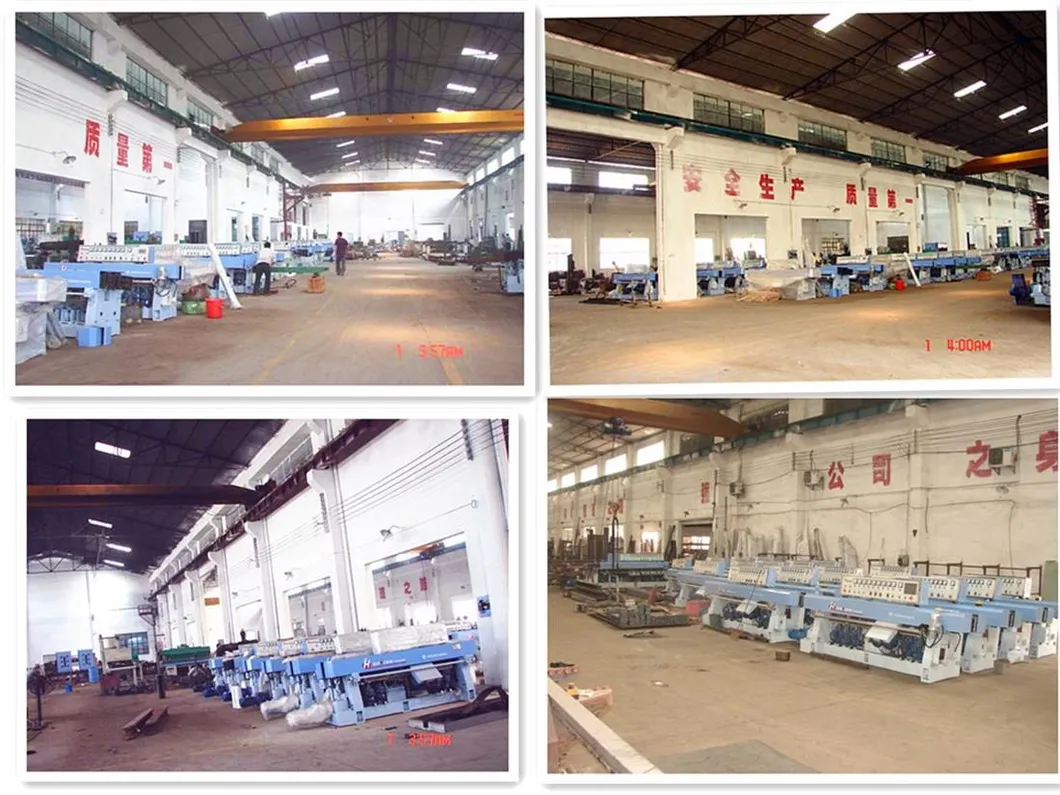

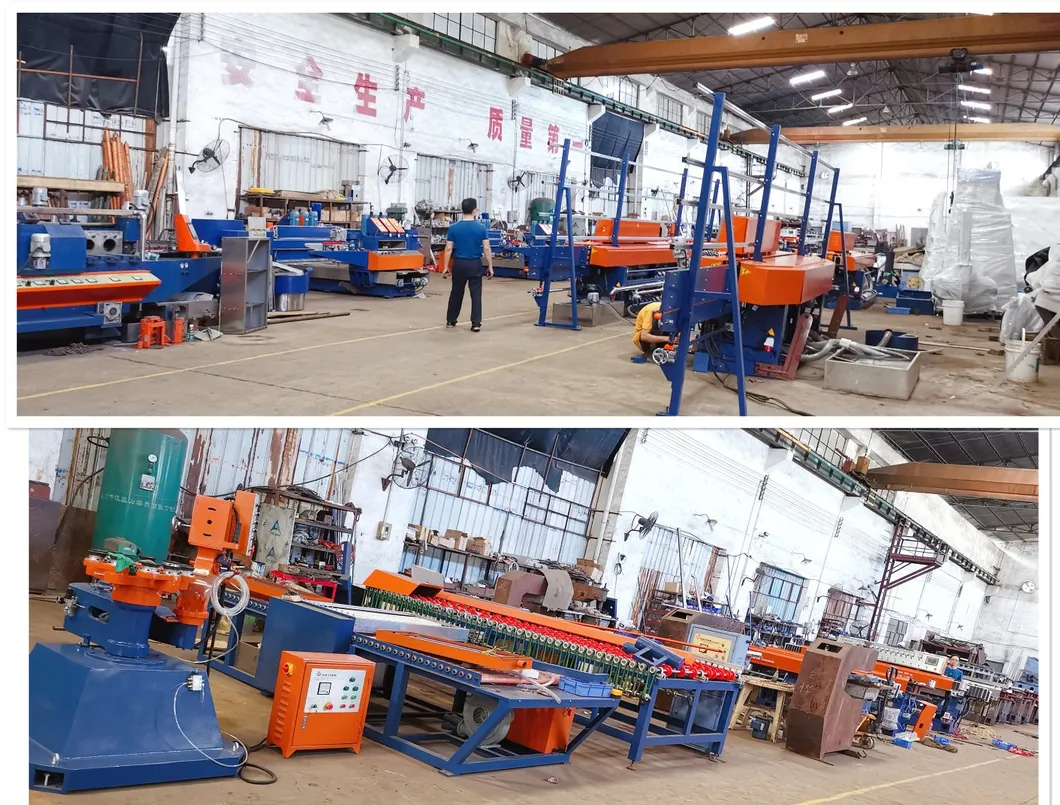

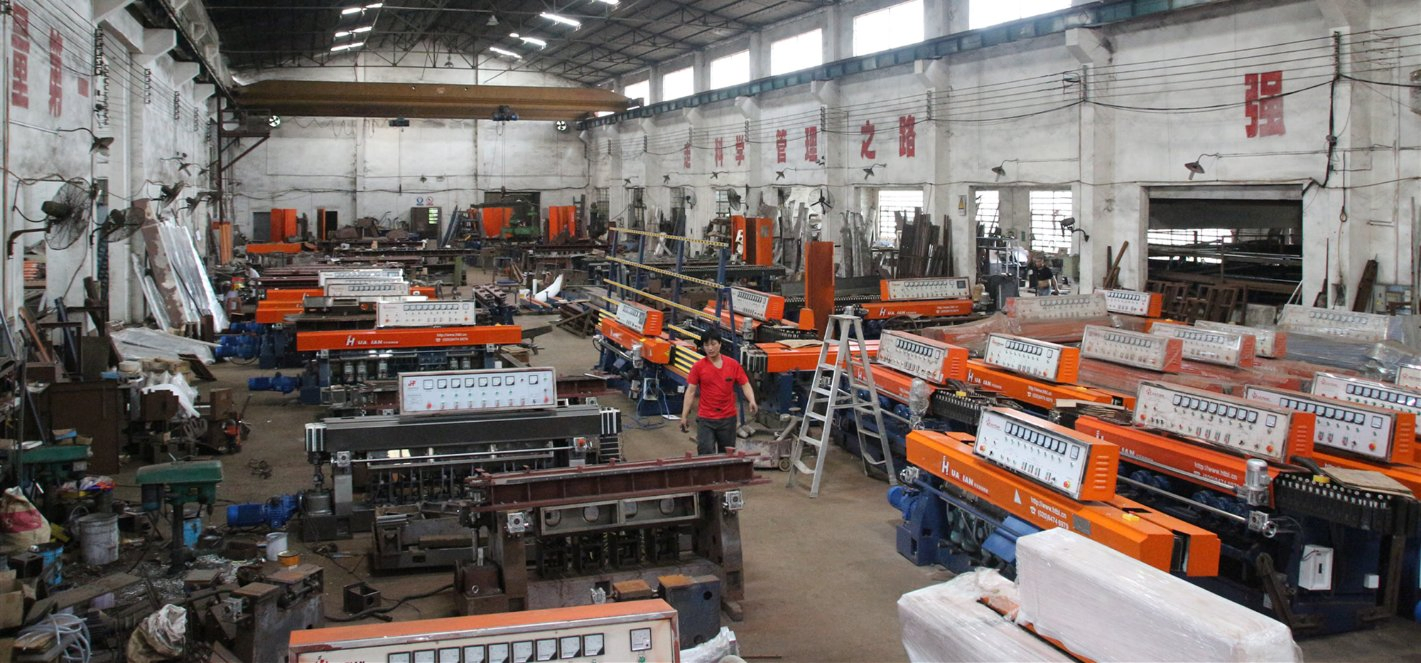

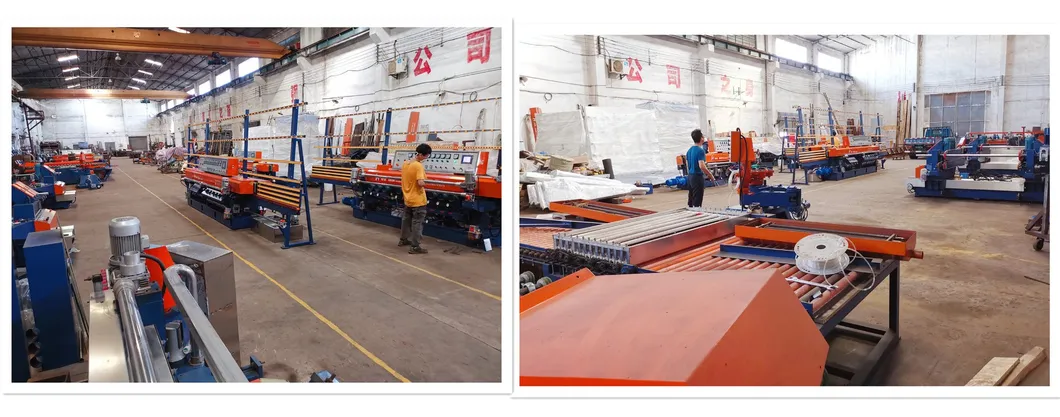

Our Workplace
Frequently Asked Questions (FAQ)
What range of glass thickness can this machine process?
The HZM242P model can process glass with a thickness ranging from 3mm to 25mm.
What are the maximum and minimum glass dimensions for edging?
The maximum glass size is 3000 x 3000mm, and the minimum size is 100 x 100mm.
How many grinding heads does the machine feature?
This machine is equipped with 8 spindles (wheels) for efficient straight-line edging.
Does the machine support automatic lubrication?
Yes, it features an automatic lubricating oil pump that provides lubrication to all parts in the beams and sliders.
Is the control system easy to operate?
Yes, it uses a Delta PLC with a touch screen that allows for both manual and automatic operation modes, displaying real-time parameters.
Is the machine certified for international standards?
Yes, the machine is CE certified, ensuring it meets safety and quality standards for the global market.
