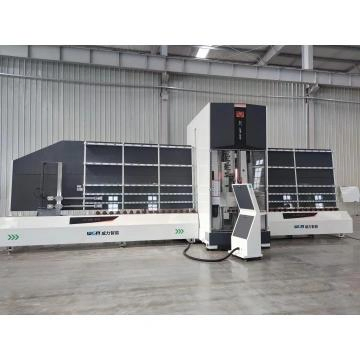

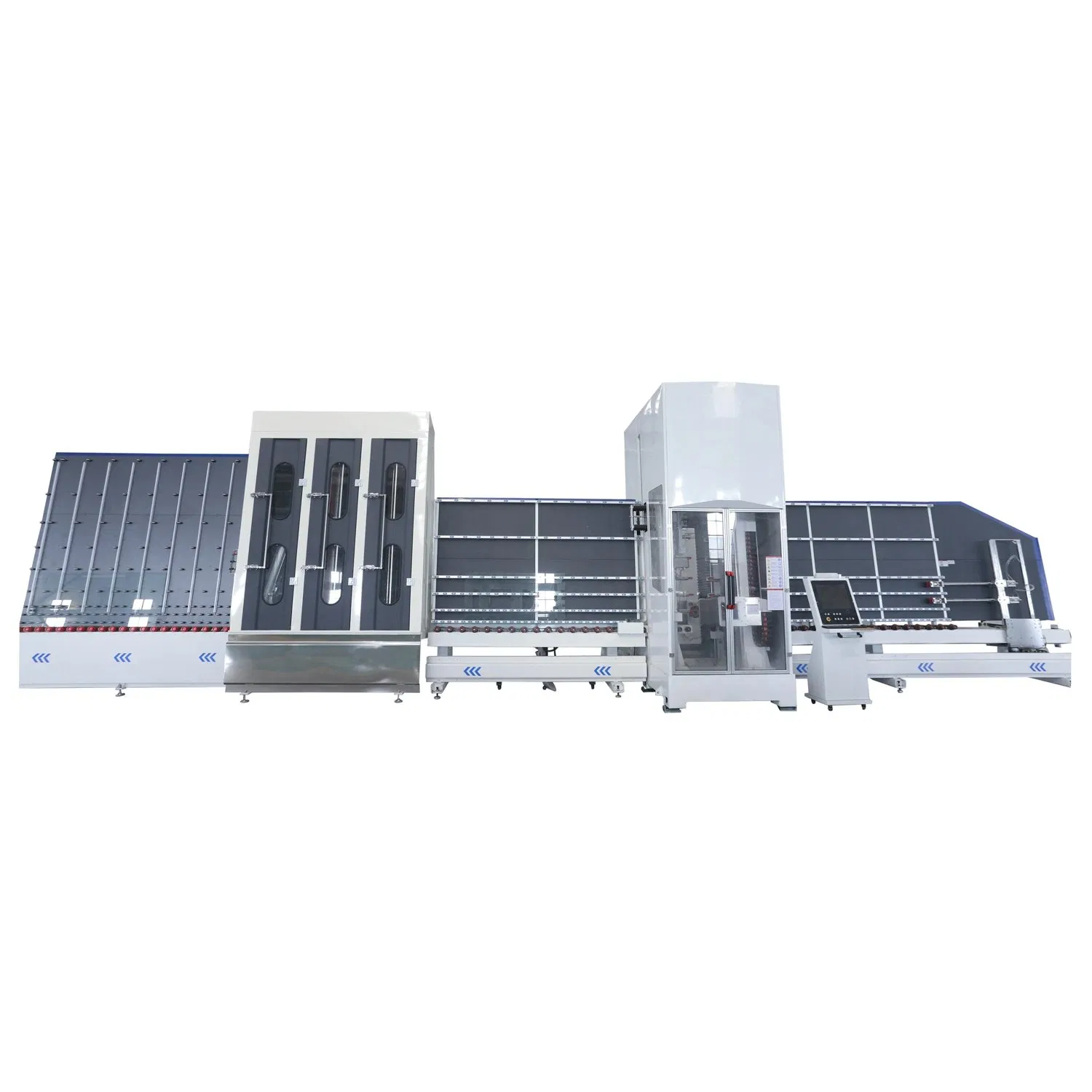

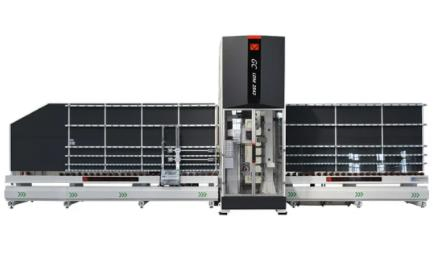

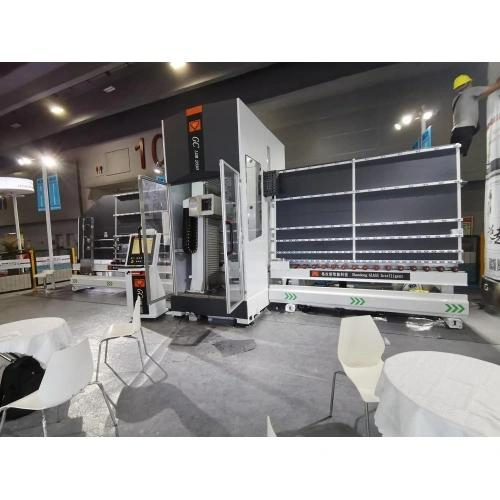

5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
1 / 5
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom
5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom

5 Axis Vertical CNC Glass Drilling and Milling Machine for Door Clamp and Bathroom

Customization: Available
Control System: PLC
Glass Thickness: 5-25mm
Send Inquiry

Product Description

Technical Specifications
Max Glass Size:2500*4200mm
Min Glass Size:500*500mm
Spindle Speed:0-12000rpm
Spindle Power:7.5kw*2
Total Power:22kw
Air Compression:0.7MPa
Voltage:3*380V/50Hz
Weight:7500kg
Certification:CE
Structure:Vertical
Overview
⚙️
We have been a leading single source provider of high-quality flat glass processing machinery, service and supplies. Each manufacturer specializes in a certain type of machinery characterized by innovative features, long lasting durability and high reliability.
Glass Drilling Machine Milling Machine Process
CNC Vertical Drilling and Milling Machine

The GC-LDM-III2542 is a high-tech vertical working center for the deep glass processing industry. It can perfectly complete complex work in a short time and process high-quality and high-precision glass, reducing the problem of poor accuracy of manual drawing and cutting.

This machining center adopts an international advanced numerical control system and drive to realize the dynamic management of each axis and precise speed control. It is suitable to process structural glass such as frameless doors and glass curtain walls.

● Milling by single router
● High-speed Grinding
● Precise Arrising
● Polishing (Optional)
🏗️
Structural Design: The vertical structure occupies less area and simplifies positioning. It reduces obstructions, facilitates easy processing of glass sheets, and significantly reduces surface scratches.
Our Advantages
✔ Good rigidity and fast response time.
✔ High-precision ball screw and guide rail (Taiwan Hiwin) for precision production.
✔ Low wear and tear, maintaining high precision after years of use.
✔ Centralized oil supply lubrication system for all moving parts.
✔ Main protection frame made of 201 stainless steel with observation doors.
Product Parameters
Feature Specifications Feature Specifications
Model No GC-LDM-II Glass Thickness 5-25mm
Max Glass 2500*4200mm Dimension 12700*4200*4200mm
Spindle Speed 0-12000rpm Spindle Power 7.5KW * 2
Tool Positions 6*2 / 8*2 (Optional) Tool Taper BT30
Control System Mitsubishi (Japan) Servo Drive Mitsubishi (Japan)
Detailed Product Photos

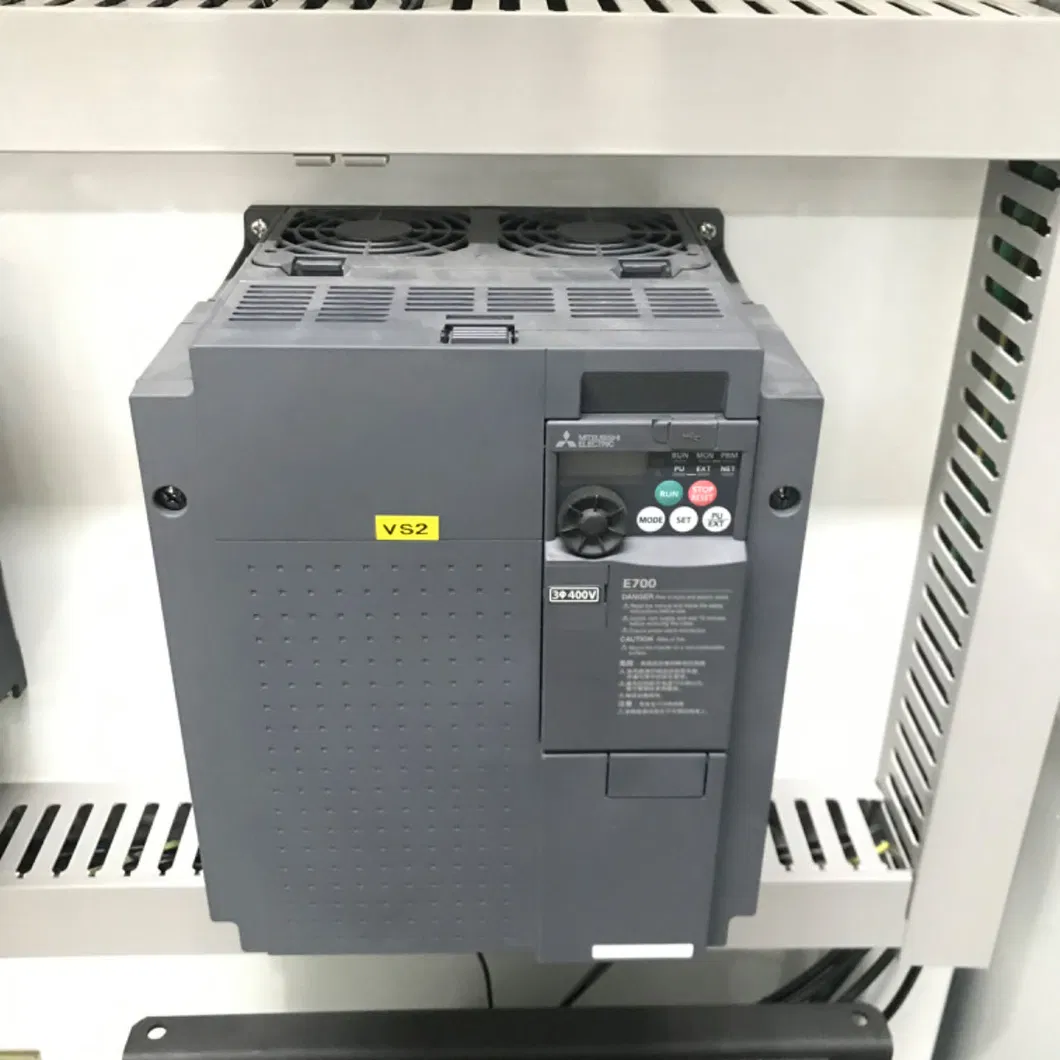

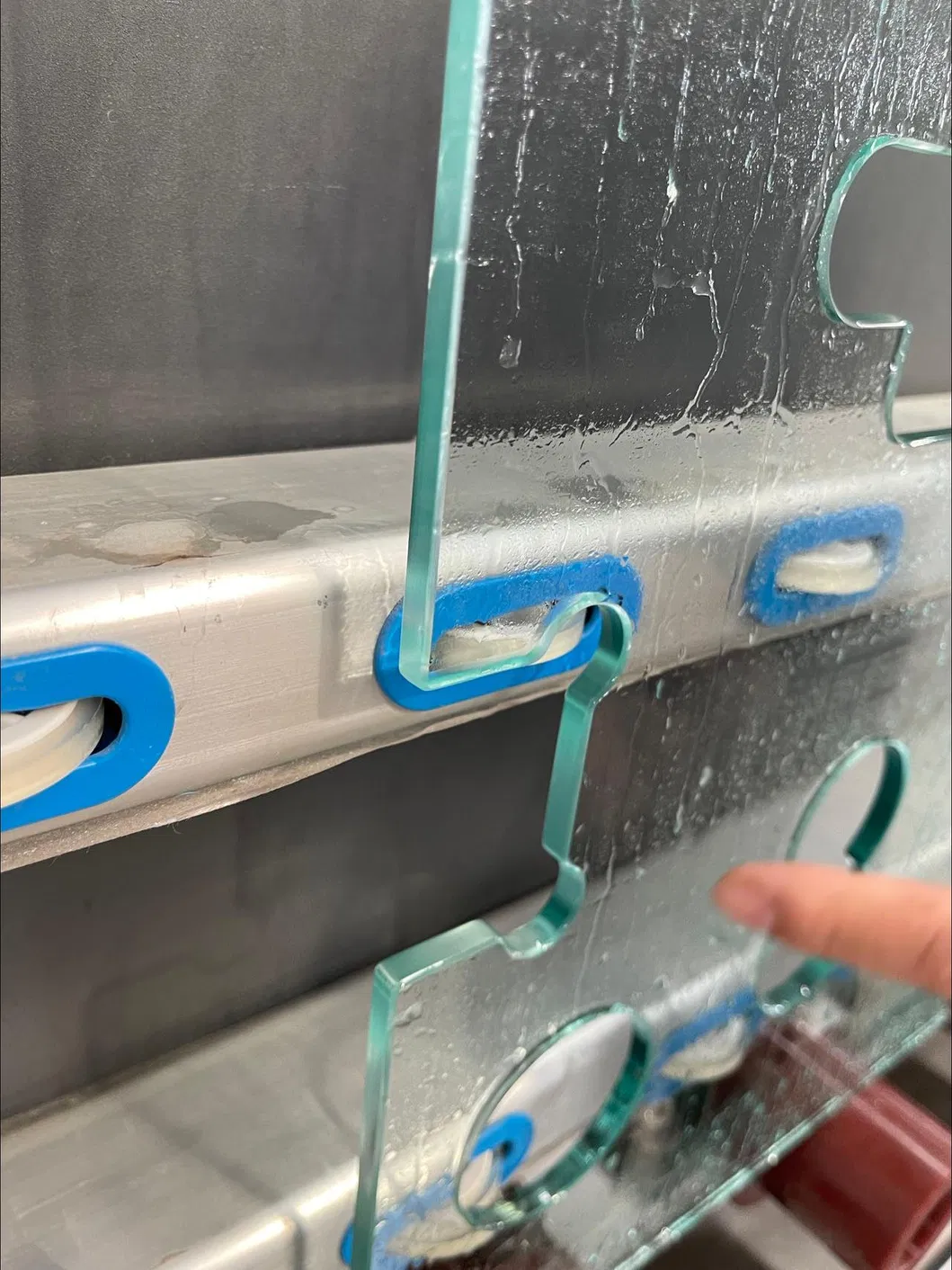

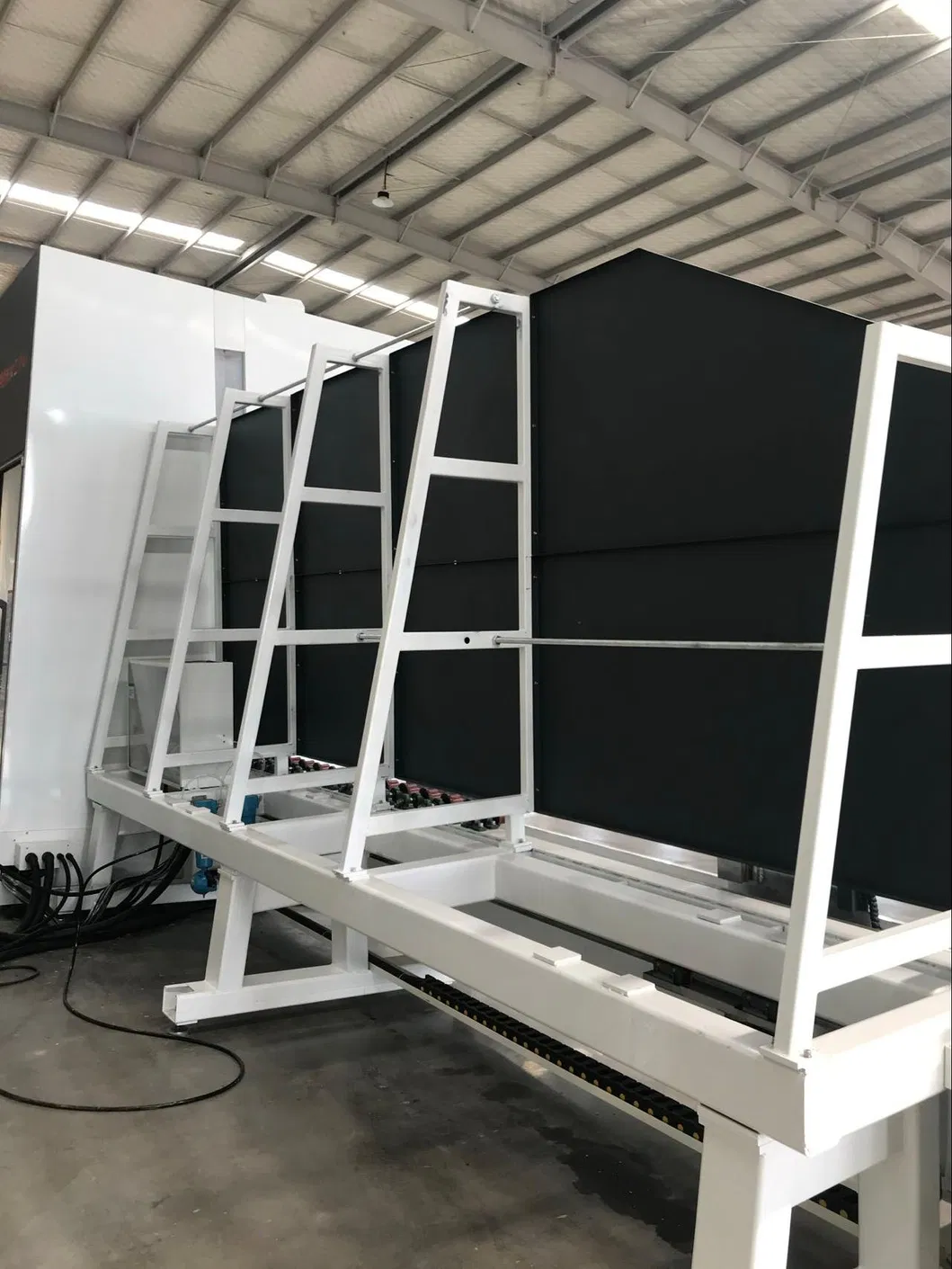

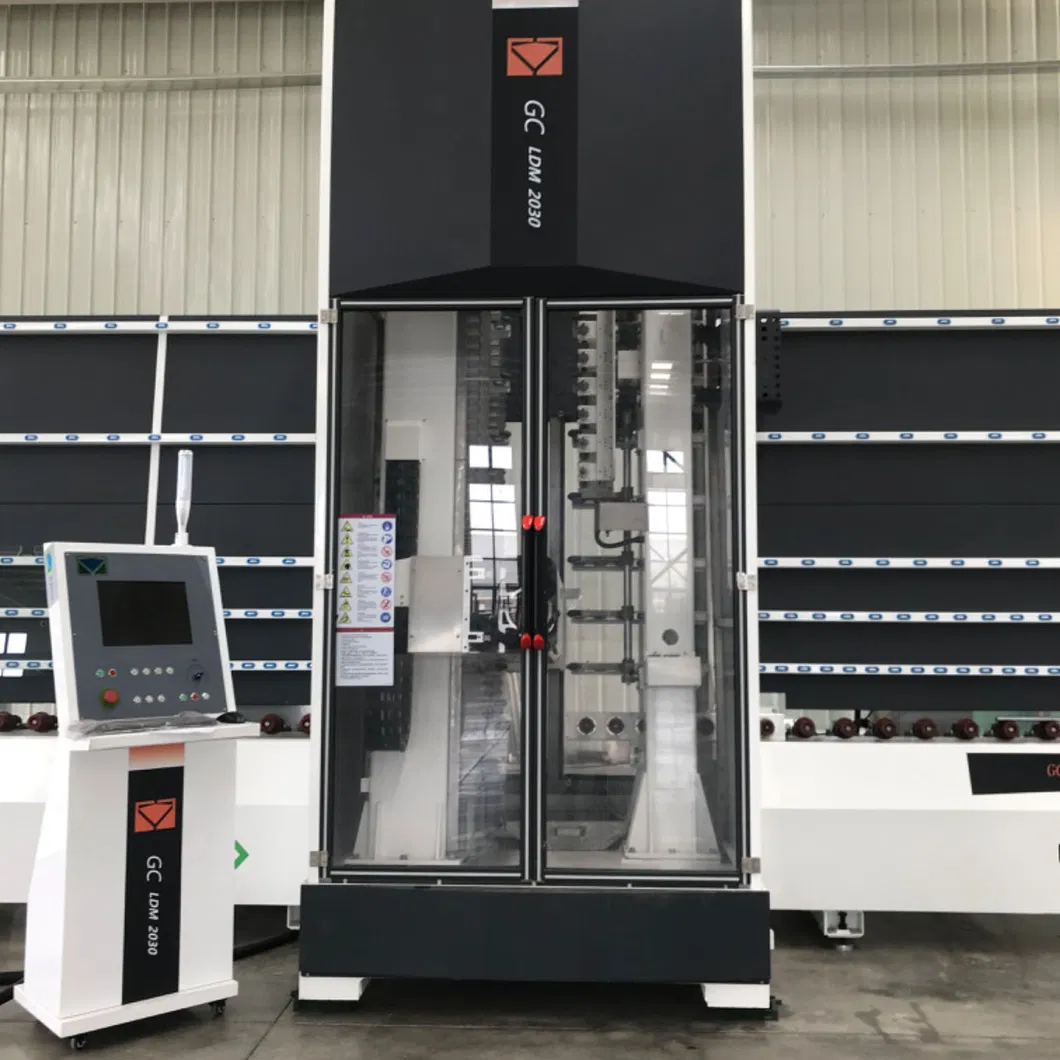

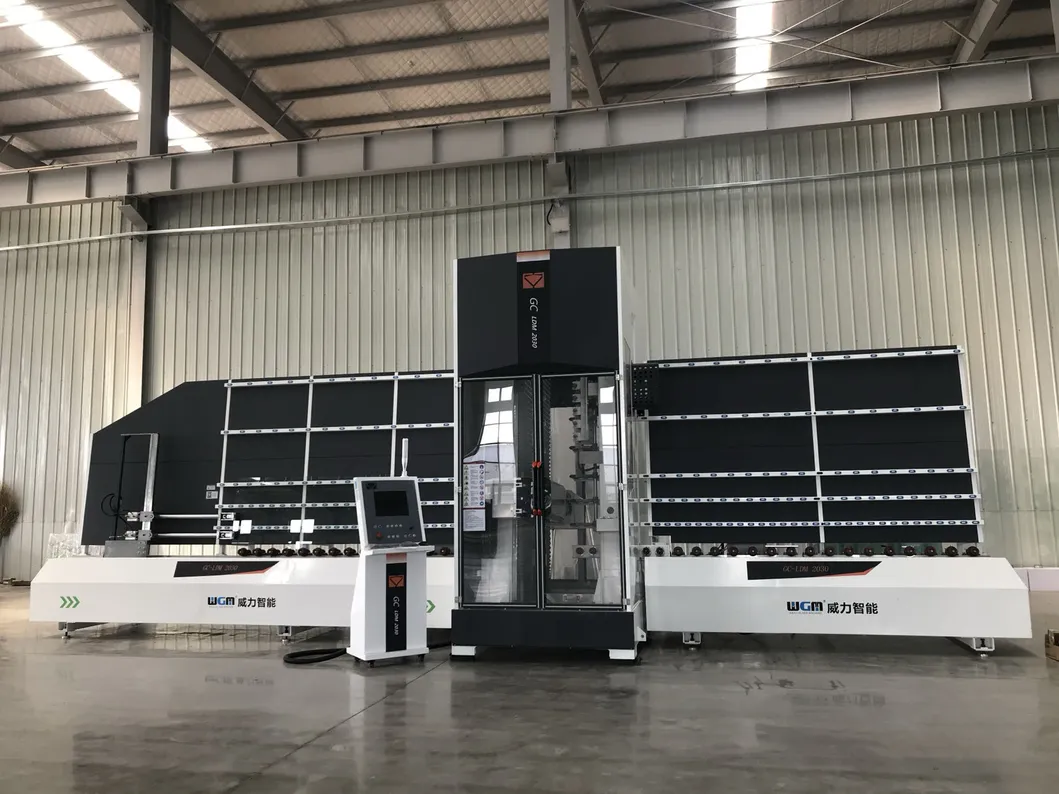

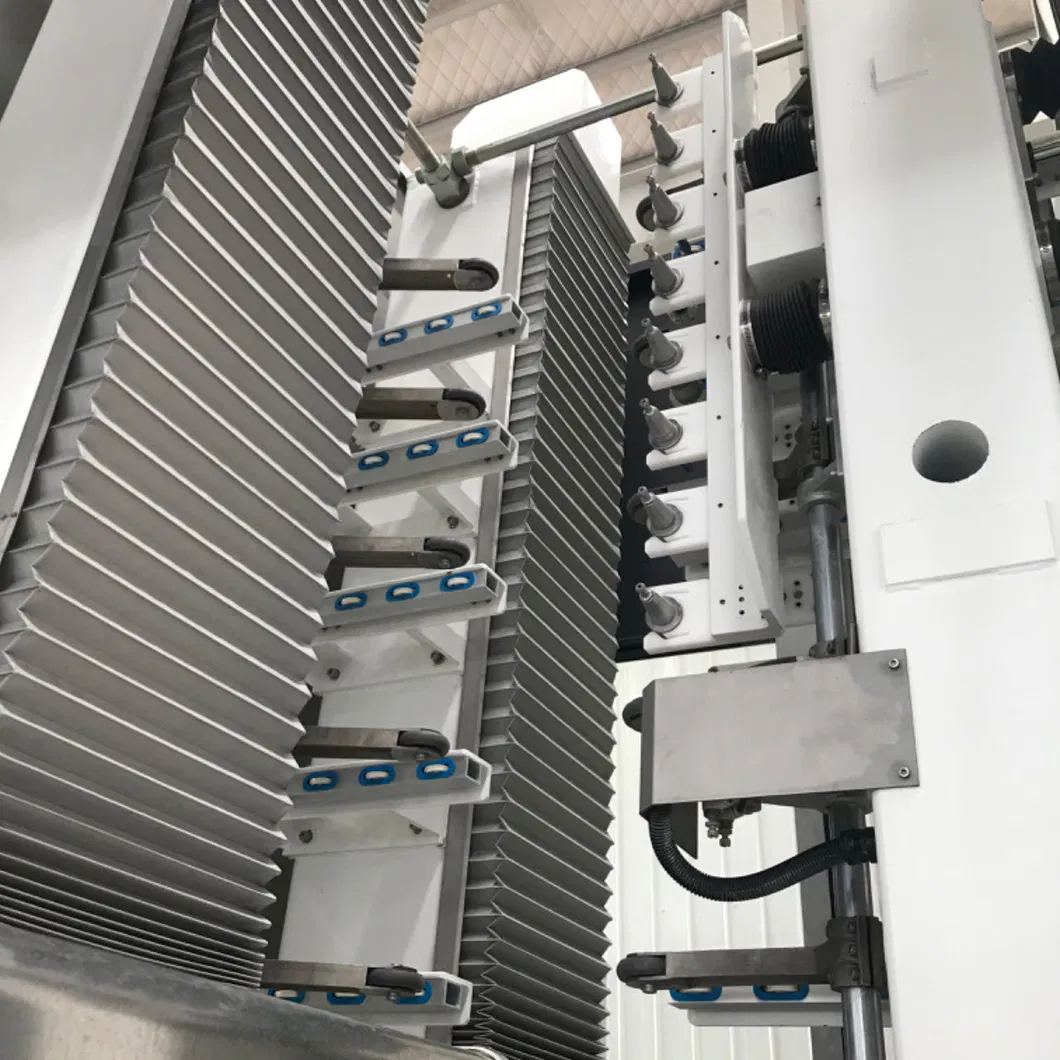

CNC Detail 1 CNC Detail 2 CNC Detail 3 CNC Detail 4 CNC Detail 5 CNC Detail 6
Frequently Asked Questions (FAQ)
1. What are the primary functions of this CNC vertical machine?
The machine is designed for complex deep processing, including drilling, milling, grinding, and arrising of large flat glass.
2. What is the maximum glass size the GC-LDM-II can handle?
The standard model handles up to 2500*4200mm, but configurations for 2000*3000mm and 3000*6000mm are also available.
3. Which control system is used in this machinery?
The machine utilizes a high-precision Mitsubishi numerical control system and servo drives from Japan for reliable operation.
4. How does the vertical structure benefit glass processing?
The vertical design occupies less floor space, simplifies glass positioning, and significantly reduces the risk of surface scratches during handling.
5. What is the warranty period for this equipment?
The machine comes with a 12-month warranty covering manufacturing defects and major components.
6. Can the machine perform polishing?
Yes, polishing is available as an optional function to meet specific high-finish requirements for glass edges.
