| Model NO. | SX-L | Max Height of Glass | 1600mm |
|---|---|---|---|
| Type | Glass Washing and Drying Machine | Structure | Vertical |
| Condition | New | Control System | Electric Control |
| Machine Type | Vertical Glass Washing Machine | Transport Package | Wooden Pallet+Film |
| Specification | 6000× 2000× 2800mm | Origin | China |
| HS Code | 846420 | Production Capacity | 20 Sets/Month |

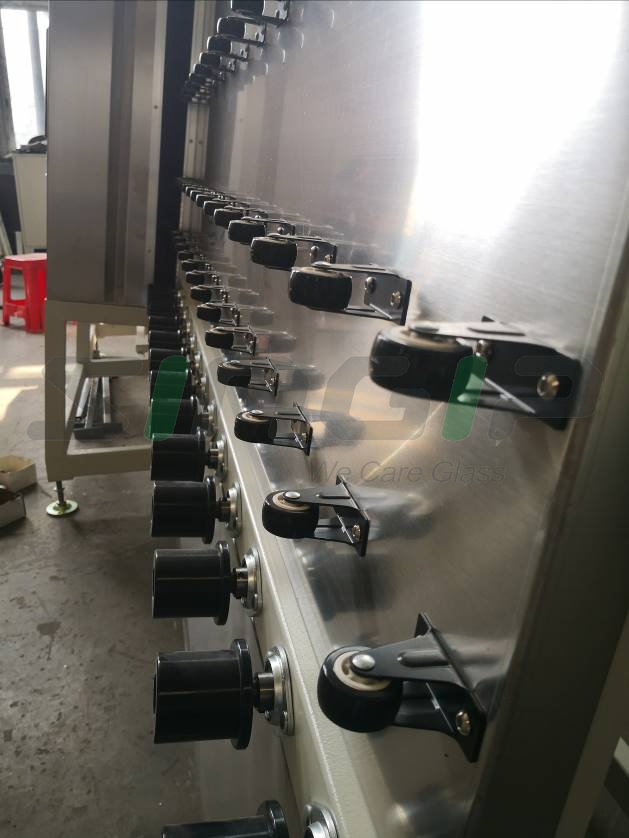

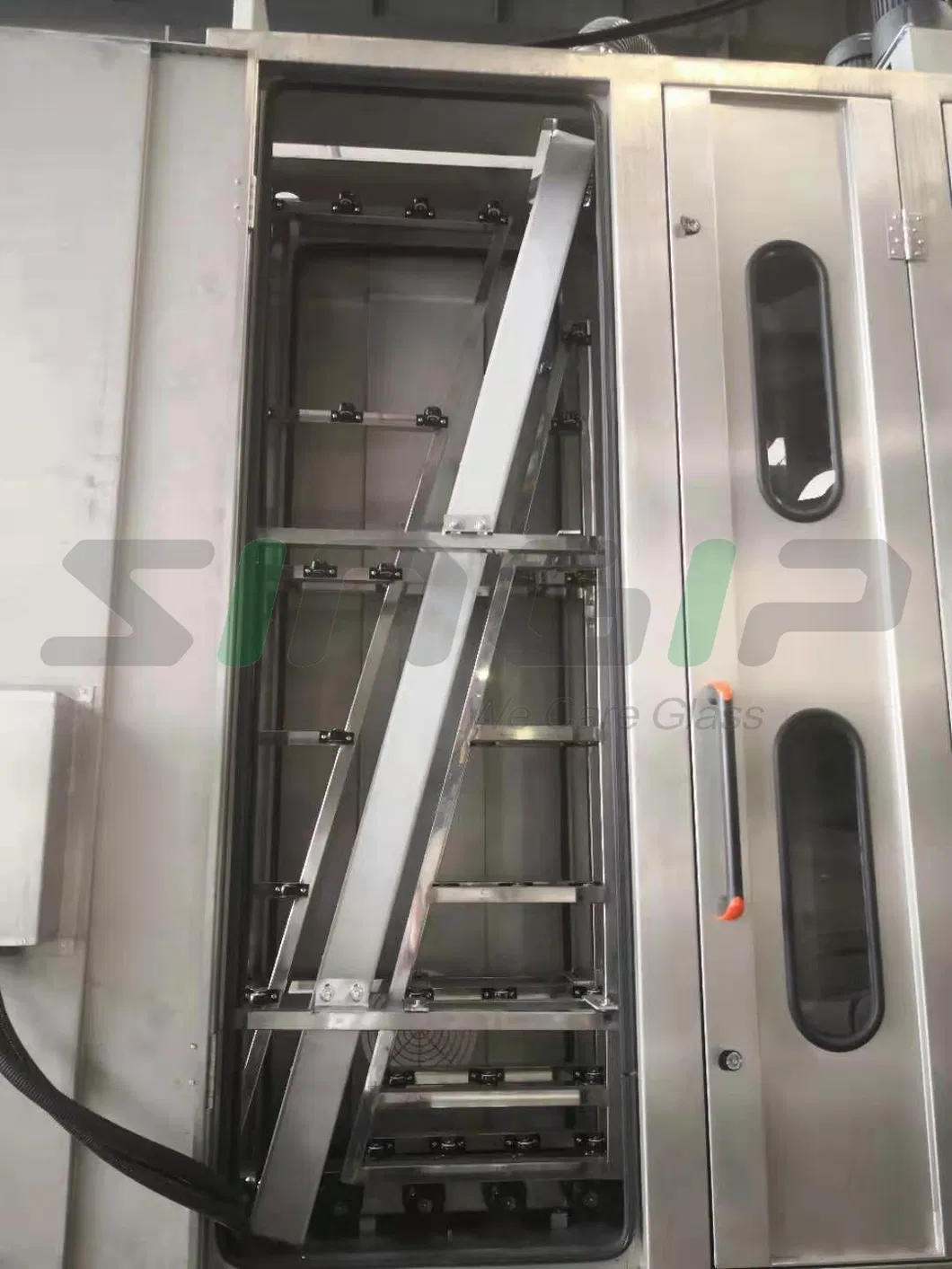

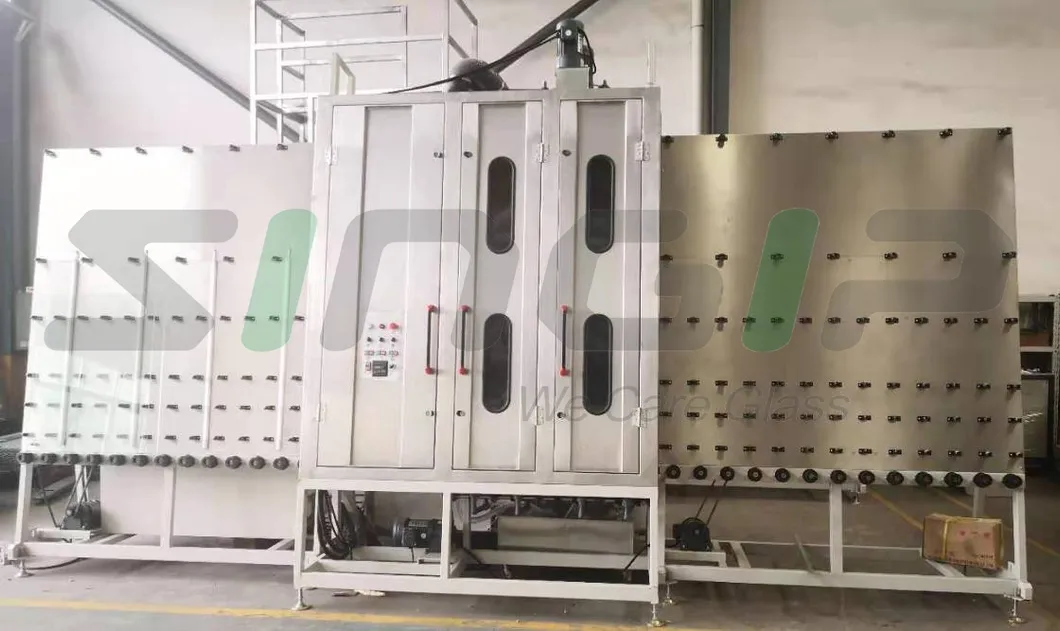

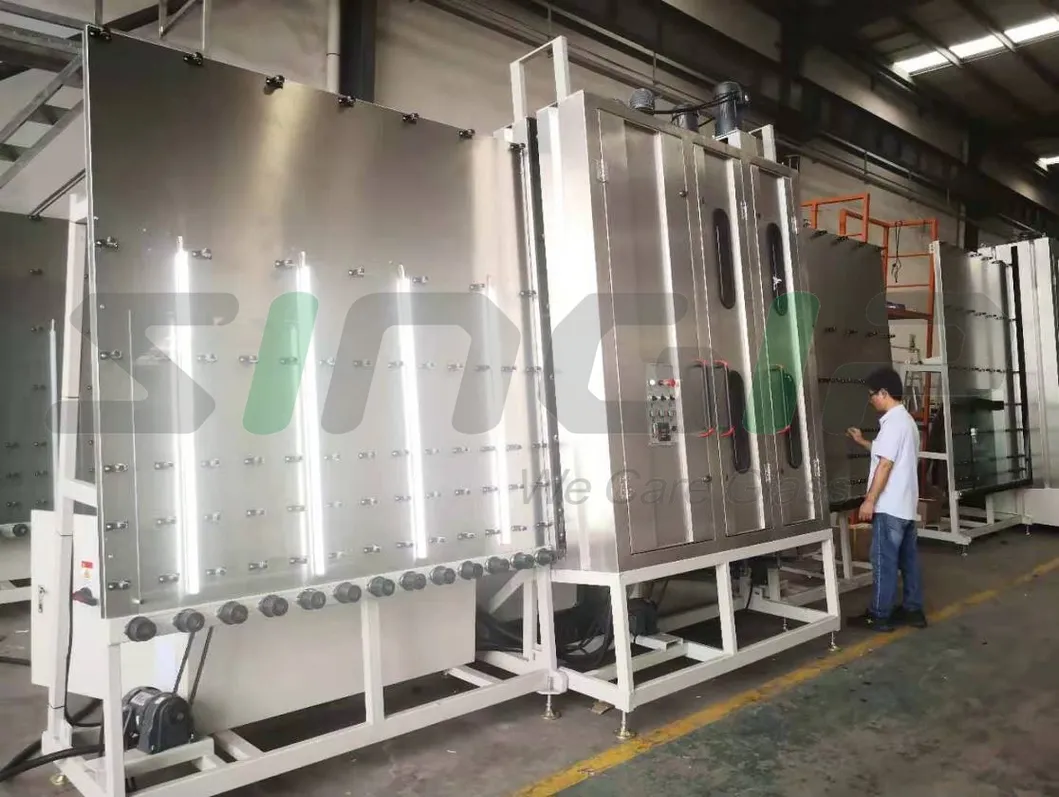

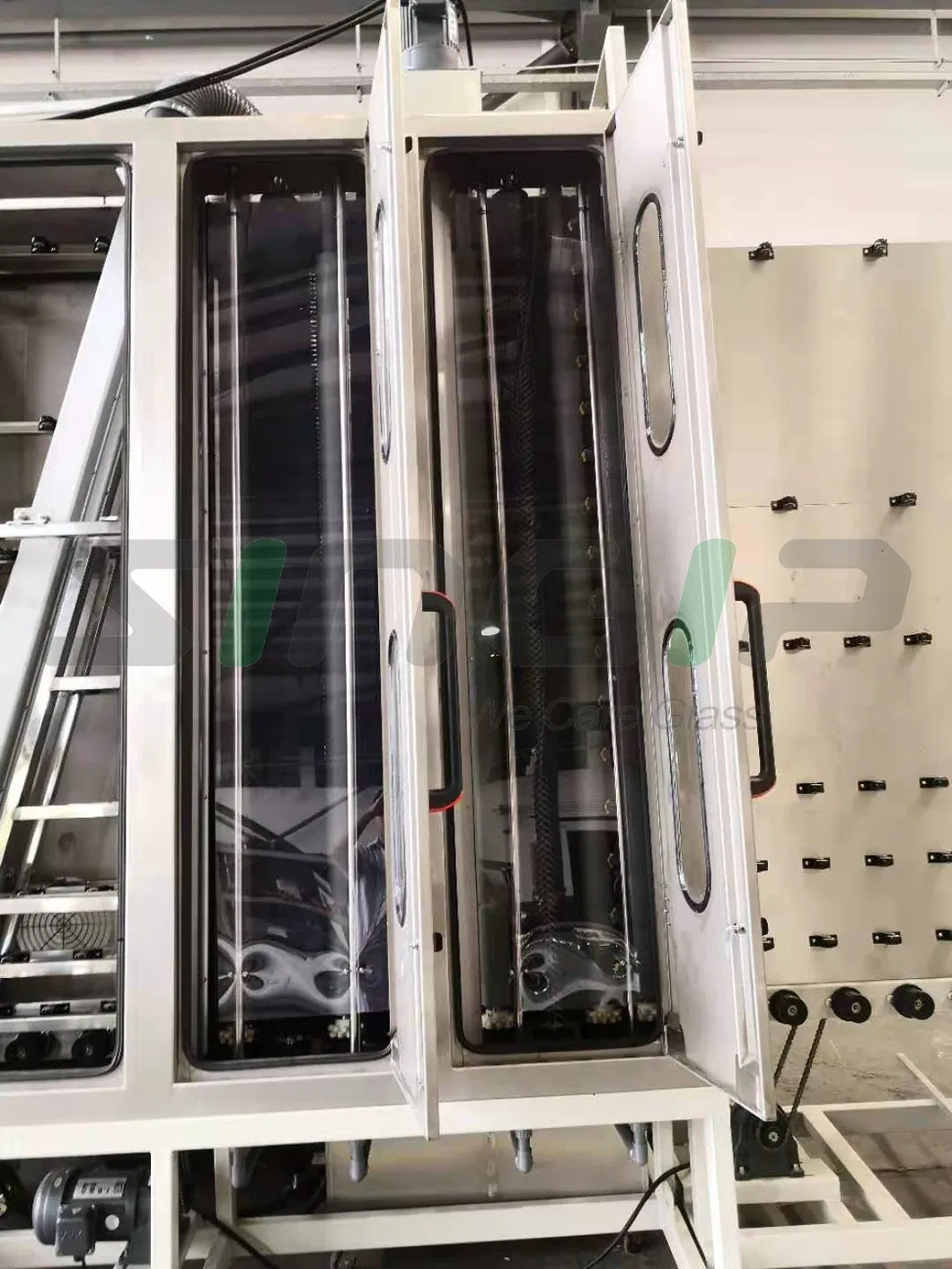

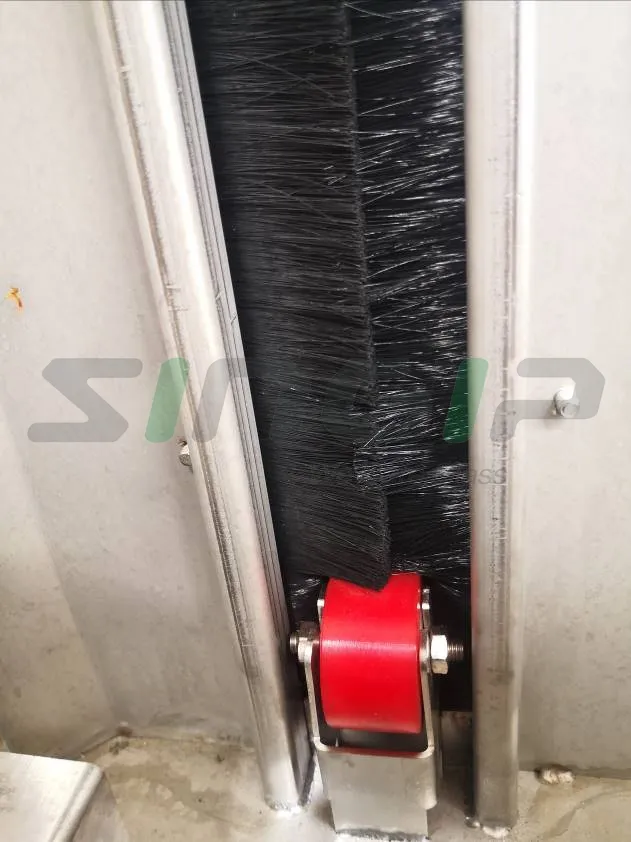

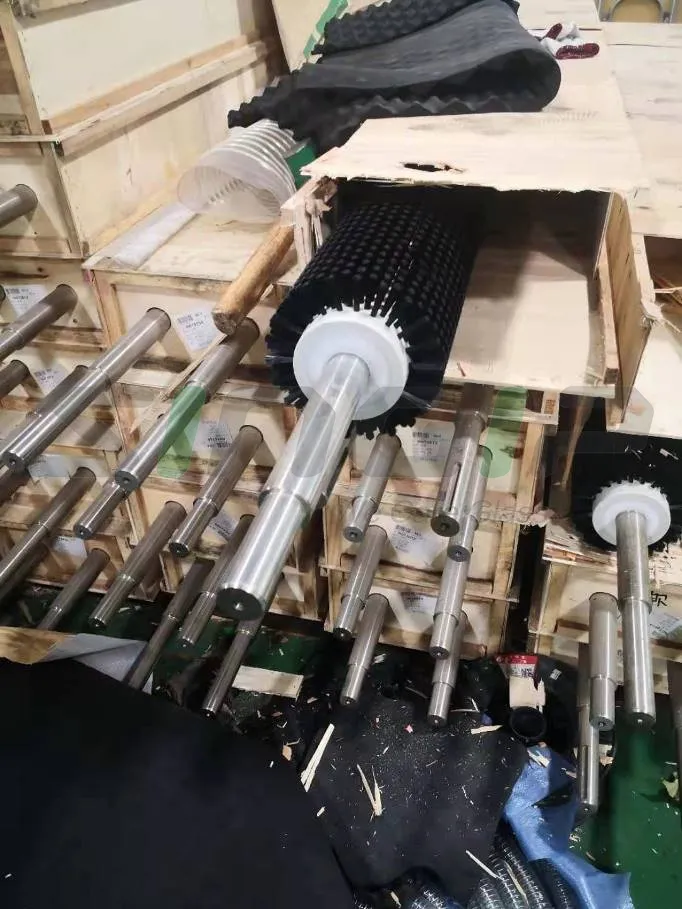

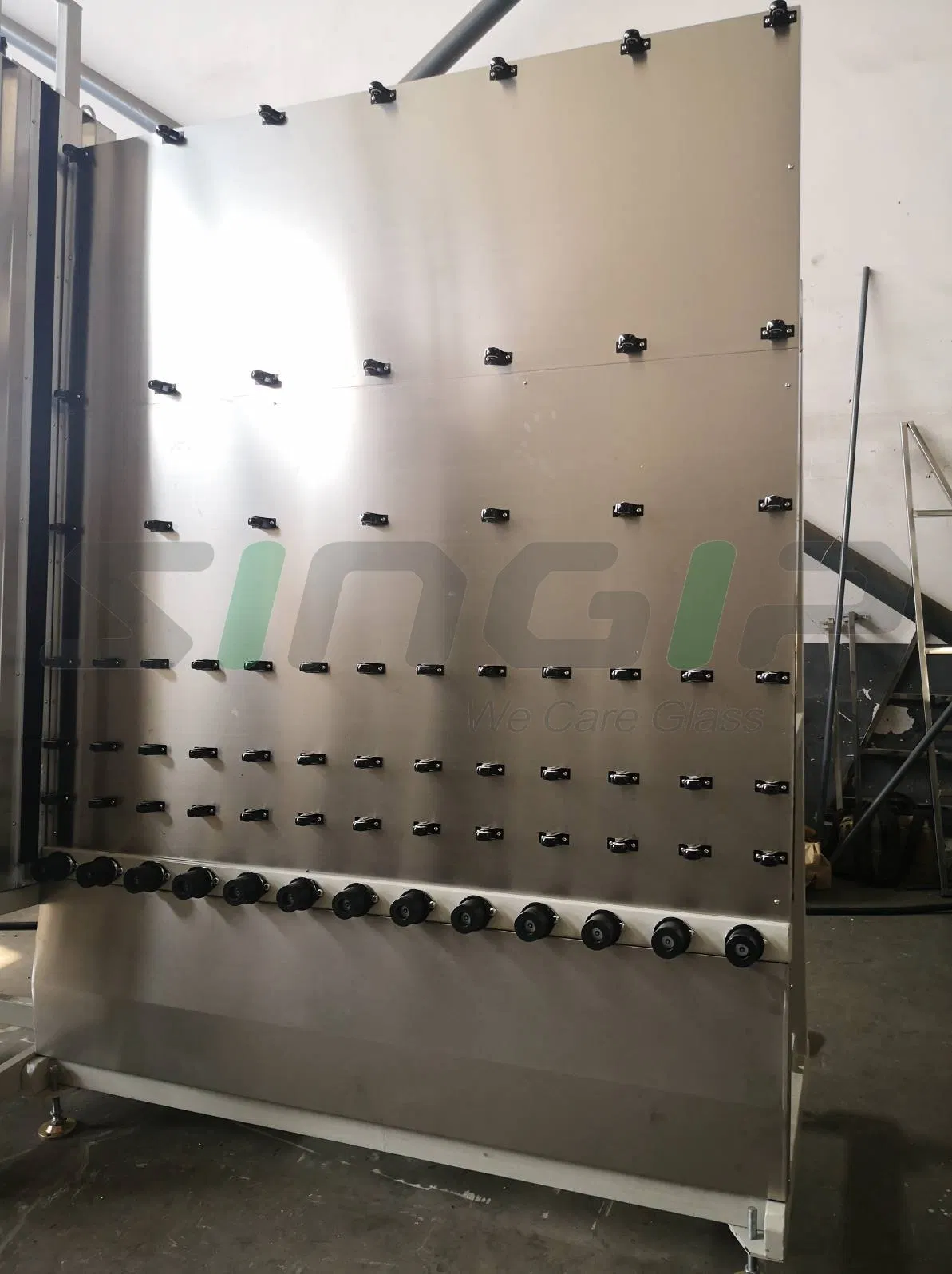

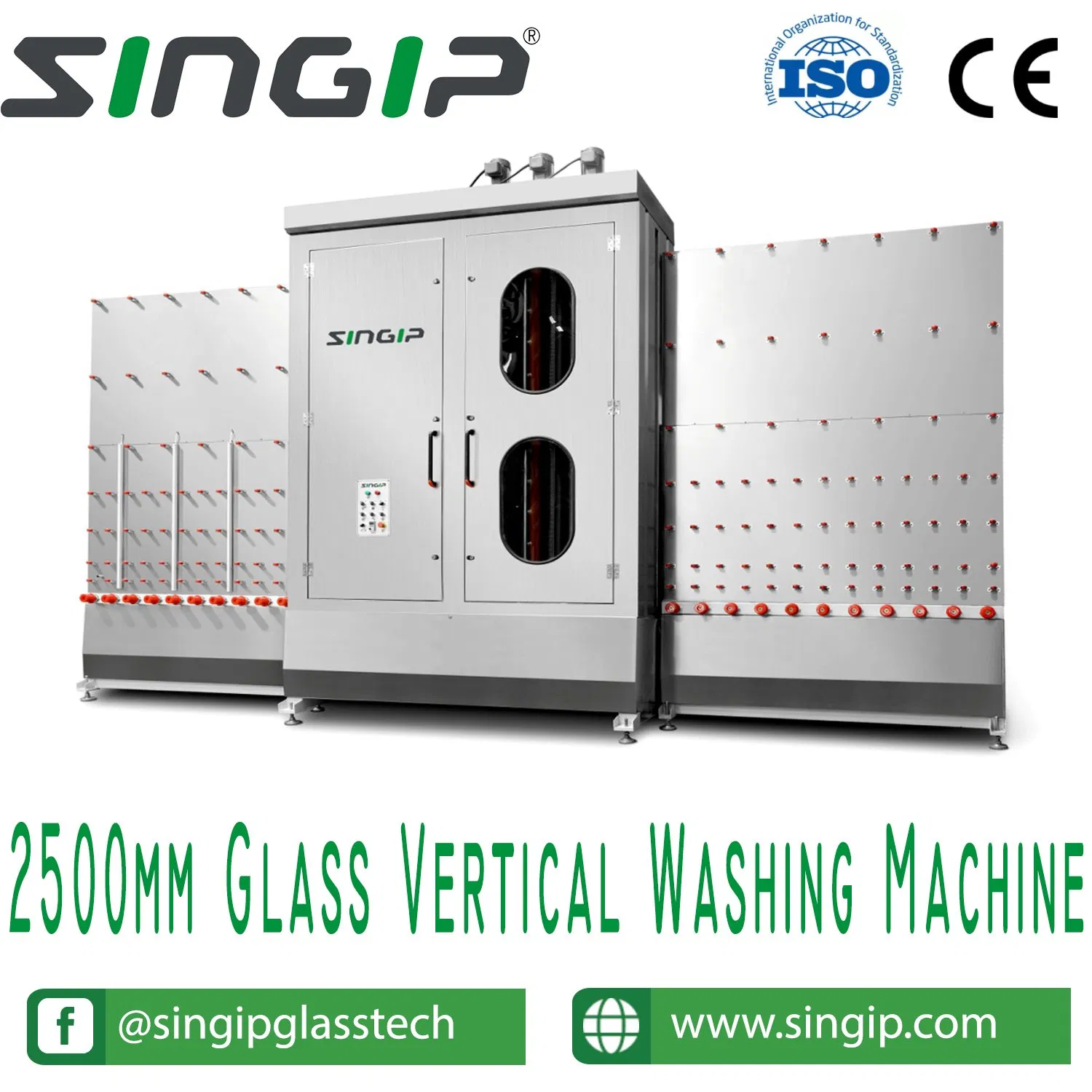

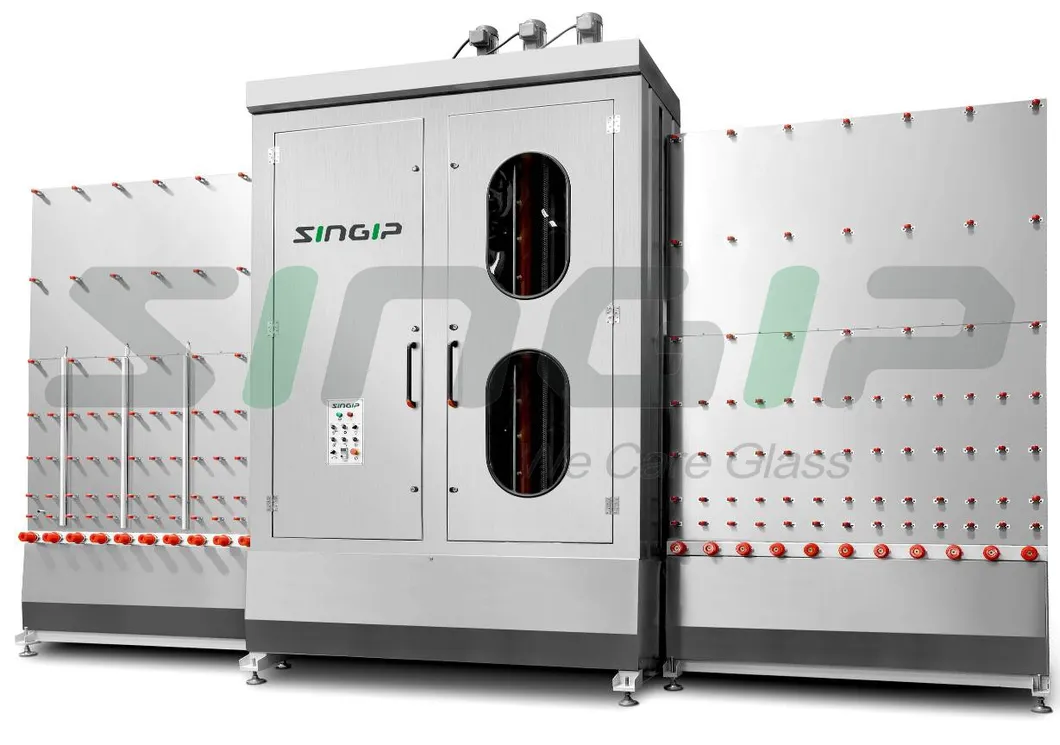

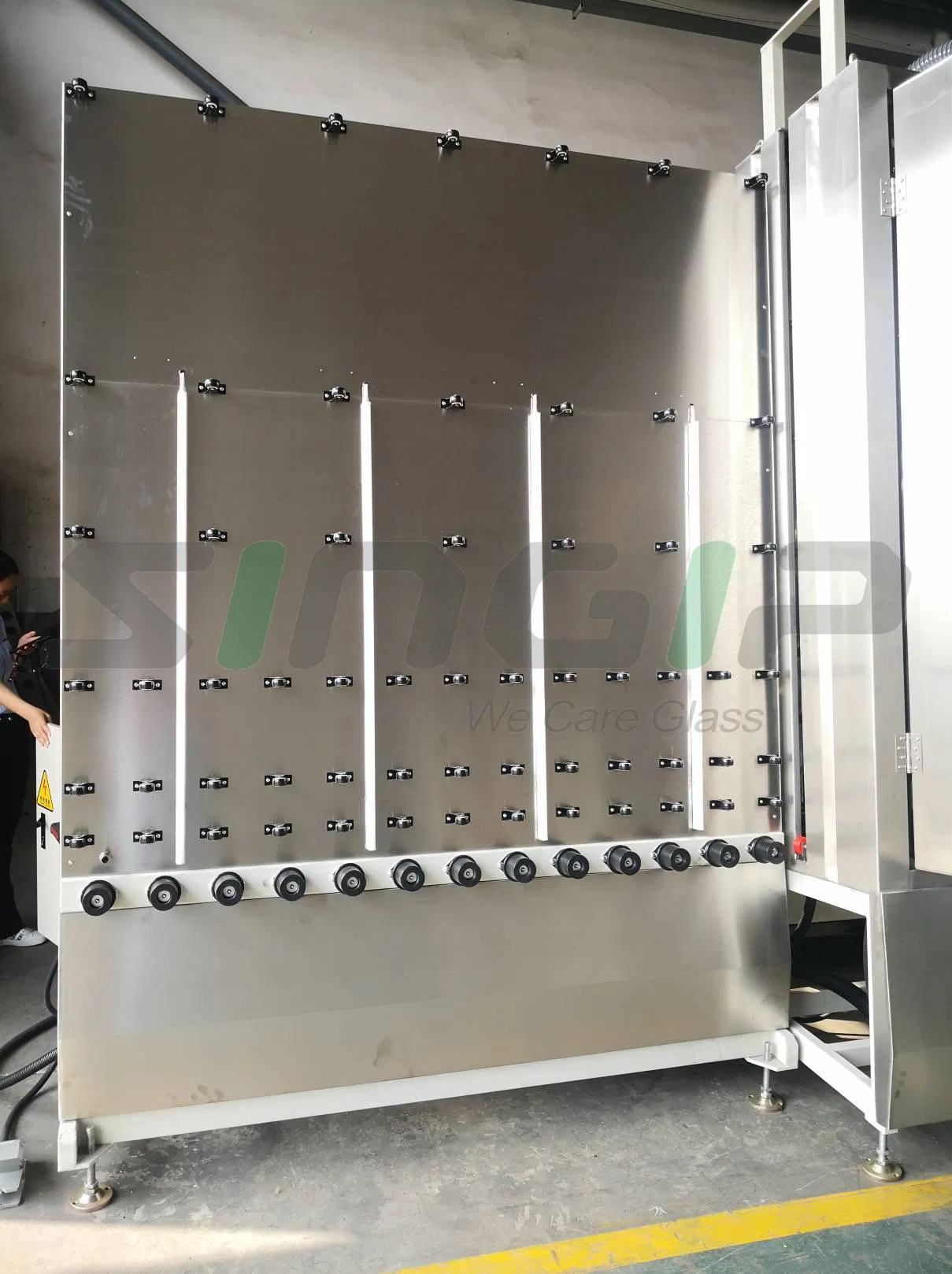

Vertical Glass Washing Machines are configured with separate areas of the machine being dedicated to washing and another for drying. Vertical washers are typically used for insulated glass production processes. The machine uses high-quality brushes to wash the glass sheet before it goes through the dryer. Vertical washers are common in glass factories that have a limited amount of space.
| Model: SX2500L | |
|---|---|
| Thickness range | 3-12mm |
| Min. Glass Size (LXH) | 500x300mm |
| Max. Glass Height | 2500mm |
| Feeding speed | 0.5m/min-8m/min |
| Gross weight | About 2500kg |
| Overall size | 6000x2000x4000mm |
| Total power | 18.5kw |
| Height of working | 560±20mm |
Specializing in a diverse range of industrial machinery, including various processing lines and single-unit machines designed for efficiency and precision. We provide high-quality glass cold-processing machinery, consulting, and technical support services.
The workshop is equipped with diverse machines and organized neatly, storing packaged components and large metal structures. Precision parts and advanced equipment showcase our focus on quality and efficient production for glass-processing machinery.
Machinery carries CE marks, ensuring electromagnetic compatibility and low-voltage compliance, adhering to strict international standards. Our customers are global and diverse, ranging from small business owners to large enterprise managers in the glass-processing industry.

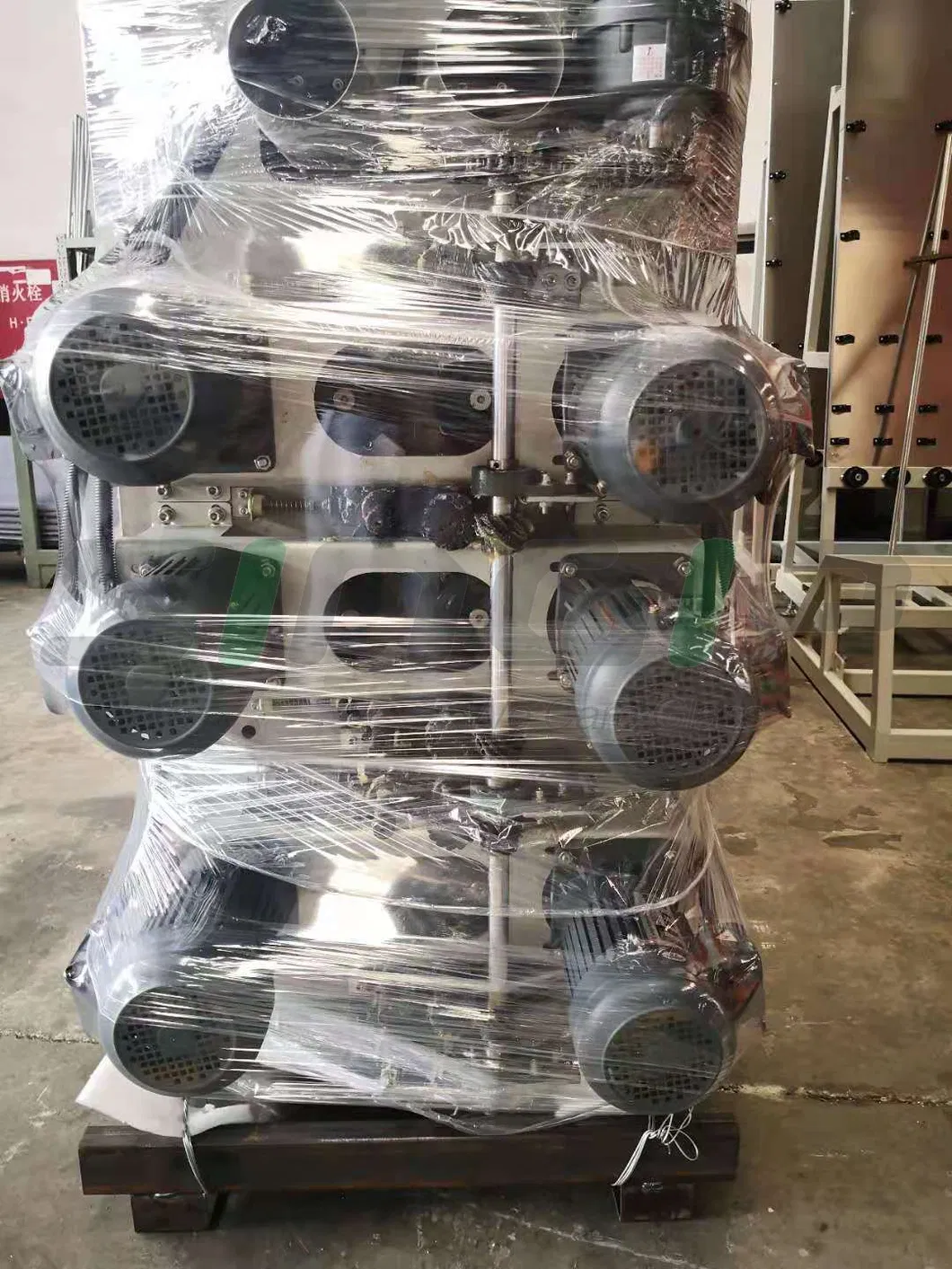

To be packed in containers suitable for long-distance ocean transportation. Packaging is filled with shock-absorbing materials such as pearl cotton and film to protect the machine from damage during transportation.
A: Yes, we offer global installation services and operator training programs to ensure your team can operate the machinery effectively.
A: Our machines are packed in containers with shock-absorbing materials like pearl cotton and protective film. Optional wooden box packaging is also available for enhanced protection.
A: We conduct rigorous endurance tests on all glass machines before they leave the factory and use only high-quality, durable components.
A: Yes, most of our machinery can be custom configured to match your specific glass processing needs and factory dimensions.
A: We stock a full array of replacement parts for all our machinery to ensure minimal downtime for our clients.
A: The warranty period is 12 months, excluding standard wear and tear parts.
