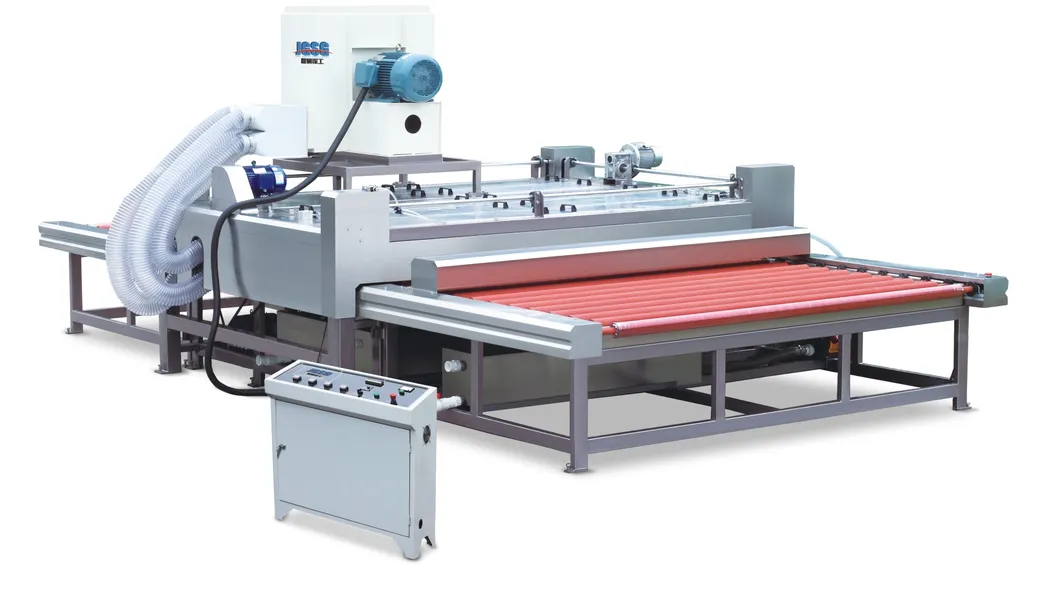

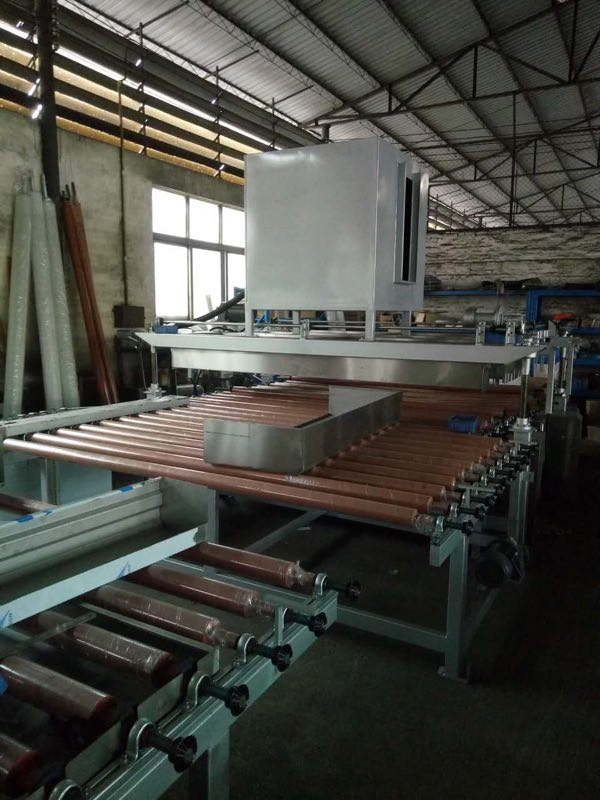

2500 CE Glass Washing Machinery Horizontal Washing

1 / 5

2500 CE Glass Washing Machinery Horizontal Washing

Customization:	Available
Certification:	CE
Glass Thickness:	3-30mm

Send Inquiry

Product Description

📊 Basic Info.

Model NO.JGX2500

Transmission Speed1.0-4m/Min

Max. Glass Width2500mm

Min. Glass Size350*350mm

Oversize5720*3600*2840mm

Voltage380V/ 50Hz/3p

Weight4600kg

Power27.8kw

Processing Speed3-10m/Min

TypeGlass Washing and Drying Machine

StructureHorizontal

Warranty12 Months

🏢 Company Profile

We are a leading provider of high-quality flat glass processing machinery, service, and supplies. Our focus is on sourcing innovative and reliable equipment for fabricating, handling, and processing flat glass. Each system is characterized by innovative features, long-lasting durability, and high reliability.

💎 Product Description

Glass Washing Machine JGX2500

1. Working Principle

The overall structure of the glass washing machine is composed of four sections: the inlet section, the air-drying section, and the outlet section. It is mainly composed of four major mechanisms: conveying, cleaning, strong wind, and inspection. It features strong decontamination ability, cleanliness, and an excellent air-drying effect.

2. Main Technical Data

Model	JGX2500	Glass Transmission Speed	1.0-4m/min
Max. Glass Width	2500mm	Glass Thickness	3~30mm
Min. Glass Size	350*350mm	Oversize	572036002840mm
Conveyor Height	900±30mm	Processing Speed	3-10m/min

3. Overall Structure Features

The overall structure is composed of four sections: inlet, air drying, cleaning, and outlet.
All other sheet metal parts are made of high-grade stainless steel.
Equipped with 8 brush rollers and 6 sponge rollers for thorough cleaning.
The rubber roller adopts vulcanized rubber and rubber-covered structure (no contact with acid liquid).
Water tank features automatic water circulation.
The transmission motor provides stepless speed regulation for stability and long life.

4. Main Configuration Details

Component	Specification
Transmission Motor	0.37KW Stepless speed regulation (Model: JWB-0.37KW-9D)
Fan Motor	900w medium pressure fan
Water Pump	0.25kw (Model: YSB71112)
Brush Motor	0.75kw (Model: YEZ-7.4-4)
Glue Roll	Middle roller φ50, side roller φ46
Brushes	5 stiff brushes, 1 soft brush (Can wash LOW-E glass)

📸 Detailed Photos

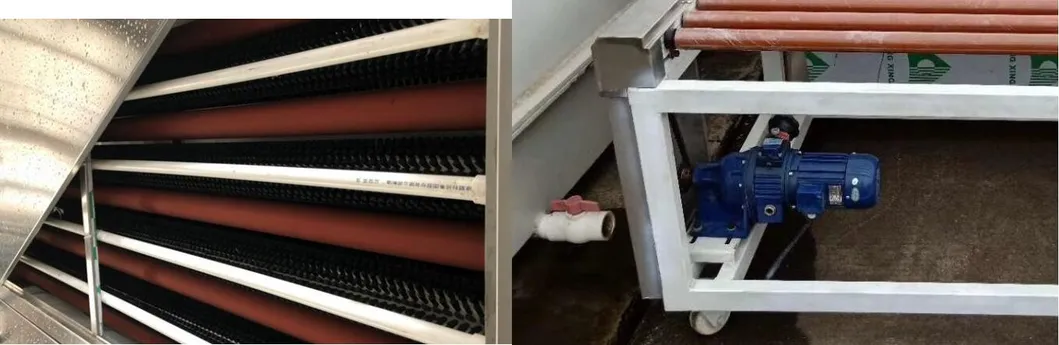

Detail 1: The brush roller is transmitted by an independent belt. Brushes are made of high-quality acid, alkali, and temperature-resistant materials for a long service life.

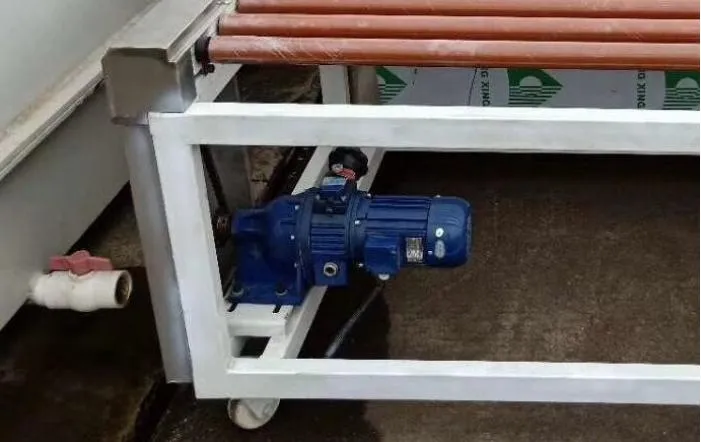

Detail 2: Drive system with frequency conversion speed regulation, allowing arbitrary cleaning speed adjustment directly via the panel.

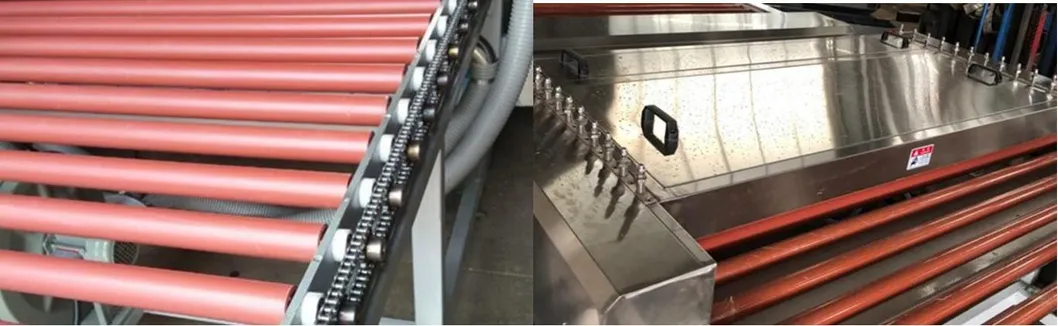

Detail 3: Densely arranged high-quality conveyor rubber rollers combined with gear transmission ensure stable processing for various glass sizes.

Detail 4: Automatic cleaning and drying system for different glass thicknesses, featuring high-quality sponge roller suction and hot air drying.

❓ Frequently Asked Questions

Q1: What is the maximum glass width the JGX2500 can process? A: The JGX2500 can handle a maximum glass width of 2500mm.

Q2: Can this machine wash Low-E glass? A: Yes, the machine is equipped with 1 soft brush specifically designed to wash Low-E glass without damaging the coating.

Q3: What glass thicknesses are compatible with this machine? A: It supports glass thicknesses ranging from 3mm up to 30mm.

Q4: How does the air-drying system work? A: The system uses high-quality sponge roller suction combined with a hot air drying section to ensure the glass is completely dry after washing.

Q5: Is the water tank manually or automatically managed? A: The machine features an automatic water circulation system within its water tank for efficient operation.

Q6: What is the processing speed of the conveyor? A: The processing speed is adjustable between 3-10m/min depending on the glass thickness and cleaning requirements.
