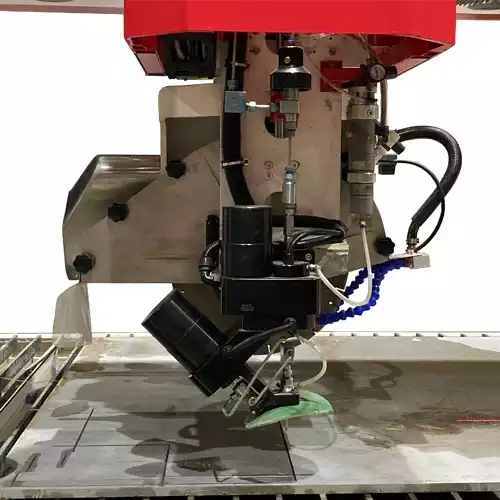

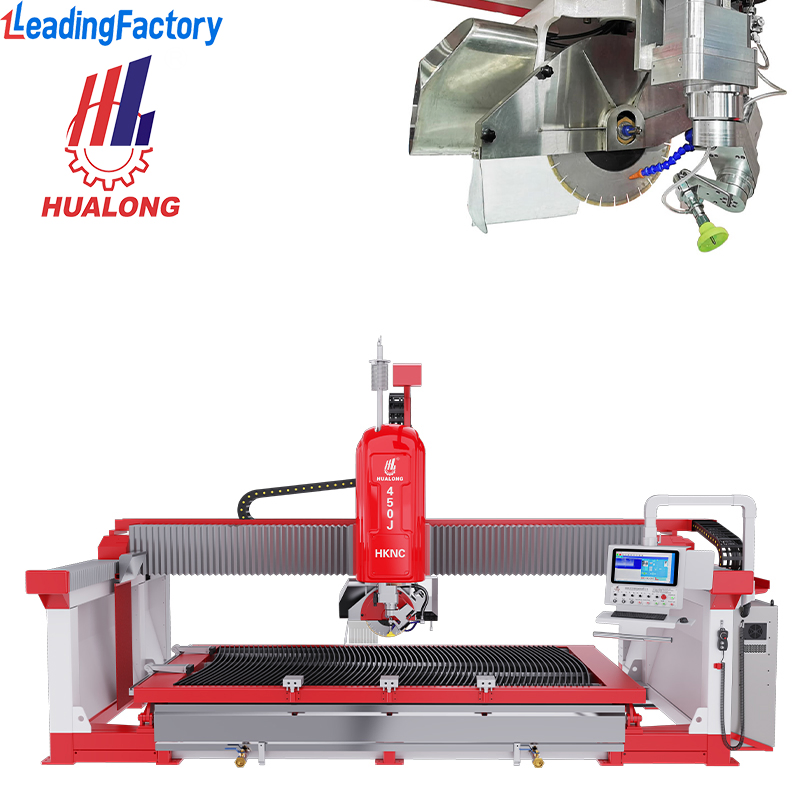

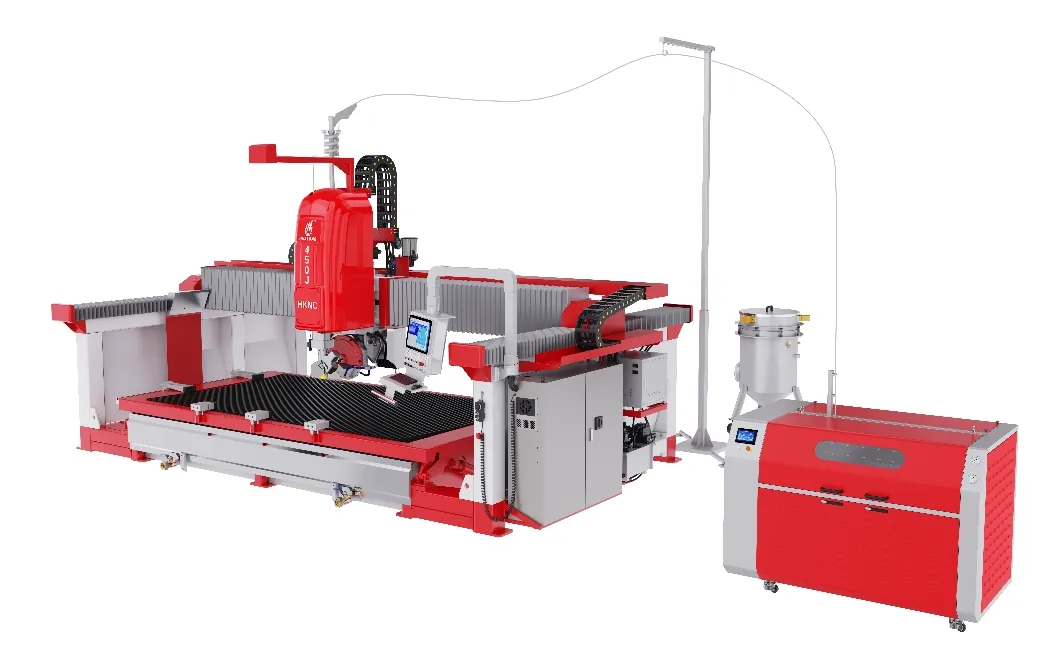

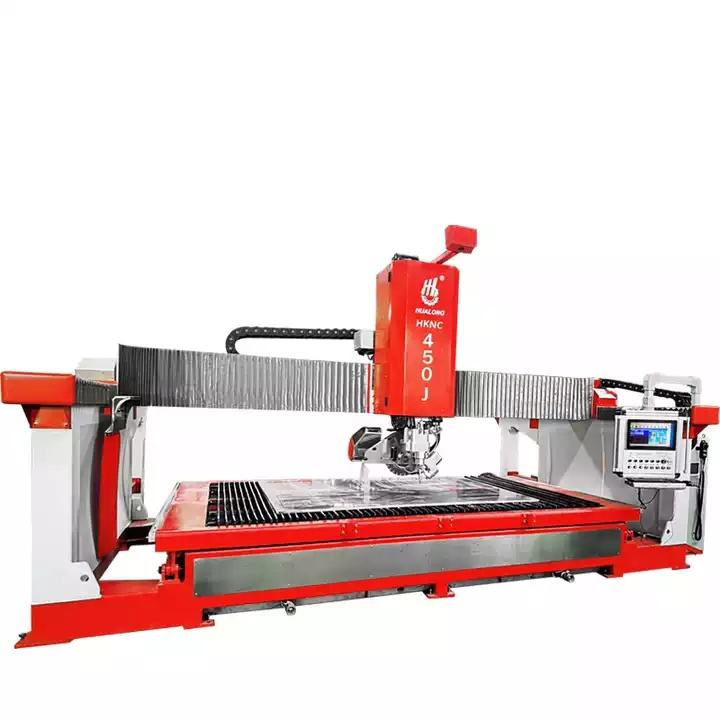

5 Axis Stone CNC Sawjet HKNC-450J with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet. This revised concept system is designed for cutting granite, marble, quartz, limestone, and new ceramic materials.

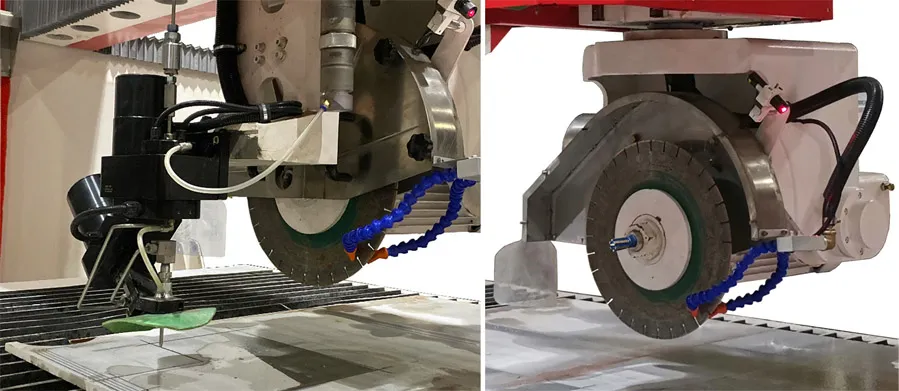

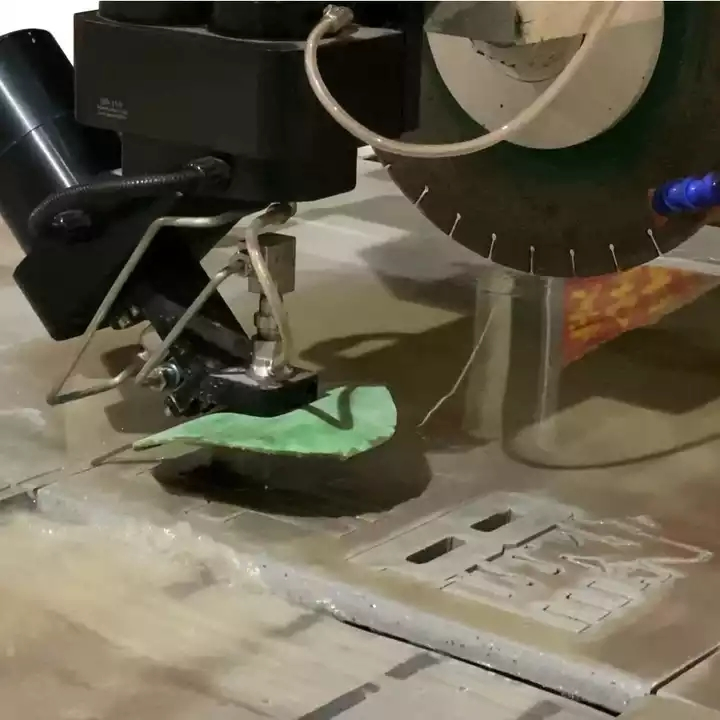

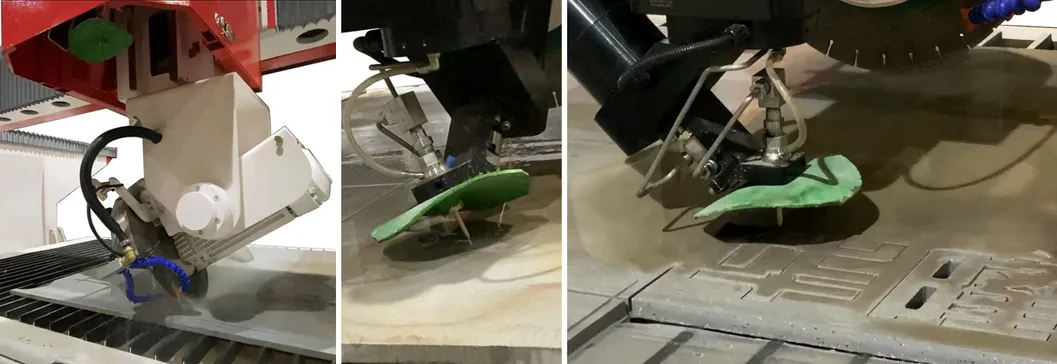

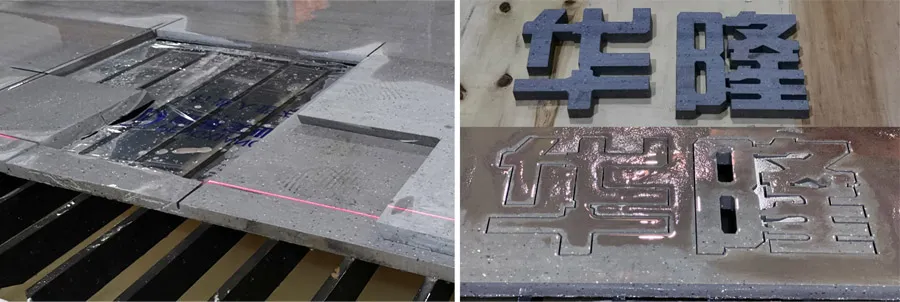

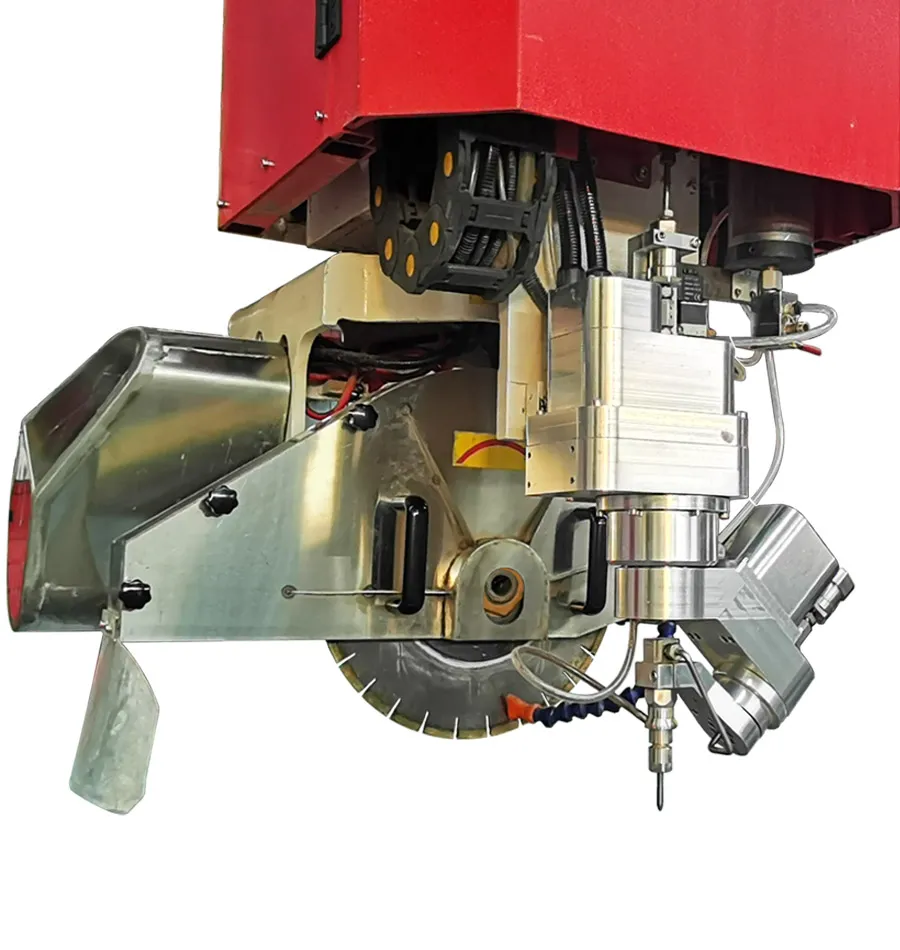

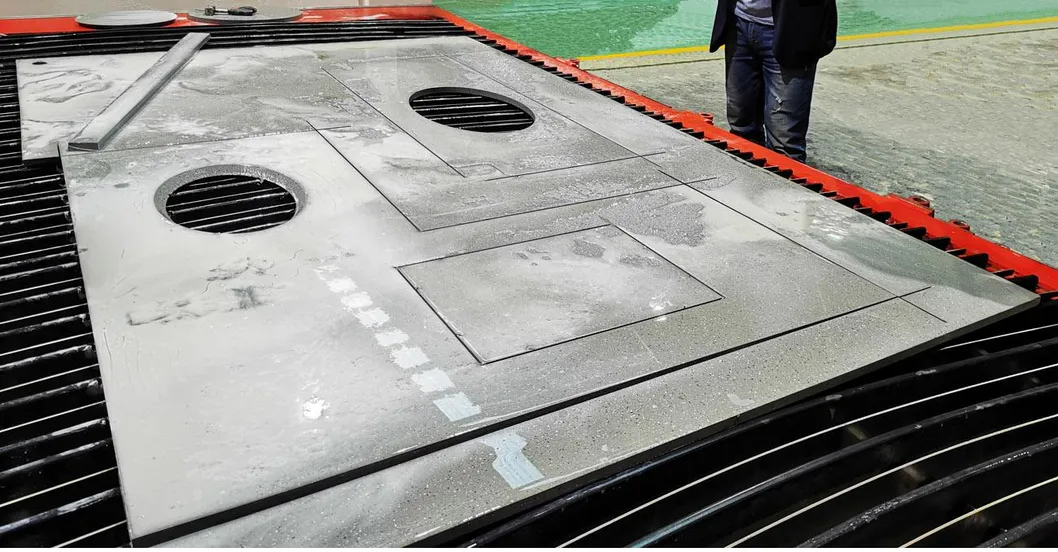

The CNC saw is used for cutting slabs, countertops, sinks, and engraving, while the waterjet cutting head is perfect for precision intricate shapes and mitering porcelain and stone inlay patterns.
| Parameter | Specification | Unit |
|---|---|---|
| Diameter of saw blade | Φ350-Φ450 | mm |
| Dimension of working platform | 4150 × 2250 | mm |
| X / Y / Z axis stroke | 3500 / 2000 / 500 | mm |
| Max. cutting thickness | 100 | mm |
| Power of saw blade motor | 26.4 | kw |
| Power for abrasive waterjet | 37 | kw |
| Max. operating water pressure | 450 | Mpa |
| Gross weight | 10000 | kg |

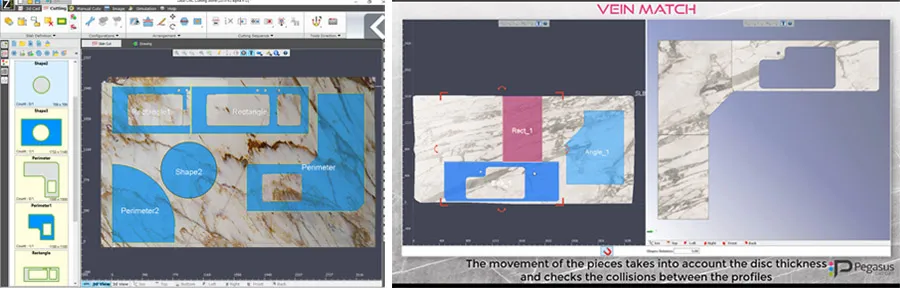

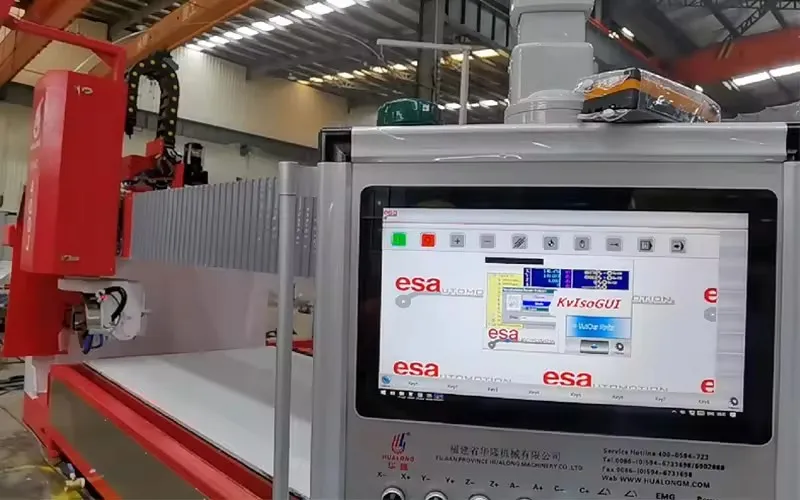

CNC Control System (Italy ESA)
Touch screen for easy setting and high efficiency.

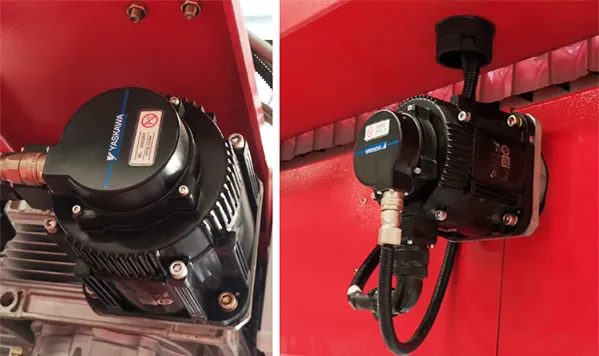

Digital Servomotor (Japan YASKAWA)
Reliable power for X, Y, Z, C, and A axes.

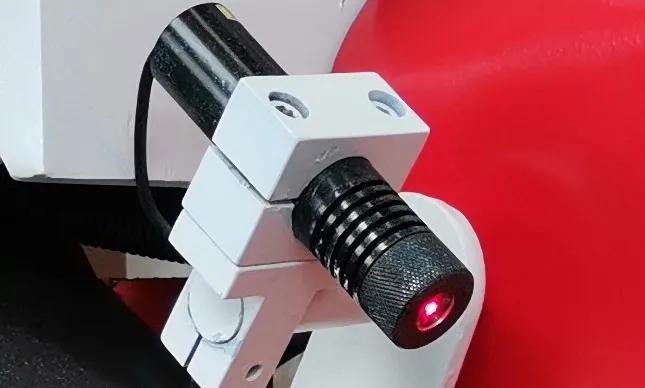

Laser Reticule Apparatus
Aid for accurate alignment at start of processing.

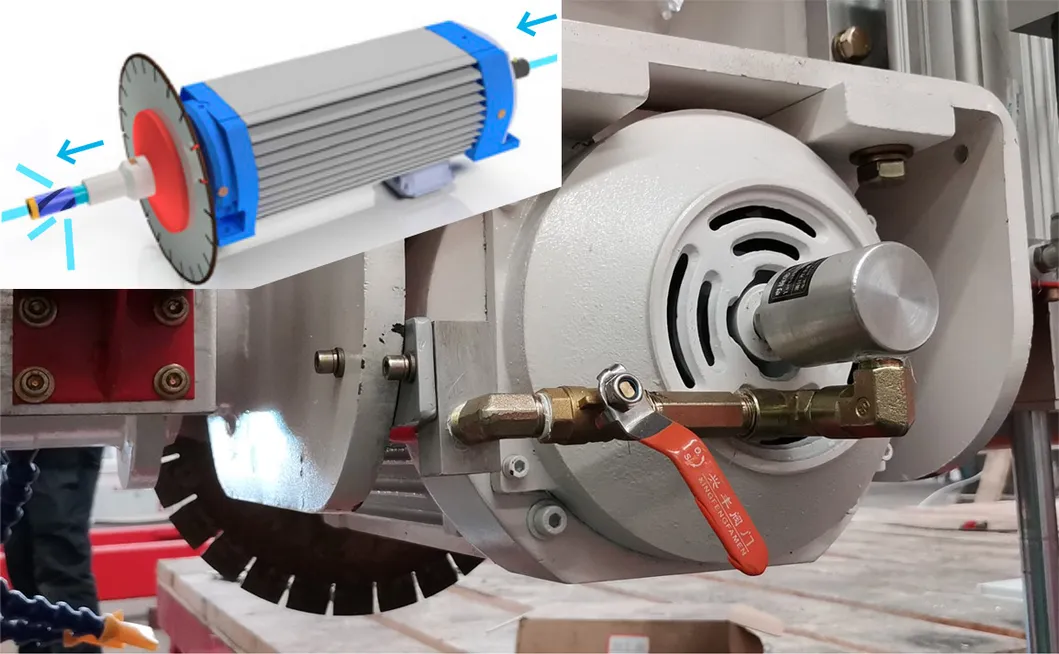

Electro-spindles
Adjustable 0-6000 rpm with internal water passage.
Precision Linear Guide
Top quality for high precision and long lifespan.
