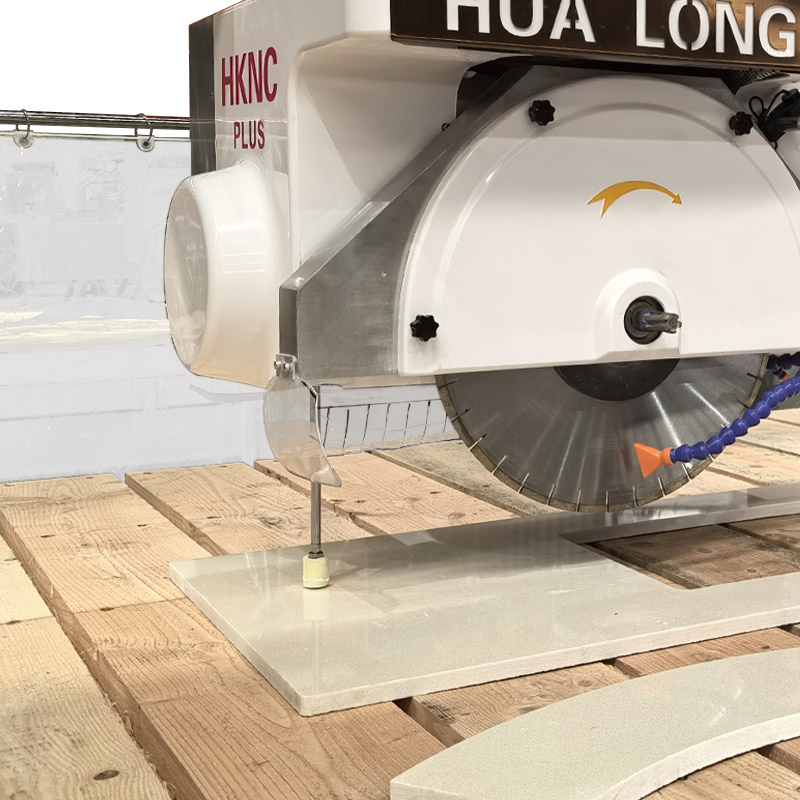

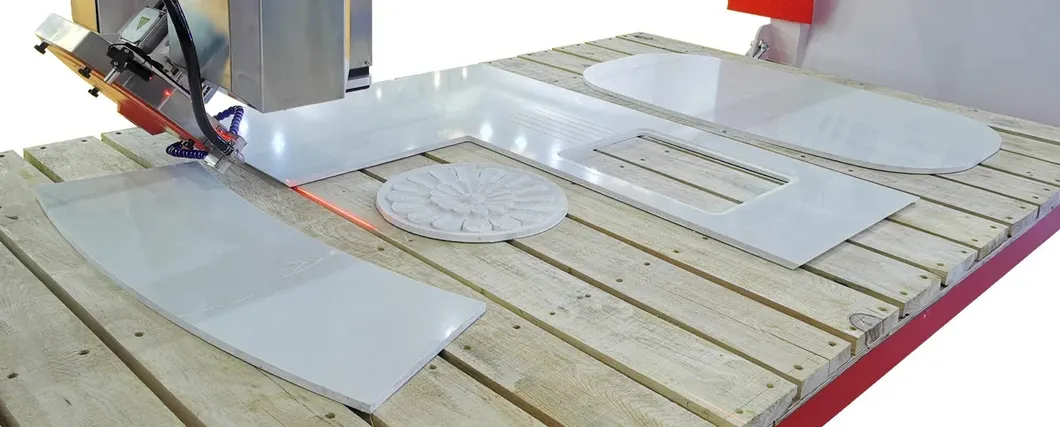

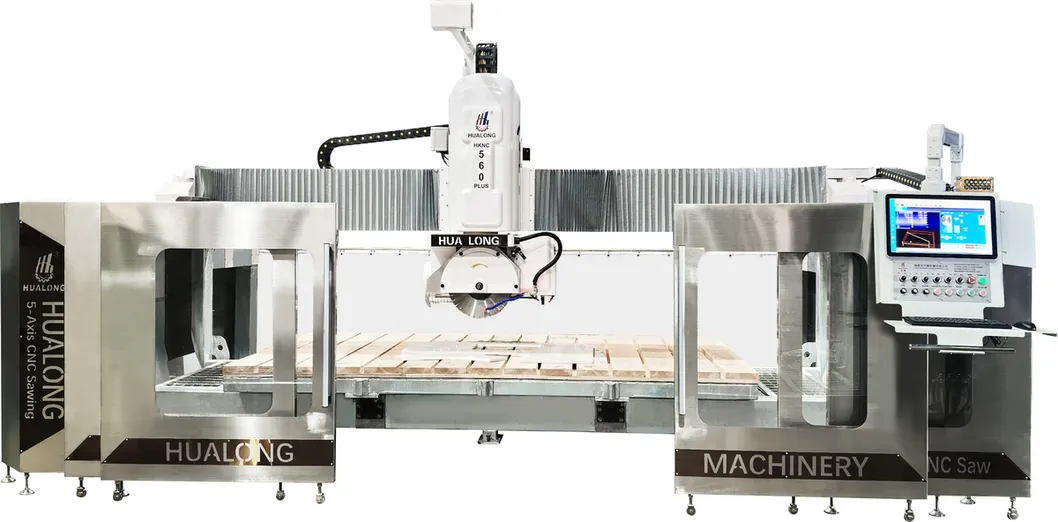

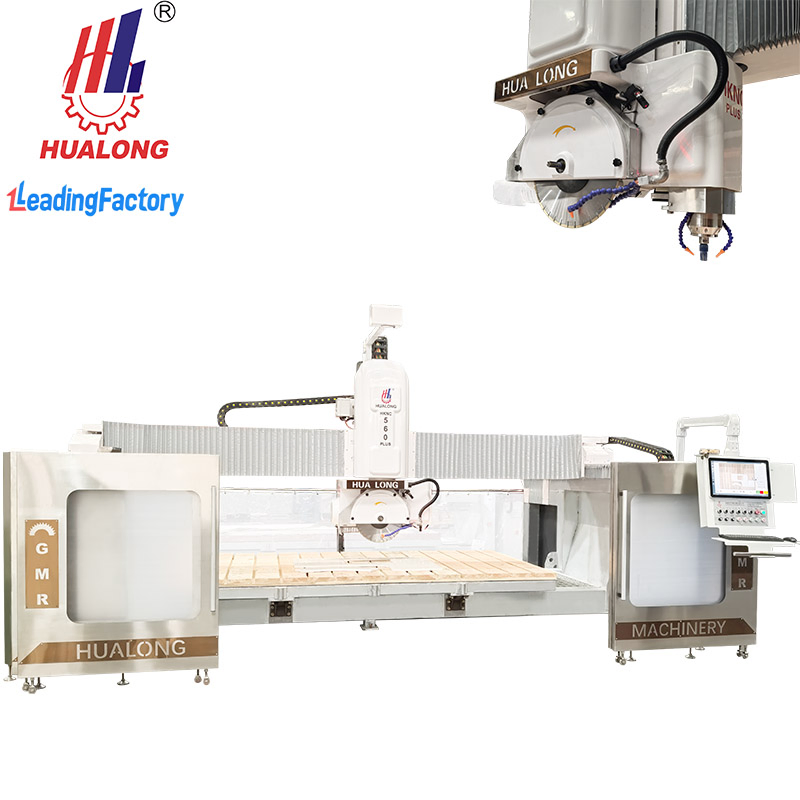

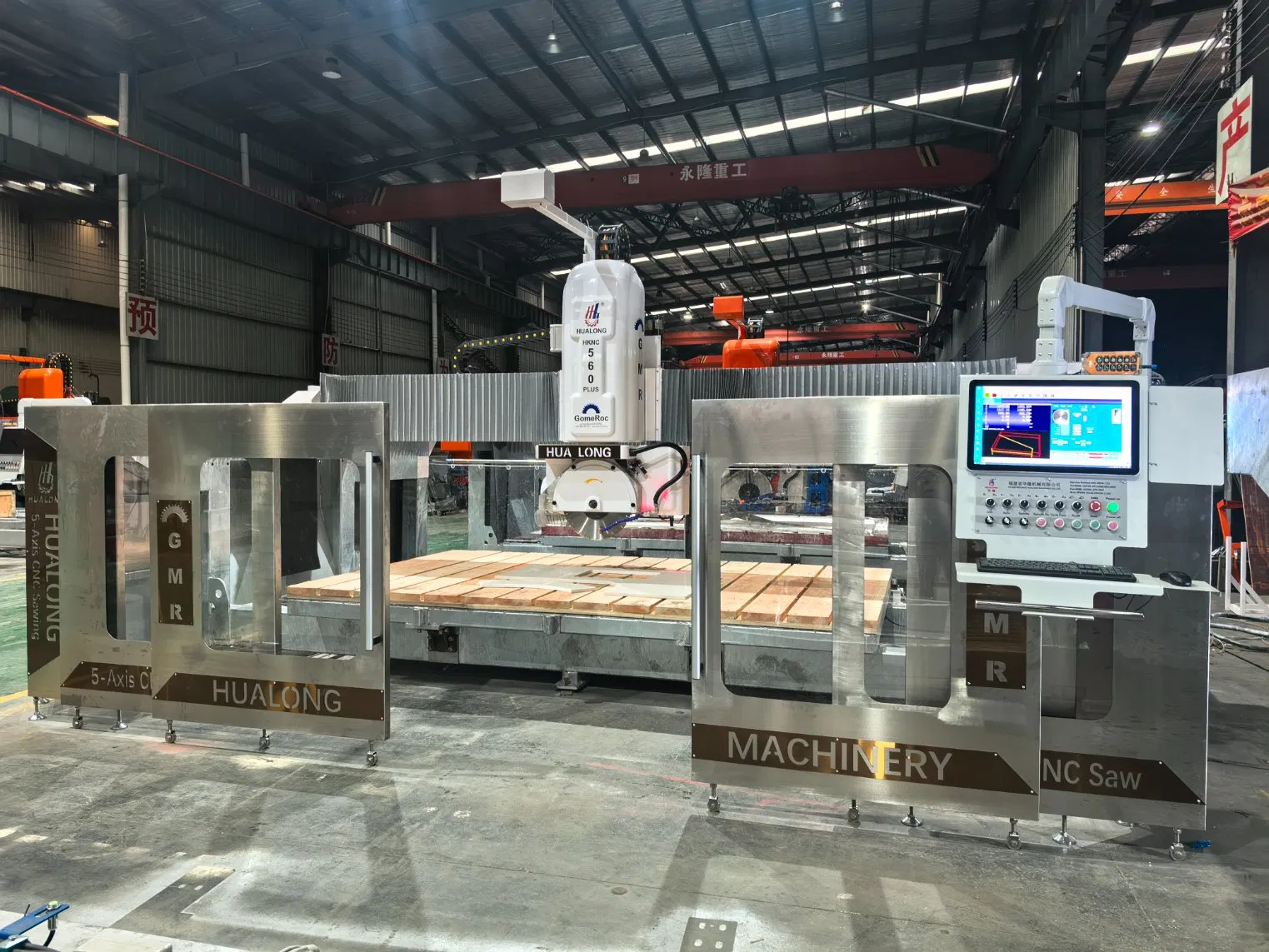

HKNC-500+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Core Functions:
1) 5 axis interpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.

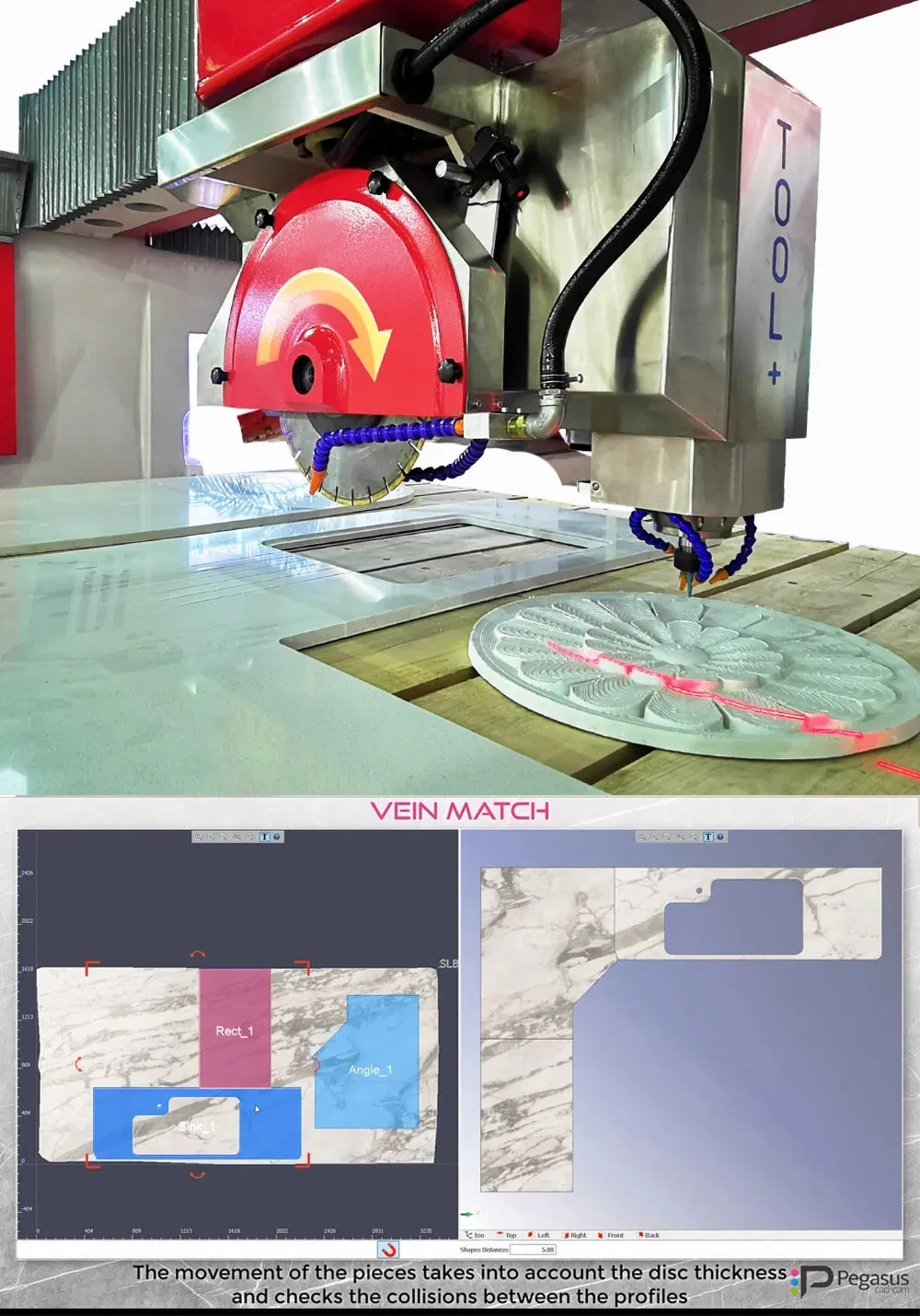

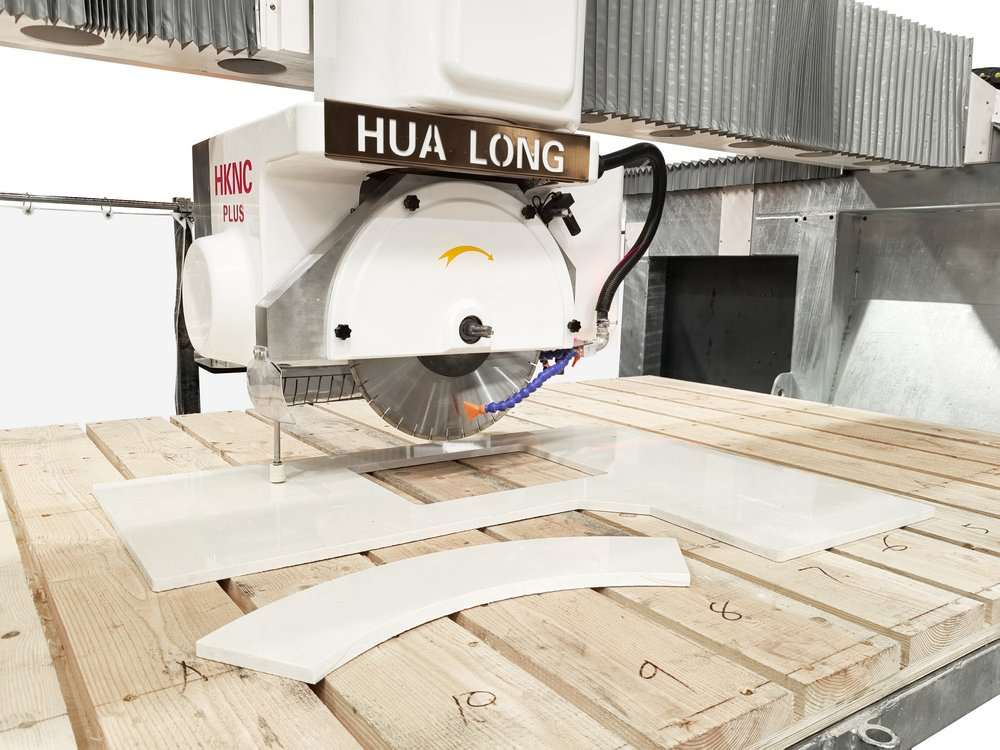

3) Blade rotation 0°-360° and tilt 90° for any direction chamfering.
4) Working platform tilts 85 degrees for easy loading.
5) Manual cuts available for simple machining.
6) Nesting manual / automatic to optimize slab surface usage.
7) Optional engraving module with 5.5kw electric spindle.
| Parameter | Value | Unit |
|---|---|---|
| Diameter of saw blade | ø400-ø500 | mm |
| Dimension of working platform | 3300x2000 | mm |
| Max. cutting length | 3300 | mm |
| Max. cutting thickness | 140 | mm |
| Max. lifting stroke | 250 | mm |
| Power of main motor | 26.4 | kw |
| Gross weight | 5800 | kg |
| Dimensions (L x W x H) | 5700x3260x2765 | mm |

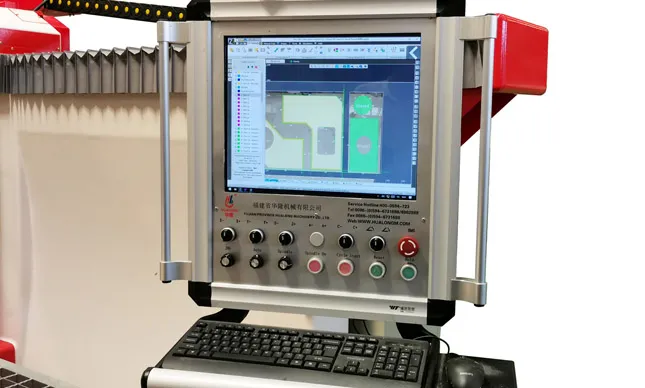

CNC System: Italian ESA with touch screen for easy setting and automatic processing.
Software: Pegasus CAD/CAM from Italy. User-friendly and powerful for various machinings.

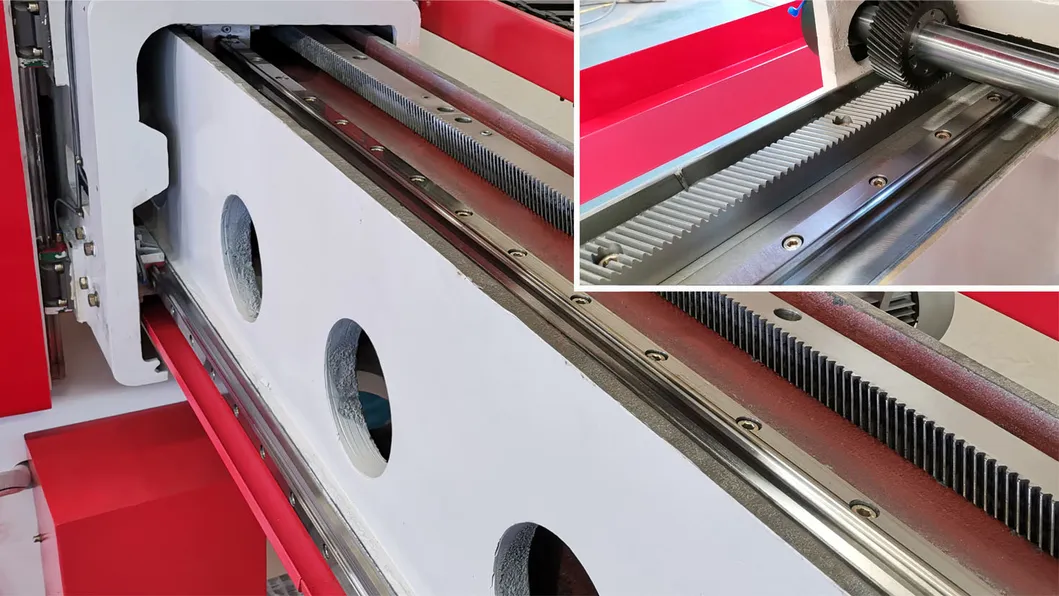

Linear Guide: Hiwin brand for high precision cutting and long lifespan.

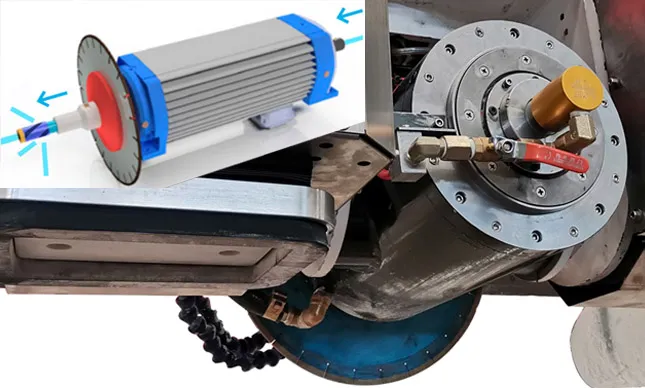

Electro-spindles: High quality controlled by inverter (0 to 6000 rpm).
A: Yes, we are a professional and top stone machine manufacturer with over 30 years of experience. We also have authorized agents worldwide for after-sales support.
A: Absolutely. We welcome both OEM and ODM orders to meet your specific production needs.
A: Yes. We provide guide videos and an English instruction manual. We also offer free professional online guidance until you can operate the machine proficiently.
A: The MOQ is 1 set. We can ship the machine directly to your country's port or your specific address. Contact us for competitive pricing and freight options.
A: We offer lifelong free online guidance. Many of our machines include remote troubleshooting functions. For hardware issues, we provide detailed guidelines for part replacement, and local agents are available in many regions.

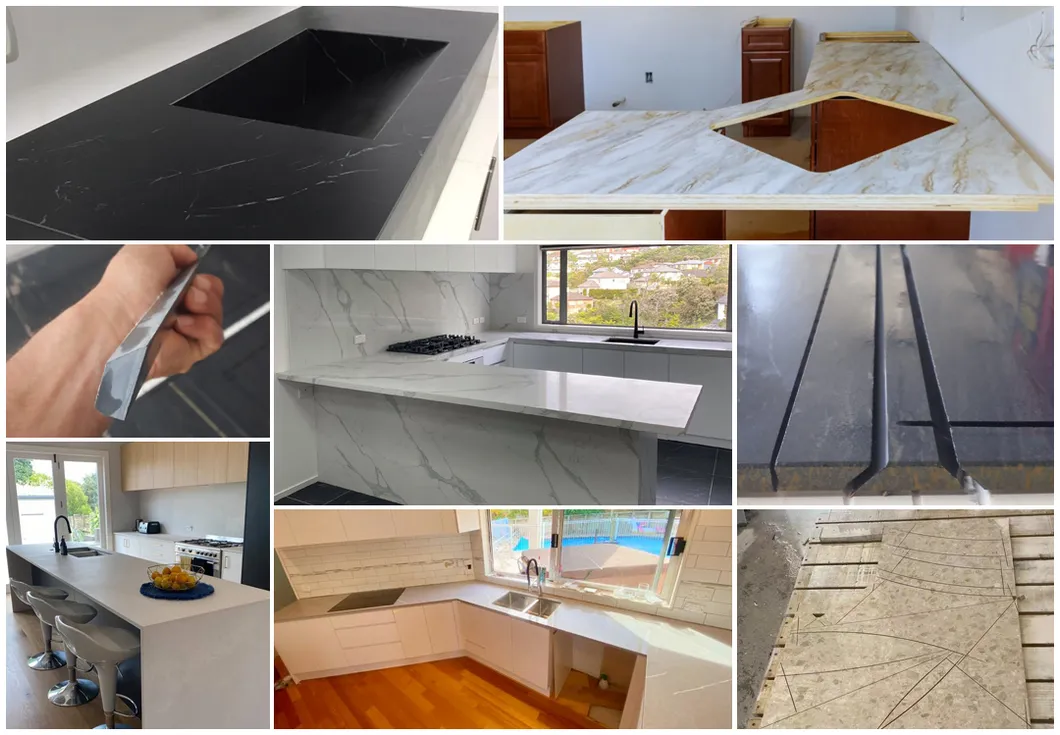

A: It is designed for high-speed cutting of ceramics, granite, marble, and other natural or synthetic stones.
