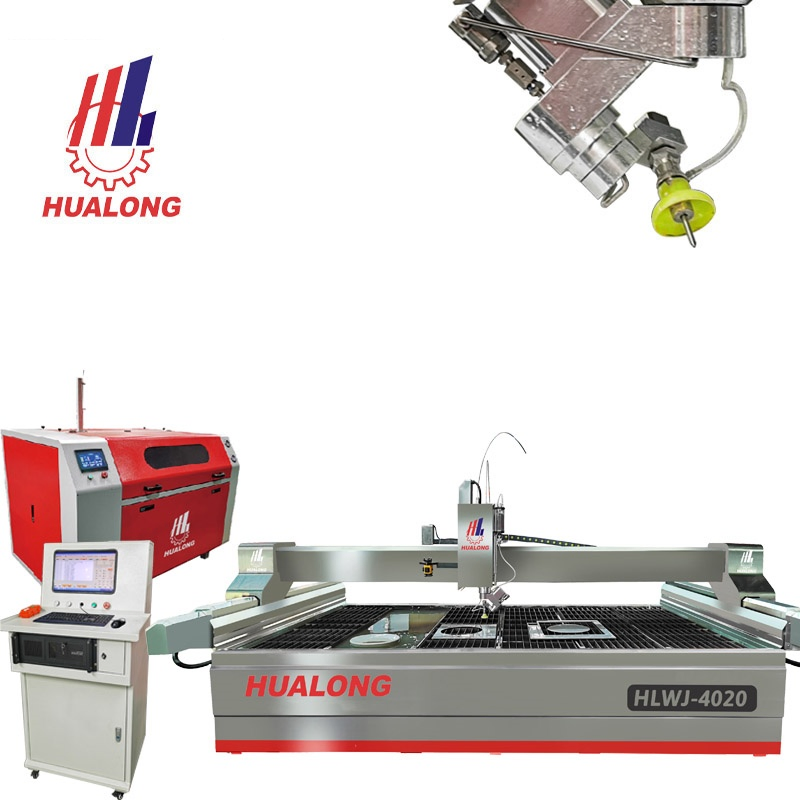

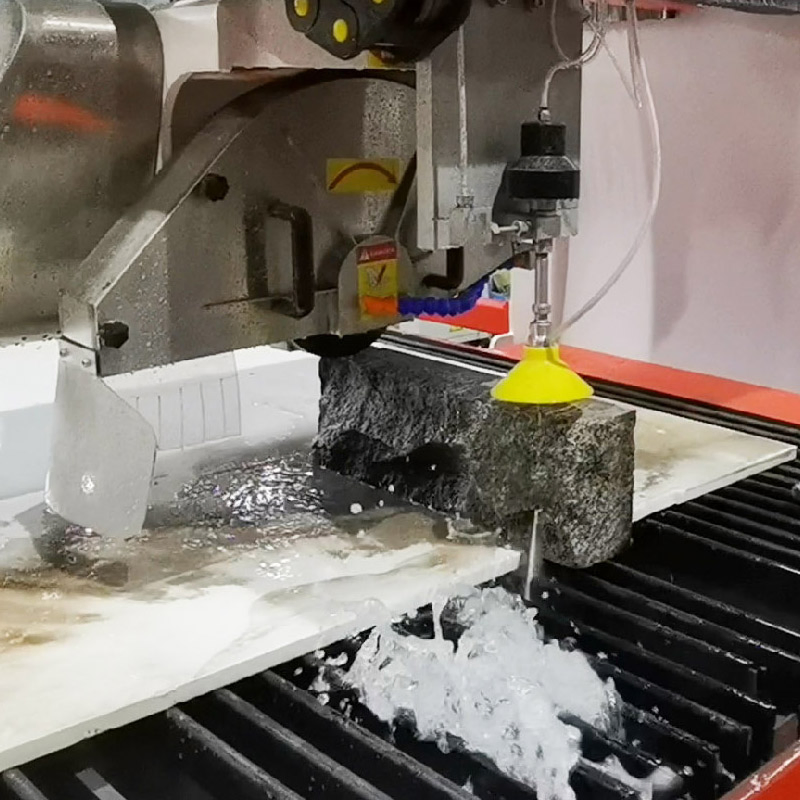

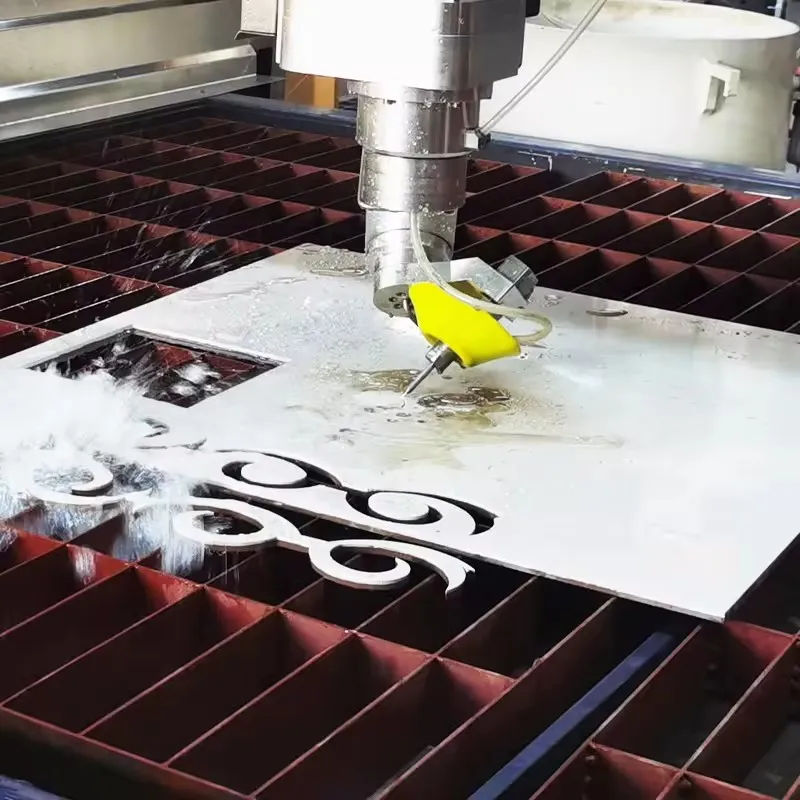

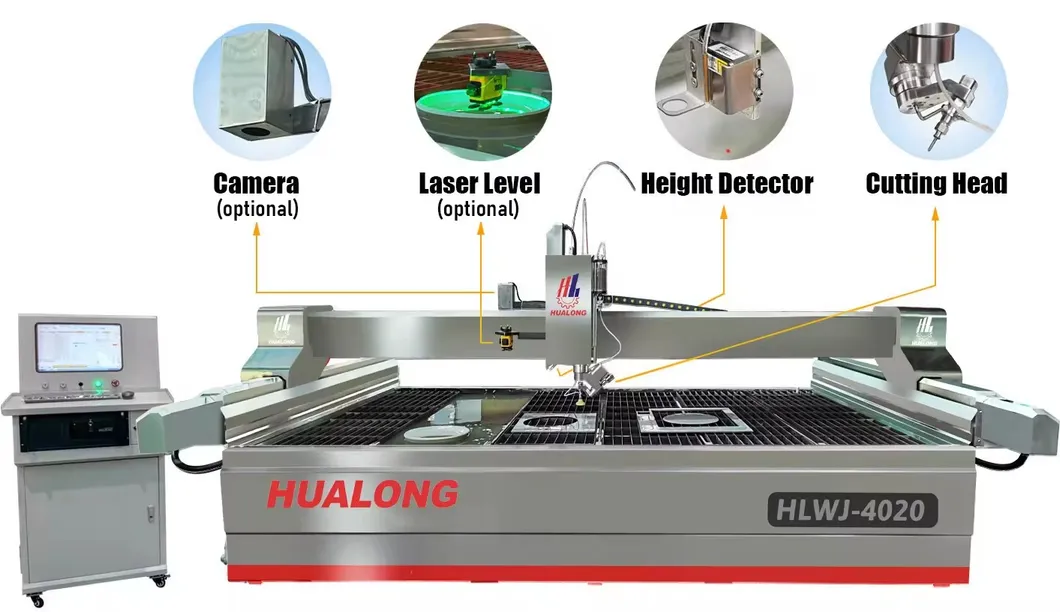

The HLWJ-4020 uses a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material. It is an industrial tool capable of cutting almost any material while maintaining high precision.

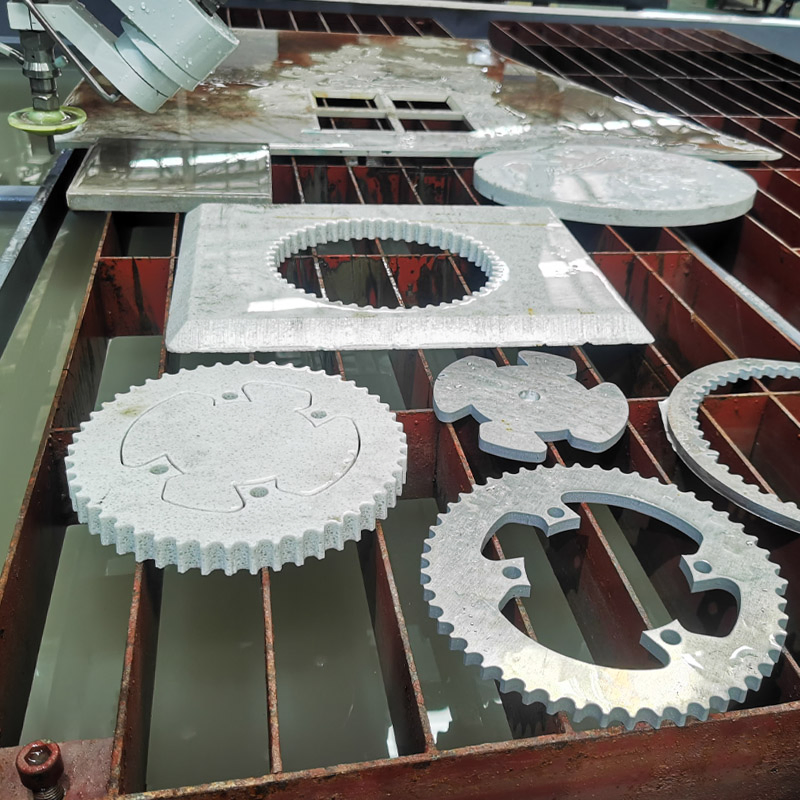

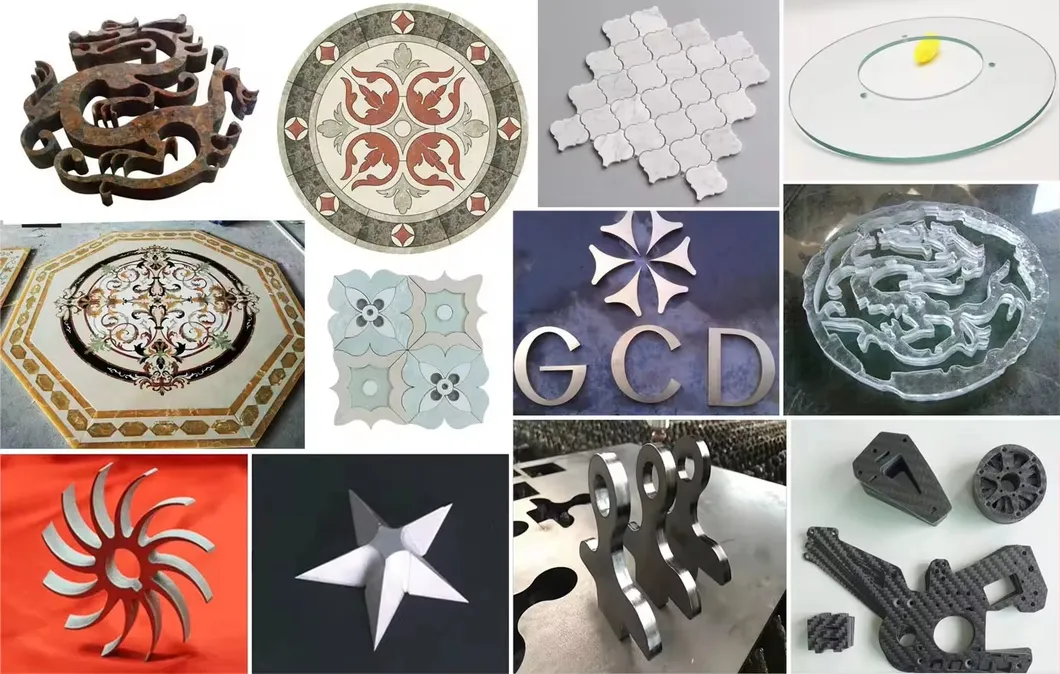

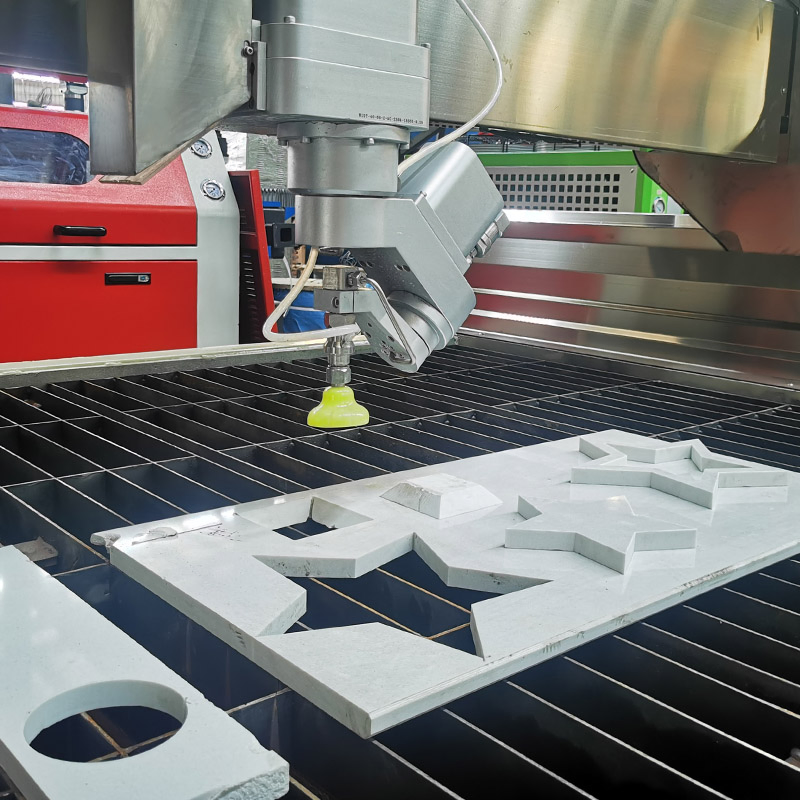

This 5 axis waterjet cutter can cut any angle within +60°, solving traditional water cutting inclination problems and achieving 2D/3D cutting easily. The line cutting accuracy is +0.1mm, and angle cutting accuracy is +0.1°. It is ideal for bevel surfaces, straight surfaces, conical surfaces, and arbitrary complex surfaces.
| Specifications | Unit | HLRC-3020 | HLRC-4020 |
|---|---|---|---|
| Working area | cm | 330*210 | 410*210 |
| X-axis stroke | mm | 3200 | 4000 |
| Y-axis stroke | mm | 2000 | 2000 |
| Z-axis stroke | mm | 80-130 | 80-130 |
| Max. angle of C axis | ° | +/- 360 | +/- 360 |
| Max. angle of A axis | ° | +/- 60 | +/- 60 |
| Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
| Traverse speed | mm/min | 5000/15000 | 5000/15000 |
| Main motor power | kw | 37 | 37 |

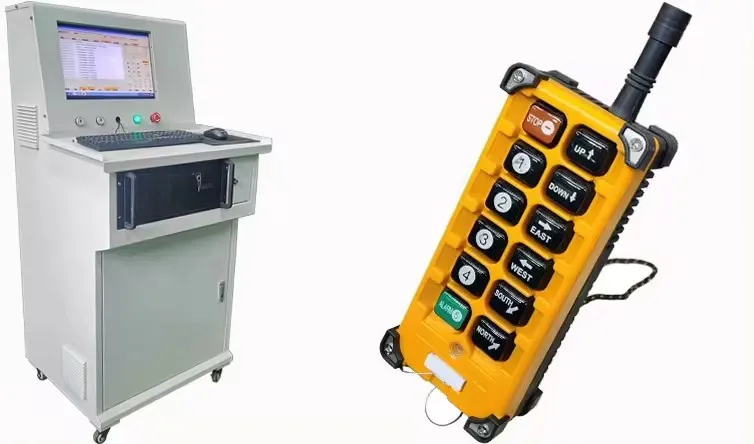

Equipped with NcStudio V10 CNC system, 19" LCD. Compatible with G code, PLT, DXF files from UG, Autocad, CorelDraw, etc.

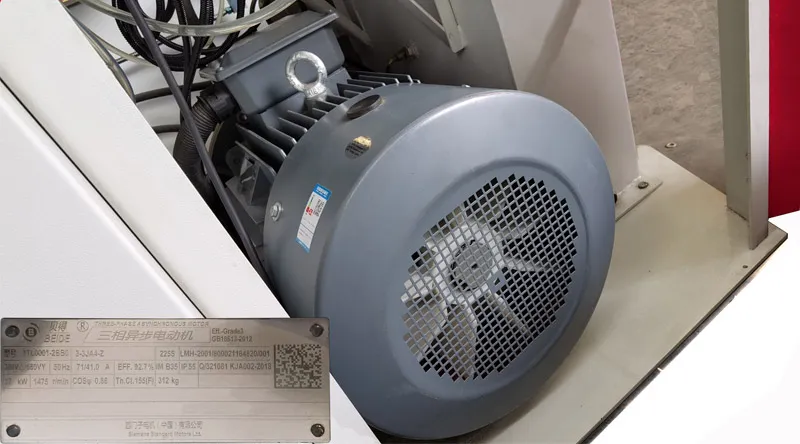

Power: 37 kw; Efficiency: 92.7%. Provides high energy for the high-pressure pump system.

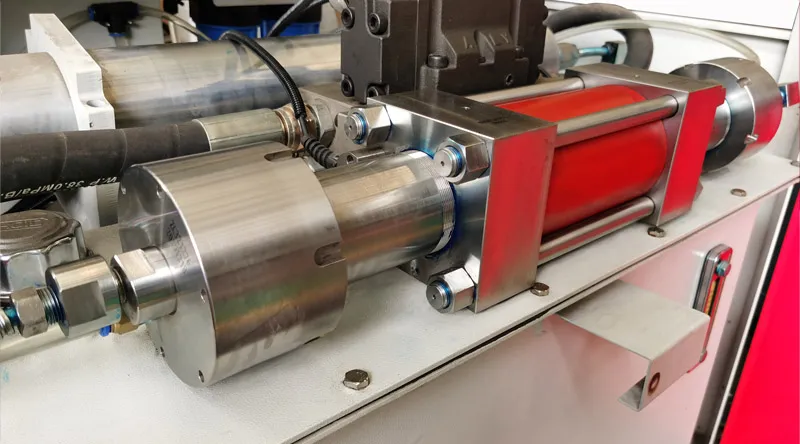

Continuous high-pressure water production. Main parts sourced from Ashcroft, USA for stable performance.

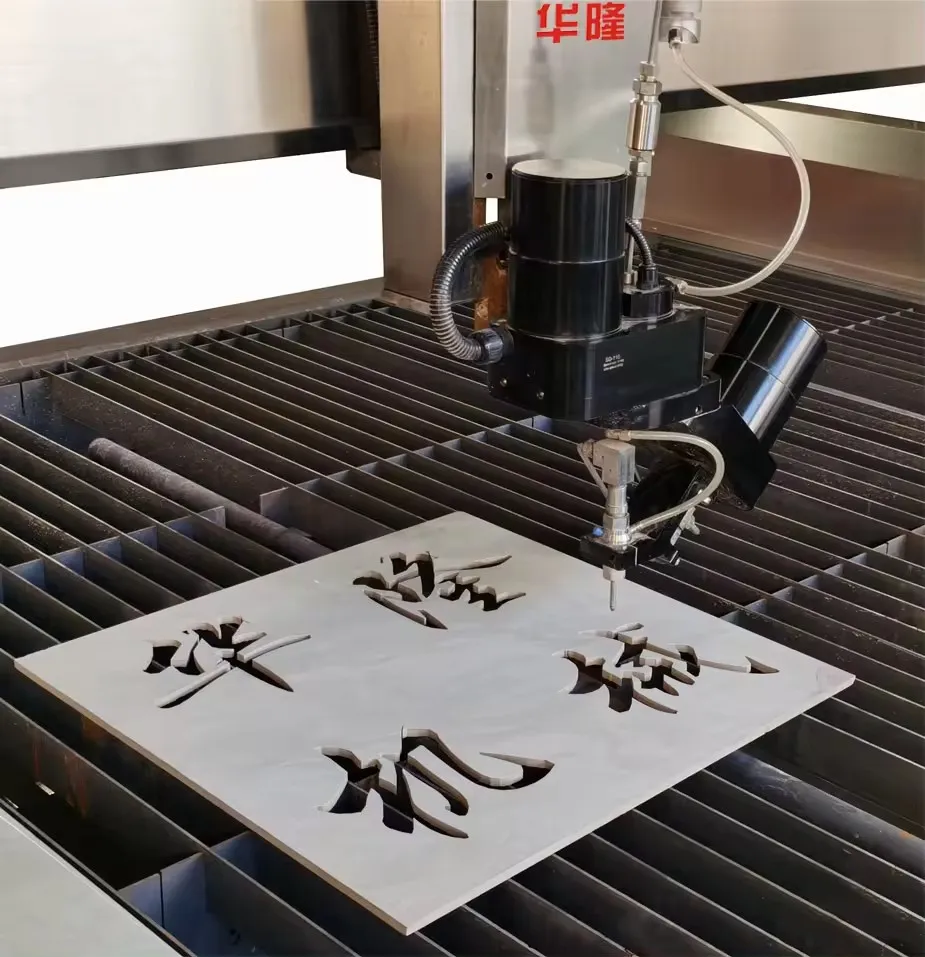

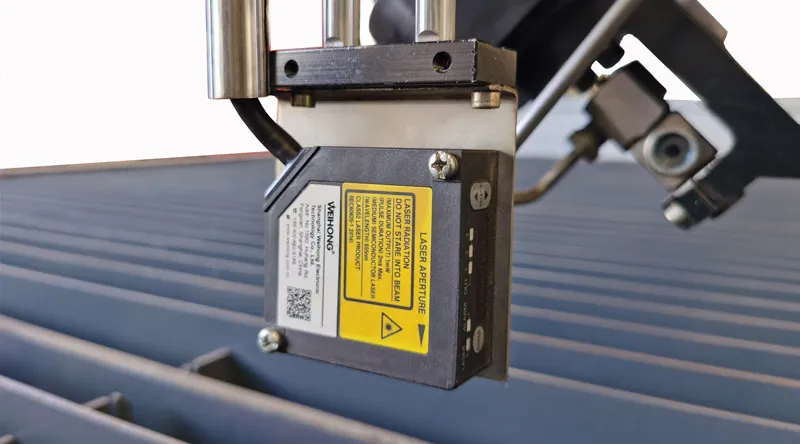

Automatic scanning precision altimeter function. Ensures constant distance between knife head and workpiece surface.
