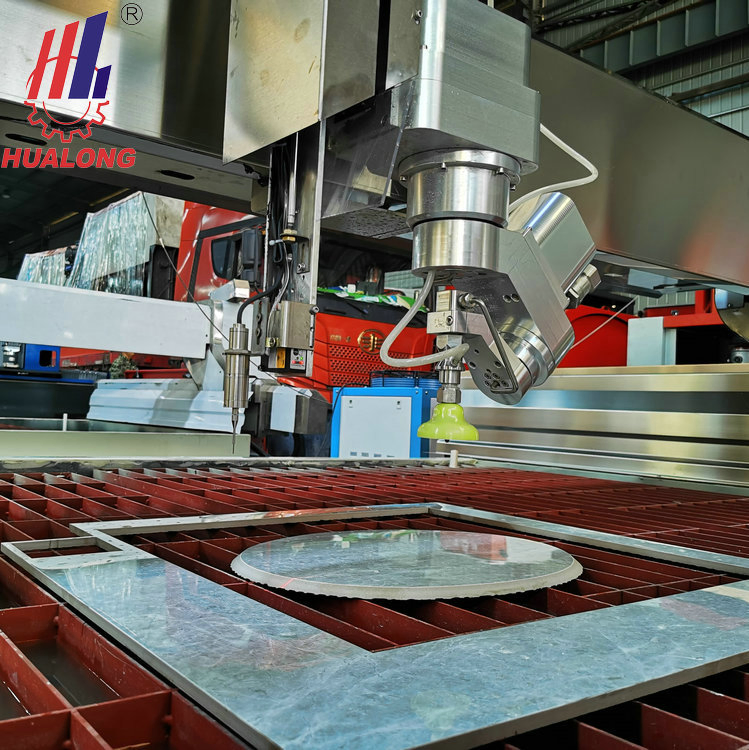

The BCWJ-3020 utilizes a high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in stock material. It is an industrial tool capable of cutting almost any material while maintaining high precision. This 5-axes waterjet cutter can cut at any angle within ±60°, solving traditional water cutting inclination problems and achieving 2D/3D cutting easily. Line cutting accuracy is ±0.1mm, and angle cutting accuracy is ±0.1°.
| Model Parameter | Unit | BCWJ-3020 | BCWJ-4020 |
|---|---|---|---|
| Working area | cm | 330*210 | 410*210 |
| X-axis stroke | mm | 3200 | 4000 |
| Y-axis stroke | mm | 2000 | 2000 |
| Z-axis stroke | mm | 80-130 | 80-130 |
| Max. angle C axis | ° | +/- 360 | +/- 360 |
| Max. angle A axis | ° | +/- 60 | +/- 60 |
| Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
| Repeatable accuracy | mm | +/- 0.05 | +/- 0.05 |
| Traverse speed | mm/min | 5000/15000 | 5000/15000 |
| Main motor power | kw | 37 | 37 |
Adopt imported core parts, durable and safe. Continuous output pressure up to 4137bar (60000psi), sustainable cutting pressure up to 380MPa.

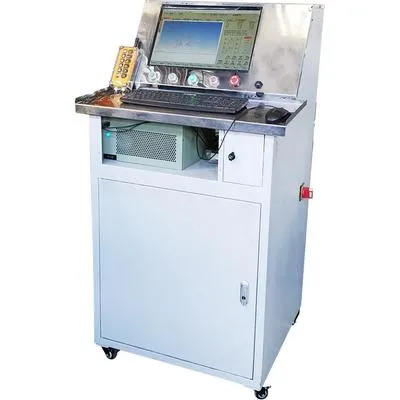

Equipped with NcStudio V10 CNC system, 19" LCD, keyboard and mouse. Compatible with G code, PLT, DXF files from CAD/CAM software.
Features an air valve to prevent jams and auto-control with CNC auxiliary functions for precise flow adjustment.

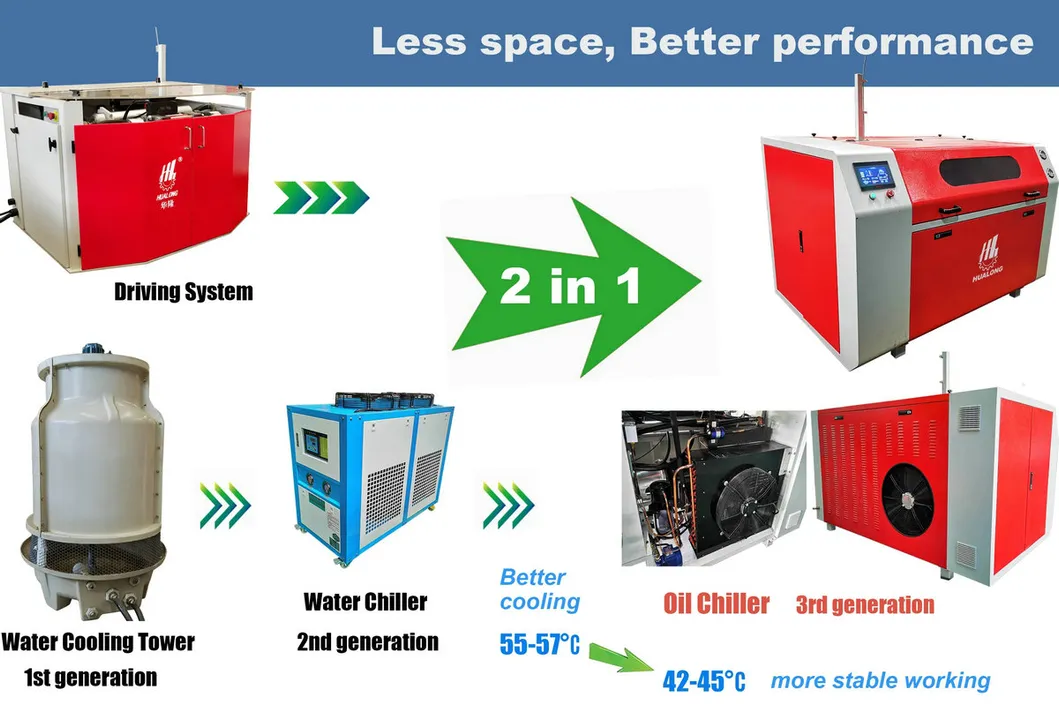

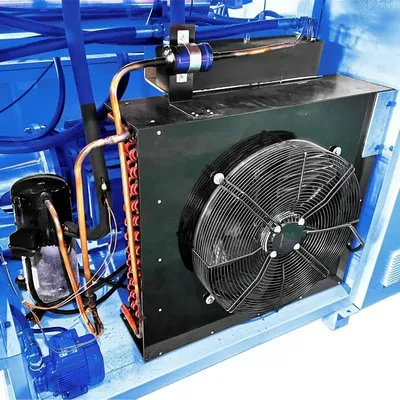

Guarantees the hydraulic system can be used in a circular manner, cooling the system effectively while saving water.

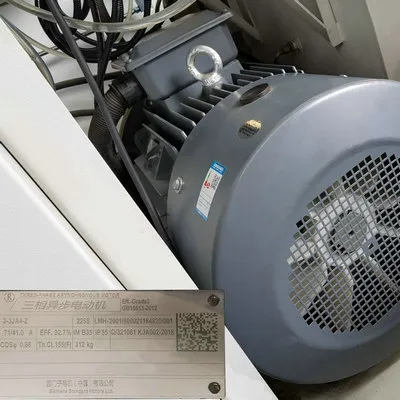

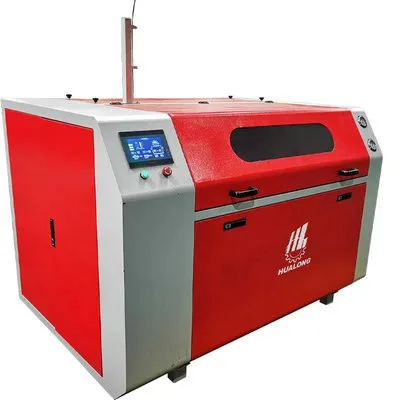

37 kw high-efficiency motor (92.7%) designed to generate motion energy for the high-pressure pump system.

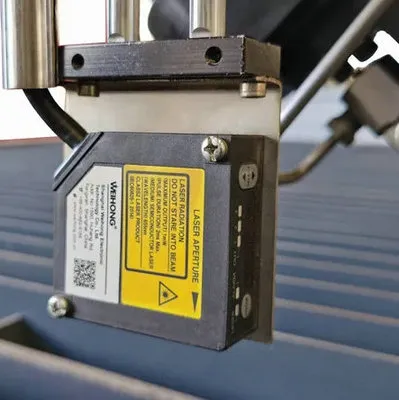

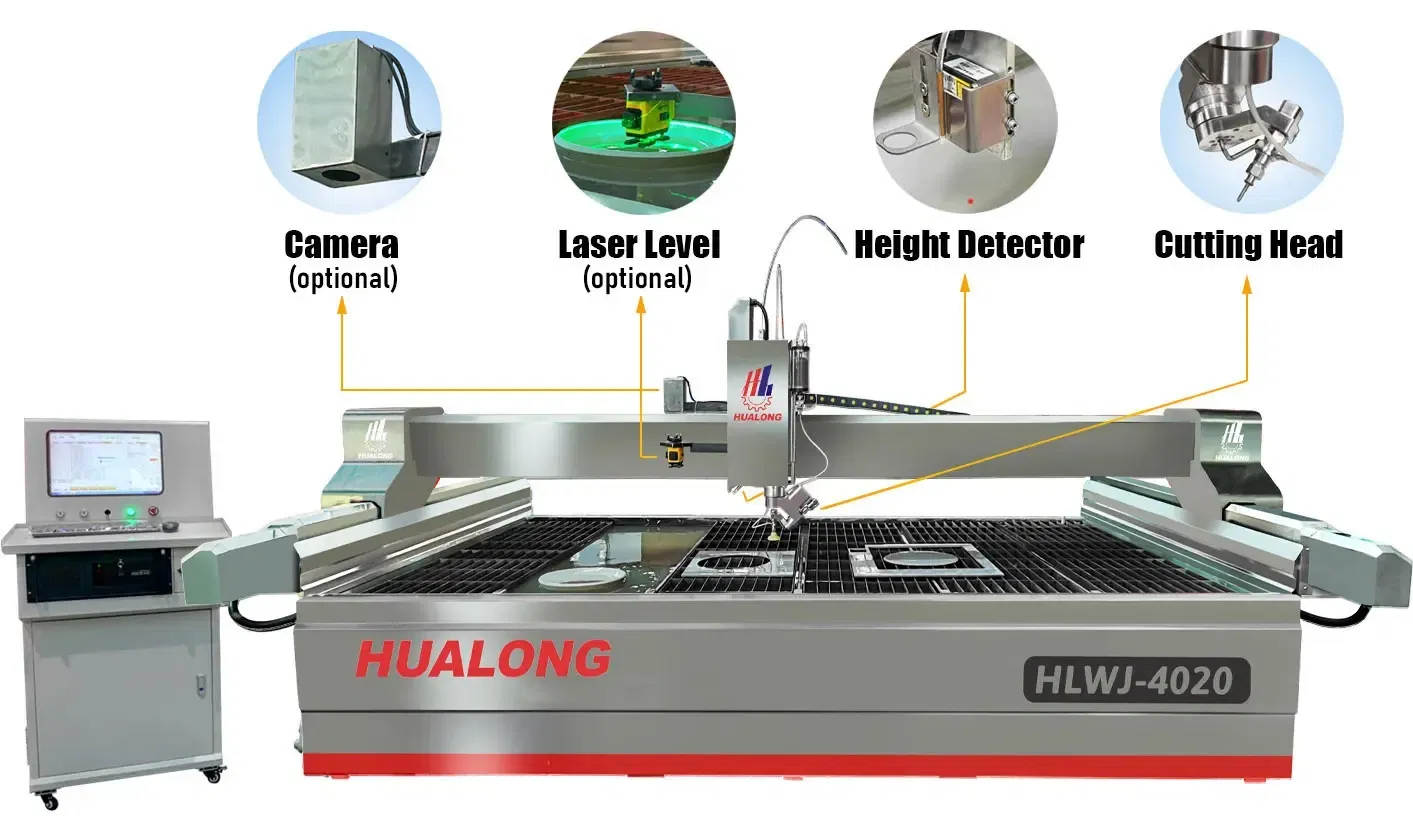

Automatic scanning precision altimeter function ensures the distance between the knife head and workpiece surface remains constant.

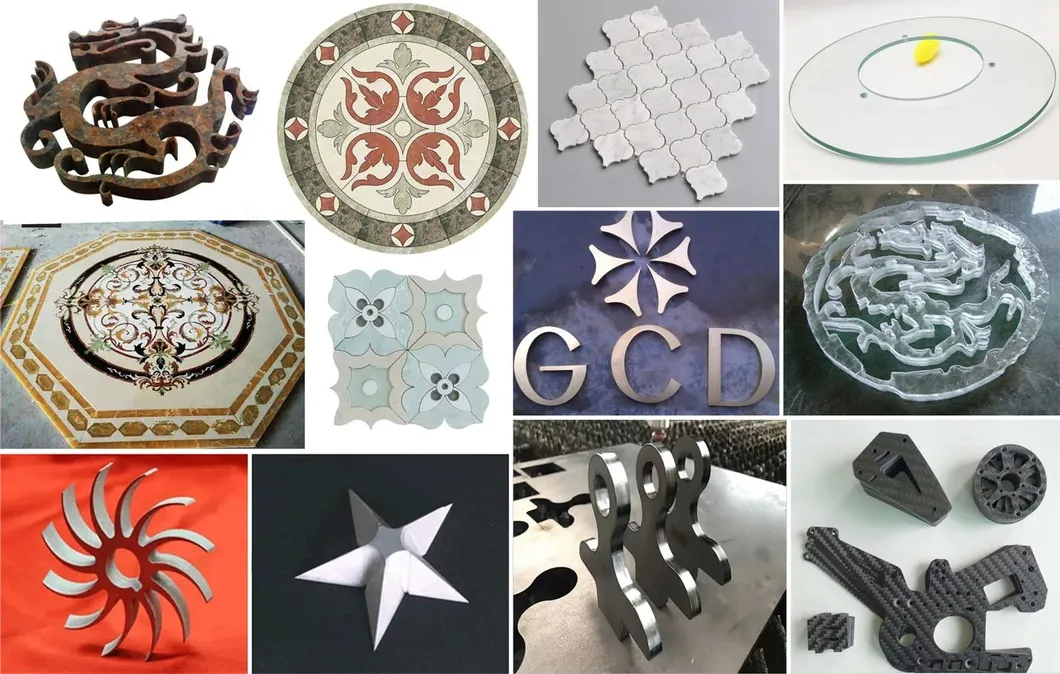

This machine is widely used in Stone/Ceramic industries (countertops, mosaics), Glass industry (automotive, bathroom), Metal industries (stainless steel decoration), and Gasket/Foam cutting.
